Product Description
Product Description
Features:
1.Smart and new design only 20kg with packing.
2.Free shipping by courier.
3.Fast delivery with big quantity machines in stock.
4.Running stable and good cost performance.
5.Your logo could be printed on.
6.Easy operation and maintenance free.
7.Could widely used in metal and some non-metal marking.

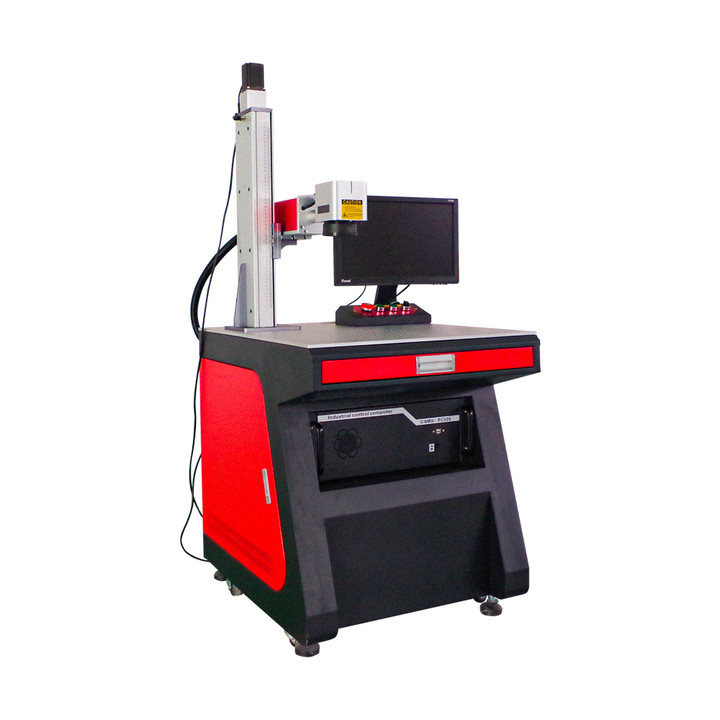

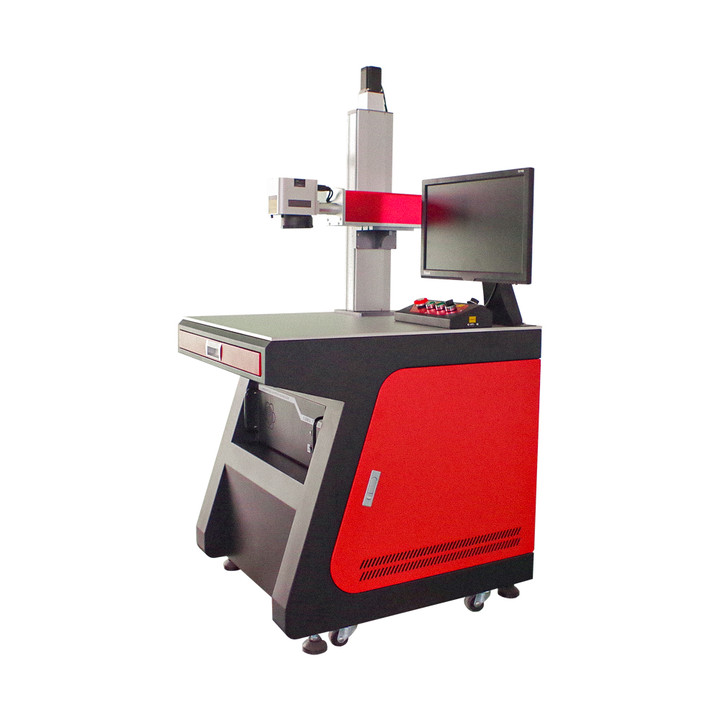

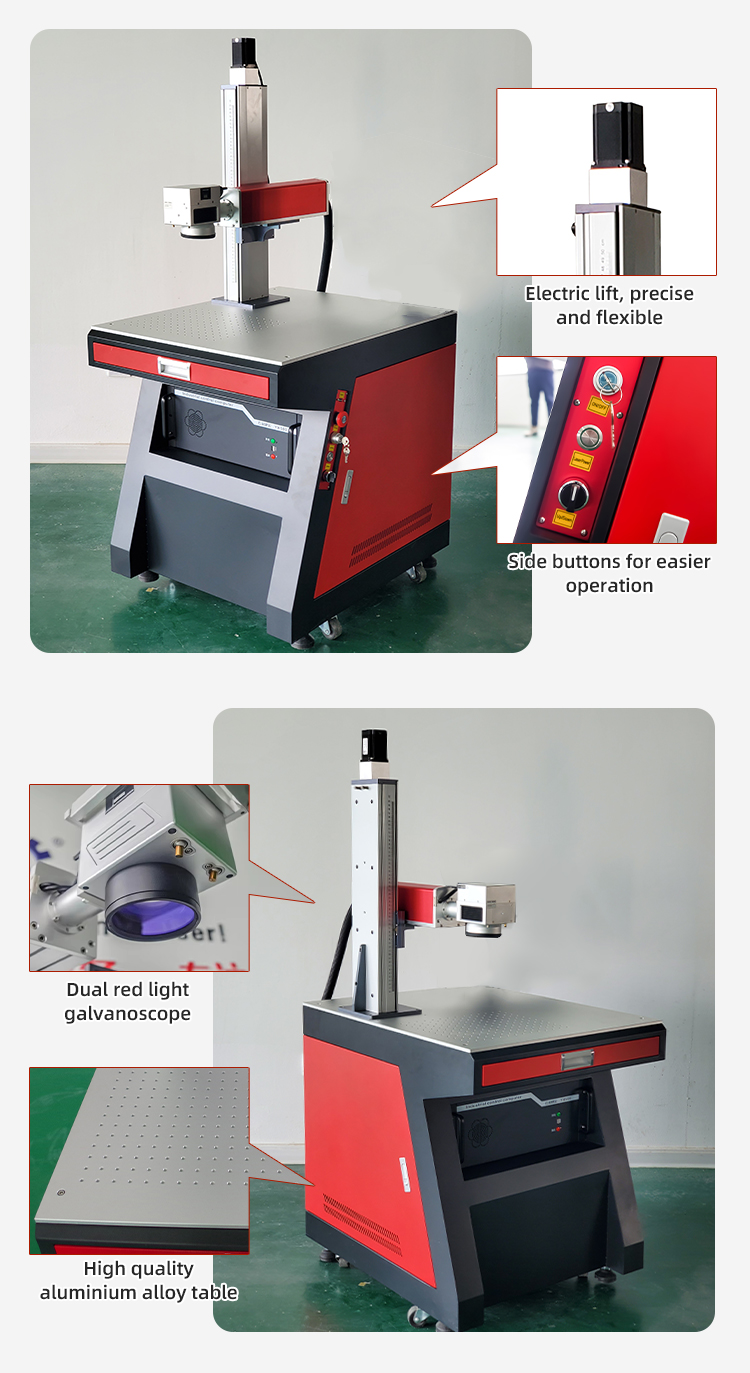

Product Details:
Machine Reference Parameters:
| Model | RF-F-20W | RF-F-30W | RF-F-50W |
| Laser output power | 20W | 30W | 50W |

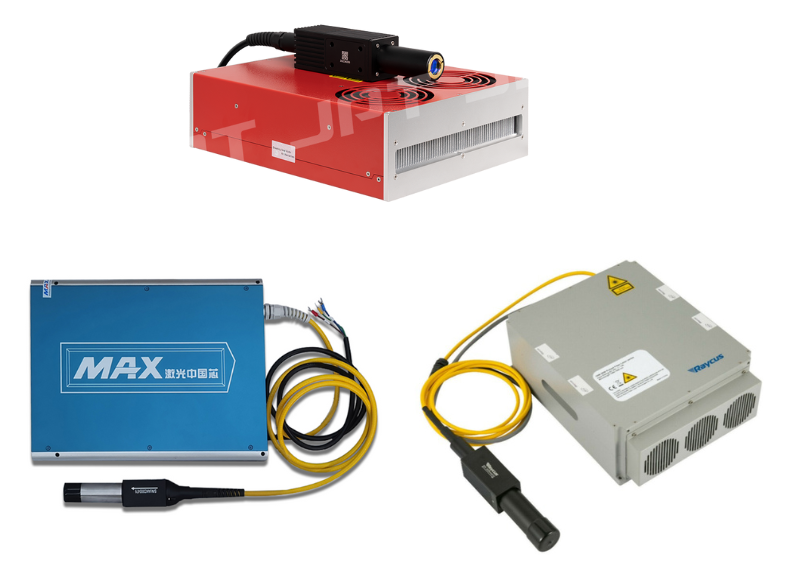

| Laser source band | RAYCUS | ||
| Laser wavelength | 1064nm | ||
| Laser beam quality | <1.6 | ||
| Max pulse energy(mj) | 1 | ||
| Pulse duration(ns) | 90-110@20KHZ | 120-150@30KHZ | 120-150 |
| Pulse repetition rate range(KHZ) | 20-60 | 30-60 | 50-100 |
| Min. Character size | 0.2mm | ||
| Repetition Accuracy | <8μrad | ||
| Power consumption | 170W | ||
| Cooling type | Air cooling | ||
| Marking area | 70*70-200*200mm | ||
| Max working speed | 8000mm/s | ||
| Laser spot (110x110) | 25.4μm | ||
| Graphic Format Supported | AI, PLT, DXF, BMP, Dst, Dwg, LAS, DXP | ||
| Mode of Operation | Pulsed | ||
| Certification | CE | ||
| Warranty | 2 years | ||
| Supply voltage | AC110V 60HZ / AC220V 50HZ | ||
| Focus type | Double red light | ||

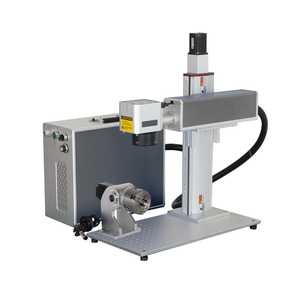

Optional accessories

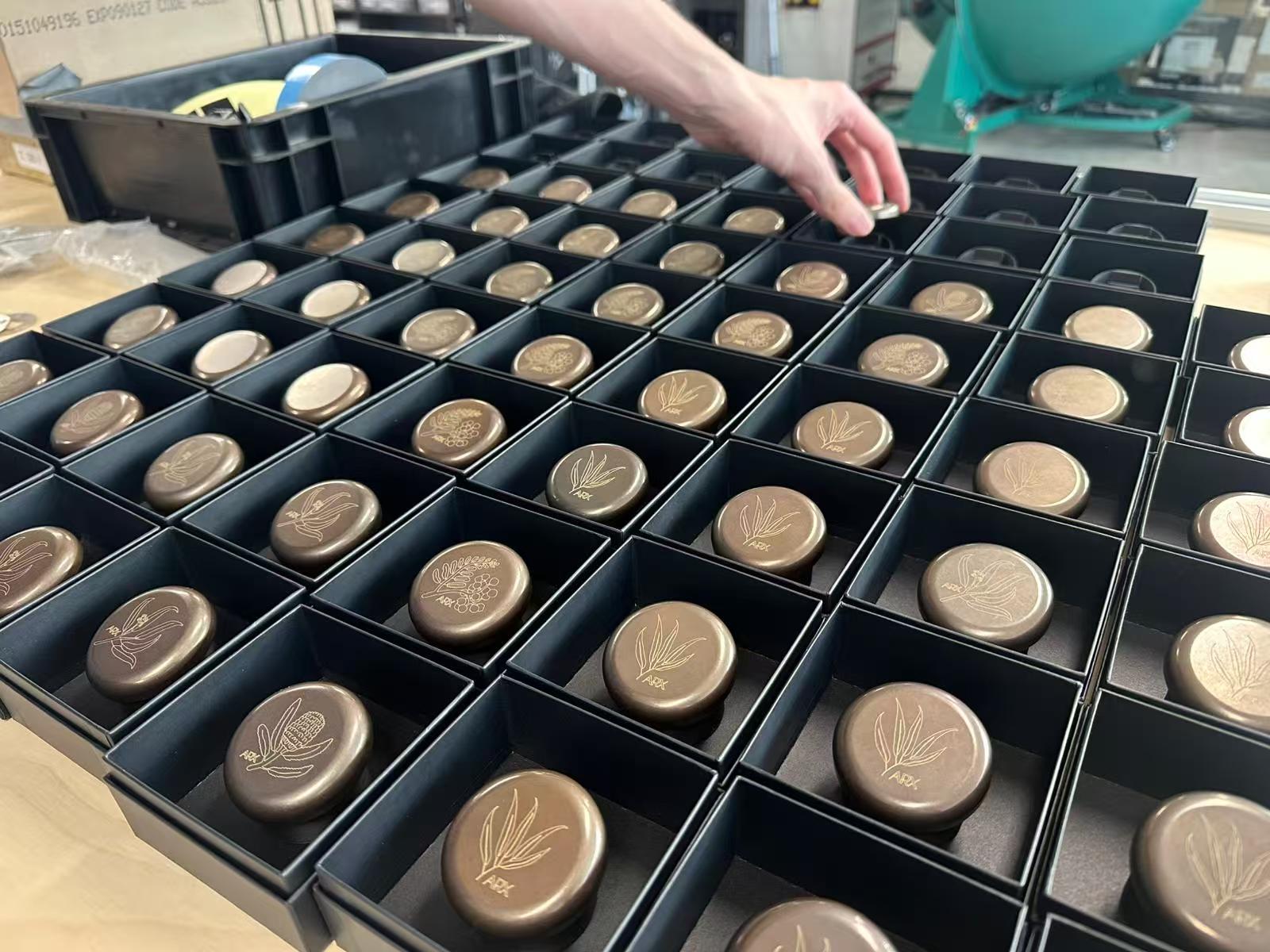

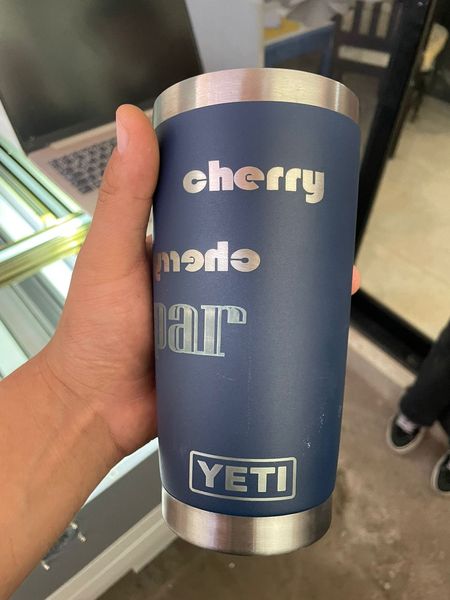

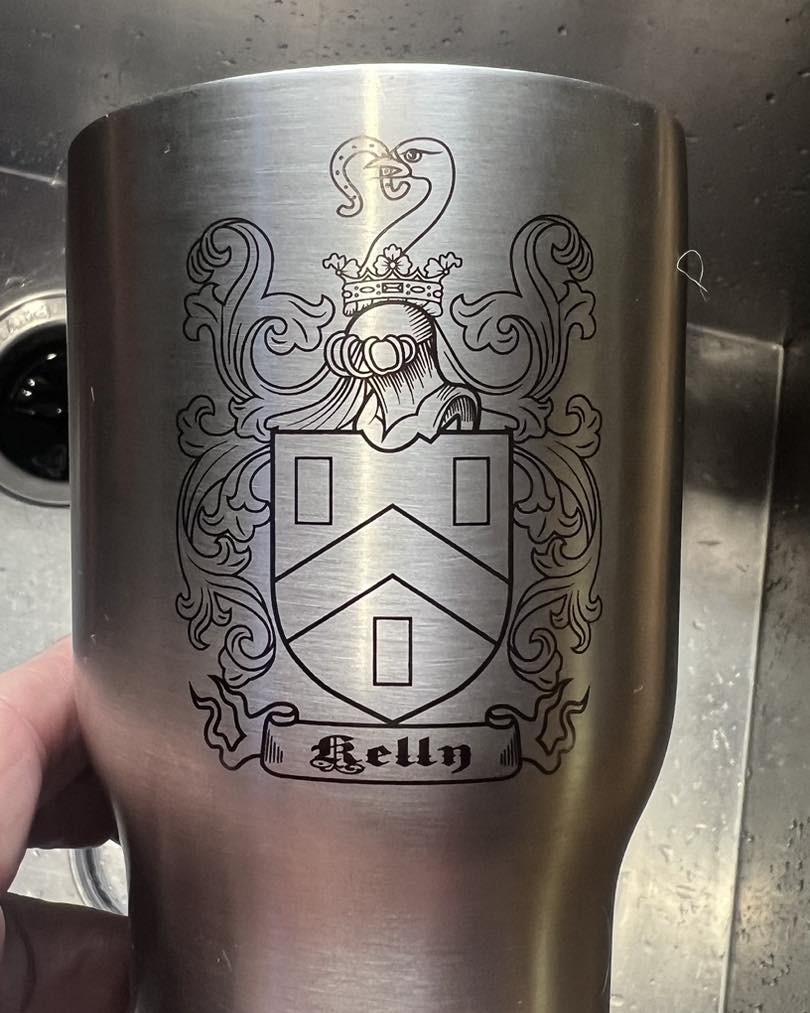

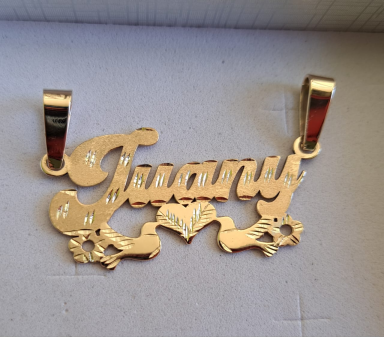

Samples
Packing and Shipping
1.Multi-layer winding film, strong winding, transport does not shake.
2.Thick paper box, manual sealing.
3.Adopt the best pearl cotton to reduce the vibration during transportation.
4.After sealing the case, use the steel belt to seal the Angle and affix the corresponding shipping mark.
5.We have a variety of delivery methods, machine parts, 40-80kg machine can be considered express and air freight. Large machines and more than one machine are recommended to be transported by sea or train.
We will give away the following products for free：
| 1 | Inner Hexagon |
| 2 | Foot Switch |
| 3 | Power Cable |
| 4 | USB Flash Drive |
| 5 | Goggles |
| 6 | 60CM Ruler |
| 7 | Laser Inspect Report |
Our Service
1. We provide customized equipment service for customers' individual needs.
2. Provide detailed operation manuals and training videos to make it easier for customers to master the use of equipment and techniques.
Provide free remote technical support services to solve the problems encountered by customers in the process of use.
3. For equipment failure, we promise to provide customers with fast response maintenance service. Provide customers with regular knowledge
and guidance on the use and maintenance of equipment
4. To provide customers with high quality after-sales guarantee of consumables and accessories to ensure the normal operation of customers'
equipment. Establish perfect service files for customers, track the use of equipment, and understand the needs of customers in real time,
so that we can respond to requests.
5. To ensure customer satisfaction is our ultimate goal, we will take customer suggestions and feedback seriously and continuously improve
our after-sales service.
