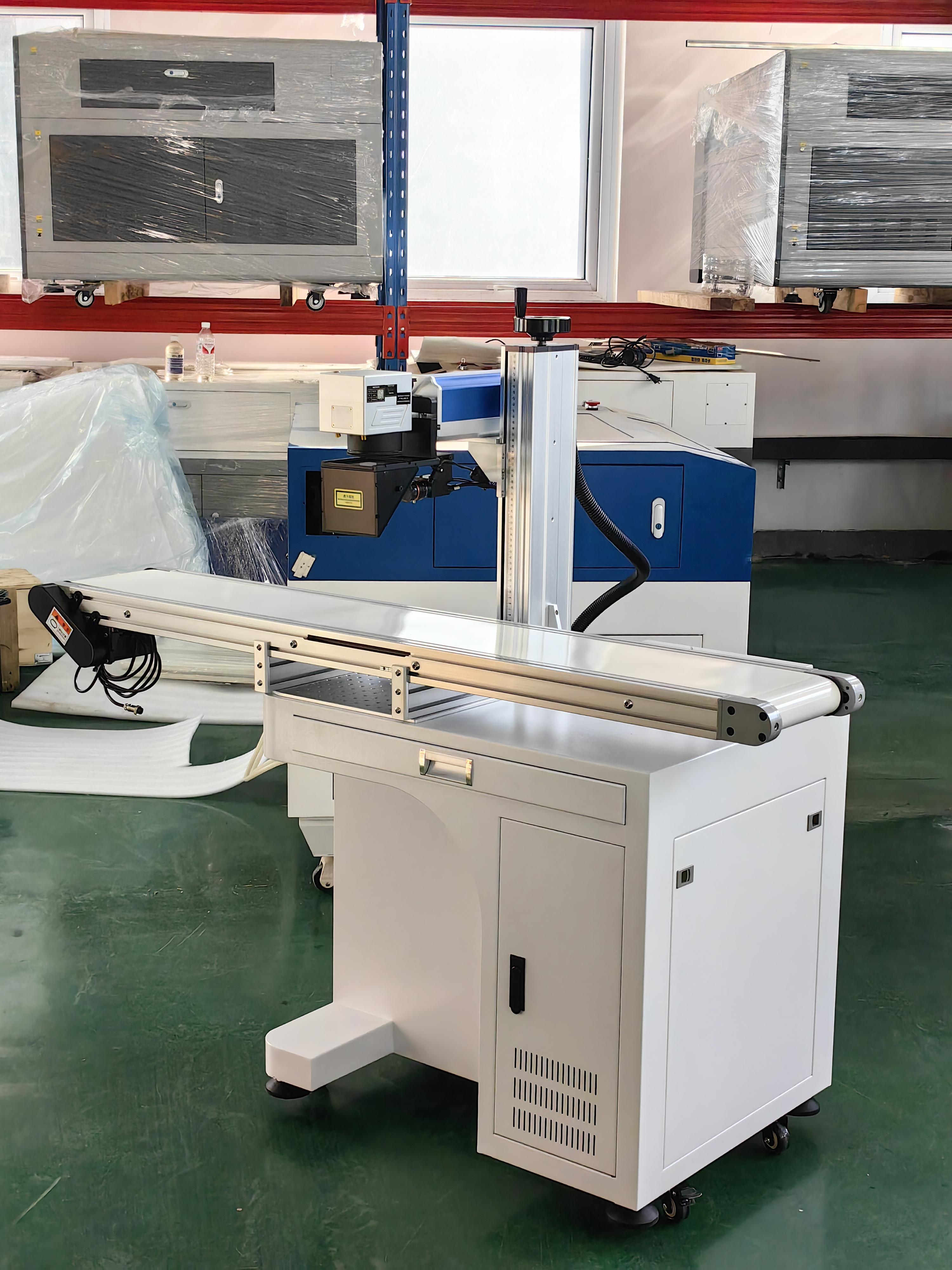

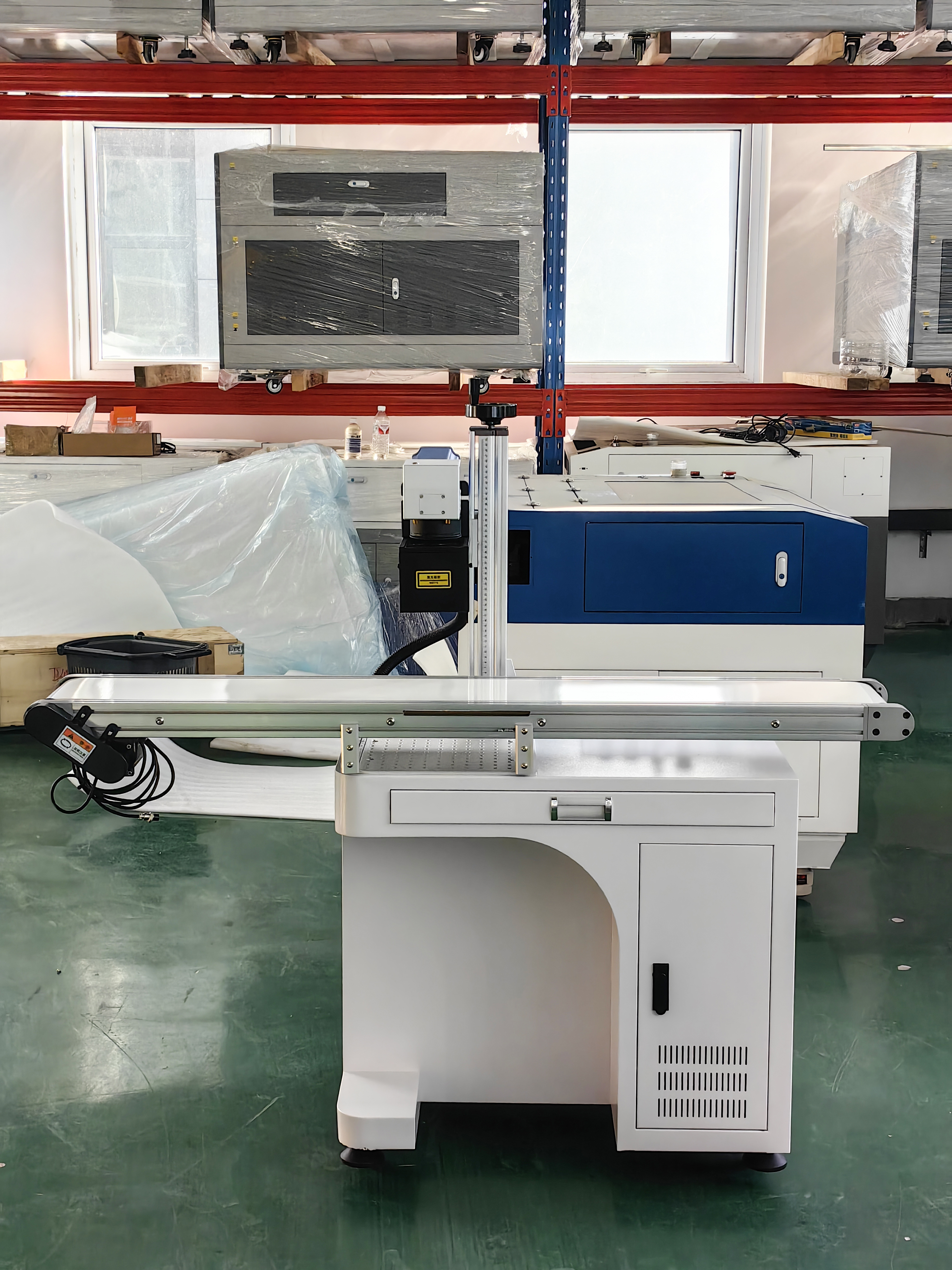

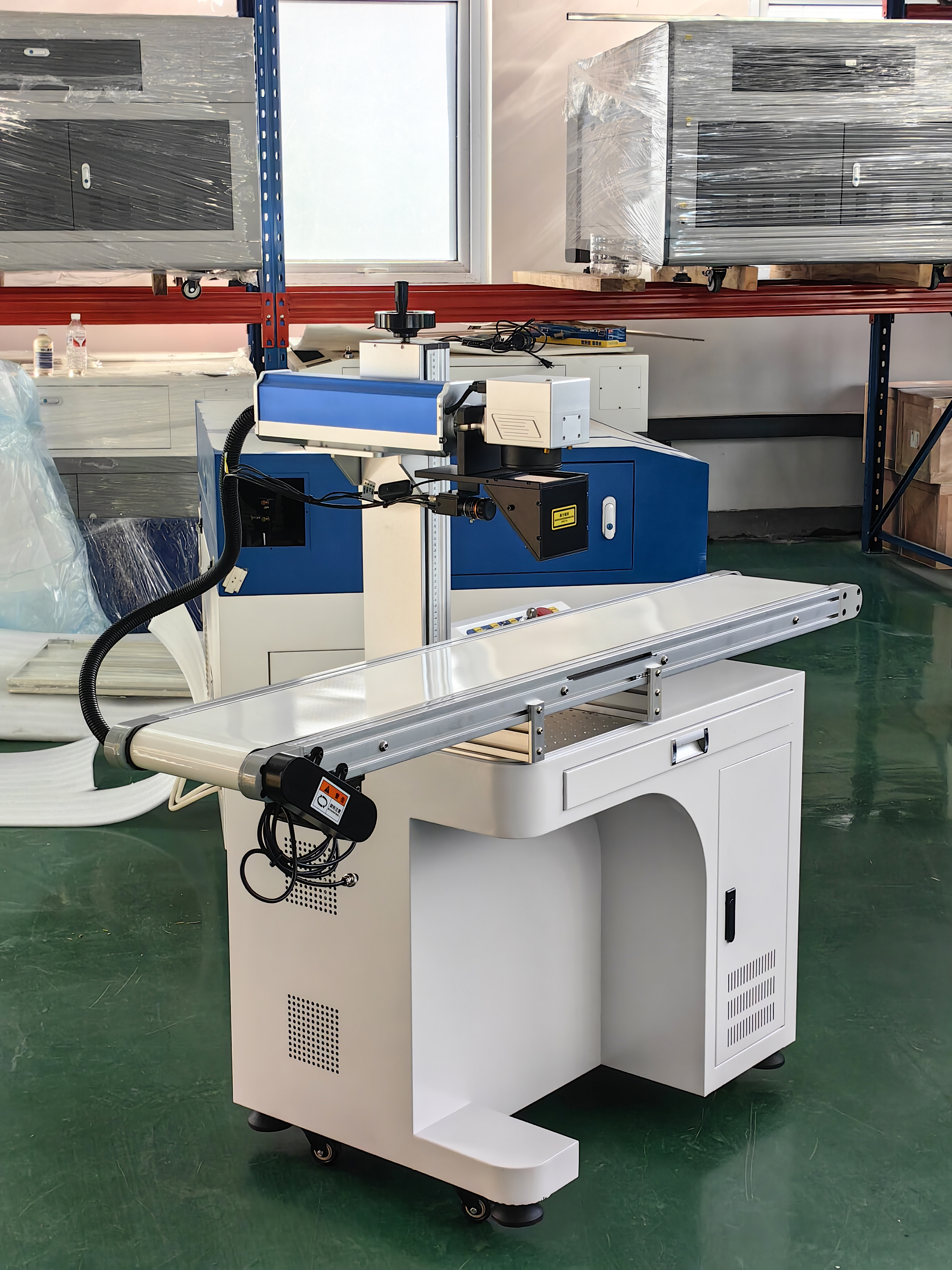

Desktop 50W 60W 80W CCD Camera Fiber Laser Marking Machine For Factory Assembly Lines Online Marking

Desktop 50W 60W 80W CCD Camera Fiber Laser Marking Machine For Factory Assembly Lines Online Marking

With the CCD visual positioning system, the machine can automatically and accurately recognize the position of the item and proceed to the engraving. Suitable for batch engraving of small objects.

Quantity:
Power:	50W 60W 80W
Availability:





Inquire Add to Basket

Product Description

Picture a late shift in an assembly workshop: bins of tiny components, a moving belt, and the constant pressure of output targets. Traditional marking setups ask your operator to “line it up perfectly” every time—eyes squinting at edges, hands nudging parts by millimeters, re-running jobs when the mark drifts. That’s where vision positioning changes the feel of the work.

This machine uses a CCD camera to capture the part position, then the software compares it to a prepared template and automatically calculates the marking location. Instead of the loud stop-start rhythm of manual alignment, the process becomes calmer and more repeatable: the belt feeds, the camera sees, and the mark lands where it should—again and again. You can run it as a compact desktop unit, but with the logic of a production station: fewer pauses, fewer corrections, less scrap, and a smoother handoff between operators.

It is designed for marking metal and some non-metal materials and is especially practical for large quantities of small workpieces, where consistency matters as much as speed.

Features and Highlights

CCD visual positioning reduces operator dependence
Automatic identification and positioning helps reduce deviation caused by manual alignment.
Conveyor-ready workflow for batch efficiency
Built to cooperate with conveyor belt feeding, improving speed and stability for continuous runs.
Template-based marking for repeat orders
Image comparison and compensation support repeatable marking for part families and mixed batches.
One-person operation and faster training
Easier to standardize across shifts, reducing the need for highly experienced “alignment-only” operators.
Fiber laser marking for crisp, durable identification
Suitable for serial numbers, logos, codes, and data marks on production components.

1.CCD vision camera,automatic identification and automatic positioning.

2.Improve engraving speed and efficiency with conveyor belt.

3.Production line marking possible.

4.Suitable for marking large quantities of items.

5.Accurate calculation and less deviation.

6.Single person can complete the whole operation.

7.Could widely used in metal and some non-metal marking.

Application advantages of assembly line visual laser marking machine:

It is suitable for occasions with large workload, difficult feeding positioning, simplified procedures, diverse workpieces and complex curved surfaces. It is widely used in various industries.

Principle of CCD visual laser marking machine ：

First, make a template for the product and save it as a standard template.

Then the ultra-high-definition scanning camera takes pictures of the product during processing.

By computer comparison and position positioning, the product can be processed accurately after adjustment.

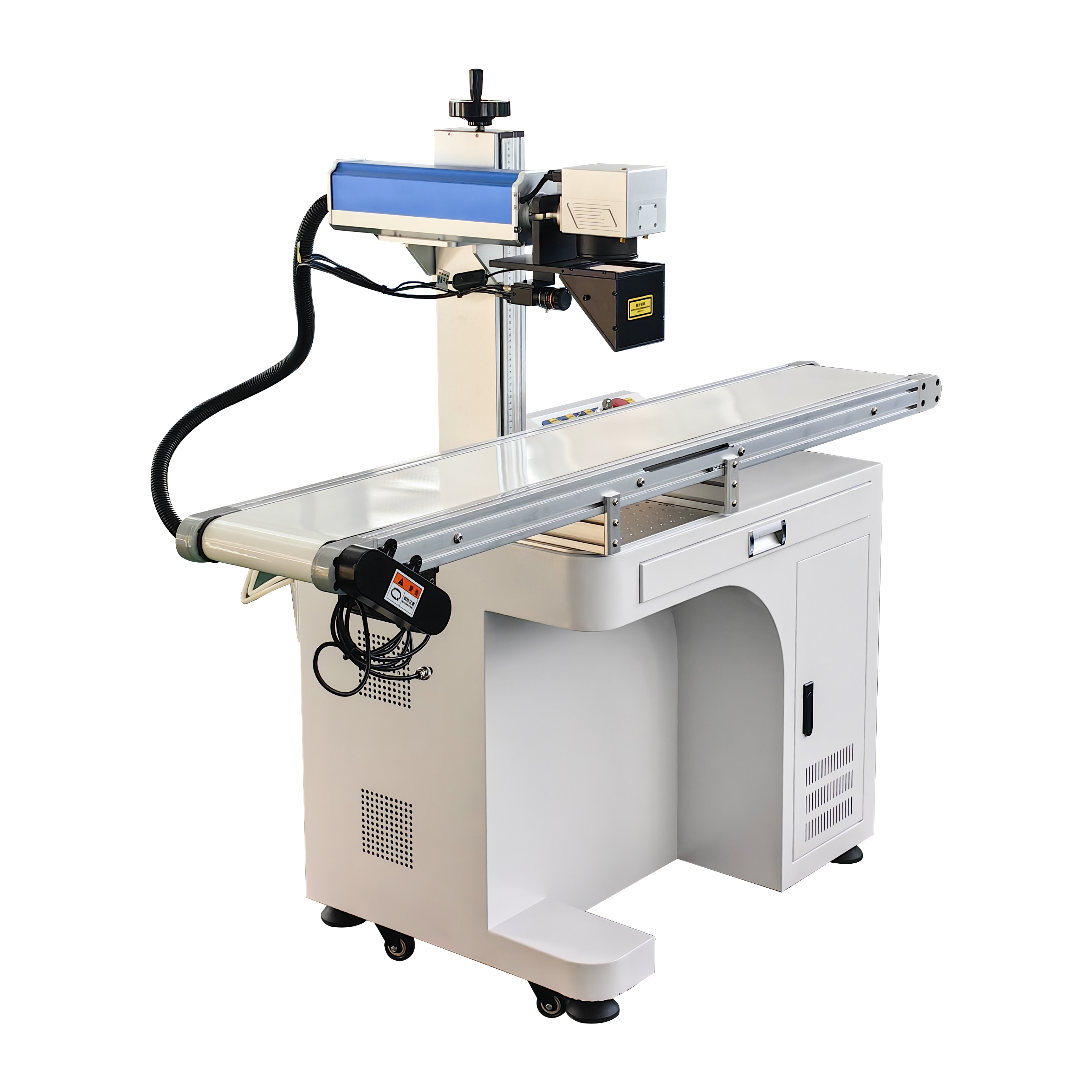

Desktop 50W 60W 80W CCD Camera Fiber Laser Marking Machine

Main Configurations

Introduction

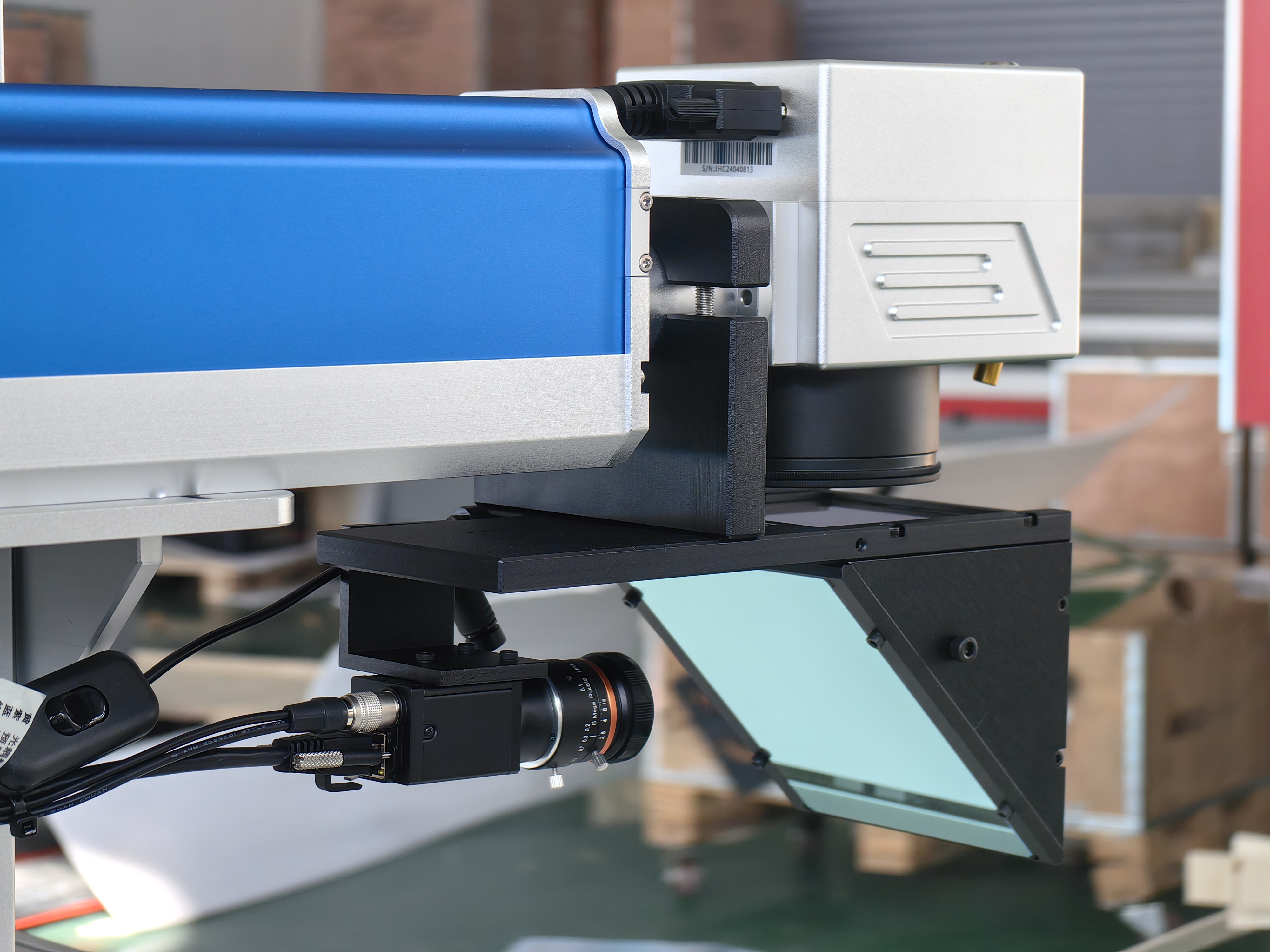

CCD camera

- Automatic identification and precise positioning.
- Accurate calculation, smaller deviation.
- It can cooperate with the conveyor belt to improve the carving speed and efficiency.
EZCAD2 Control card

- Genuine EZCAD2 control system compatible with win7/8/10.
- Stable motion control, laser control is correspondingly fast.
Field Lens

- Working near the focal plane of the objective lens can effectively reduce the detector size.
- Improve the ability of the edge beam incident into the detector.

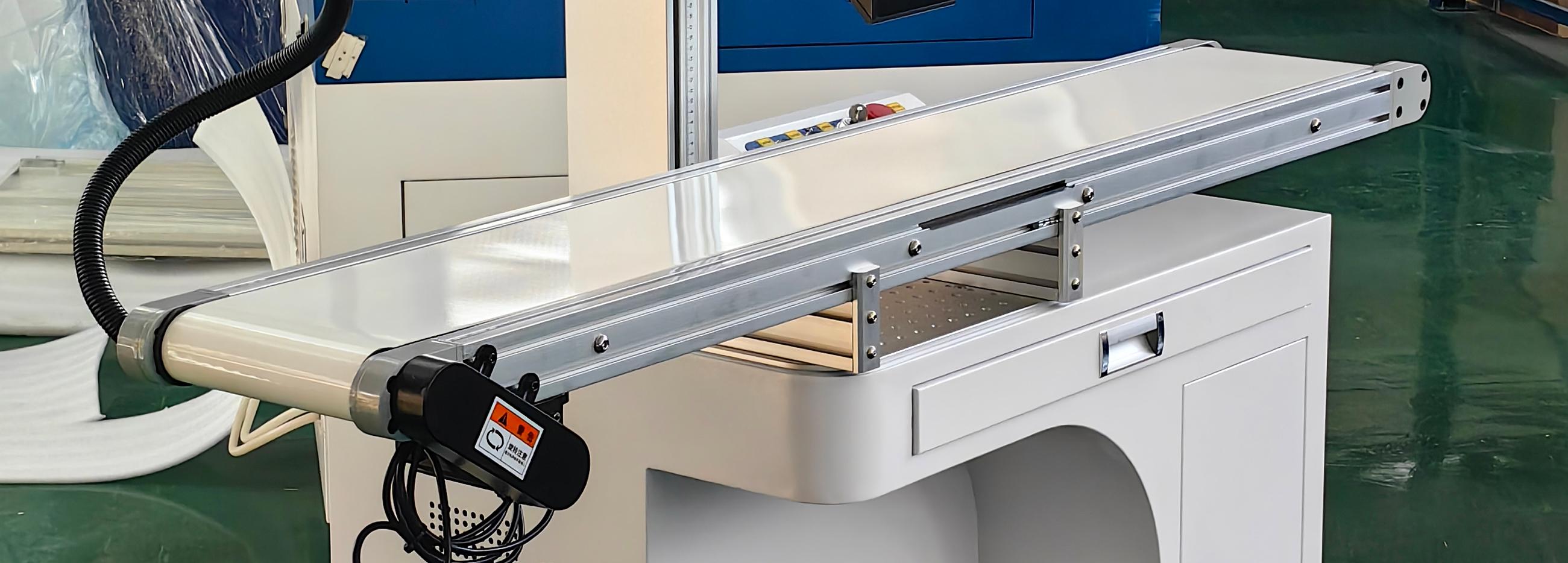

Conveyor belt

Designed specifically for use with CCD camera, greatly improving work efficiency.

Parameters

Model

RF-F-60W/80W/100W

Laser output power

60W/80W/100W

Laser wavelength

1064nm

Laser beam quality

<1.5/1.6

Max pulse energy(mj)

1.5

Pulse duration(ns)

2-500

Pulse repetition rate range(kHZ)

1-4000

Min. Character size

0.2mm

Repetition Accuracy

<8μrad

Power consumption

170W

Cooling type

Air cooling

Marking area

75-300mm（option）

Max working speed

8000mm/s

Controller

Computer with marking software

Graphic Format Supported

AI/PLT/DXF/BMP/JPG/PNG/Dst/Dwg/LAS/DXP

Mode of Operation

Pulsed

Certification

Supply voltage

AC110V 60HZ / AC220V 50HZ

Applications

FAQ

FAQs

Q1: How to choose machine?

A1: You can tell us your working material, detail work by picture or video so that we can recommend the most suitable model for you.
Q2: Are you a factory or trading company?

A2: We are the manufacturer. as only the machine made by ourselves, quality can be trusted, and most important thing is we can do better service after sales. We know how to fix the problem in each parts easily. So welcome to visit to our factory.
Q3: What's the payment term?

A3: We accept: TT, Alibaba trade assurance order etc. 100% of total amount in advance Or 30% deposit in advance and 70% balance before delivery.
Q4: How about the delivery time?

A4: For normal machines we can send out the machine within 5-7 days after receive the full payment. For non standard machines and customized machines according to client's specific requirements, it would be 15 to 30 days.
Q5: How can i know your machine is work well?

A5: Before delivery , we have tested every machine and shoot some test video for you. If you have special production condition , we can adjust machine for you according to your work requirements.
Q6: How can i get support from you ?

A6: Our engineers are online for 24 hours, they can check the problems and give you solution very soon. If you don't know how to use the machine, We have English manual and CD video for machine using and maintaining , that will be delivery with machine. And we supply service through email, telephone, online, WhatsApp skype etc. Or If you're interesting come to China, we will offer you free training until you can use machine freely.
