Closed Type Large Format 800x800mm Work Area Fiber Laser Marking Machine

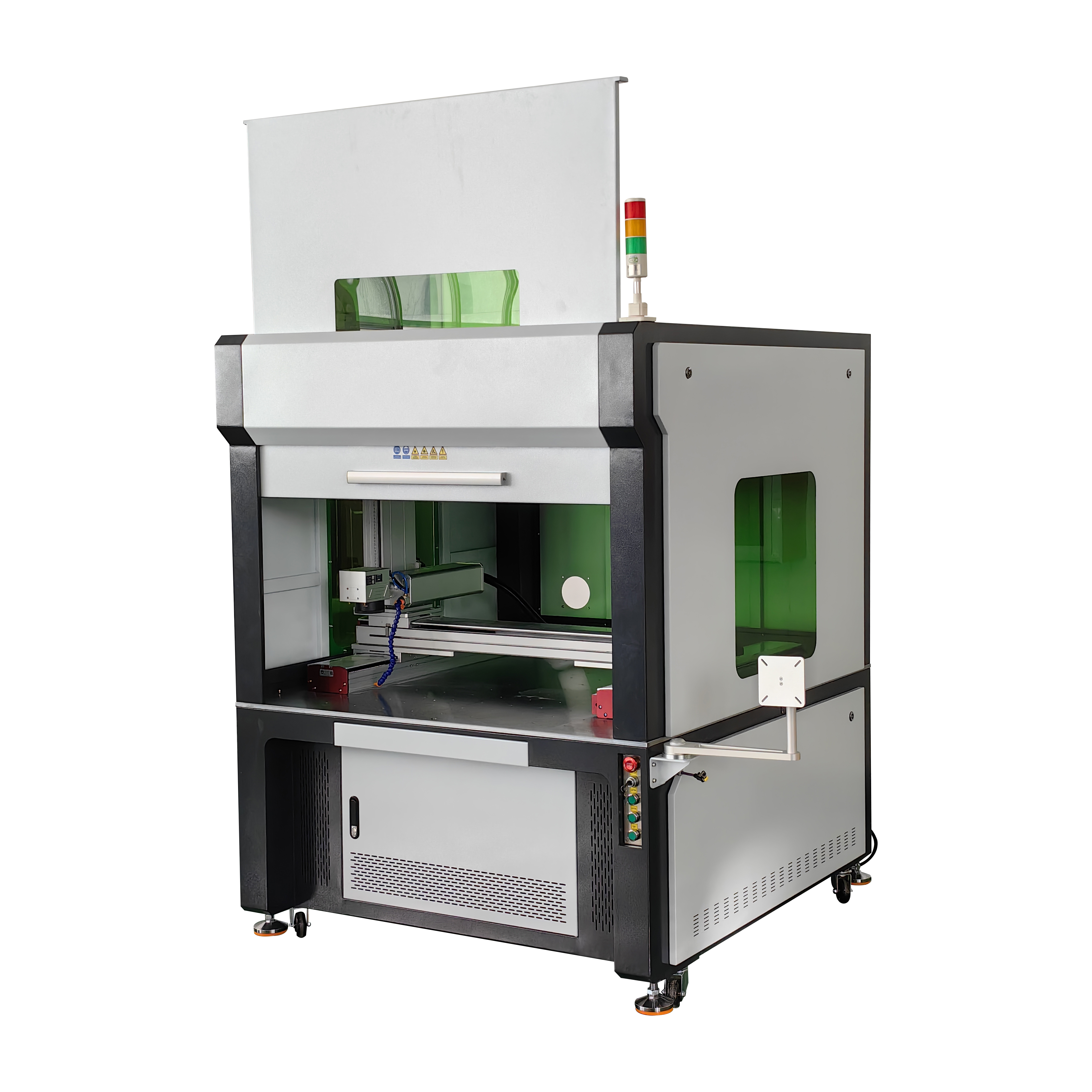

Closed Type Large Format Fiber CO2 UV Laser Marking Machine 800x800mm Work Area

Quantity:
Type:	UV Laser Fiber Laser CO2 Laser
Availability:





Inquire Add to Basket

Product Description

# 800x800mm extra-large working area Easily handle oversized materials or multiple workpieces at once - no repositioning or multiple cycles.

# Dynamic marking technology Supports the "moving marking" function, providing clear and consistent results even on large or long workpieces.

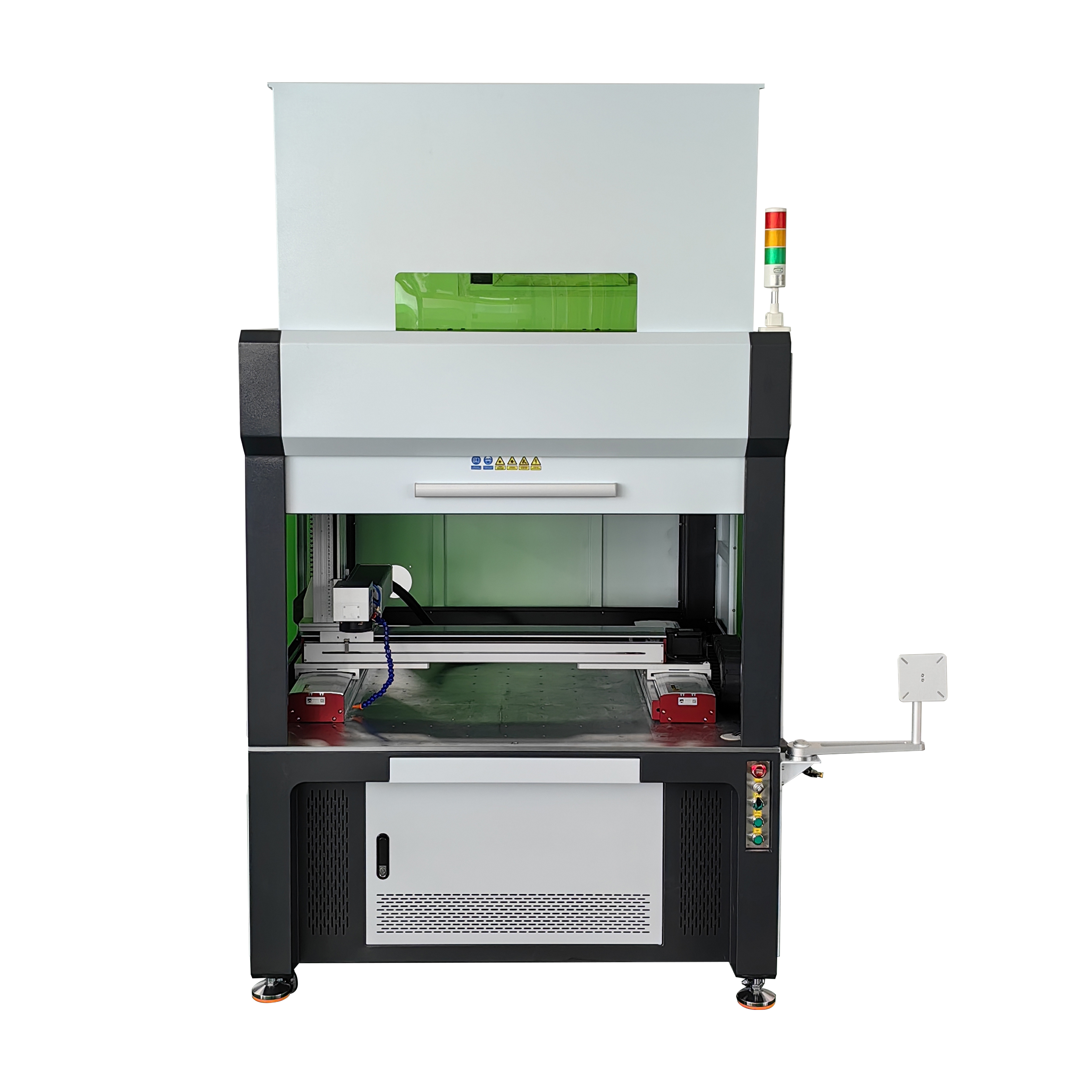

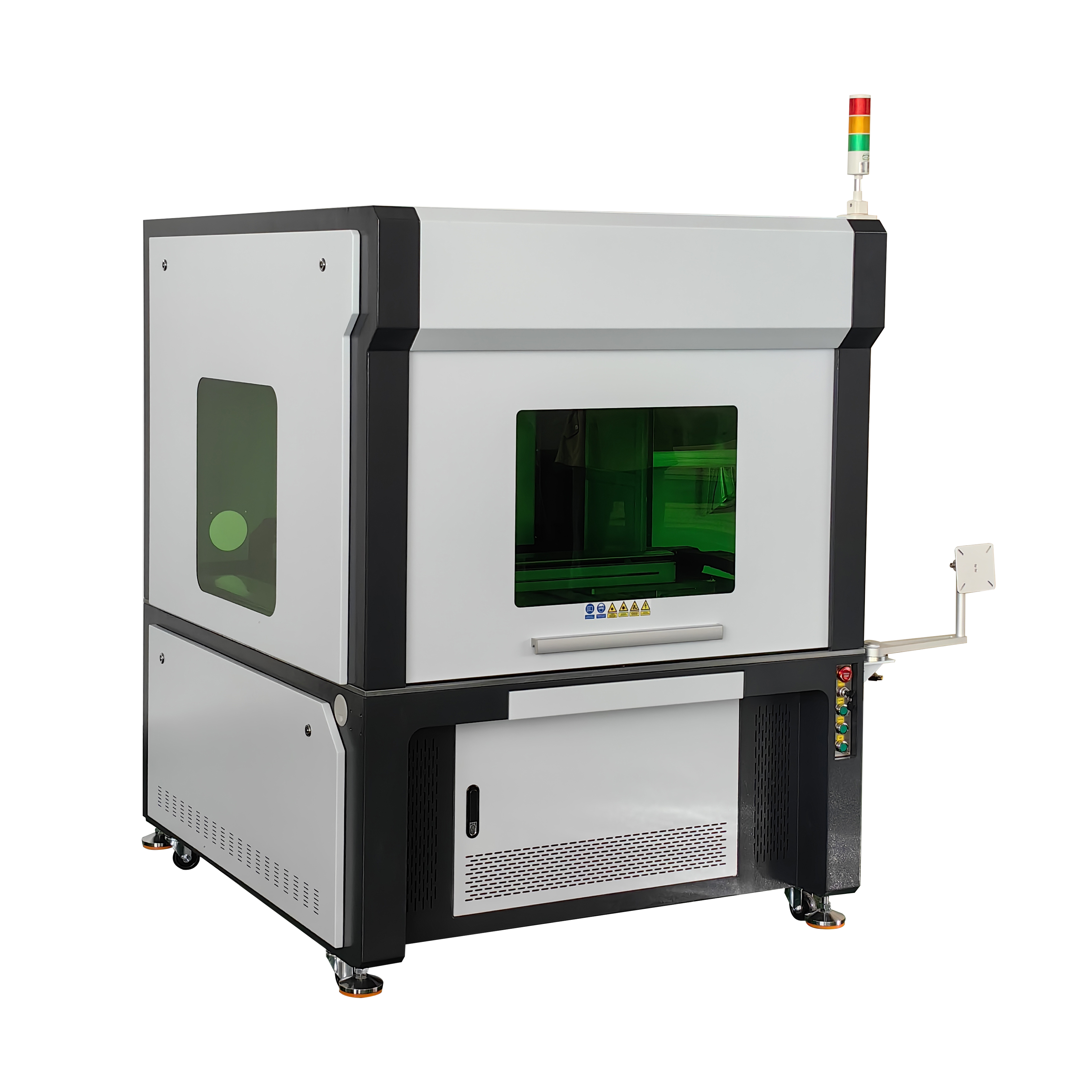

# Fully enclosed structure Ensures operator safety and keeps the working environment clean, in line with modern industrial safety standards. The smoke purifier can be connected to the inside of the machine,makinglittle noise and reducing pollution.

# Four-axis motion control Allows the machine to engrave while moving, ensuring the accuracy of the machine

# Adopting Syntec control system, precision-built The high-performance Taiwan Syntec controller ensures precise, fast response and stable motion control.

# Suitable for various light sources: FIBER/UV/CO2.

Main Configurations

Introduction

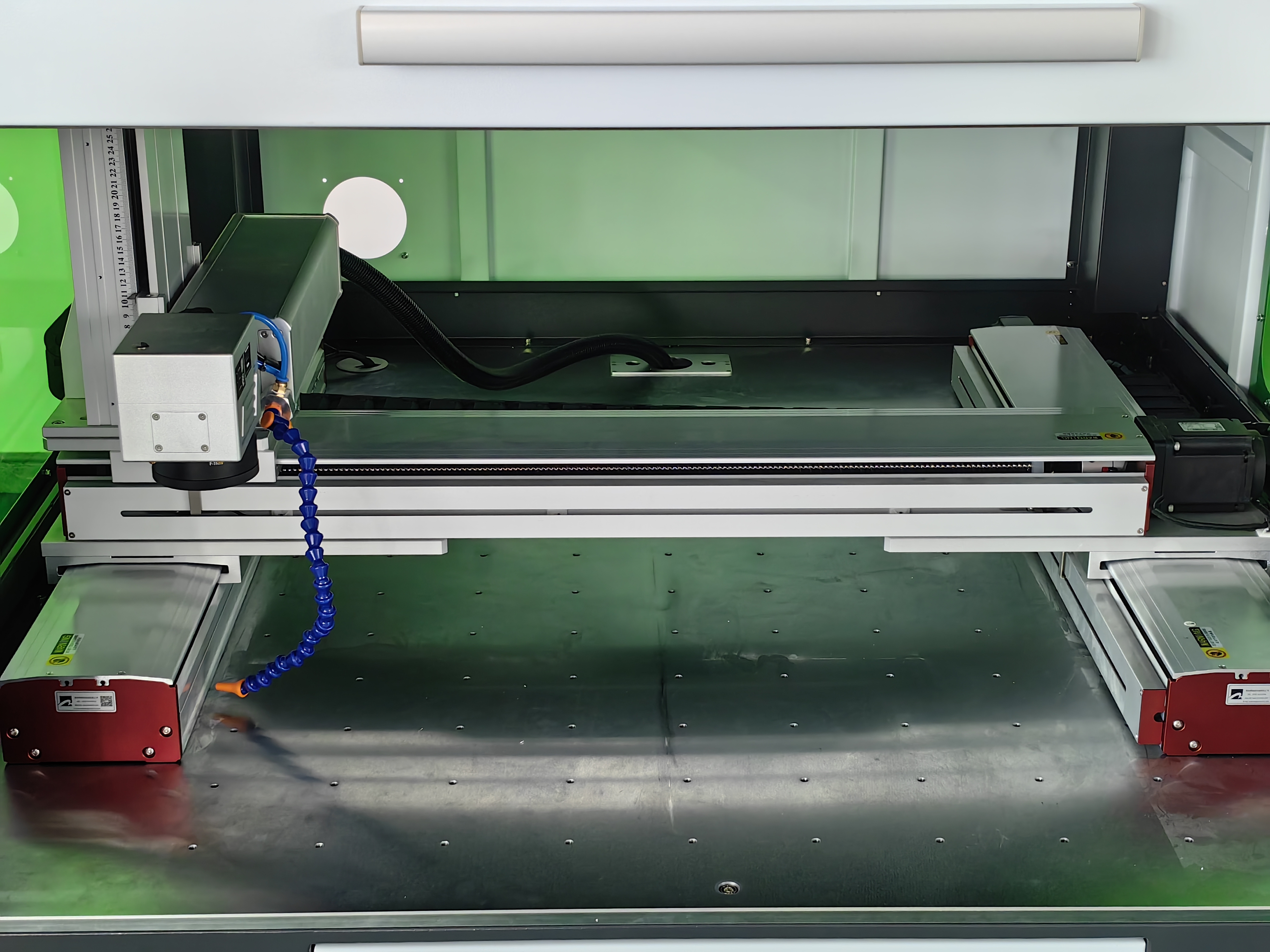

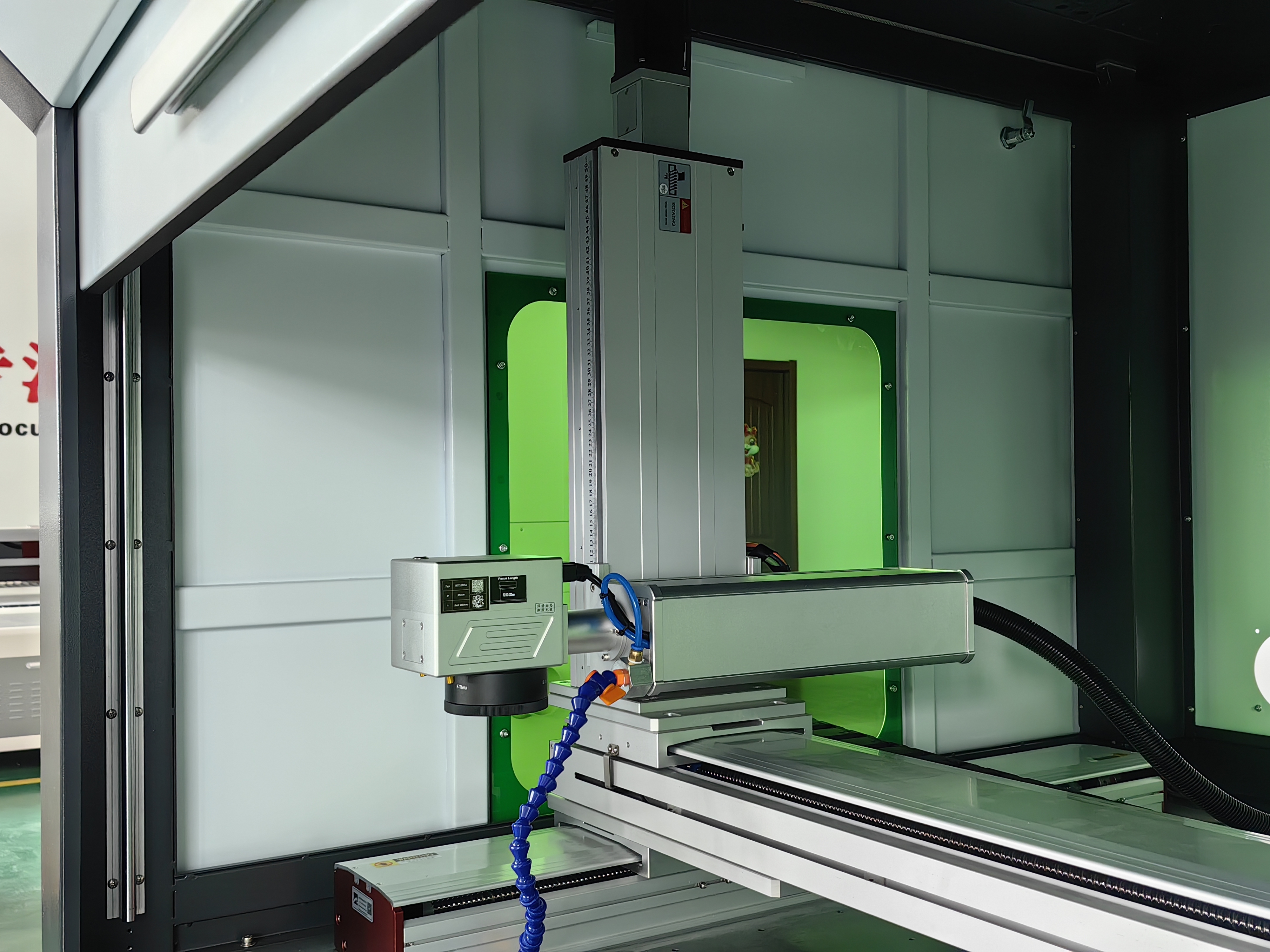

Four-axis linkage large format engraving

- The laser completes marking while moving, the efficiency is 3-5 times higher than the traditional ‘stop-beating-walking’ mode.

- The laser oscillator dynamically adjusts the light path to ensure that the mark is free of offset and distortion.
High Precision Screw Drive

High deformation resistance of the screw structure makes it suitable for highly accelerated movements and ensures repeatable positioning accuracy.

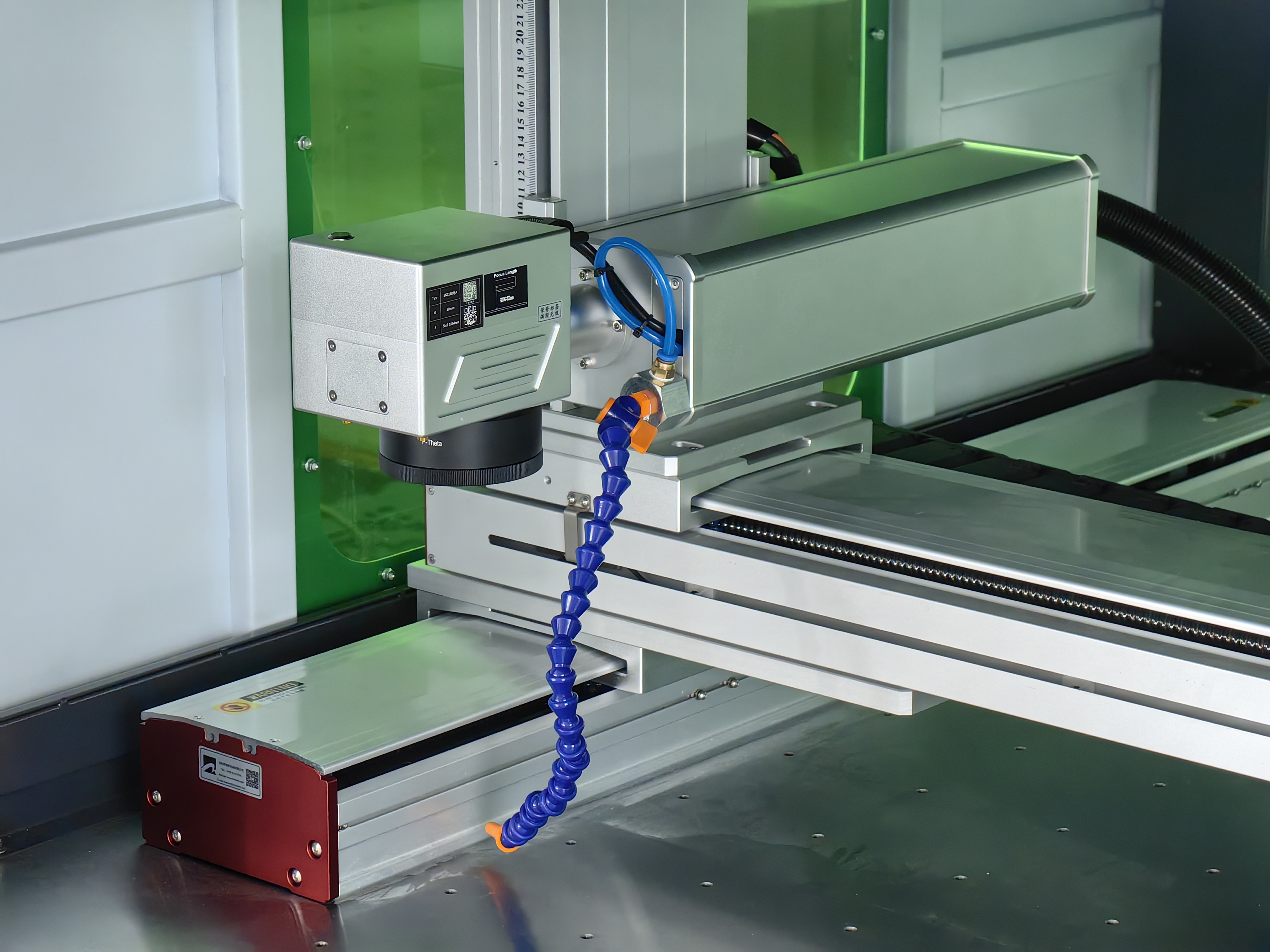

Galvo galvanometer

High positioning accuracy and fast marking speed

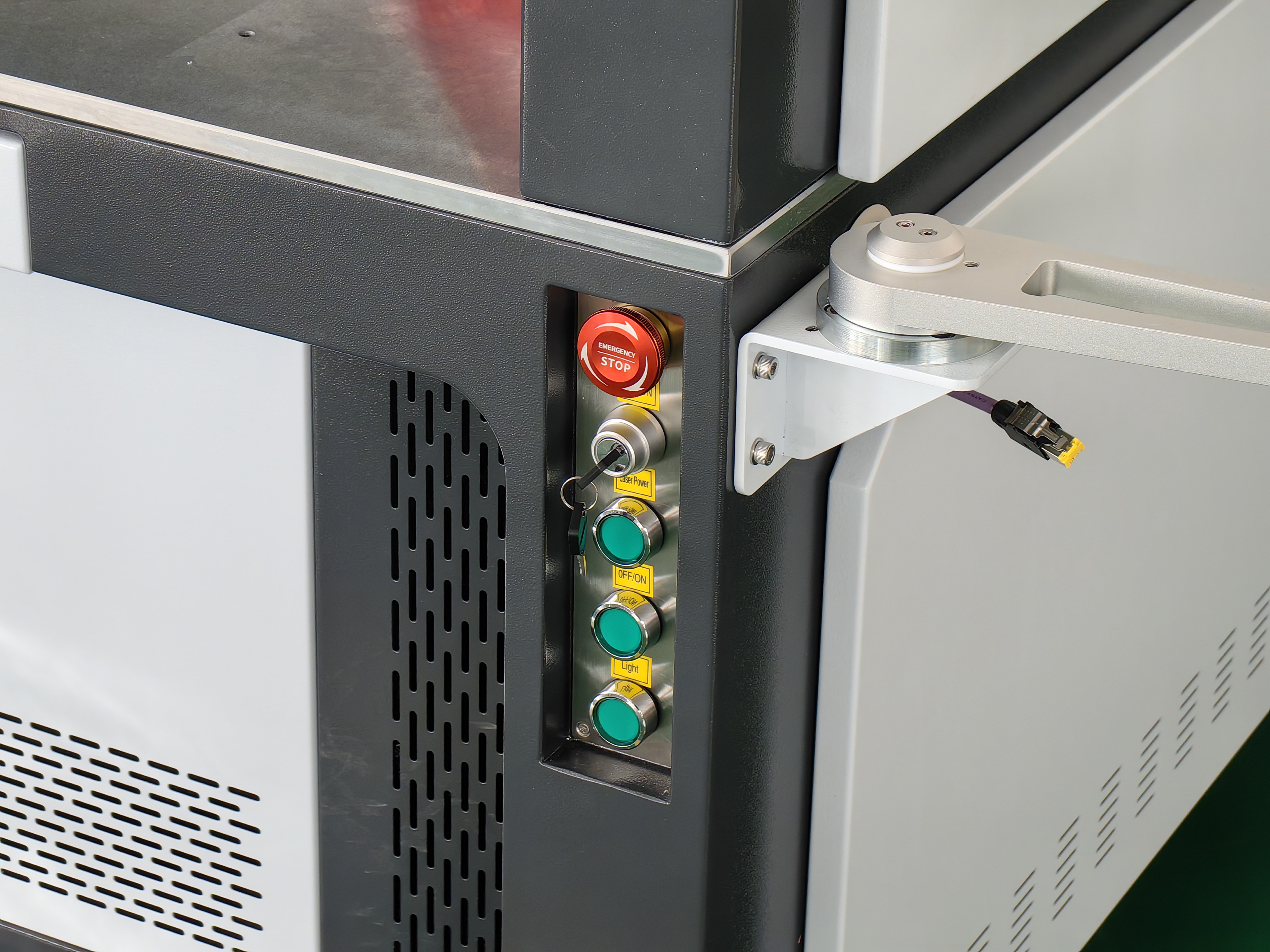

Built-in button

Anti-touch, high security

Parameters

Model

Fiber laser

UV laser

CO2 laser

Laser output power

Fiber: 20W-500W

UV:3W-30W

CO2:30W-60w

Laser wavelength

1064nm

355nm

10600nm

Min. Character size

0.2mm

Repetition Accuracy

<8μrad

Power consumption

<1500W

Cooling type

Air cooling

Water cooling

Marking area

800*800mm

600*600mm

1000*1000mm

Max working speed

8000mm/s

Graphic Format Supported

AI/PLT/DXF/BMP/JPG/PNG/Dst/Dwg/LAS/DXP

Certification

Warranty

2 years

Supply voltage

AC110V 60HZ / AC220V 50HZ

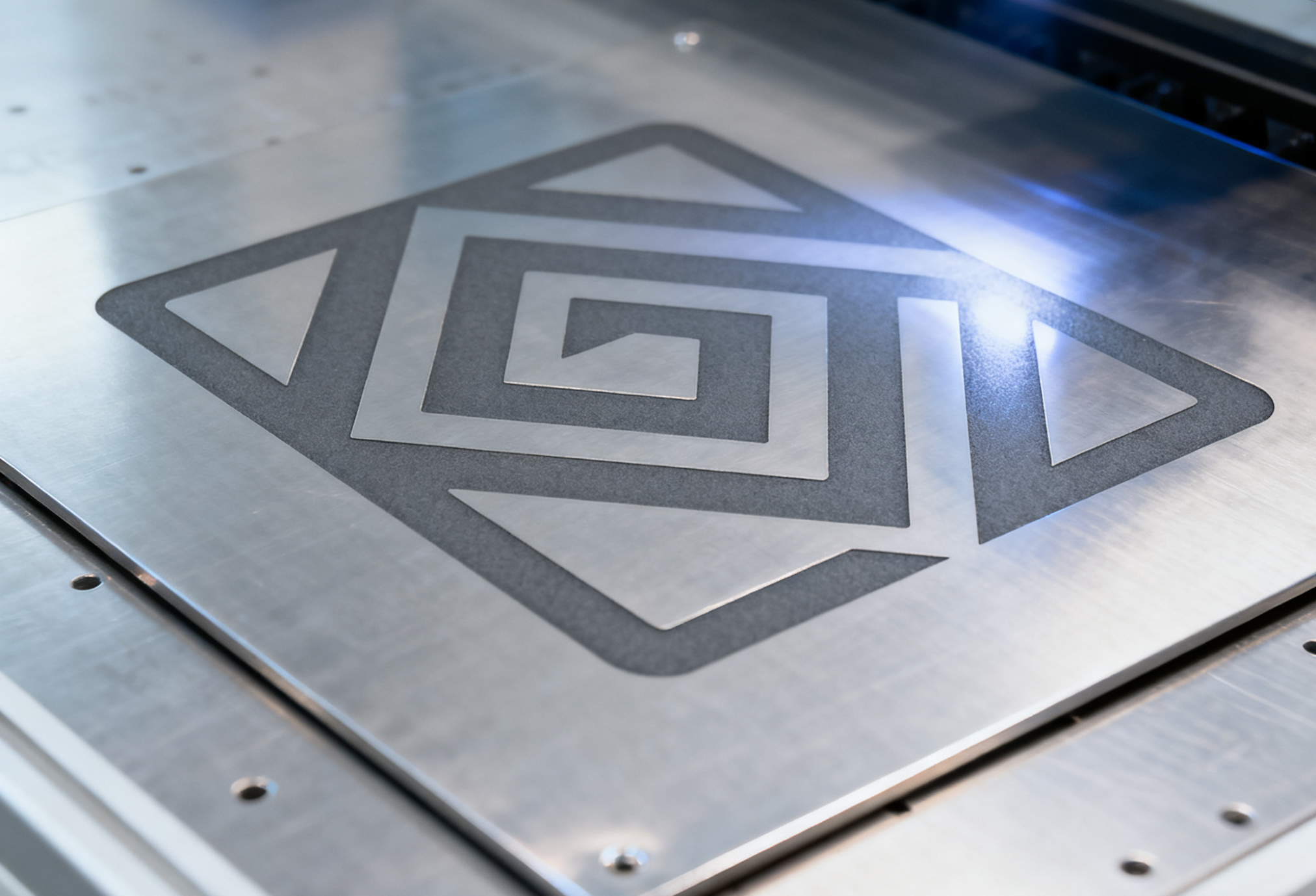

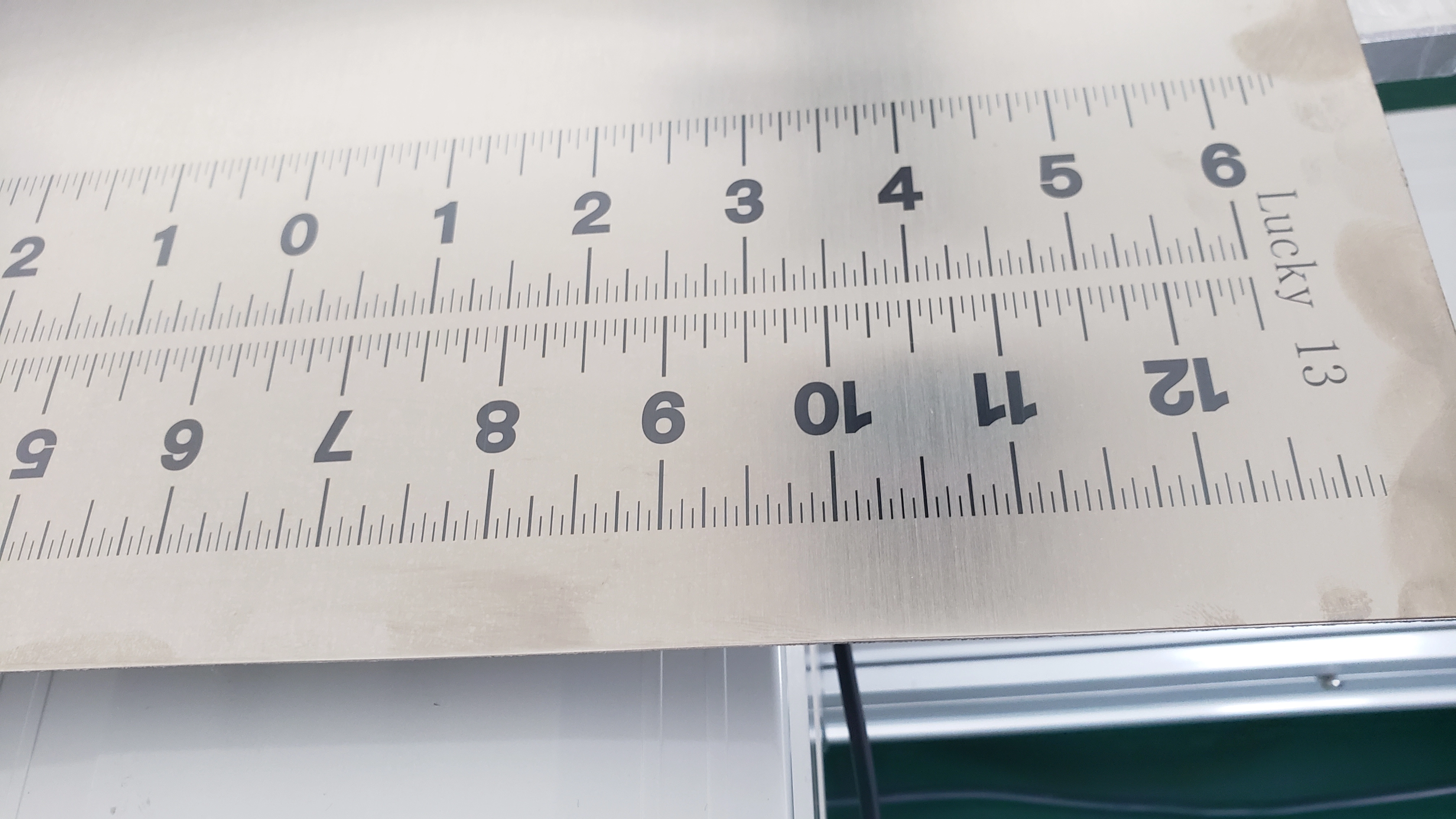

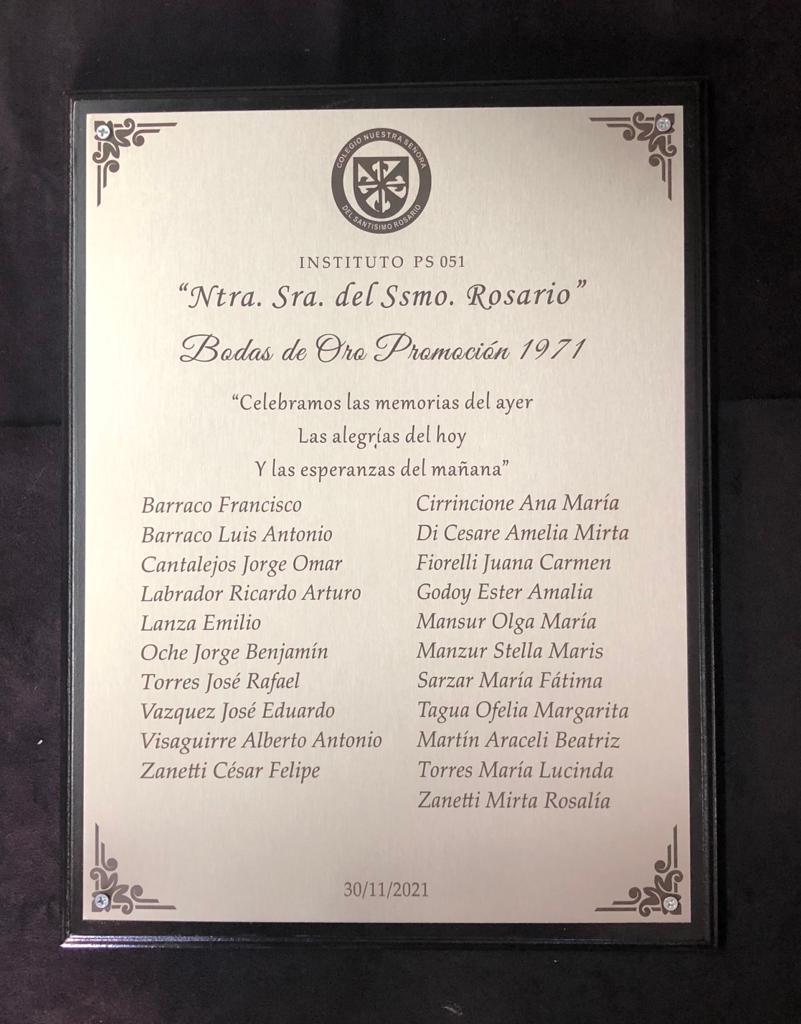

Applications
