Product Description
Machine Features:
1.Enclosed door and high security.
2.With door protection system.
3.With laser work warning light.
4.Passed many international certifications such as FDA\CE.
5.The smoking purifier can be connected to the inside of the machine, making little noise and reducing pollution.
6.Green laser visible protective window, easy to observe the engraving status.
Detailed picture:
Control panel: adjust the lifting speed, control lift, light switch, emergency stop, scan head button, laser power.
Machine size: 430mm*660mm*370mm

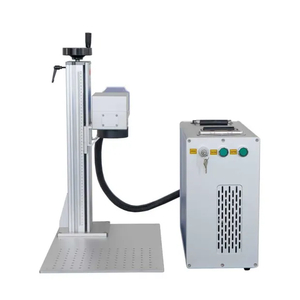

Different angle machine pictures：
Configuration:
How to choose a fiber laser marking machine? JPT, Raycus or MAX？
Laser source is the core component of the laser machine. Different laser sources can generate different laser beams to cut different materials.
Here are some differences of JPT, Raycus and Max.
JPT is famous for MOPA structure design. If for fine engraving we can choose JPT.
Raycus is also a fiber laser brand from China. The working life of Raycus fiber laser is 100,000 hours. Its main advantages are stability and low price.
Max is another brand and popular in China.
If we want engrave deep and has feel with finger touch same power you can choose a Raycus, if we want a fine engrave result，we can choose a JPT. If we think MAX is good choice we can choose a Max. But mostly customers choose Raycus or JPT.
 |  |  |
| JPT laser | RAYCUS laser | MAX laser |
| EZCAD2 Control card Genuine EZCAD2 control system compatible with win7/8/10.Stable motion control, laser control is correspondingly fast. |
|
|
| OUYA Galvanometer The galvanometer has good operation stability, high positioning accuracy, fast marking speed and strong anti-interference ability. |
| Field Lens Working near the focal plane of the objective lens can effectively reduce the detector size.Improve the ability of the edge beam incident into the detector.The standard is 110*110mm, and other models can be selected. |
|
How to choose the field lens?
Related width. Many customers want to buy a large -scale field mirror, because they have to consider that the area to be played in this product is very large, but also remember that the area of the next product is likely to be higher. So buy a significant surface.
However, the larger the width of the field mirror, the greater the focal length of the lens of the matching field mirror. The longer the focal length of the lens, the larger the light spots of the laser focusing point, all of which are the same laser throughout the larger light spot area. The energy will definitely reduce the energy, which will cause the laser labeling deep and shallow. As we all know, the kinetic energy of the laser will be attenuated in the air. Therefore, the greater the focal length of the lens, the greater the motion energy consumption of the laser, the thicker the lines and the lighter.
Therefore, the width of the field selection mirror must be selected for the right one, and you don't have to blindly seek big.
Machine Reference Parameters:
| Model | RF-F-JPT30W | RF-F-RAYCUS30W | RF-F-MAX30W |
| Laser output power | 30W | 30W | 30W |
| Laser source band | JPT | RAYCUS | MAX |
| Laser wavelength | 1064nm | ||
| Laser beam quality | <1.4 | <1.6 | ≤1.3 |
| Max pulse energy(mj) | 0.8 | 1 | 1 |
| Pulse duration(ns) | 2-350 | 120-150 | 2-350 |
| Pulse repetition rate range(kHZ) | 1-4000 | 30-60 | 1-4000 |
| Min. Character size | 0.2mm | ||
| Repetition Accuracy | <8μrad | ||
| Power consumption | 170W | ||
| Cooling type | Air cooling | ||
| Marking area | 70*70-300*300mm | ||
| Max working speed | 8000mm/s | ||
| Laser spot (110x110) | 25.4μm | ||
| Graphic Format Supported | AI, PLT, DXF, BMP, Dst, Dwg, LAS, DXP | ||
| Mode of Operation | Pulsed | ||
| Certification | CE | ||
| Warranty | 2 years | ||
| Supply voltage | AC110V 60HZ / AC220V 50HZ | ||
| Focus type | Double red light | ||
Optional accessories:
Sample Show
Packing and Shipping
1.Multi-layer winding film, strong winding, transport does not shake.
2.Thick plywood, manual sealing.
3.Adopt the best pearl cotton to reduce the vibration during transportation.
4.After sealing the case, use the steel belt to seal the Angle and affix the corresponding shipping mark.
5.We have a variety of delivery methods, machine parts, 40-80kg machine can be considered express and air freight. Large machines and more than one machine are recommended to be transported by sea or train.
We will give away the following products for free：
| 1 | Inner Hexagon |
| 2 | Foot Switch |
| 3 | Power Cable |
| 4 | USB Flash Drive |
| 5 | Goggles |
| 6 | 60CM Ruler |
| 7 | Laser Inspect Report |
Our Service
| 1 | Software is on update for free whole life. |
| 2 | Main parts be changed free of charge if there is any problem during the warranty period. |
| 3 | We will provide the consumable parts at an agency price. |
| 4 | We have user manual instruction and videos for software Installation, operation and machine's using and maintenance. |
| 5 | We will supply 24 hours online after service, and free technical support. |
| 6 | We debug the machine before shipment and carry out 12 hours working test to ensure the quality of the machine. |
| 7 | We offer the service, from you got the machine, including how to install the machine, how to use machine, how to let machine work, and so on. |
