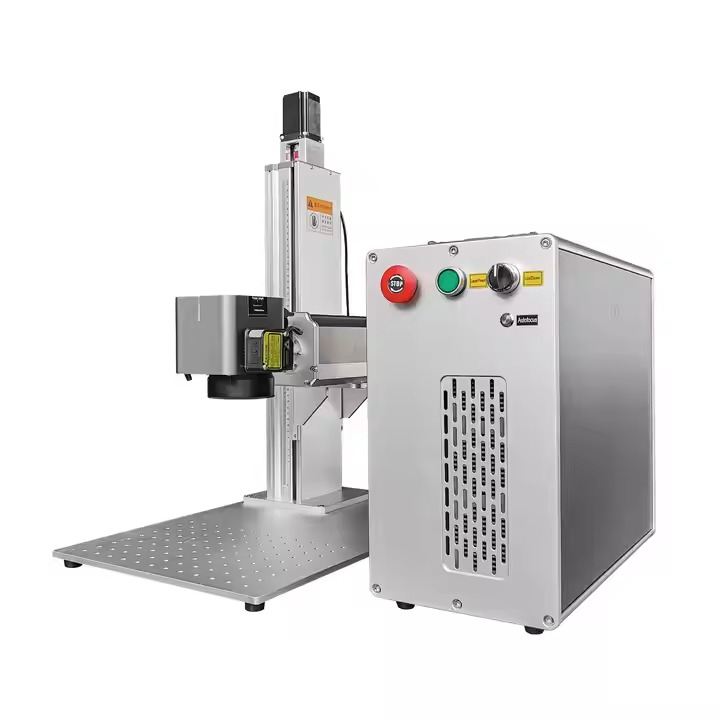

Product Description
Features:
1.Handheld laser marking machine for easy mobility and one-handed operation.
2.Smaller appearance volume design, easy to operate.
3.The bracket helps find the focal length.
4.Could widely used in metal and some non-metal marking.
5.High quality anodized aluminum case, split portable design, easy to transport.
6.With a computer, it is convenient for software operations.
7.Portable split,small size,convenient for DHL/FEDEX/TNT express air shipping.

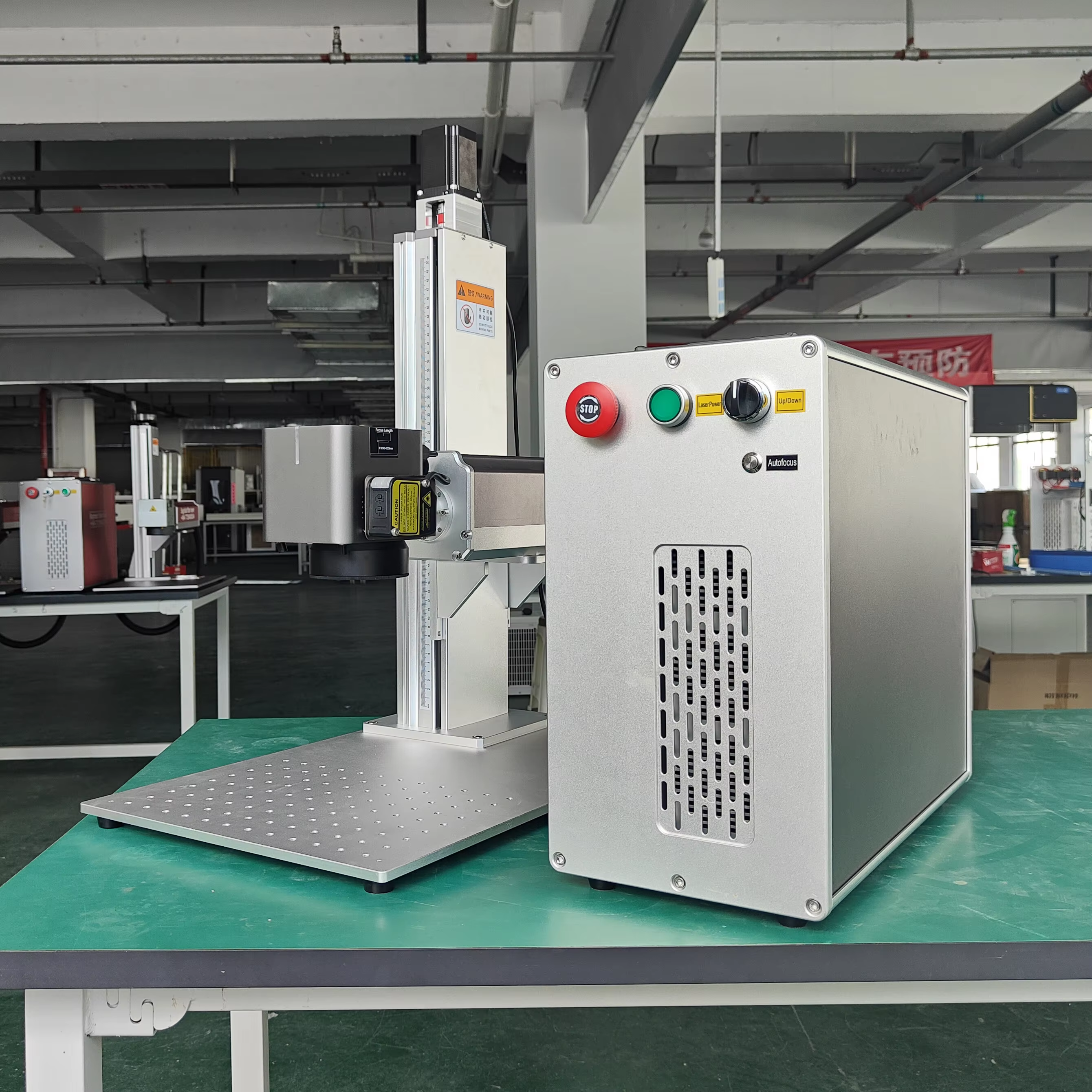

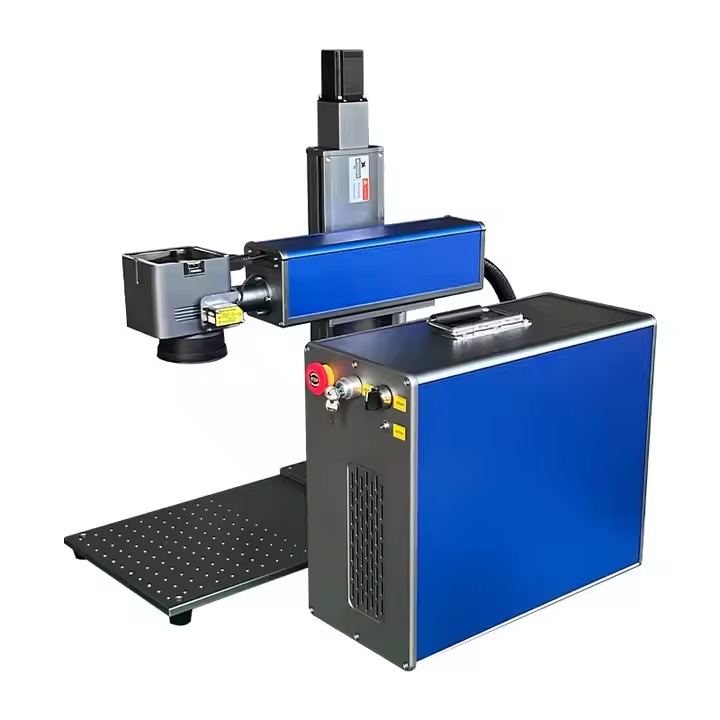

Detailed picture:
Configuration:
|

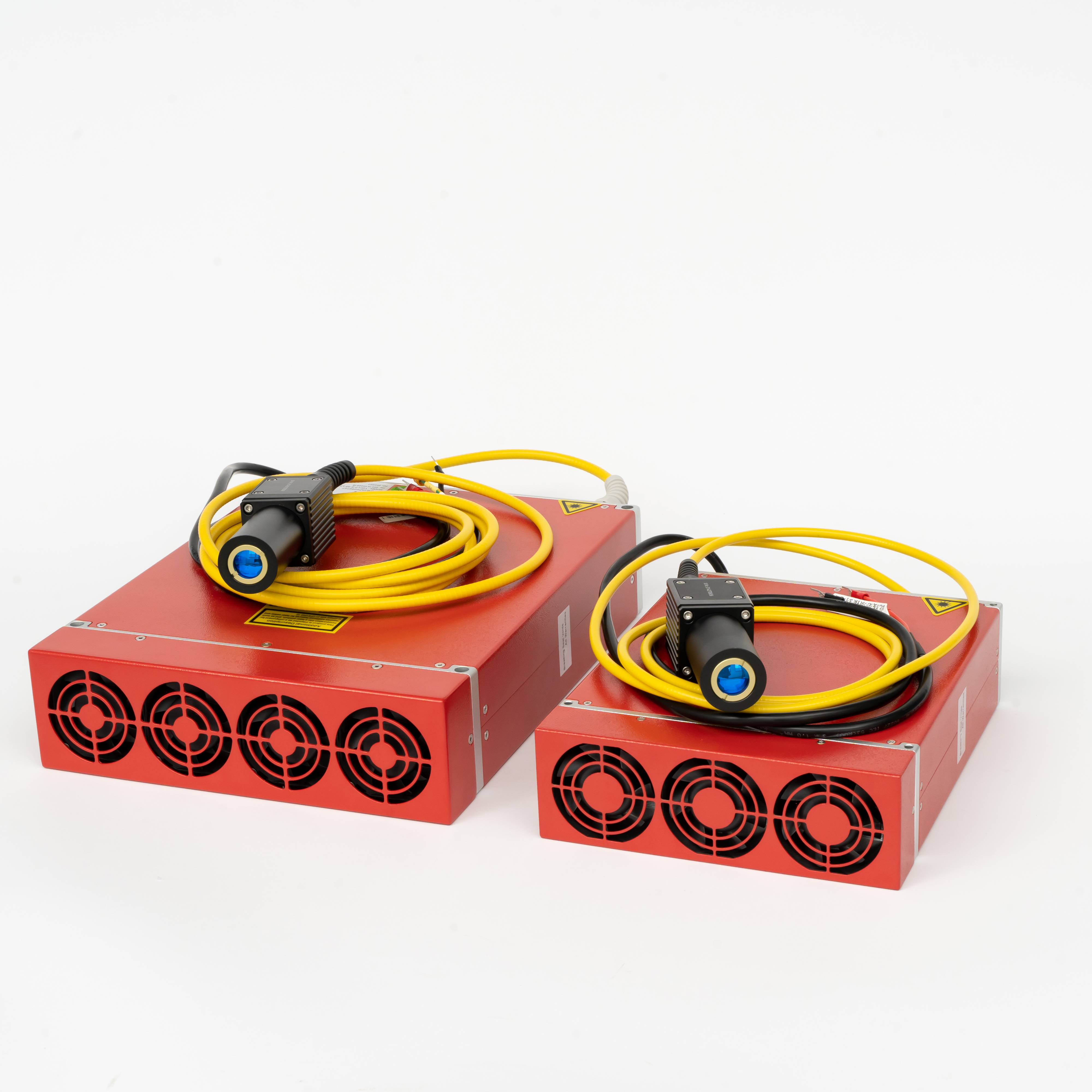

| Laser source Genuine JPT LP lasers, each with anti-counterfeiting code. -High beam quality -High output power -Stable and reliable -Low Maintenance -Long life. |

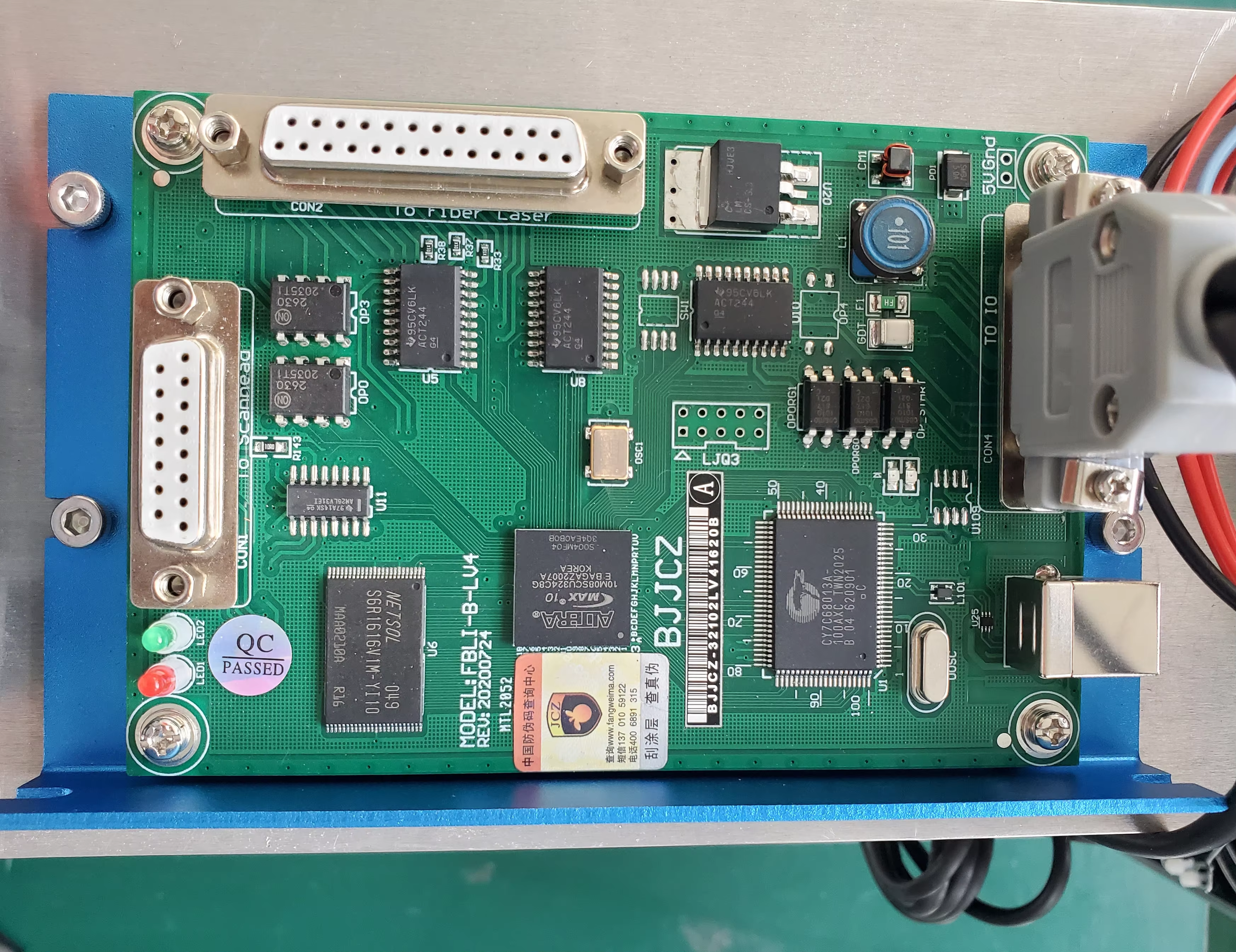

| EZCAD Control card Genuine EZCAD control system compatible with win7/8/10. Stable motion control, laser control is correspondingly fast. |
|
|

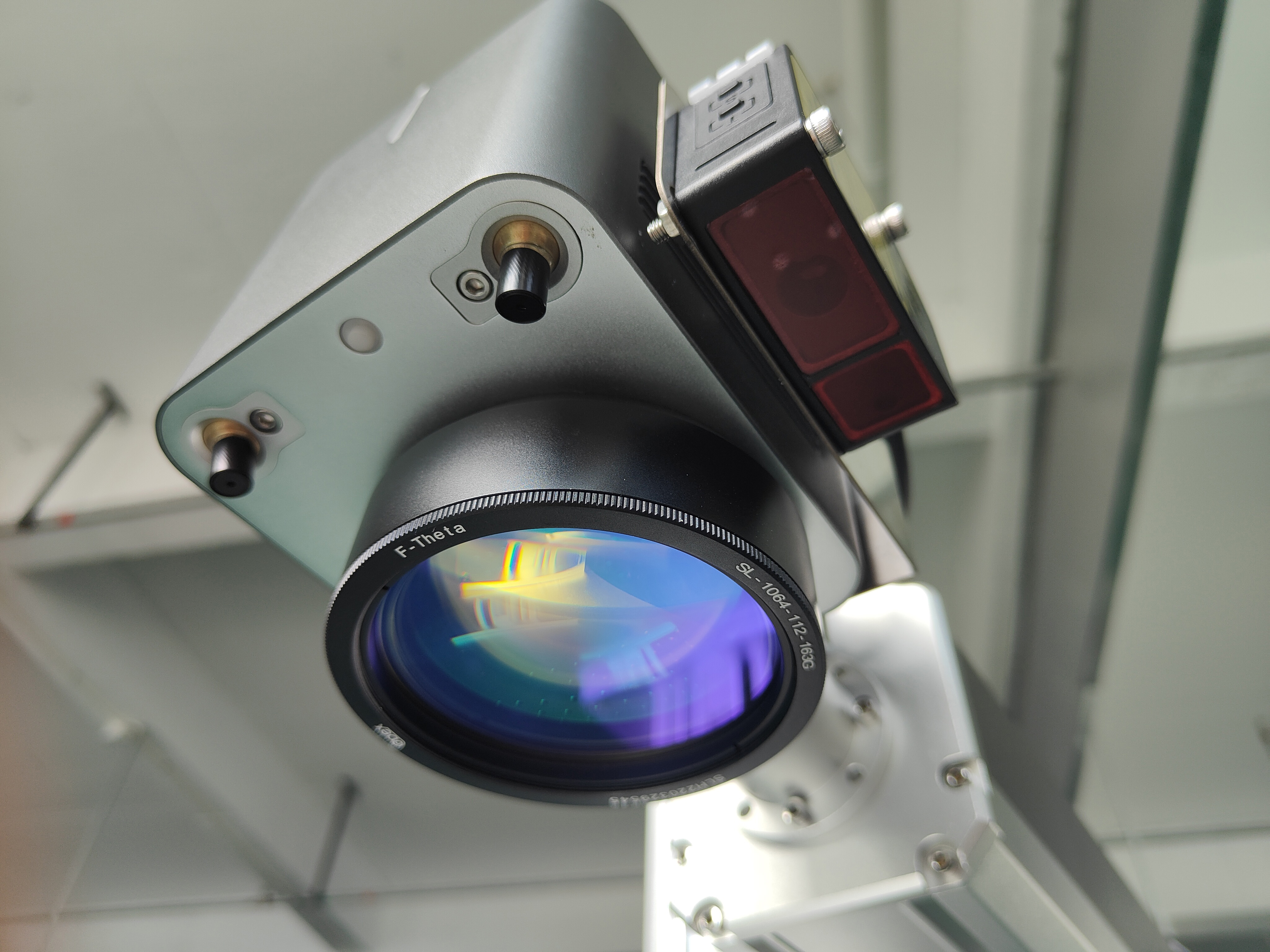

| Galvanometer The galvanometer has good operation stability, high positioning accuracy, fast marking speed and strong anti-interference ability. |
| Field Lens Working near the focal plane of the objective lens can effectively reduce the detector size. Improve the ability of the edge beam incident into the detector. |
|
Machine Reference Parameters
| Model | RF-F-20W | RF-F-30W | RF-F-50W | |
| Laser output power | 20W | 30W | 50W | |
| Laser source band | JPT | |||
| Laser wavelength | 1064nm | |||
| Laser beam quality | <1.5 | <1.8 | ||
| Max pulse energy(mj) | 0.8 | 1.25 | ||
| Pulse duration(ns) |
200 | |||
| Pulse repetition rate range(KHZ) | 1-600 | |||
| Min. Character size | 0.2mm | |||
| Repetition Accuracy | <8μrad | |||
| Power consumption | 170W | |||
| Cooling type | Air cooling | |||
| Marking area | 75-300mm （option） | |||
| Max working speed | 8000mm/s | |||
| Laser spot (110x110) | 25.4μm | |||
| Supply voltage | AC110V 60HZ / AC220V 50HZ | |||
| Focus type | Double red light | |||
Optional accessories
|
|
|
|
| Rotary Adjust the working diameter through the handle. | Rotary table Multi station marking of surface can be realized. | Protective cover Mounted on the machine, it can reduce the direct laser damage to the eyes. |
|
|
|
|
| Ring rotary Through spring adjustment, convenient for small items marking. | XY motorized tableX and Y-axis moving slide table. | Field lens 110*110mm-300*300mm (optional) |
|
|
|
|

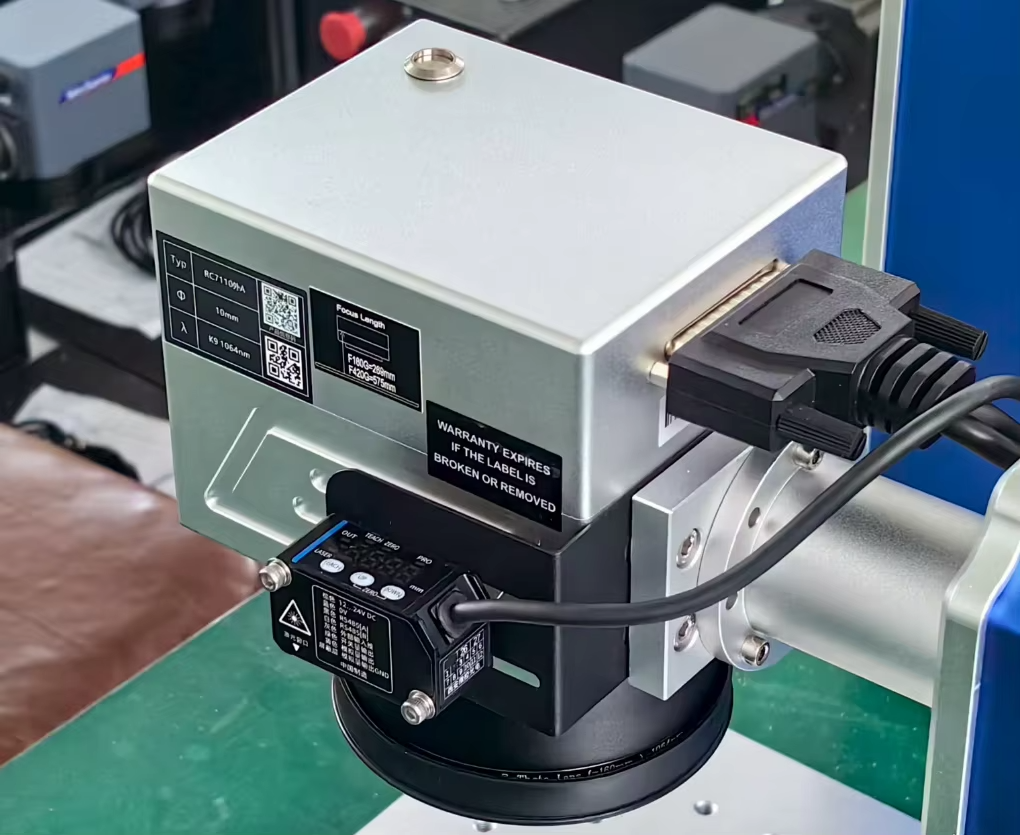

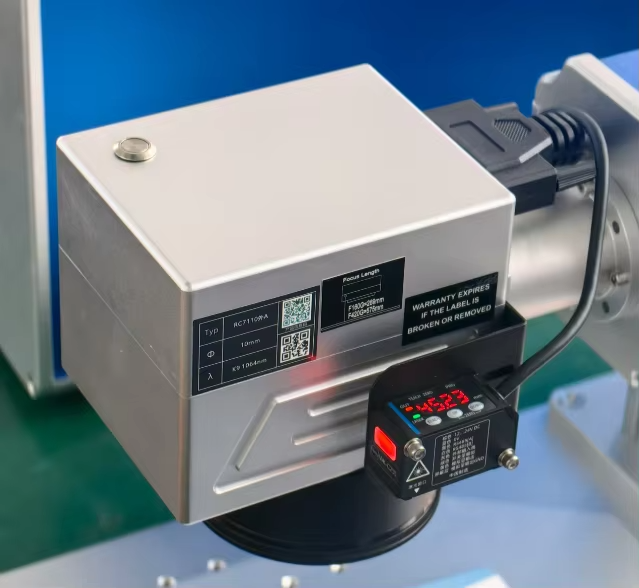

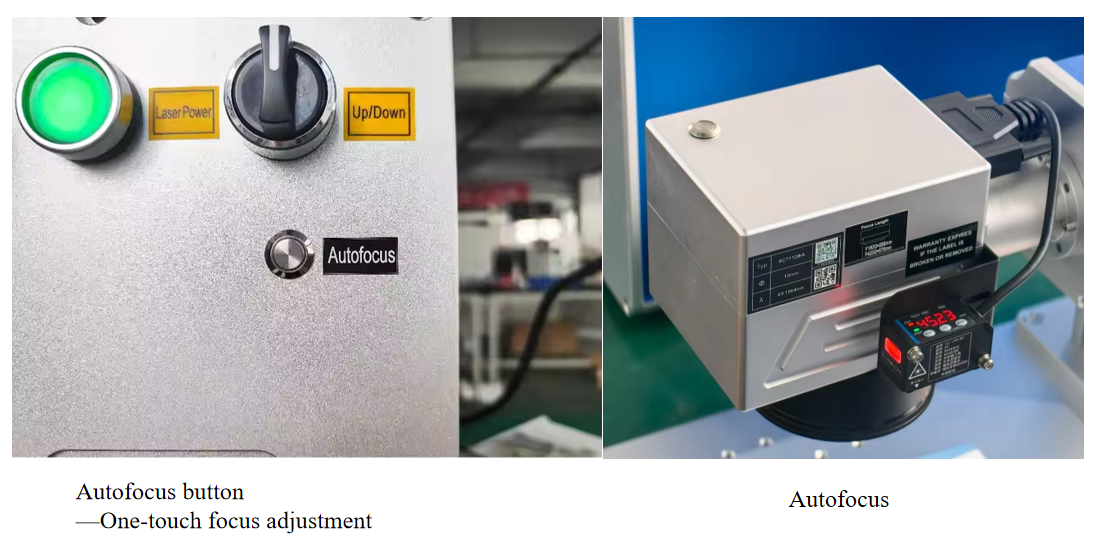

| Safety glasses Reduce damage to the eyes. | Cyclops camera It can easily get the mark position on the computer: draw the mark there. | Auto focus It can focus automatically without manual focusing. It includes z-axis drive system and distance sensor. |
Sample Show
Packing and Shipping
1.Multi-layer winding film, strong winding, transport does not shake.
2.Thick plywood, manual sealing.
3.Adopt the best pearl cotton to reduce the vibration during transportation.
4.After sealing the case, use the steel belt to seal the Angle and affix the corresponding shipping mark.
5.We have a variety of delivery methods, machine parts, 40-80kg machine can be considered express and air freight. Large machines and more than one machine are recommended to be transported by sea or train.
We will give away the following products for free：
| 1 | Inner Hexagon |
| 2 | Foot Switch |
| 3 | Power Cable |
| 4 | USB Flash Drive |
| 5 | Goggles |
| 6 | 60CM Ruler |
| 7 | Laser Inspect Report |
Our Service
| 1 | Software is on update for free whole life. |
| 2 | Main parts be changed free of charge if there is any problem during the warranty period. |
| 3 | We will provide the consumable parts at an agency price. |
| 4 | We have user manual instruction and videos for software Installation, operation and machine's using and maintenance. |
| 5 | We will supply 24 hours online after service, and free technical support. |
| 6 | We debug the machine before shipment and carry out 12 hours working test to ensure the quality of the machine. |
| 7 | We offer the service, from you got the machine, including how to install the machine, how to use machine, how to let machine work, and so on. |
