High Quality Wholesale Fiber Laser Marking Machine for Metal Stainless Aluminum Carbon Steel Widely Used

High Quality Wholesale Fiber Laser Marking Machine for Metal Stainless Aluminum Carbon Steel Widely Used

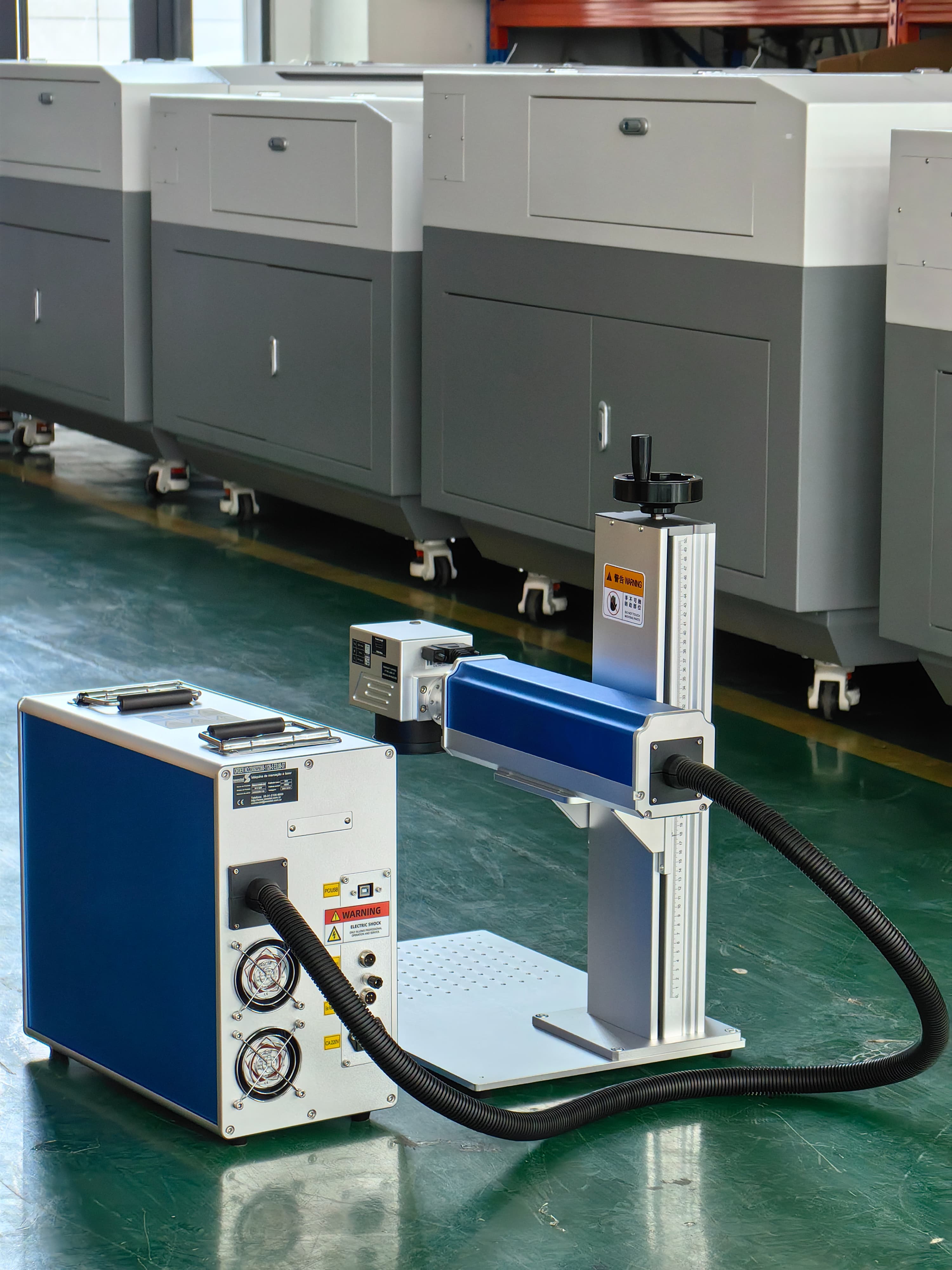

Fiber laser marking machine is mainstream industrial permanent marking equipment, equipped with 20W/30W/50W/100W optional fiber laser generator. Compared with traditional CO2 marking machine, it features ultra-long service life, high electro-optical conversion efficiency and air cooling integrated design, no water chiller required.
The machine is built with high-speed galvanometer scanning head, marking speed up to 7000mm/s, reposition accuracy reaches ±0.001mm, capable of printing tiny texts, QR codes, barcodes, serial numbers, brand logos and anti-counterfeiting patterns.
It supports offline marking via U disk, compatible with CorelDraw, AutoCAD, Photoshop and other design software, reading PLT, DXF, AI, BMP and other universal graphic formats. Compact split/desktop integrated structure is optional, which can work independently or be installed on conveyor belts, assembly lines and robotic arms for automatic flying marking of mass products.
Laser marking forms permanent etching marks on workpiece surface, wear-resistant, high-temperature resistant, acid and alkali resistant, never fade, effectively realizing product traceability and anti-counterfeiting management.

Quantity:
Power:	30W 50W 60W 70W 80W
Availability:





Inquire Add to Basket

Features

Smaller appearance volume design, easy to operate.
Manual wheel Z-axis lifting system.

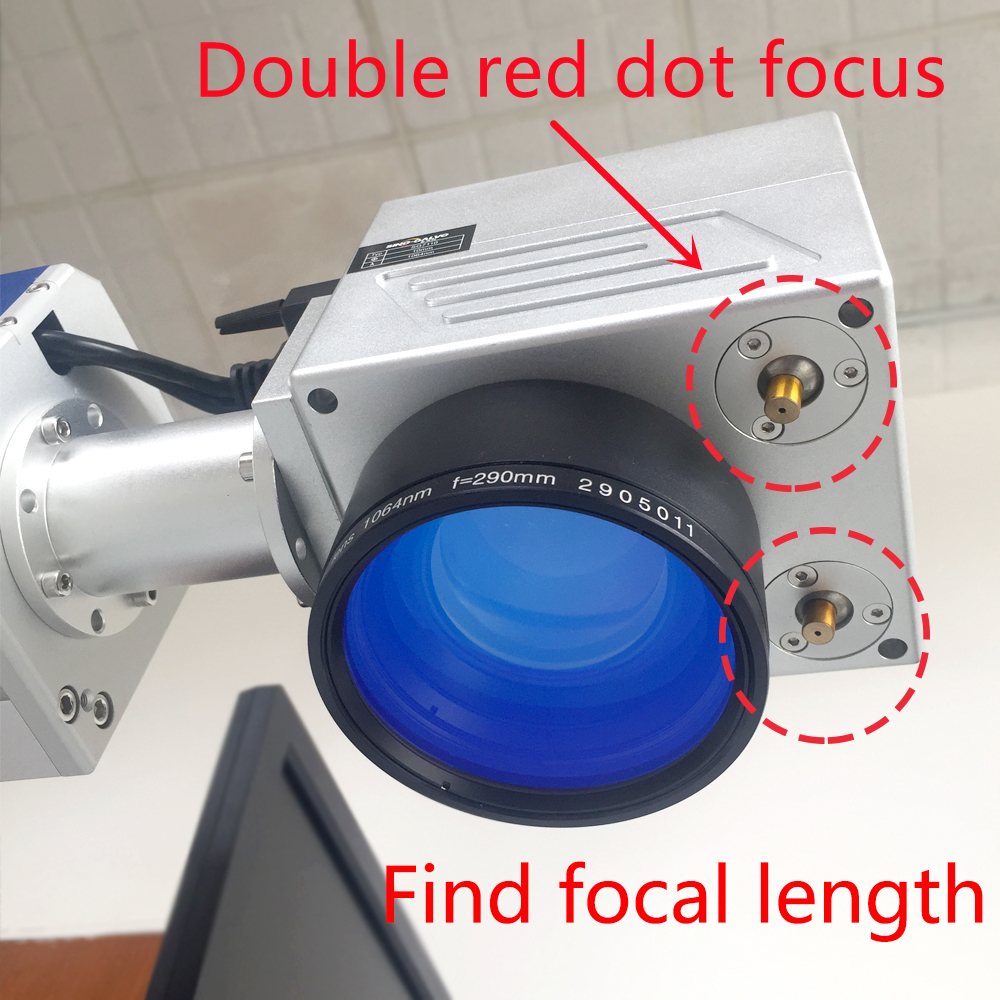

High-speed scanning galvanometer with dual red light as-sisted focusing.
Could widely used in metal and some non-metal marking
Fast delivery.

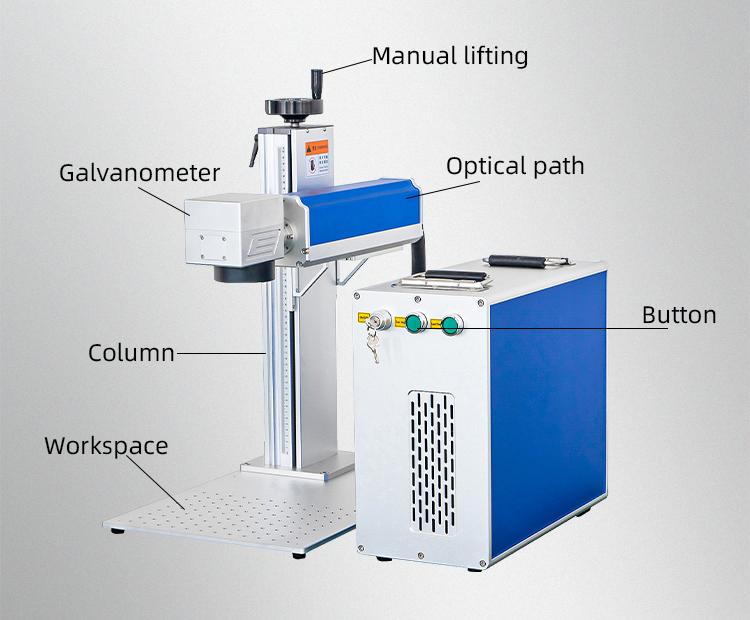

分体光纤打标机_03 - 副本 - 副本

Main Configurations

Introduction

Galvanometer

The galvanometer has good operationstability, high positioning accuracy, fastmarking speed and strong anti-interference ability.

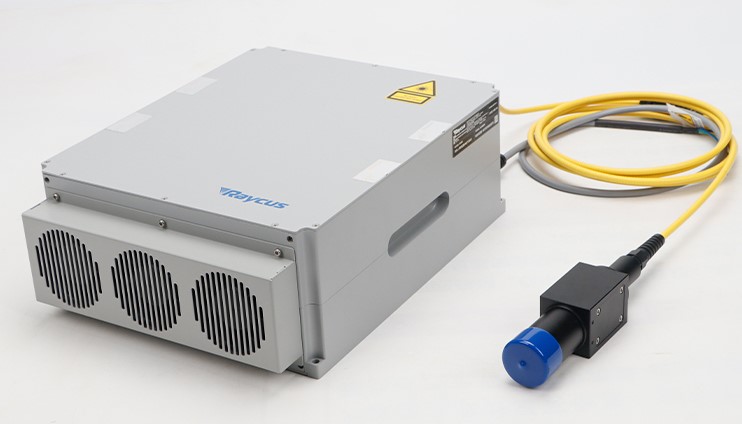

Laser source

The machine uses different brands of lasers such as JPT/MAX/RAYCUS/IPG with a wide range of power options. High peak power, stable working condition, widely used in metal and some non-metallic materials.
EZCAD2 software

Genuine software, simple and easy to operate. Equipped with software installation video and operation manual.
Support All The Language: English,French,German, Korea, Arabic, Portuguese, Japanese, Russian, Spanish, Brazilian, Mexican, Italian Etc.

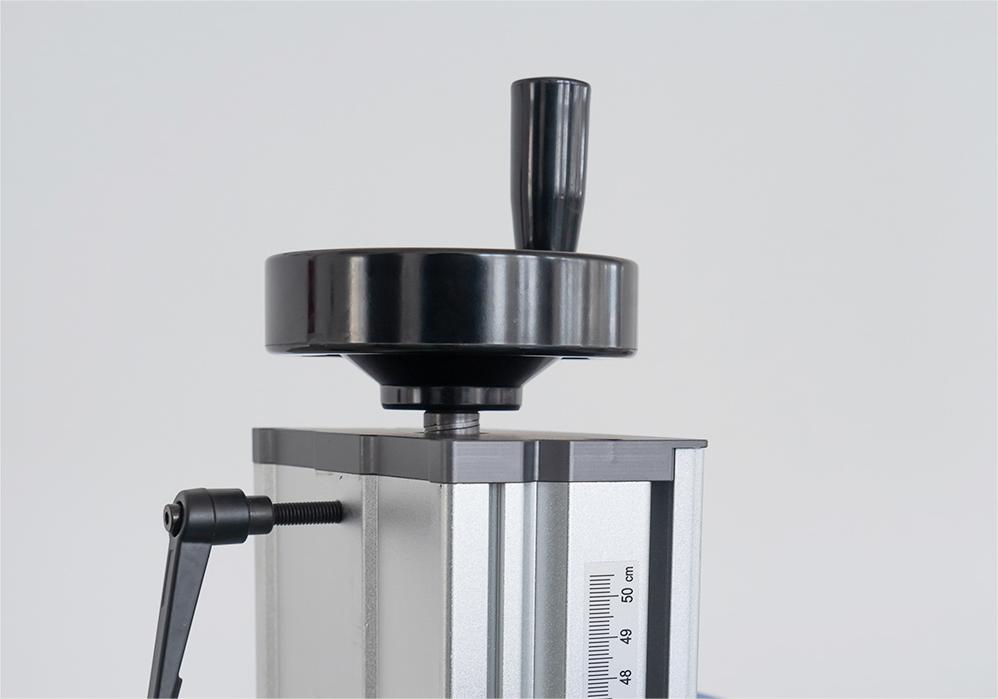

Manual Z-axis

Quickly raise and lower the handle to locate the engraving position. Free lifting, free adjustment. It can upgrade to an electric lift.

Parameters

Model

Fiber laser marking machine

Laser output power

30W/50W/60W/70W/80W

Laser source band

JPT/Raycus/MAX(optional)

Laser wavelength

1064nm

Min. Character size

0.2mm

Repetition Accuracy

<8μrad

Power consumption

170W

Cooling type

Air cooling

Marking area

70x70/110x110/200x200/300x300mm(option)

Max working speed

8000mm/s

Laser spot (110x110)

25.4μm

Control program

EZCAD from BJJCZ

Graphic Format Supported

AI/PLT/DXF/BMP/JPG/PNG/Dst/Dwg/LAS/DXP

Mode of Operation

Pulsed

Certification

CE FDA

Supply voltage

AC110V 60HZ / AC220V 50HZ

Applications

便携台式打标机详情页_07

FAQ

FAQs

Q1: How to choose machine?

A1: You can tell us your working material, detail work by picture or video so that we can recommend the most suitable model for you.
Q2: Are you a factory or trading company?

A2: We are the manufacturer. as only the machine made by ourselves, quality can be trusted, and most important thing is we can do better service after sales. We know how to fix the problem in each parts easily. So welcome to visit to our factory.
Q3: What's the payment term?

This area can be fully edited and gives you the opportunity to introduce yourself, your website, your products or your services. This area can be fully edited and gives you the opportunity to introduce yourself, your website, your products or your services. This area can be fully edited and gives you the opportunity to introduce yourself, your website, your products or your services. This area can be fully edited and gives you the opportunity to introduce yourself, your website, your products or your services. This area can be fully edited and gives you the opportunity to introduce yourself, your website, your products or your services.
Q4: How about the delivery time?

A4: For normal machines we can send out the machine within 5-7 days after receive the full payment. For non standard machines and customized machines according to client's specific requirements, it would be 15 to 30 days.
Q5: How can i know your machine is work well?

A5: Before delivery , we have tested every machine and shoot some test video for you. If you have special production condition , we can adjust machine for you according to your work requirements.
Q6: How can i get support from you ?

A6: Our engineers are online for 24 hours, they can check the problems and give you solution very soon. If you don't know how to use the machine, We have English manual and CD video for machine using and maintaining , that will be delivery with machine. And we supply service through email, telephone, online, WhatsApp skype etc. Or If you're interesting come to China, we will offer you free training until you can use machine freely.
