Product Description
Features:
1.Metal color marking.
2.Smaller appearance volume design, easy to operate.
3.Manual wheel Z-axis lifting system.
4.Could widely used in metal and some non-metal marking.
5.High-speed scanning galvanometer with dual red light assisted focusing.
6.Equipped with a laser working indicator, it is green when powered on, and red when it is working.
7.High quality anodized aluminum case, split portable design, easy to transport.
Product Details
| CONFIGURATION | |
|
| Laser Source - JPT 1.Fiber laser source, the laser power is stable,，with indicator light and emergency stop button, can more intuitively observe the operation of the laser and make judgments. 2.With an internal control interface, the operating status of the laser can be monitored in real time through the internal control software. |
|
|
Scan lead Galvo head with double red dots to focus, metal shell and strong anti-interference ability. |
|
|
Scan lens More fine laser spot optical focus lens OPEX brand from wavelength technology |
|
| Operating System Original BJJCZ control board card, new, genuine.The control board has a shell, which can effectively prevent debris or dust from entering, protect the stability of the control system, and is equipped with a regulated power supply to make the power supply of the control system more stable. |
Machine Reference Parameters

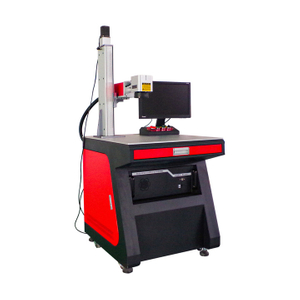

| Machine Name | Full Enclosed Fiber Laser Marking machine |
| Laser Source | RAYCUS-20W |
| Min. Character size | 0.2mm |
| Wavelength | 1064nm |
| Repetition Accuracy | <8μrad |
| Power consumption | 170w |
| Cooling type | Air cooling |
| Supply voltage | AC 110V 60HZ/AC 220V 50HZ |
| Marking area | 75-300mm(option) |
| Max working speed | 8000mm/s |
| Max pulse energy(mj) | 0.67 |
| Laser spot (110x110) | 25.4μm |
| Pulse duration （ns) | 120-150 |
| Pulse repetition rate range (KHZ) | 30-60 |
| Beam quality | <1.5 |
Optional accessories
If you have multiple needs, you can achieve them by using different accessories.
Fiber laser marking machines can be used in a wide range of applications. Fiber laser marking machines can mark on most metals and some non-metals.
Shipping & Packaging
| 1 | Inner Hexagon |
| 2 | Foot Switch |
| 3 | Power Cable |
| 4 | USB Flash Drive |
| 5 | Goggles |
| 6 | 60CM Ruler |
| 7 | Laser Inspect Report |
1.Multi-layer winding film, strong winding, transport does not shake.
2.Thick plywood, manual sealing.
3.Adopt the best pearl cotton to reduce the vibration during transportation.
4.After sealing the case, use the steel belt to seal the Angle and affix the corresponding shipping mark.
5.We have a variety of delivery methods, machine parts, 40-80kg machine can be considered express and air freight.
Our Service
1. We provide customized equipment service for customers' individual needs.
2. Provide detailed operation manuals and training videos to make it easier for customers to master the use of equipment and techniques. Provide free remote technical support services to solve the problems encountered by customers in the process of use.
3. For equipment failure, we promise to provide customers with fast response maintenance service. Provide customers with regular knowledge and guidance on the use and maintenance of equipment
4. To provide customers with high quality after-sales guarantee of consumables and accessories to ensure the normal operation of customers' equipment. Establish perfect service files for customers, track the use of equipment, and understand the needs of customers in real time, so that we can respond to requests.
5. To ensure customer satisfaction is our ultimate goal, we will take customer suggestions and feedback seriously and continuously improve our after-sales service.
