Fiber laser Marking Machine With Siding Table For Large-area Engraving

Name: Fiber laser Marking Machine With Siding Table For Large-area Engraving
Rating: 5.0 (6 reviews)

Quantity:
Availability:





Inquire Add to Basket

Product Description

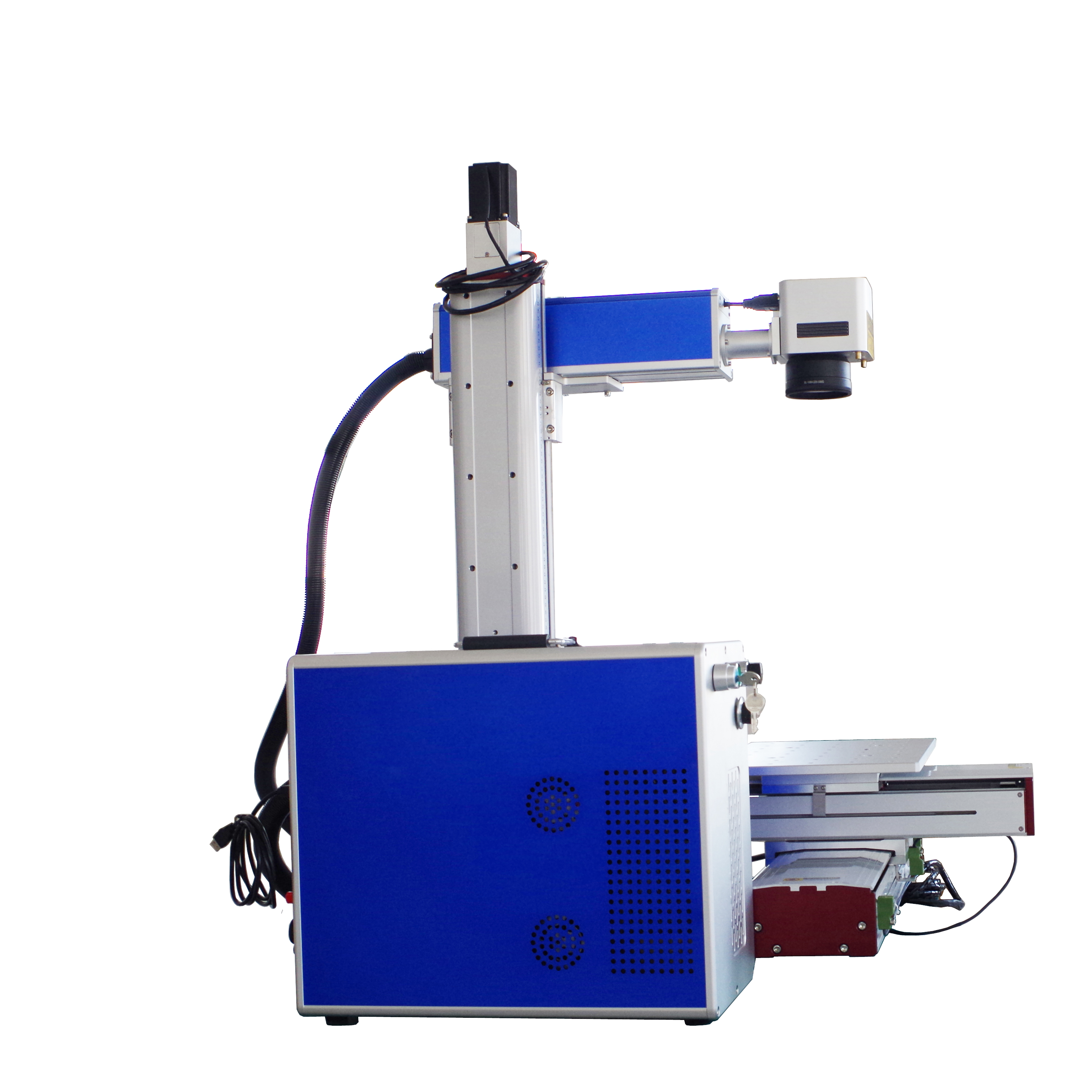

Large Format Fiber Laser Marking Machine with XY Electric Table

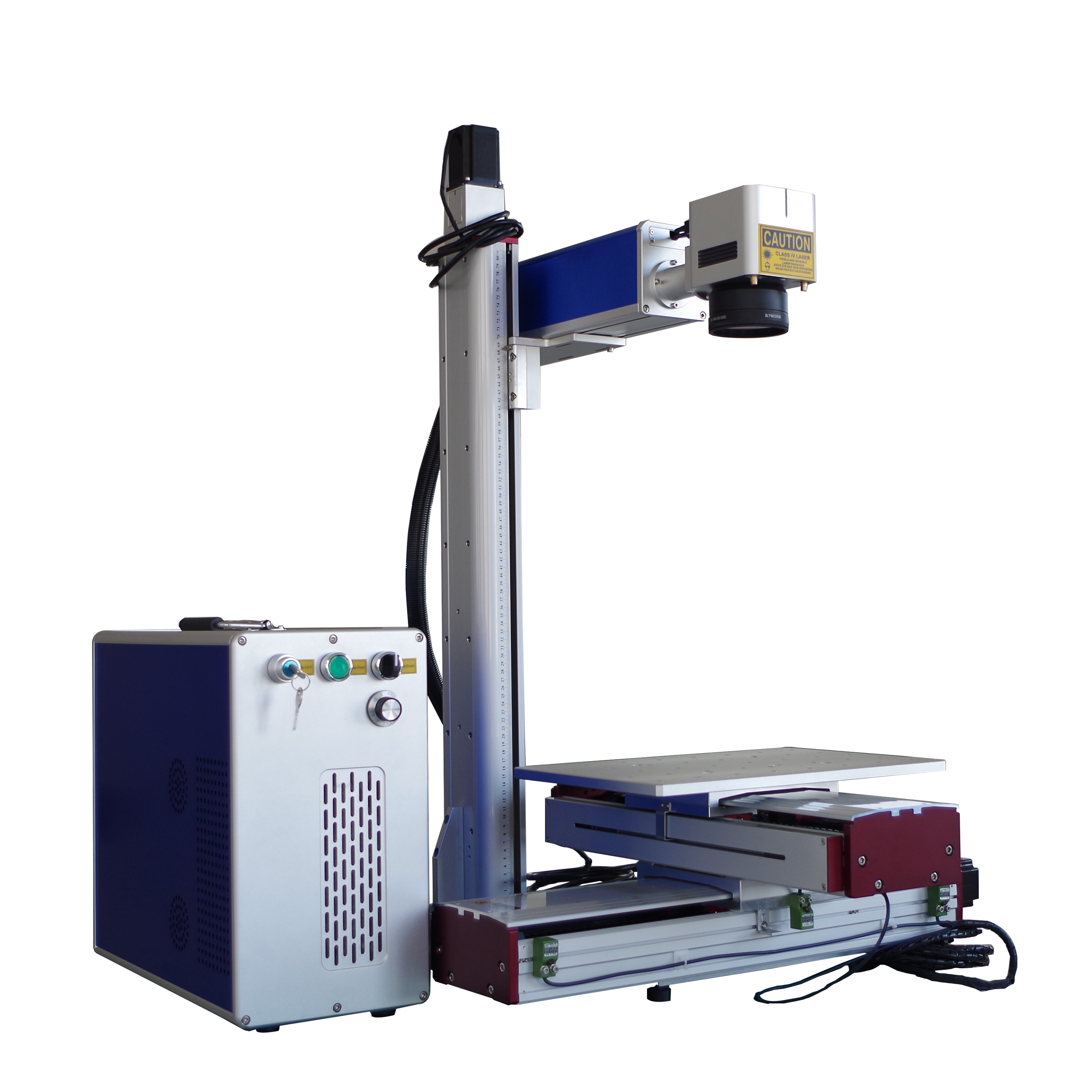

Designed for industrial applications requiring large-scale engraving, this Fiber Laser Marking Machine integrates a high-precision XY Electric Sliding Table. Unlike standard static markers, this system breaks the field lens limitation by using automated XY movement to achieve a significantly larger effective marking area.

Equipped with the advanced UMC4 Control Board and Marking Mate Software, the machine delivers superior performance in seamless image splicing (tiling). It is the perfect solution for marking large metal plates, electronic panels, and auto parts where precision and scale are paramount.

Key Features & Advantages

Extended Marking Area (600x500mm Travel):Combined with a 200x200mm field lens, the robust XY sliding table provides a massive travel distance of 600mm (X) by 500mm (Y). This allows you to process large workpieces in one pass without manual repositioning.
High-End Control System (UMC4 + Marking Mate):We utilize the professional UMC4 controller paired with Marking Mate software. This combination is renowned in the industry for its stability and advanced "Splicing" algorithms, ensuring that large graphics are engraved seamlessly with no visible joints or gaps between sections.
Flexible Laser Configuration:Supports top-tier fiber laser sources including MAX, Raycus, and JPT. Whether you need cost-effectiveness (MAX/Raycus) or high-end pulse width tunability (JPT MOPA), we provide the exact configuration to match your material needs.
Precision & Stability:The machine features a solid 270x400mm mounting table base, ensuring vibration-free operation during high-speed movement. The electric XY axis moves with high repeatability to guarantee position accuracy.

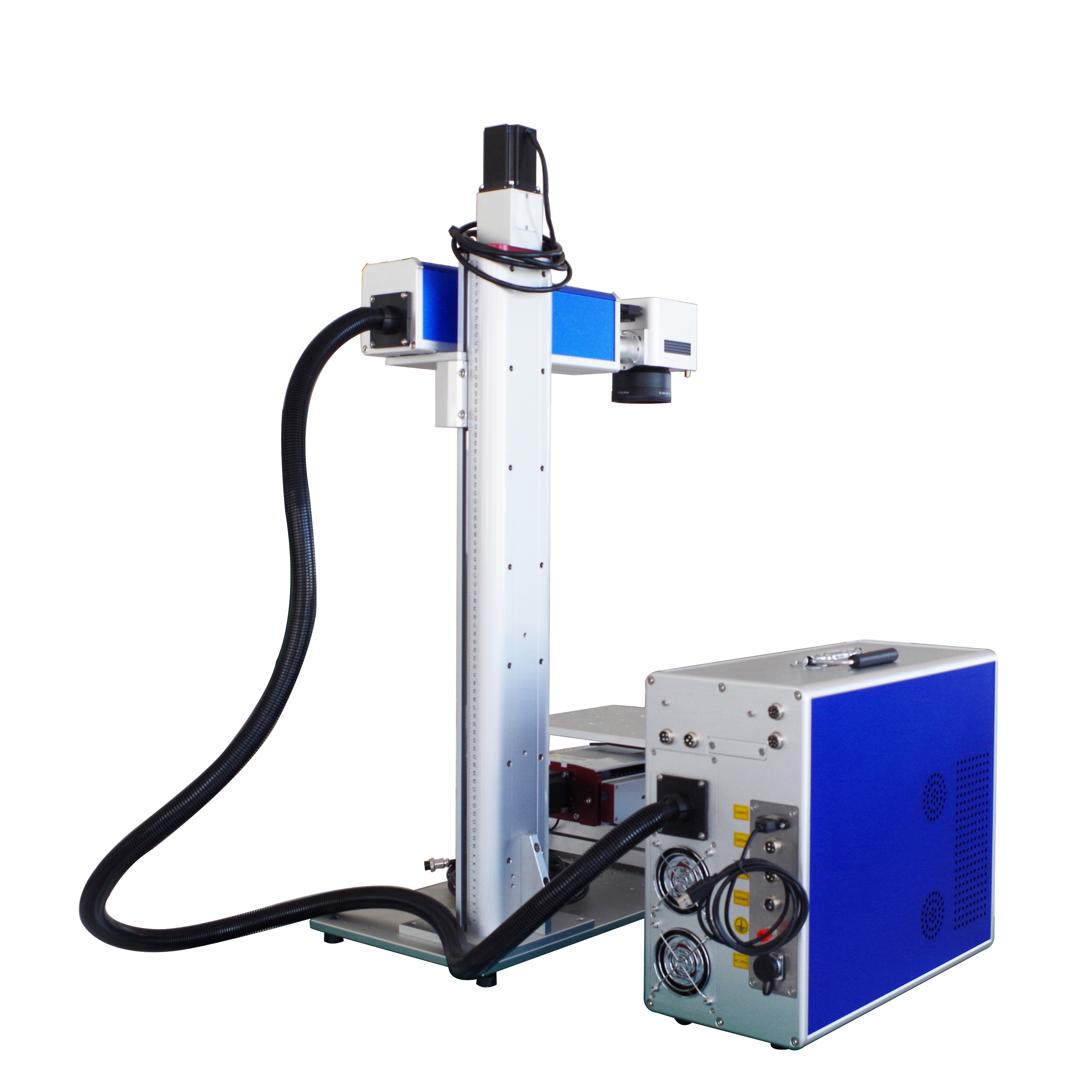

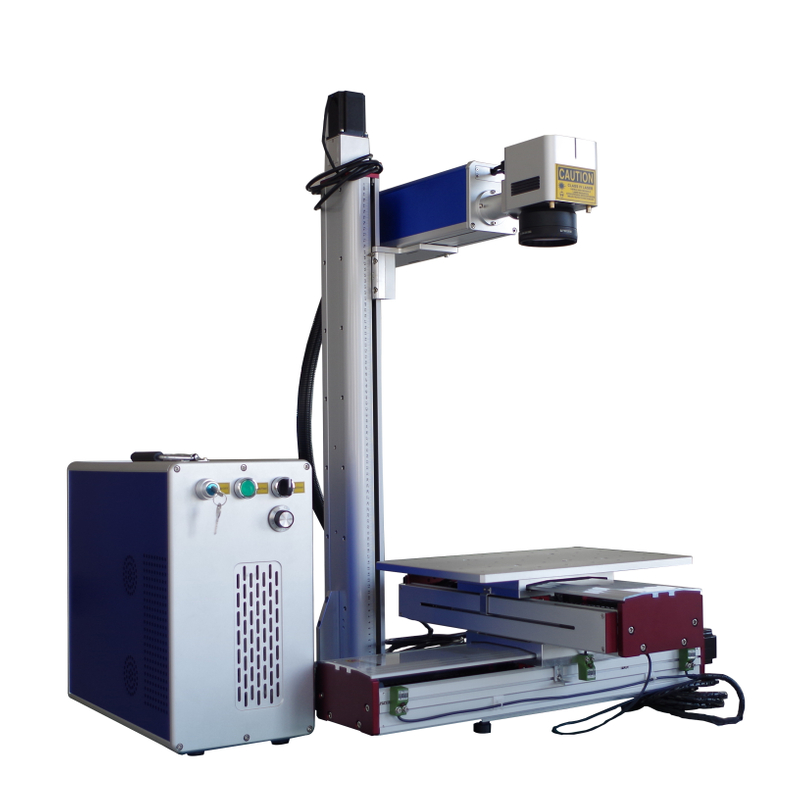

photobank

Main Configurations

Introduction

Laser source

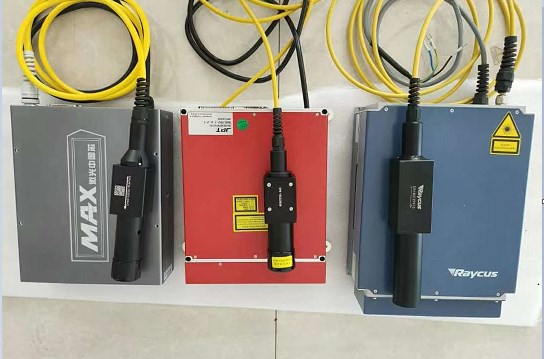

Equipped with premium fiber laser source options including MAX, Raycus, and JPT. These sources deliver a stable laser beam with excellent quality and high pulse energy. They feature a long operational lifespan of up to 100,000 hours with no maintenance required.
Control System

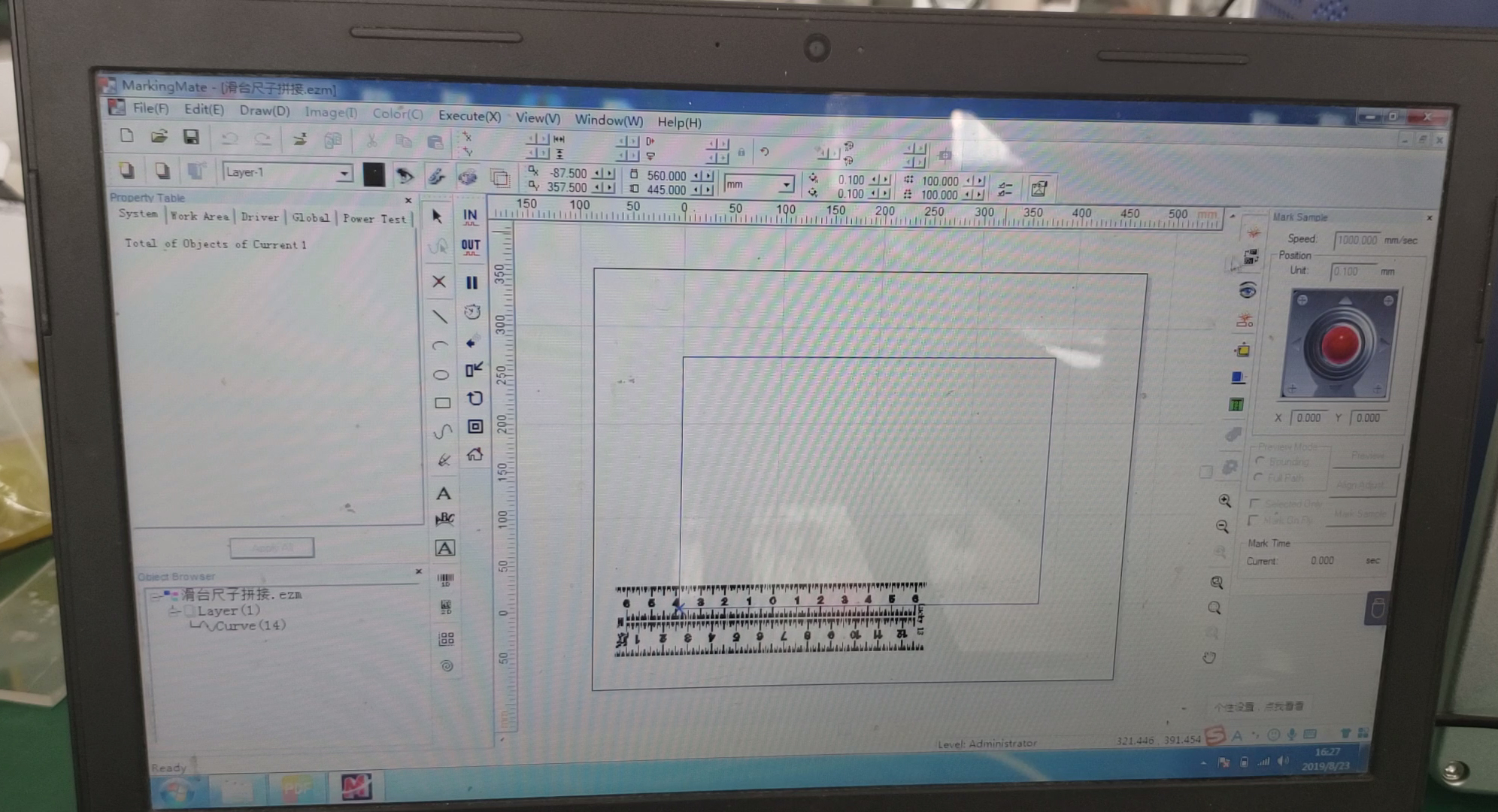

Powered by the advanced UMC4 control board paired with professional Marking Mate software. Unlike standard controllers, this system is specifically optimized for Seamless Splicing (Split Marking), providing powerful algorithms to ensure precise, gap-free connections for large-format graphics.

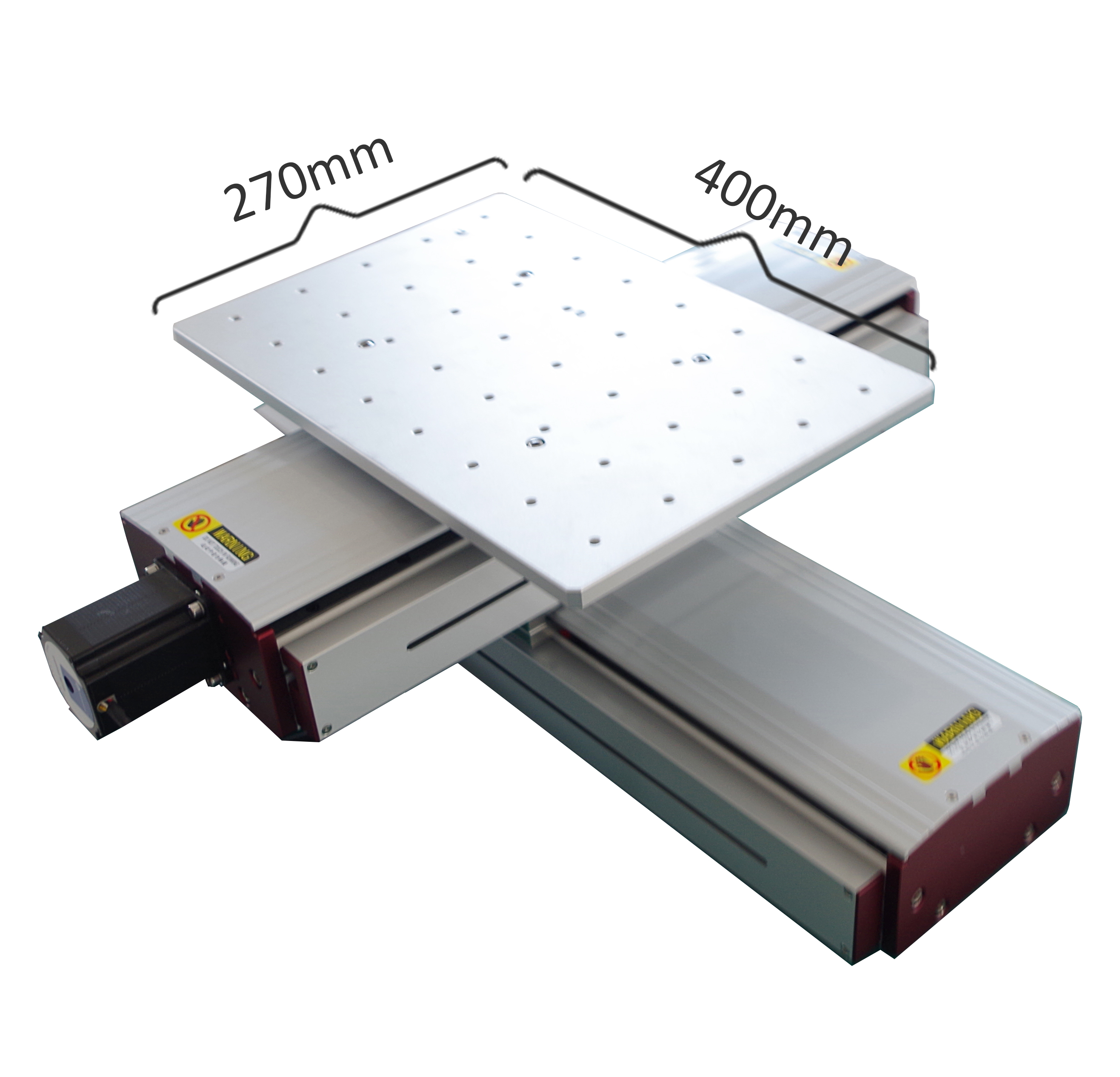

XY Electric Sliding Table

A high-precision automated XY motion platform that expands the working envelope. It provides a massive travel distance of 600mm (X) × 500mm (Y), allowing for large-scale engraving or continuous batch processing of multiple parts without manual repositioning.
High-Speed Galvanometer

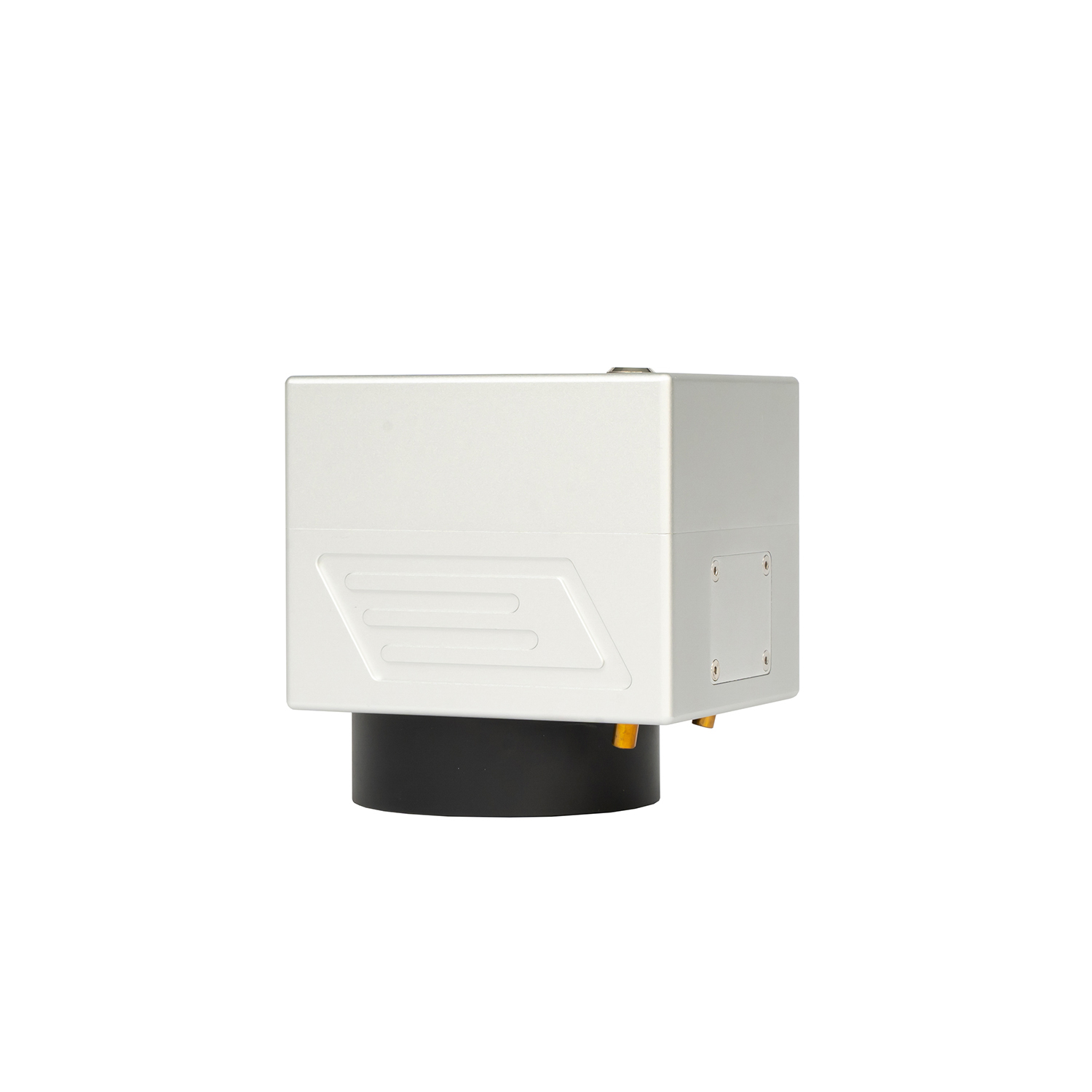

High-Speed Galvanometer Utilizes a high-speed digital galvo scanner known for its fast response time and superior positioning accuracy. It ensures high efficiency and fine detail, even when marking complex graphics at high speeds.

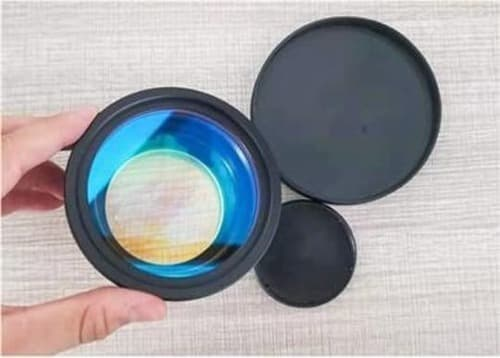

F-Theta Scan Lens

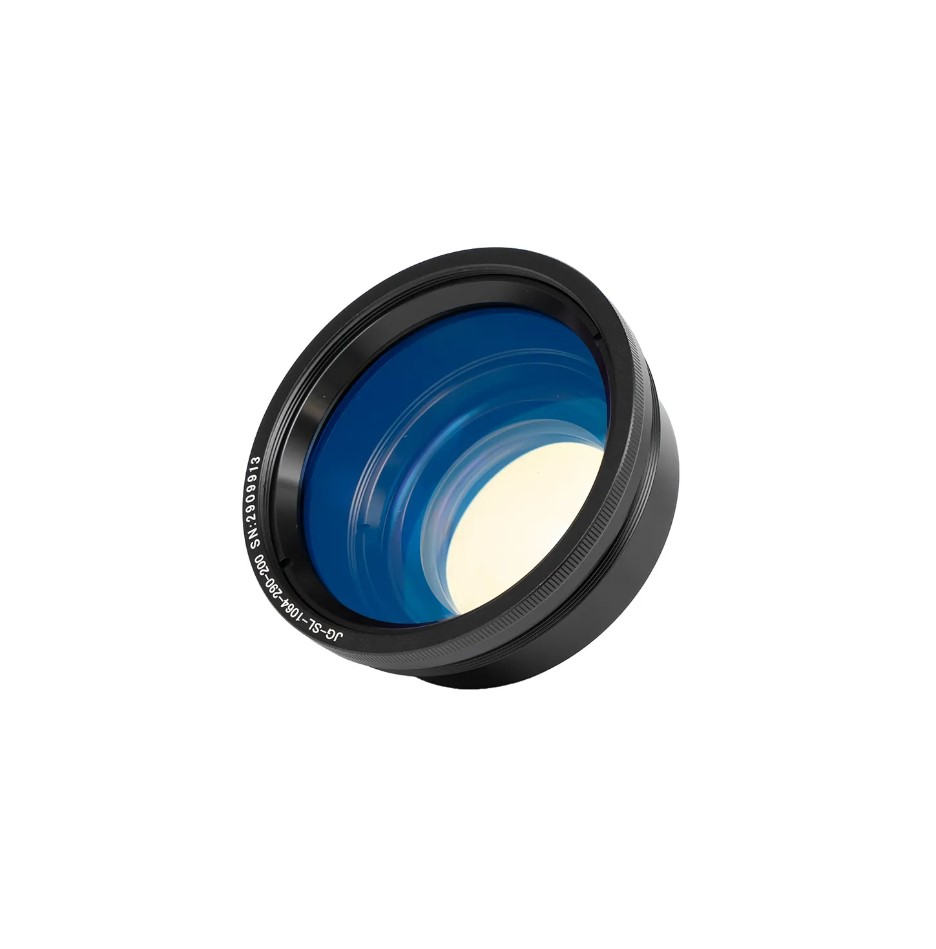

Installed with a high-quality 110x110mm F-Theta lens. This optical component ensures uniform focusing and consistent energy distribution across the entire scanning field, minimizing distortion at the edges.

Parameters

Laser Wavelength

1064 nm

Laser Power Options

20W / 30W / 50W / 60W / 100W

Beam Quality (M²)

< 1.5

Output Power Stability

< ±3% (over 24 hours)

Pulse Repetition Rate

20 kHz – 80 kHz

XY Axis Travel (Stroke)

400x500mm for 110x110mm lens

Max. Marking Speed

≤ 7000mm/s

Min. Line Width

0.01 mm

Repetition Accuracy

± 0.002 mm

XY Positioning Accuracy

± 0.01 mm

Cooling Method

Air Cooling

Operating Voltage

AC 110V / 220V

50/60 Hz

Power Consumption

< 600 W

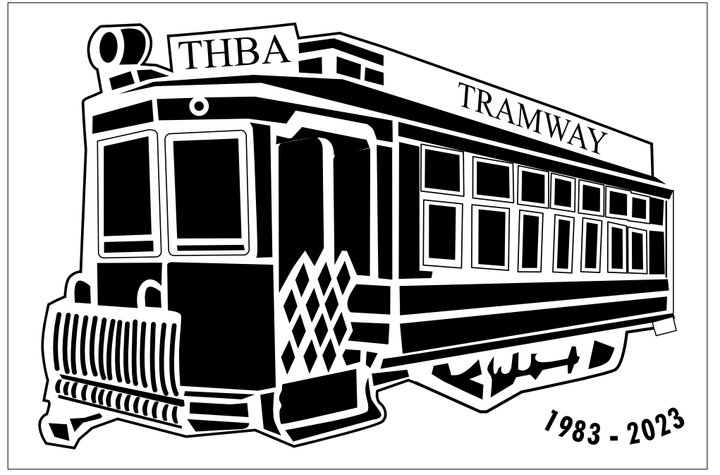

Application

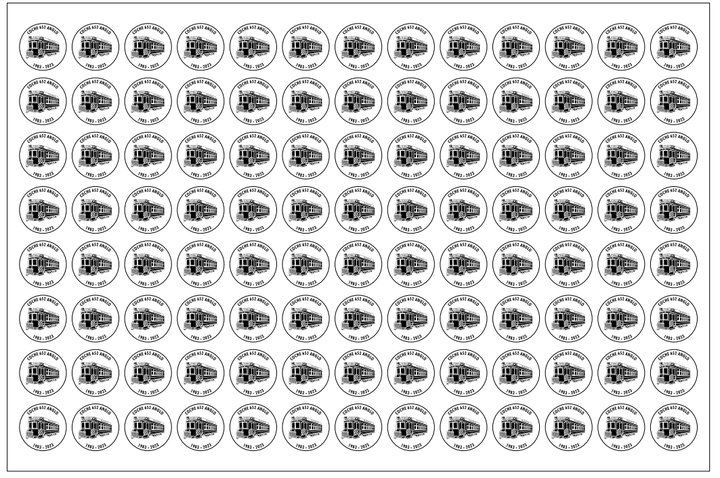

The machine can be used for array engraving and large-format engraving. It significantly boosts efficiency and overcomes the limitations of field lenses.
