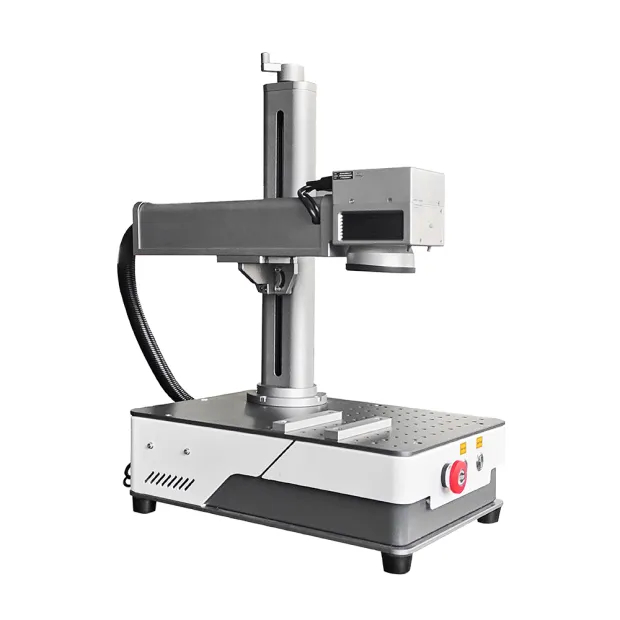

Product Description
Features:
1.Smart and new design only 20kg with packing.
2.Free shipping by courier.
3.Fast delivery with big quantity machine in stock.
4.Running stable and good cost performance.
5.Your logo could be printed on.
6.Easy operation and maintenance free.
7.Could widely used in metal and some non-metal marking.
Machine Control Switch:
Emergency stop: Press down to cut off all electric of machine for operator and products safety.
Scan Head switch: Control the switch state of the scan head power supply of the marking machine.
Laser Power switch: Control the switch status of the laser power supply.
Manual wheel Z-axis lifting system:
Adjust the focal length of the machine by manually shaking the Z-axis.
In addition, you can change to Motorized Z-axis to control lift.
We use a high quality galvanometer with a double red light.
Machine size：
Real Pictures：
Configuration:
|
|
MAX Laser source Genuine MAX lasers, each withanti-counterfeiting code. -High beam quality -High output power -Stable and reliable -Low Maintenance -Long life.
|
| EZCAD2 Control card Genuine EZCAD2 control system compatible with win7/8/10. Stable motion control, laser control is correspondingly fast. |
|
|
| SINO GALVO Galvanometer The galvanometer has good operation stability, high positioning accuracy, fast marking speed and strong anti-interference ability. |
| Field Lens Working near the focal plane of the objective lens can effectively reduce the detector size. Improve the ability of the edge beam incident into the detector. The standard is 110*110mm, and other models can be selected. |
|
Machine Reference Parameters:
| Model | RF-F-20W | RF-F-25W |
| Laser output power | 20W | 25W |
| Laser source band | MAX | |
| Laser wavelength | 1064nm | |
| Laser beam quality | <1.5 | |
| Max pulse energy(mj) | 0.7 | 0.6 |
| Pulse duration(ns) | 90±10@27KHZ | 100±20@40KHZ |
| Pulse repetition rate range(KHZ) | 27-60 | 40-60 |
| Min. Character size | 0.2mm | |
| Repetition Accuracy | <8μrad | |
| Power consumption | 80W | 110W |
| Cooling type | Air cooling | |
| Marking area | 70*70-150*150mm | |
| Max working speed | 8000mm/s | |
| Laser spot (110x110) | 25.4μm | |
| Graphic Format Supported | AI, PLT, DXF, BMP, Dst, Dwg, LAS, DXP | |
| Mode of Operation | Pulsed | |
| Certification | CE | |
| Warranty | 2 years | |
| Supply voltage | AC110V 60HZ / AC220V 50HZ | |
| Focus type | Double red light | |
Optional accessories
Sample Show
Packing and Shipping
1.Colleet all accessories and spareone by one according to the orderlist, and double check all partsagain to make sure all parts areincluded.
2.Our packaging standarts:
+thick cling film
+six-sided pearl cotton
+High strength paper box
+Pack the helt and then secure themachine to ensure the machine issafe during transport.
3. Paste the shipping mark toensure that the buyer can easilyidentify the correct machine
4.A safety sign can be used toremind the transporter to keepour equipmentin the course oftransportation.
We will give away the following products for free：
| 1 | Inner Hexagon |
| 2 | Foot Switch |
| 3 | Power Cable |
| 4 | USB Flash Drive |
| 5 | Goggles |
| 6 | 60CM Ruler |
| 7 | Laser Inspect Report |
Shipping list
| 1 Set Fiber Laser Marking Machine |
| 1 Pcs Inner Hexagon |
| 1 Pcs Foot Switch |
| 1 Pcs Power Cable |
| 1 Pcs USB Flash Drive |
| 1 Pcs Goggles |
| 1 Pcs 60CM Ruler |
| 1 Pcs Laser Inspect Report |
Our Service
| 1 | Software is on update for free whole life. |
| 2 | Main parts be changed free of charge if there is any problem during the warranty period. |
| 3 | We will provide the consumable parts at an agency price. |
| 4 | We have user manual instruction and videos for software Installation, operation and machine's using and maintenance. |
| 5 | We will supply 24 hours online after service, and free technical support. |
| 6 | We debug the machine before shipment and carry out 12 hours working test to ensure the quality of the machine. |
| 7 | We offer the service, from you got the machine, including how to install the machine, how to use machine, how to let machine work, and so on. |
