Product Description
Features:
1. High-precision three-dimensional positioning technology, high-speed focusing and scanning system, laser beam fundamental mode, short pulse, high peak power, high repetition rate, speed is fast, bring ideal marking effect to customers.
2. 3D graphics processing technology, friendly operation interface, suitable for dxf, plt, cnc, step, IGES and other format files.
3. Easily Operating: Afford the specific marking software based on Windows, which is real-time adjust the laser power and pulse frequency.
4. 3D laser marking system adopts high strength cast machine structure.
5. The 3D laser marking system is through software control optical expanded beam lens in the optical axis direction high speed reciprocating motion.
6. Excellent beam quality, excellent processing performance.
7. No light leaking, safe marking.

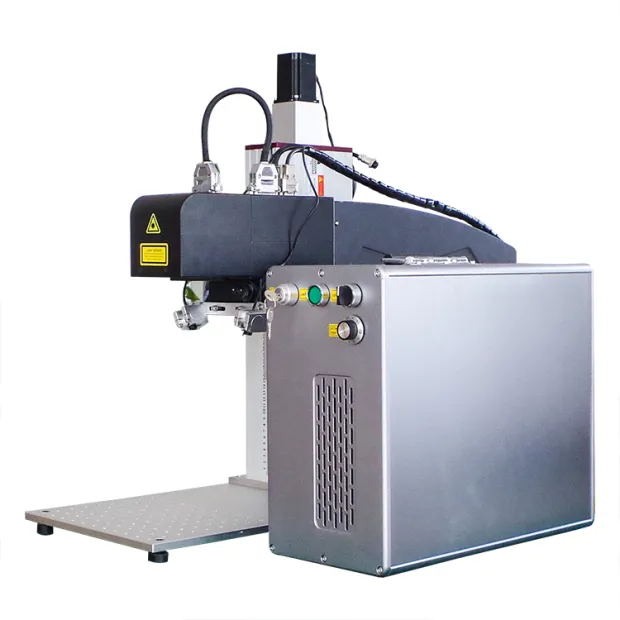

Real product images
Main Parameters
3D FEELTEK Galvanometer :
The laser beam energy is stronger and more delicate, and the marking effect is better.
High precision of 3D positioning technology.
High speed dynamic focusing and scanning system, short pulse, high-peak power and HPRF.
Double red light : external double red light focus, not easy to damage, easy to repair.
Lenmark 3D control software:
Support muti files formats and coding, support importing of drawing softwares, vector graphic, text, barcode etc.
Support multi correction methods: fast and high precision correction on high precision ideal platform and free adjustment of each position focal point under the non-ideal plane, and finally achieve full format focus consistency.
Support 3D application, support importing of STL model, self-developed model, etc. Support 3D data editing, rapid realization of 3D surface marking,relief processing.
Support expansion of 3D scanning equipment, it can realize the rapid localization and reverse processing of 3D workpieces, and the rapid marking of workpieces can be realized without importing the workpiece model.
Configuration:
|
| Laser source Has a service life of over 70000 hours. |
| Lenmark 3D Control card -Professionally designed board for 3D laser marking machine. -Start/Stop signal: Support start,stop,pause and other functions of hardware -System: Win2000/XP/Win7/Win8/Win10,32/64bit system. |
|
|
| 3D FEELTEK Galvanometer Suitable for 1064nm light source. Can achieve 600*600*150mm super size surface processing. It is widely used in large surface marking, surface transparent etching, surface engraving and PCB marking. |
| Double red light It can help you find focus more easily. |
|
 | Power Supply High Quality Taiwan MeanWell power supply to ensure machine work stably. |
Machine Reference Parameters
| Model | RF-F-20QB | RF-F-30QB | RF-F-50QB |
| Laser output power | 20W | 30W | 50W |
| Laser source band | RAYCUS | ||
| Laser wavelength | 1064nm | ||
| Laser beam quality | <1.6 | ||
| Max pulse energy(mj) | 1 | ||
| Pulse duration(ns) | 90-110@20KIHZ | 120-150@30KHZ | 120-150 |
| Pulse repetition rate range(KHZ) | 20-60 | 30-60 | 50-100 |
| Min. Character size | 0.2mm | ||
| Repetition Accuracy | <8μrad | ||
| Power consumption | 170W | ||
| Cooling type | Air cooling | ||
| Marking area | 70*70-300*300mm | ||
| Max working speed | 8000mm/s | ||
| Laser spot (110x110) | 25.4μm | ||
| Graphic Format Supported | AI, PLT, DXF, BMP, Dst, Dwg, LAS, DXP | ||
| Mode of Operation | Pulsed | ||
| Certification | CE | ||
| Warranty | 2 years | ||
| Supply voltage | AC110V 60HZ / AC220V 50HZ | ||
| Focus type | Double red light | ||
Optional accessories
Sample Show
Packing and Shipping
1.Multi-layer winding film, strong winding, transport does not shake.
2.Thick plywood, manual sealing.
3.Adopt the best pearl cotton to reduce the vibration during transportation.
4.After sealing the case, use the steel belt to seal the Angle and affix the corresponding shipping mark.
5.We have a variety of delivery methods, machine parts, 40-80kg machine can be considered express and air freight. Large machines and more than one machine are recommended to be transported by sea or train.
We will give away the following products for free：
| 1 | Inner Hexagon |
| 2 | Foot Switch |
| 3 | Power Cable |
| 4 | USB Flash Drive |
| 5 | Goggles |
| 6 | 60CM Ruler |
| 7 | Laser Inspect Report |
Our Service
| 1 | Software is on update for free whole life. |
| 2 | Main parts be changed free of charge if there is any problem during the warranty period. |
| 3 | We will provide the consumable parts at an agency price. |
| 4 | We have user manual instruction and videos for software Installation, operation and machine's using and maintenance. |
| 5 | We will supply 24 hours online after service, and free technical support. |
| 6 | We debug the machine before shipment and carry out 12 hours working test to ensure the quality of the machine. |
| 7 | We offer the service, from you got the machine, including how to install the machine, how to use machine, how to let machine work, and so on. |
