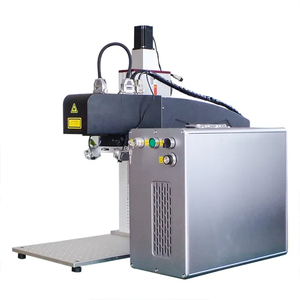

New Upgrade Auto Focus Raycus JPT Laser Fiber Laser Marking Machine Easy Operation

Automatic adjustment of focal length, more convenient, improve work efficiency
Power:
Availability:
Quantity:
facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
whatsapp sharing button
kakao sharing button
snapchat sharing button
telegram sharing button
sharethis sharing button

Features

1. Could widely used in metal and some non-metal marking.

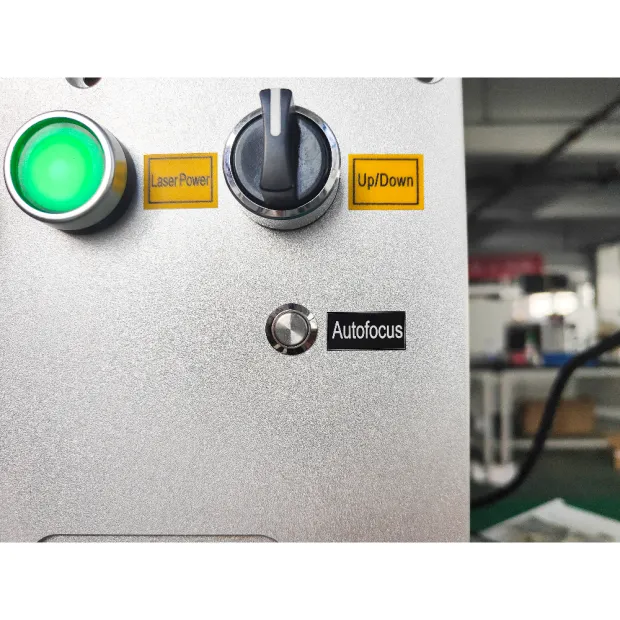

2. Automatic adjustment of focal length, more convenient, improve work efficiency

3. EZCAD control software, multifunction, supports multiple languages.

4. High speed scanning galvanometer with dual red light assisted focusing.

5. High quality anodized aluminum case, split portable design, easy to transport.

Main Configurations

Introduction

Parameters

Model
Auto Focus Marking Machine
Laser output power
30W/50W/60W/70W/80W
Laser source band
JPT/Raycus/MAX(optional)
Laser wavelength
1064nm
Min. Character size
0.2mm
Repetition Accuracy
<8μrad
Power consumption
170W
Cooling type
Air cooling
Marking area
70x70/110x110/200x200/300x300mm(option)
Max working speed
8000mm/s
Laser spot (110x110)
25.4μm
Control program
EZCAD from BJJCZ
Graphic Format Supported
AI/PLT/DXF/BMP/JPG/PNG/Dst/Dwg/LAS/DXP
Mode of Operation
Pulsed
Certification
CE FDA
Supply voltage
AC110V 60HZ / AC220V 50HZ

Applications

便携台式打标机详情页_07

FAQ

FAQs
  • Q1: How to choose machine?
    Created with Sketch.
    形状 Created with Sketch.
    A1: You can tell us your working material, detail work by picture or video so that we can recommend the most suitable model for you.
  • Q2: Are you a factory or trading company?
    Created with Sketch.
    形状 Created with Sketch.
    A2: We are the manufacturer. as only the machine made by ourselves, quality can be trusted, and most important thing is we can do better service after sales. We know how to fix the problem in each parts easily. So welcome to visit to our factory.
  • Q3: What's the payment term?
    Created with Sketch.
    形状 Created with Sketch.
    This area can be fully edited and gives you the opportunity to introduce yourself, your website, your products or your services. This area can be fully edited and gives you the opportunity to introduce yourself, your website, your products or your services. This area can be fully edited and gives you the opportunity to introduce yourself, your website, your products or your services. This area can be fully edited and gives you the opportunity to introduce yourself, your website, your products or your services. This area can be fully edited and gives you the opportunity to introduce yourself, your website, your products or your services.
  • Q4: How about the delivery time?
    Created with Sketch.
    形状 Created with Sketch.
    A4: For normal machines we can send out the machine within 5-7 days after receive the full payment. For non standard machines and customized machines according to client's specific requirements, it would be 15 to 30 days.
  • Q5: How can i know your machine is work well?
    Created with Sketch.
    形状 Created with Sketch.
    A5: Before delivery , we have tested every machine and shoot some test video for you. If you have special production condition , we can adjust machine for you according to your work requirements.
  • Q6: How can i get support from you ?
    Created with Sketch.
    形状 Created with Sketch.
    A6: Our engineers are online for 24 hours, they can check the problems and give you solution very soon. If you don't know how to use the machine, We have English manual and CD video for machine using and maintaining , that will be delivery with machine. And we supply service through email, telephone, online, WhatsApp skype etc. Or If you're interesting come to China, we will offer you free training until you can use machine freely.
