Product Description
Machine Features:
1.The desktop design is convenient to place in factories, workshops and studios, and the wheeled design makes it easy for one person to move.
2.High-precision galvanometer, can be equipped with imported ZnSe field lens, the marking effect is more delicate and accurate.
3.CO2 laser marking machines are mainly used for marking organic materials such as wood, paper, acrylic and leather. However, the machine can also engrave on non-metal materials such as glass, leather, paper, acrylic and plastic.
4.High-quality machine shell, widened column, all-aluminum manufacturing.
5.The hollow body design is conducive to the heat dissipation of the CO2 laser RF tube and prolongs the service life of the machine.
Detailed picture:
•Equipped with China best quality lasersource DAVI.(Coherent Synrad brand areoptional too.)
•High-Speed galvanometer scanning system,dedicated online flying coding control software, it can also meet the online high-speed (continuous dynamic) coding for the production line.
•It can mark numbers, texts, symbols, graphics, such as conformity, production date, batch number on the products, combining with product traceability system integration.
HIGH QUALITY RED LIGHT: Double red lights find focus length. Not easy to damage, easy to repair.

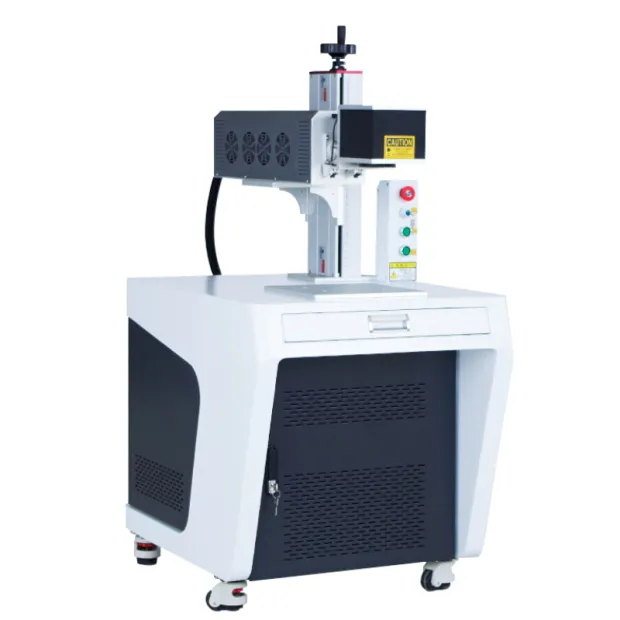

Real Image of the machine：
Pulleys are in stalled at the bottom for easy movement;
Manual wheel Z-axis lifting system；
Emergency stop: Press down to cut off all electric of machine for operator and products safety.
Key switch: Control main power of machine. We can use a key or without insert a key type to avoid loosing the key.
Configuration:
 | DAVI Laser source Genuine DAVI lasers, each with anti-counterfeiting code. -High beam quality -High output power -Stable and reliable -Low Maintenance -Long life |
| EZCAD2 Control card Genuine EZCAD2 control system compatible with win7/8/10. Stable motion control, laser control is correspondingly fast. |
|
|
| Galvanometer -Marking speed 7000mm/s. -Positioning speed 8000mm/s. -Tracking error ≤164us. -Linearity 99.9%. -Zero drift <15μRad./℃. -Repeat positioning accuracy <8μRad. -Long-term drift (8 hours of continuous work) <0.5mRad. |
| Field Lens Working near the focal plane of the objective lens can effectively reduce the detector size. Improve the ability of the edge beam incident into the detector. The standard is 110*110mm, and other models can be selected. |
|
How to choose the field lens?
With Same Lens,The Higher Power,The Deeper Engrave
With Same Power,The Smaller Lens,The Deeper Engrave
Bigger Lens Engrave Bigger Area ,Smaller Lens Engrave Deeper Depth
Recommended:
20w Choose 70mm*70mm, 110mm*110mm
30w Choose 70mm*70mm, 110mm*110mm, 175mm*175mm
50w Choose 70mm*70mm, 110mm*110mm, 175mm*175mm,200mm*200mm,300mm*300mm.
Choose a size that meets your working area requirements, and don't have to blindly seek big.
Machine Reference Parameters:
| Model | RF-F-40W |
| Laser output power | 40W |
| Laser source band | DAVI |
| Laser wavelength | 10.6μm |
| Laser beam quality | <1.2 |
| Beam diameter(mm) | 1.8±0.2 |
| Beam divergence angle | 7.5±0.5m full angle |
| Cooling type | Air cooling |
| Marking area | 110*110mm-300*300mm(optional) |
| Marking depth | 0-3.0mm |
| Power consumption | ≤1000W |
| Graphic Format Supported | AI, PLT, DXF, BMP,JPG,PNG,Dst, Dwg, LAS, DXP |
| Certification | CE |
| Supply voltage | AC110V 60HZ / AC220V 50HZ |
| Weight | 120KG |
Optional accessories
|
|
|
|
| Rotary Adjust the working diameter through the handle. | Rotary table Multi station marking of surface can be realized. | Protective cover Mounted on the machine, it can reduce the direct laser damage to the eyes. |
|
|
|
|
| Ring rotary Through spring adjustment, convenient for small items marking. | XY motorized tableX and Y-axis moving slide table. | Field lens 110*110mm-300*300mm (optional) |
|
|
|
|
| Safety glasses Reduce damage to the eyes. | Cyclops camera It can easily get the mark position on the computer: draw the mark there. | Auto focus It can focus automatically without manual focusing. It includes z-axis drive system and distance sensor. |
Sample Show
Packing and Shipping
1.Multi-layer winding film, strong winding, transport does not shake.
2.Thick plywood, manual sealing.
3.Adopt the best pearl cotton to reduce the vibration during transportation.
4.After sealing the case, use the steel belt to seal the Angle and affix the corresponding shipping mark.
5.We have a variety of delivery methods, machine parts, 40-80kg machine can be considered express and air freight. Large machines and more than one machine are recommended to be transported by sea or train.
We will give away the following products for free：
| 1 | Inner Hexagon |
| 2 | Foot Switch |
| 3 | Power Cable |
| 4 | USB Flash Drive |
| 5 | Goggles |
| 6 | 60CM Ruler |
| 7 | Laser Inspect Report |
Shipping list:
| 1 Set CO2 Laser Marking Machine |
| 1 Pcs Inner Hexagon |
| 1 Pcs Foot Switch |
| 1 Pcs Power Cable |
| 1 Pcs USB Flash Drive |
| 1 Pcs Goggles |
| 1 Pcs 60CM Ruler |
| 1 Pcs Laser Inspect Report |
Our Service
| 1 | Software is on update for free whole life. |
| 2 | Main parts be changed free of charge if there is any problem during the warranty period. |
| 3 | We will provide the consumable parts at an agency price. |
| 4 | We have user manual instruction and videos for software Installation, operation and machine's using and maintenance. |
| 5 | We will supply 24 hours online after service, and free technical support. |
| 6 | We debug the machine before shipment and carry out 12 hours working test to ensure the quality of the machine. |
| 7 | We offer the service, from you got the machine, including how to install the machine, how to use machine, how to let machine work, and so on. |
