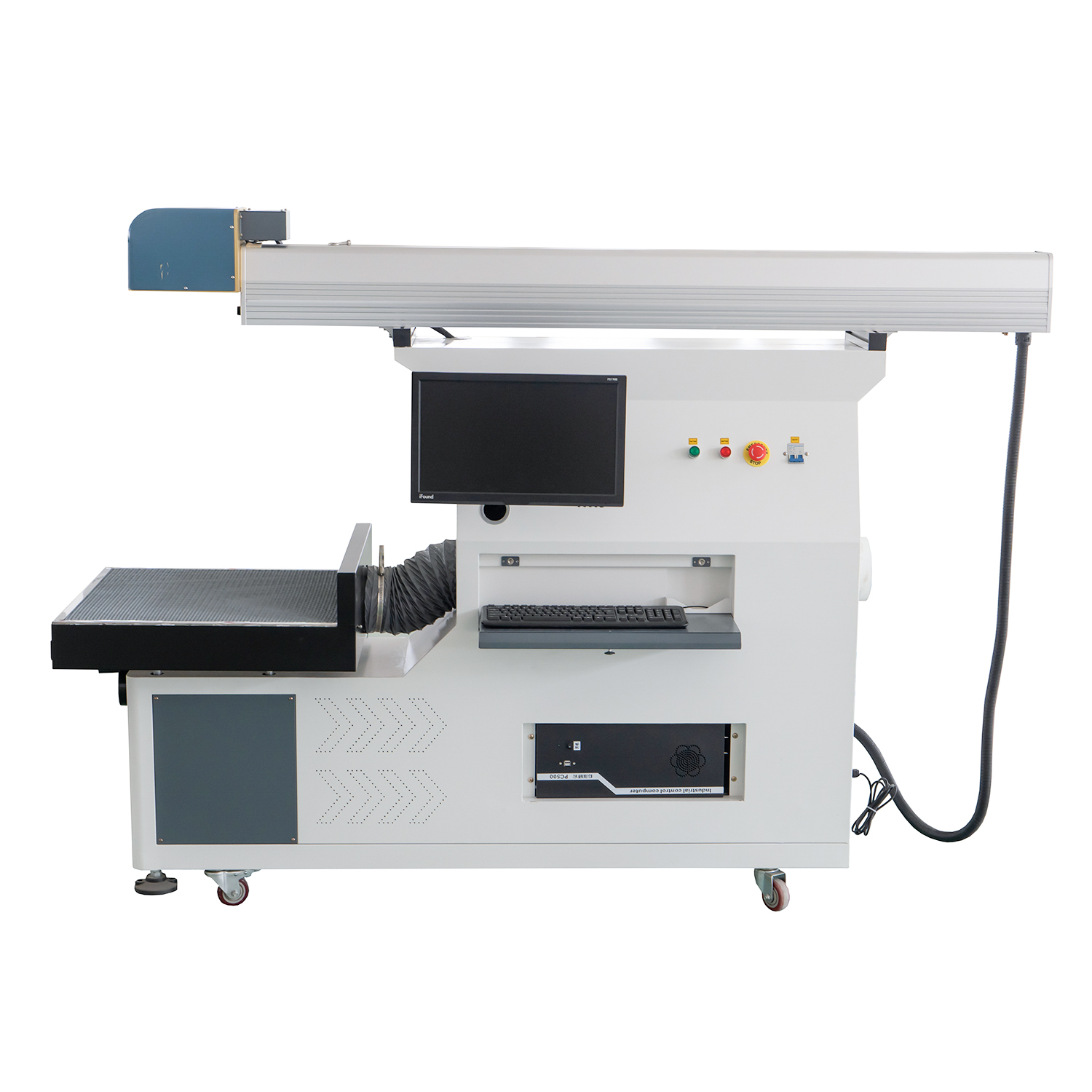

3D Large Working Area 100W 3D CO2 Laser Marking Engraving Machine for Paper Leather Wood

3D Large Working Area 100W 3D CO2 Laser Marking Engraving Machine for Paper Leather Wood

Quantity:
Power :	100W
Availability:





Inquire Add to Basket

Features

1. Fast engraving on nonmetal materials surface

2. High speed dynamic focus: Achieve a larger range and finer light effects.

3. 3D dynamic Focus can quickly change the laser focal length and laser beam position, it can achieve deep engraving, 3D relief engraving, curve surface engraving and cutting

Applicable materials

Suitable for wood,paper,leather,cloth,plexiglass,epoxy,acrylic,unsaturated polyester resin and other non-metal materials.

Applicable industries

Widely used in leather, food, beverage, cloth, electronic, meter, communication instruments, package and other industries.

Main Configurations

Introduction

3D large format galvanometer

- Maximum working area up to 600*600mm
- According to application requirements and integration space, there are curved version, large field version, and multiple mechanical design options.
- The optional off-axis CCD module, applicated in positioning marking in moving line.
Laser source

- Beam quality: >95% TEM00 mode
- Optical resonator advantage: enhance power
- Advanced radioactive materials coated lenses
- Alternative technique: metal-glass sintering
FEELTEK Lenmark 3D control software

- Support muti files formats and coding, support importing of drawing softwares, vector graphic, text, barcode etc.
- Support multi correction methods: fast and high precision correction on high precision ideal platform and free adjustment of each position focal point under the non-ideal plane, and finally achieve full format focus consistency.
Operating Desk

- Easy to operate and convenient.
- With the computer stand, the computer can be moved easily.
- Hidden keyboard drawer, more convenient operation
Honeycomb platform

- Large honeycomb platform for easy marking of large items.
- Drawer design for easy cleaning of residual debris.
- Quickly raise and lower the handle to locate the engraving position. Free lifting, free adjustment.

Parameters

Model

RF-CO2-100W

Laser output power

100W

Laser type

CO2 laser

Control board

FEELTEK

Marking depth

0.02-2mm

Repetition Accuracy

<8μrad

Cooling type

Water cooling

Marking area

Maximum 600*600mm

Controller

Computer with marking software

Graphic Format Supported

AI/PLT/DXF/BMP/JPG/PNG/Dst/Dwg/LAS/DXP

Certification

Supply voltage

AC110V 60HZ / AC220V 50HZ

Applications

FAQ

FAQs

Q1: How to choose machine?

A1: You can tell us your working material, detail work by picture or video so that we can recommend the most suitable model for you.
Q2: Are you a factory or trading company?

A2: We are the manufacturer. as only the machine made by ourselves, quality can be trusted, and most important thing is we can do better service after sales. We know how to fix the problem in each parts easily. So welcome to visit to our factory.
Q3: What's the payment term?

A3: We accept: TT, Alibaba trade assurance order etc. 100% of total amount in advance Or 30% deposit in advance and 70% balance before delivery.
Q4: How about the delivery time?

A4: For normal machines we can send out the machine within 5-7 days after receive the full payment. For non standard machines and customized machines according to client's specific requirements, it would be 15 to 30 days.
Q5: How can i know your machine is work well?

A5: Before delivery , we have tested every machine and shoot some test video for you. If you have special production condition , we can adjust machine for you according to your work requirements.
Q6: How can i get support from you ?

A6: Our engineers are online for 24 hours, they can check the problems and give you solution very soon. If you don't know how to use the machine, We have English manual and CD video for machine using and maintaining , that will be delivery with machine. And we supply service through email, telephone, online, WhatsApp skype etc. Or If you're interesting come to China, we will offer you free training until you can use machine freely.
