Product Description
Product description
Machine Features:
1.High-quality machine shell, widened column, all-aluminum manufacturing.
2.High-precision galvanometer, can be equipped with imported ZnSe field lens, the marking effect is more delicate and accurate.
3.The hollow body design is conducive to the heat dissipation of the CO2 laser RF tube and prolongs the service life of the machine.
4.Fast delivery,easy to transport,could place on desk. Save your budget from delivery cost.
5.CO2 laser marking machines are mainly used for marking organic materials such as wood, paper, acrylic and leather. However, the machine can also engrave on non-metal materials such as glass, leather, paper, acrylic and plastic.

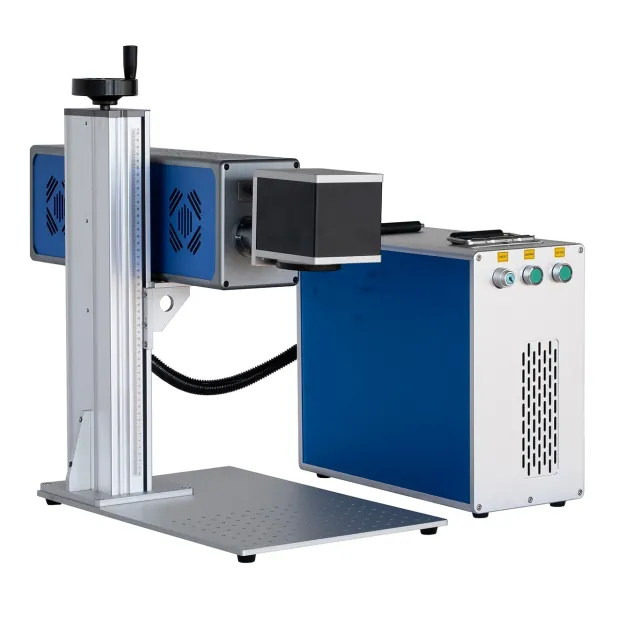

Real Image of the machine
Configuration:
 | DAVI Laser source Genuine DAVI lasers, each with anti-counterfeiting code. -High beam quality -High output power -Stable and reliable -Low Maintenance -Long life |
| EZCAD Control card Genuine EZCAD control system compatible with win7/8/10. Stable motion control, laser control is correspondingly fast. |
|
|
| Galvanometer -Marking speed 7000mm/s. -Positioning speed 8000mm/s. -Tracking error ≤164us. -Linearity 99.9%. -Zero drift <15μRad./℃. -Repeat positioning accuracy <8μRad. -Long-term drift (8 hours of continuous work) <0.5mRad. |
| Field Lens Working near the focal plane of the objective lens can effectively reduce the detector size. Improve the ability of the edge beam incident into the detector. The standard is 110*110mm, and other models can be selected. |
|
How to choose the field lens?
Related width. Many customers want to buy a large -scale field mirror, because they have to consider that the area to be played in this product is very large, but also remember that the area of the next product is likely to be higher. So buy a significant surface.
However, the larger the width of the field mirror, the greater the focal length of the lens of the matching field mirror. The longer the focal length of the lens, the larger the light spots of the laser focusing point, all of which are the same laser throughout the larger light spot area. The energy will definitely reduce the energy, which will cause the laser labeling deep and shallow. As we all know, the kinetic energy of the laser will be attenuated in the air. Therefore, the greater the focal length of the lens, the greater the motion energy consumption of the laser, the thicker the lines and the lighter.
Therefore, the width of the field selection mirror must be selected for the right one, and you don't have to blindly seek big.
Machine Reference Parameters:
| Model | RF-F-40W |
| Laser output power | 40W |
| Laser source band | DAVI |
| Laser wavelength | 10.6μm |
| Laser beam quality | <1.2 |
| Beam diameter(mm) | 1.8±0.2 |
| Beam divergence angle | 7.5±0.5m full angle |
| Cooling type | Air cooling |
| Marking area | 110*110mm-300*300mm(optional) |
| Marking depth | 0-3.0mm |
| Power consumption | ≤1000W |
| Graphic Format Supported | AI, PLT, DXF, BMP,JPG,PNG,DST, DWG, LAS, DXP |
| Certification | CE |
| Supply voltage | AC110V 60HZ / AC220V 50HZ |
| Weight | 70KG |
Optional accessories
|
|
|
|
| Rotary Adjust the working diameter through the handle. | Rotary table Multi station marking of surface can be realized. | Protective cover Mounted on the machine, it can reduce the direct laser damage to the eyes. |
|
|
|
|
| Ring rotary Through spring adjustment, convenient for small items marking. | XY motorized tableX and Y-axis moving slide table. | Field lens 110*110mm-300*300mm (optional) |
|
|
|
|
| Safety glasses Reduce damage to the eyes. | Cyclops camera It can easily get the mark position on the computer: draw the mark there. | Auto focus It can focus automatically without manual focusing. It includes z-axis drive system and distance sensor. |
Sample Show
Packing and Shipping
1.Multi-layer winding film, strong winding, transport does not shake.
2.Thick plywood, manual sealing.
3.Adopt the best pearl cotton to reduce the vibration during transportation.
4.After sealing the case, use the steel belt to seal the Angle and affix the corresponding shipping mark.
5.We have a variety of delivery methods, machine parts, 40-80kg machine can be considered express and air freight. Large machines and more than one machine are recommended to be transported by sea or train.
We will give away the following products for free：
| 1 | Inner Hexagon |
| 2 | Foot Switch |
| 3 | Power Cable |
| 4 | USB Flash Drive |
| 5 | Goggles |
| 6 | 60CM Ruler |
| 7 | Laser Inspect Report |
Shipping list:
| 1 Set CO2 Laser Marking Machine |
| 1 Pcs Inner Hexagon |
| 1 Pcs Foot Switch |
| 1 Pcs Power Cable |
| 1 Pcs USB Flash Drive |
| 1 Pcs Goggles |
| 1 Pcs 60CM Ruler |
| 1 Pcs Laser Inspect Report |
Our Service
| 1 | Software is on update for free whole life. |
| 2 | Main parts be changed free of charge if there is any problem during the warranty period. |
| 3 | We will provide the consumable parts at an agency price. |
| 4 | We have user manual instruction and videos for software Installation, operation and machine's using and maintenance. |
| 5 | We will supply 24 hours online after service, and free technical support. |
| 6 | We debug the machine before shipment and carry out 12 hours working test to ensure the quality of the machine. |
| 7 | We offer the service, from you got the machine, including how to install the machine, how to use machine, how to let machine work, and so on. |
