Features:
1. UV Laser Marking Machine is suitable for marking and engraving on plastic, glass and pcb, such as marking patterns and text on glasses, and marking text, pictures and QR codes on chargers or other plastic materials.
2. The wavelength of UV laser marking machine is 355nm, which belongs to the cold light source.
3. Focus spot is small, so it can carry out super delicate laser marking.
4. The production of thermal damage area is small.
5. Suitable for laser marking expected high effect of consumers.
Machine picture display:
Sample Drawing ：
Parameter:
| Laser output power | 3W/5W/10W/20W /25W(Optional) |
| Laser Type | UV |
| Laser Source Band | INNGU / JPT/ Huaray (optional) |
| Laser Wavelength | 355nm |
| Cooling type | Air Cooling or Water Cooling |
| Marking area | 70x70mm~300x300mm （optional) |
| Supply voltage | AC110V 60HZ/AC220V 50HZ |
| Power consumption | ≤1500W |
| Control system brand | EZCAD 2 |
| Focus Type | Double red light |
| Weight | 40-150kg (Depends on different machine models) |
| Warrant Time | 2 years |
Optional spare parts:
|
Rotary Axis for ring We also have other rotary axis of different specifications, Please let us to know if you need |
|

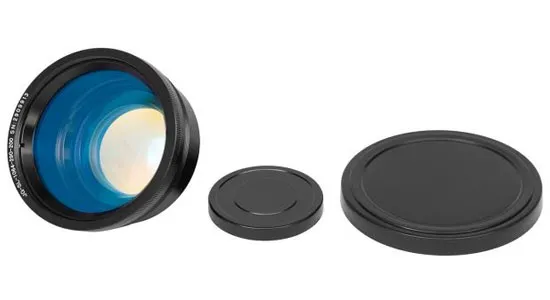

Spare lens: 70x70mm/110x110mm/150x150mm/175x175mm /200x200mm / 300x300mm USD50/set We can choose more lens with one machine. |
|
2D working table used to make micro move on XY axis |
|
Rotary working table, There is a circle of card slots on the back of the disc for placing pens. Realize fast engraving on the pen. |
|
Cyclops camera system which can easy get marking position on computer: Draw there mark there. More safe to operator. |
|
Fixture, Support for metal sheets |
|
Autofocus which could get focus automatic no need manual focus. It include Z axis drive system and distance sensor. |
|

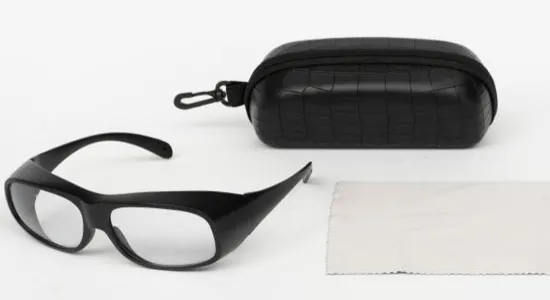

Goggle for 1064nm protection quality |
Packing & Delivery:
This is our giveaway that will be sent out with the machine.
The U disk contains the software and the use instructions
Foam cotton and wooden box packing:
3 layers packages .
For the outside, we adopt wood craft case .
In the middle ,the machine is covered by foam, to protect the machine from shaking.
For the inside layer , the machine is covered by thickening plastic bags for waterproof.
Our Services:
Pre-sale service:
We arrange final test before shipment. We run the machine without materials for a few days, and then mark materials for test. After making sure the machine is the best performance, then ship out the machine.
After-sale service：
1. The whole machine warranty is 2 years, laser source warranty is 3 years.
2. Electrical parts: Switching power supply, AC contactor, Switch button. If have quality problem in within 2 years，we sent to you a new one and free.
3. Motherboard and galvanometer have quality problems, We will send the new one to you , But the customer needs to return the old part to us.
4. If the laser source have quality problems, we can repair it for free
Note : The above warranty terms are limited to nonhuman quality problems.
