High-End RF Metal Tube 3D CO2 Laser Marking Machine with Camera

Industrial Power: The Ultimate 600x600mm Large-Format CO2 Laser System with 3D Vision & RF Technology

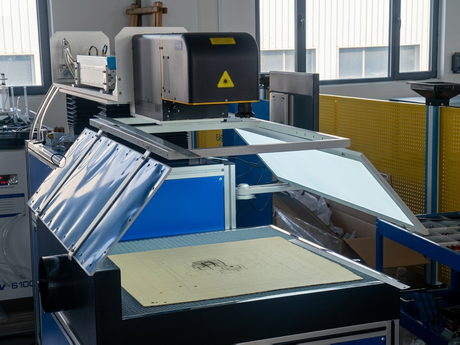

We are pleased to introduce our latest high-efficiency production solution: the 600x600mm Large-Format CO2 Laser System. Engineered for industries that demand both scale and precision, this machine combines top-tier RF laser technology with high-speed 3D optics and a practical vision-guided workflow.

Precision Optics: 3D Dynamic Focusing

Unlike standard 2D scanners that struggle with focal consistency on larger scales, this system is equipped with a Feeltek 3D Dynamic Focus Scan Head.

• Full-Field Consistency: The system automatically adjusts the focal plane in real-time, ensuring the laser beam remains perfectly focused across the entire 600x600mm work area.

• Edge-to-Edge Quality: Whether cutting at the center or the very edge of the field, the energy density remains uniform, preventing charred edges or incomplete cuts.

Smart Workflow: High-Resolution Camera Positioning

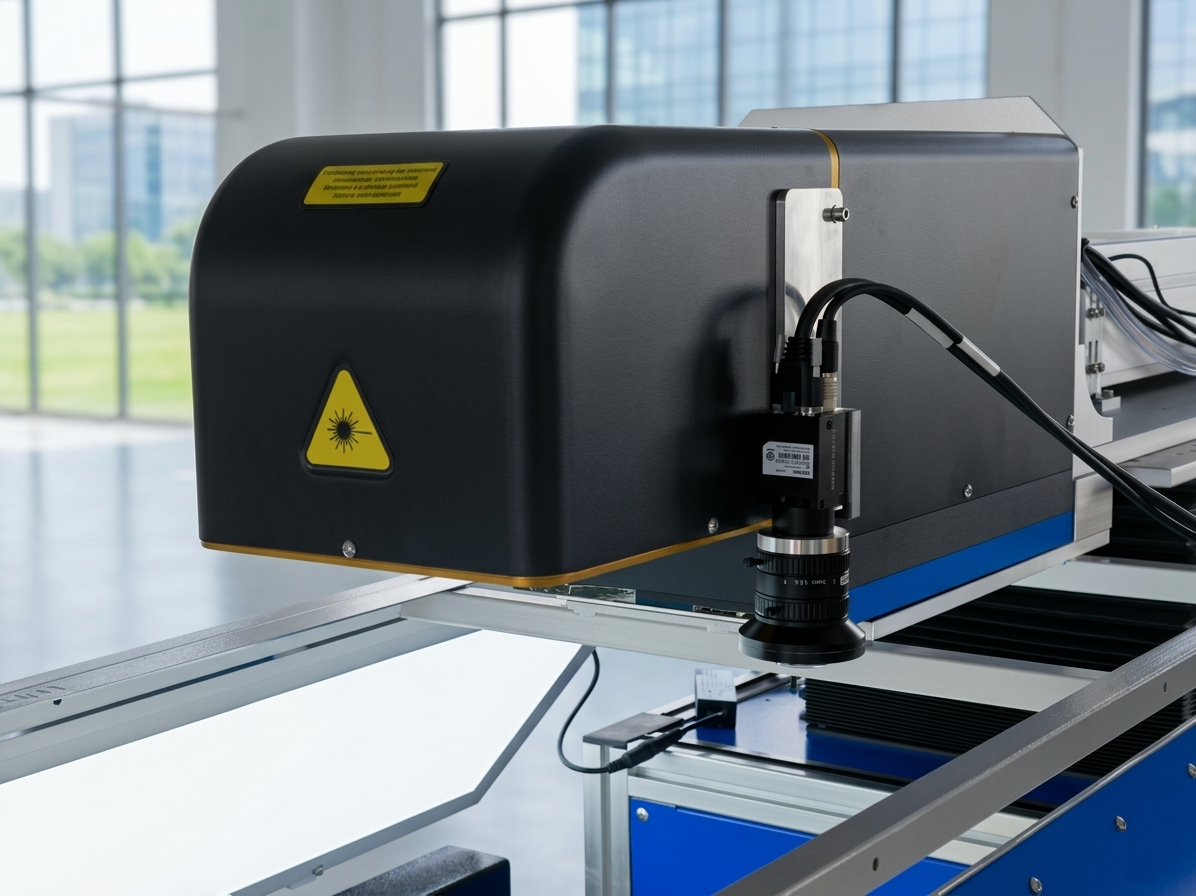

To streamline production, we have integrated a High-Pixel Industrial Camera mounted directly above the working area. This is a dedicated Vision-Guided System designed to solve real-world production headaches:

• Automatic Feature Recognition: The camera captures the workpiece and automatically identifies pre-printed marks or material boundaries.

• Precise Alignment: It synchronizes the laser's coordinate system with the physical material on the bed. You no longer need manual jigs or perfect material placement; the machine adjusts the cutting path to match the material’s actual position.

• Simplified Operation: This "search-and-cut" capability significantly reduces setup time and prevents costly alignment errors.

The Core: Coherent CX10 120W RF Metal Tube

Performance starts with the source. By utilizing the Coherent Diamond CX10 (120W) RF-excited metal tube, this system offers:

• Industrial Reliability: A stable, high-quality beam that glass tubes cannot replicate.

• Fine Kerf Width: Specifically optimized for cutting, the CX10 provides a concentrated energy spot that results in cleaner, faster, and more detailed cuts in acrylic, leather, wood, and textiles.

Key Technical Specifications:

• Laser Source: Coherent CX10 (120W) RF Metal Tube

• Scanning Technology: Feeltek 3D Dynamic Focus

• Work Area: 600x600mm

• Vision Kit: High-Resolution Industrial Camera for Registration & Alignment

• Cooling: Industrial Water Chiller System

Applications & Capability

This system is a workhorse for large-scale non-metal processing:

• Automotive & Fashion: Large-format leather perforation and pattern cutting.

• Signage: High-speed, vision-aligned cutting of printed acrylic or wood logos.

• Technical Fabrics: Precise shape cutting for industrial filters and textiles where boundary accuracy is critical.
