Product Description
Machine Features:
UV laser feature:
-UV laser is a professional marking plastic glass and other non-metallic, such like black color marking.
-UV laser have high laser accuracy, low energy, and low damage to materials. 3. UV laser no harm to the environment.
-High Laser beam quality, thin laser spot, ultra fine marking resolution.
-UV lasers at 355nm provide a small-size spot and a large depth of focus, marking by short wavelength laser interrupts molecular chains of materials, can greatly reduce the mechanical deformation and temperature distortion of materials.
-Galvanometer scanning system id compact and with high marking speed.
-It is a cold light, mainly used for super precision marking and engraving, particularly suitable for food, pharmaceutical packaging material marking, micro porous, high-speed dividing for glass, complex graphics wafer cutting in silicon materials, etc.
-Simple operation, no consumables, low energy consumption, more precise and clear marking, and irreplaceable advantages in areas with higher requirements in depth, smoothness and fineness, which can fully meet the needs of industrial continuous work.

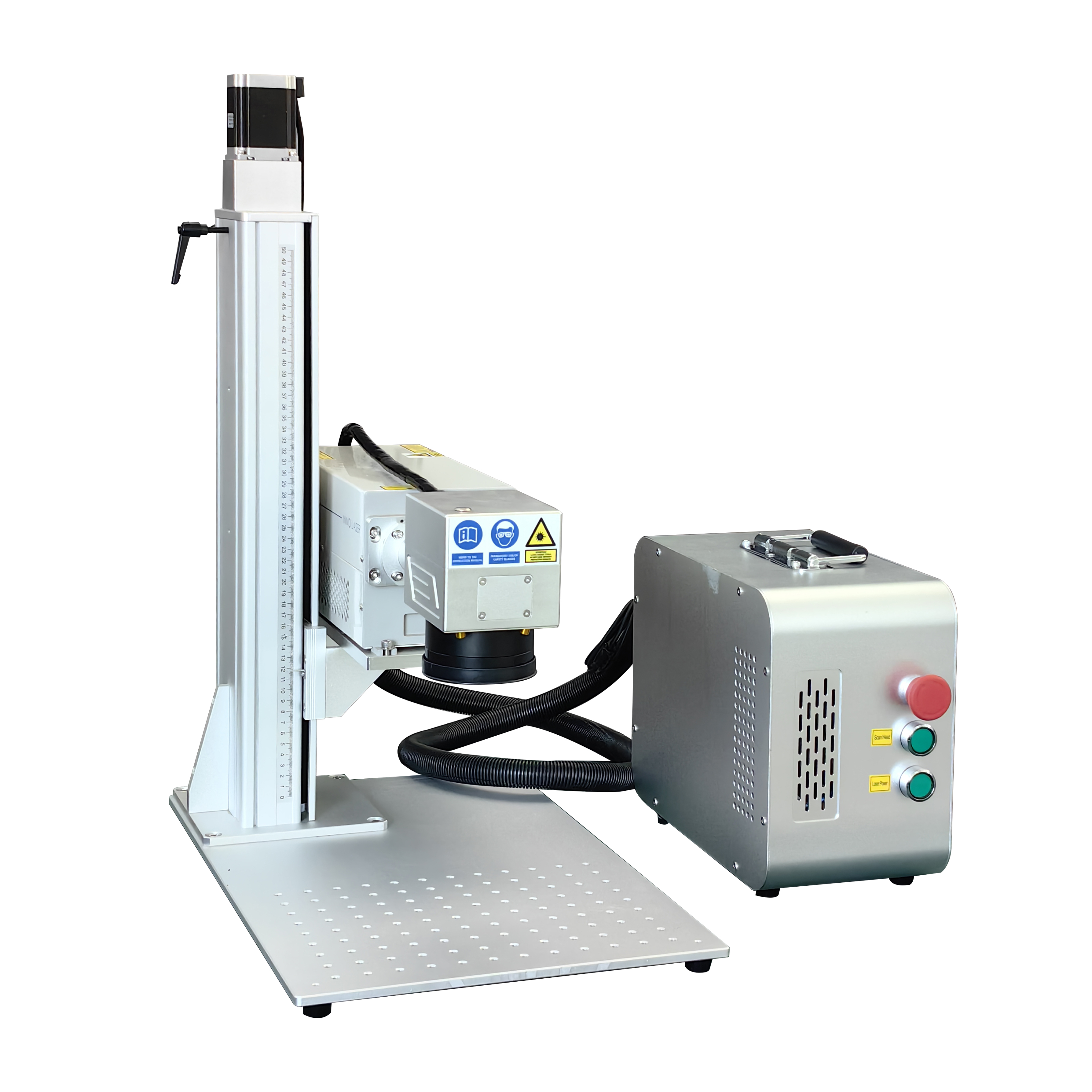

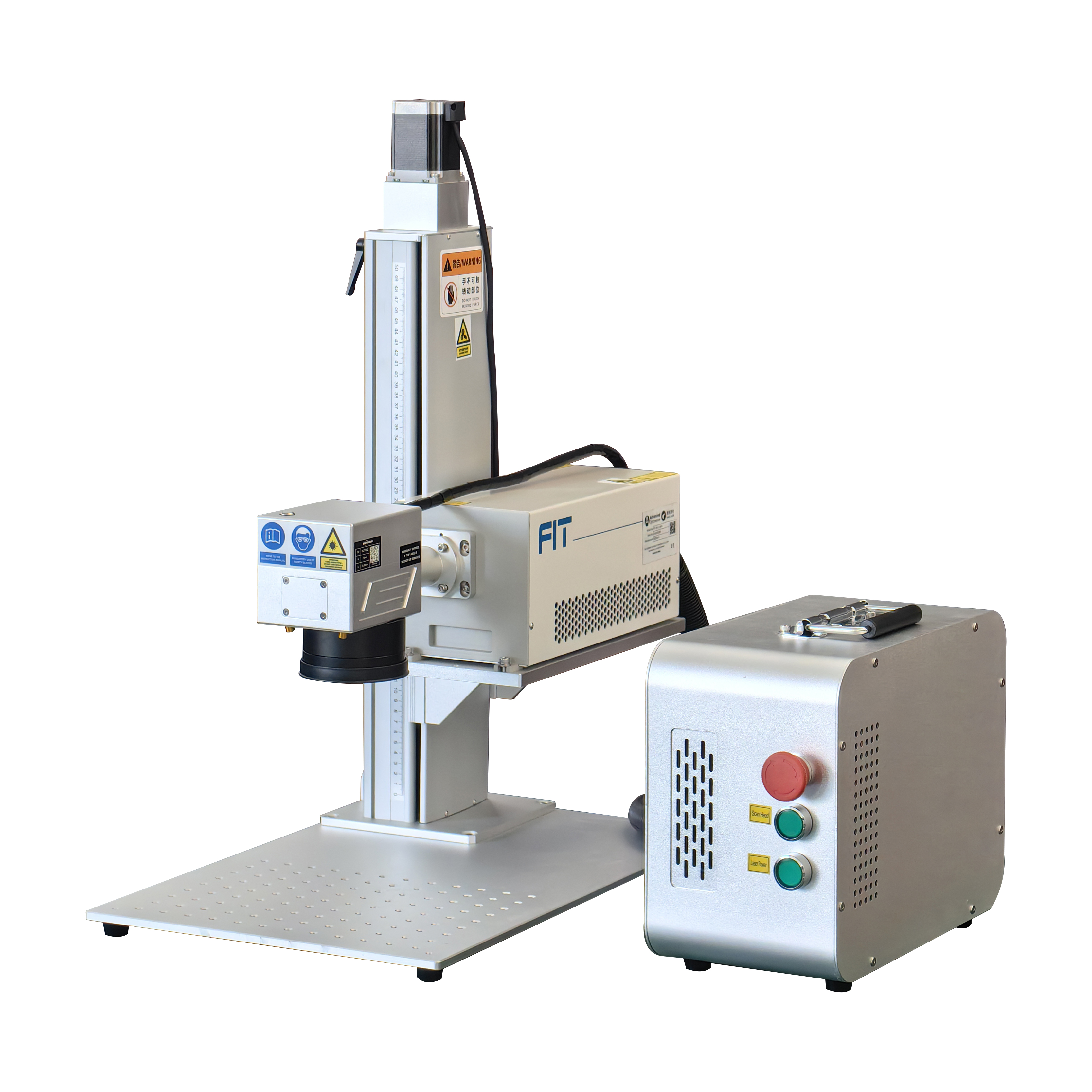

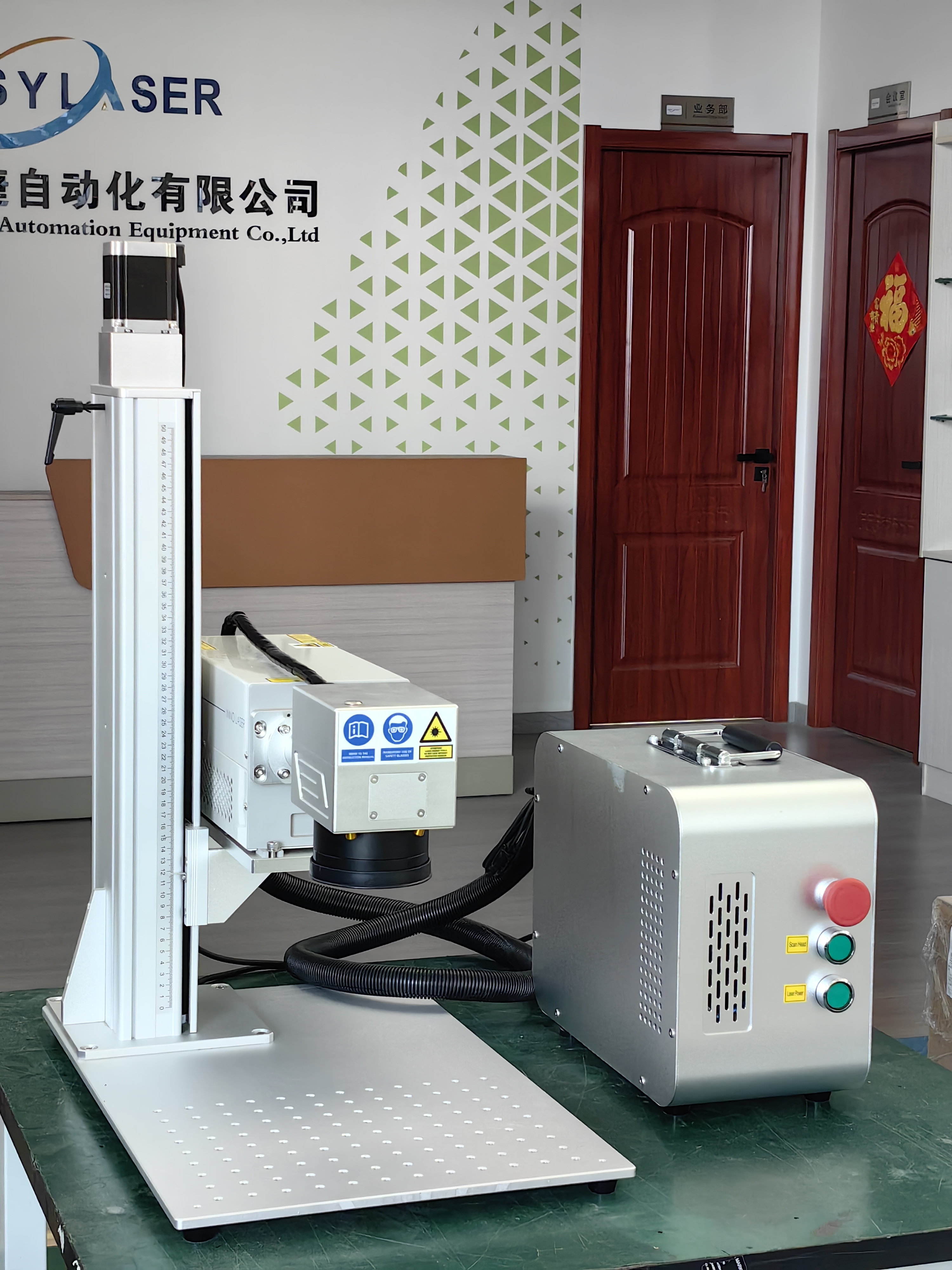

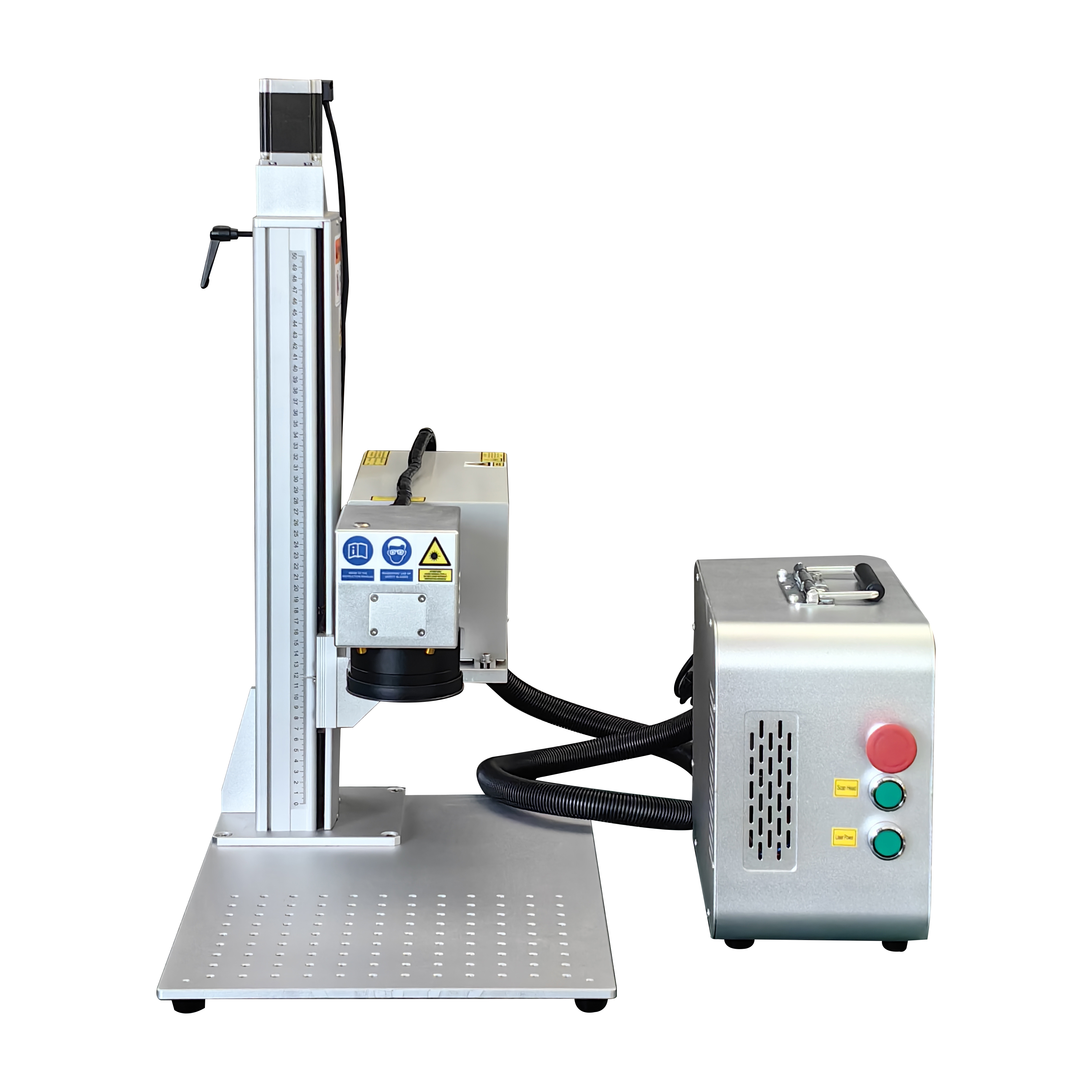

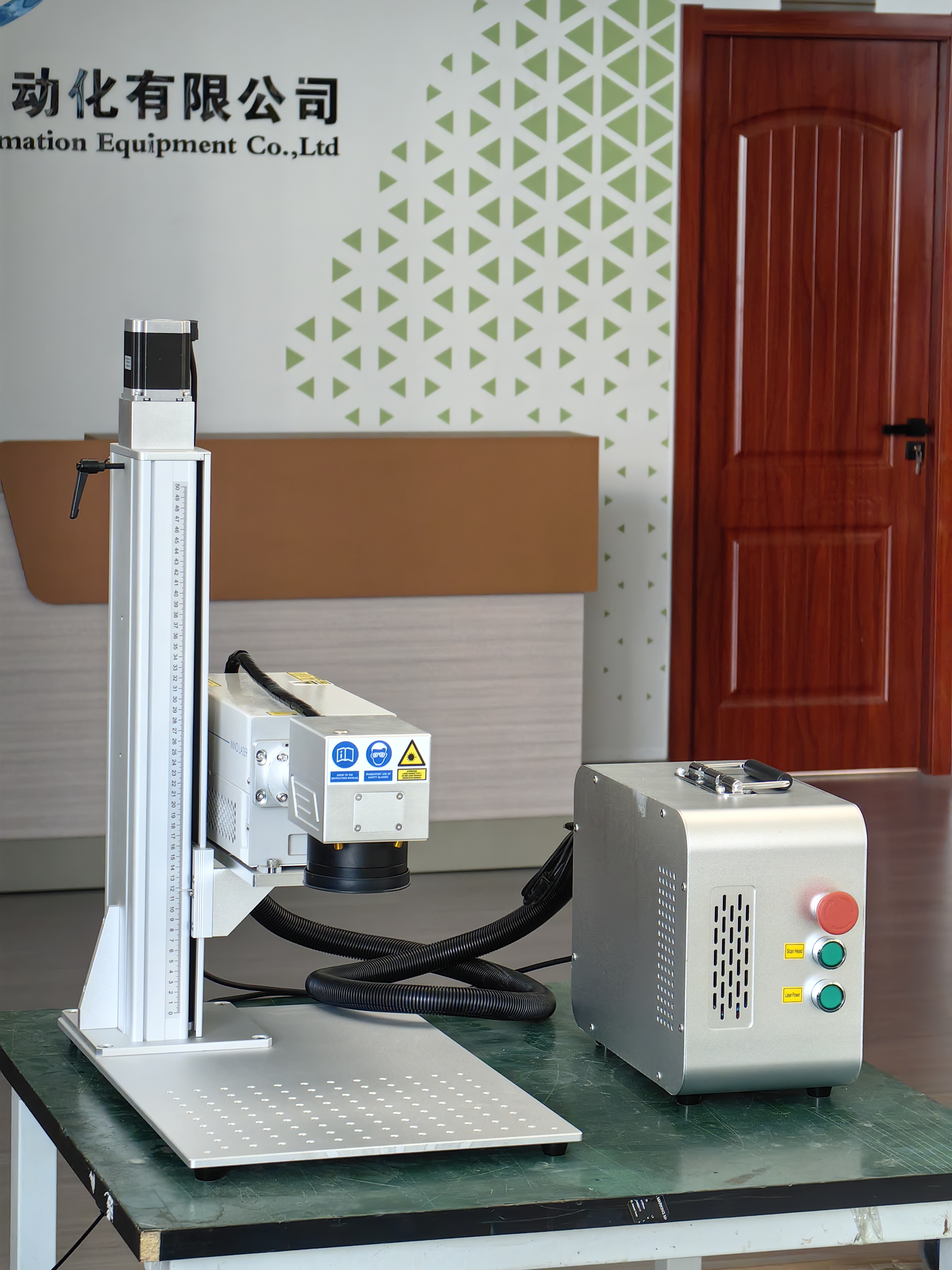

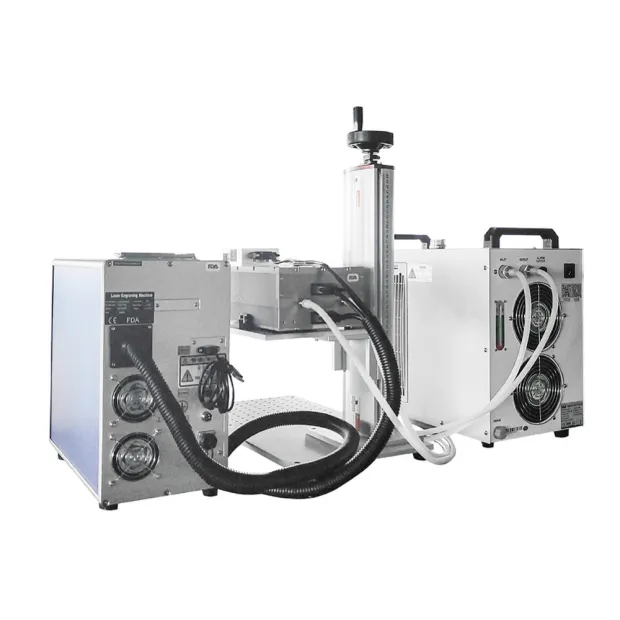

Real Image of the machine

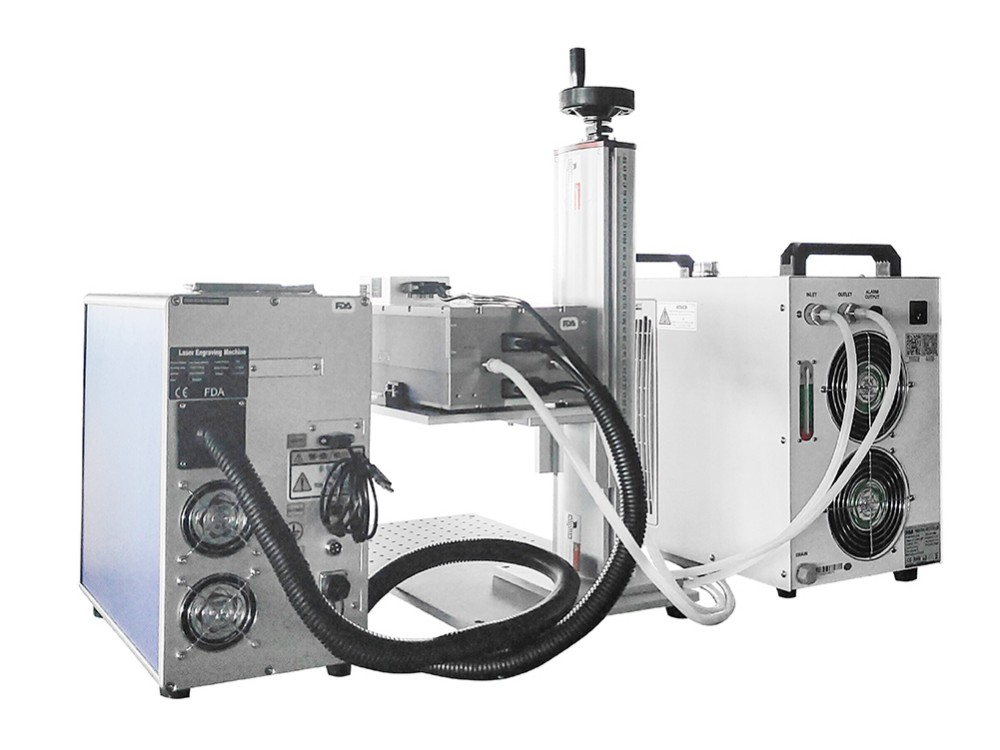

Configuration:
 |  |

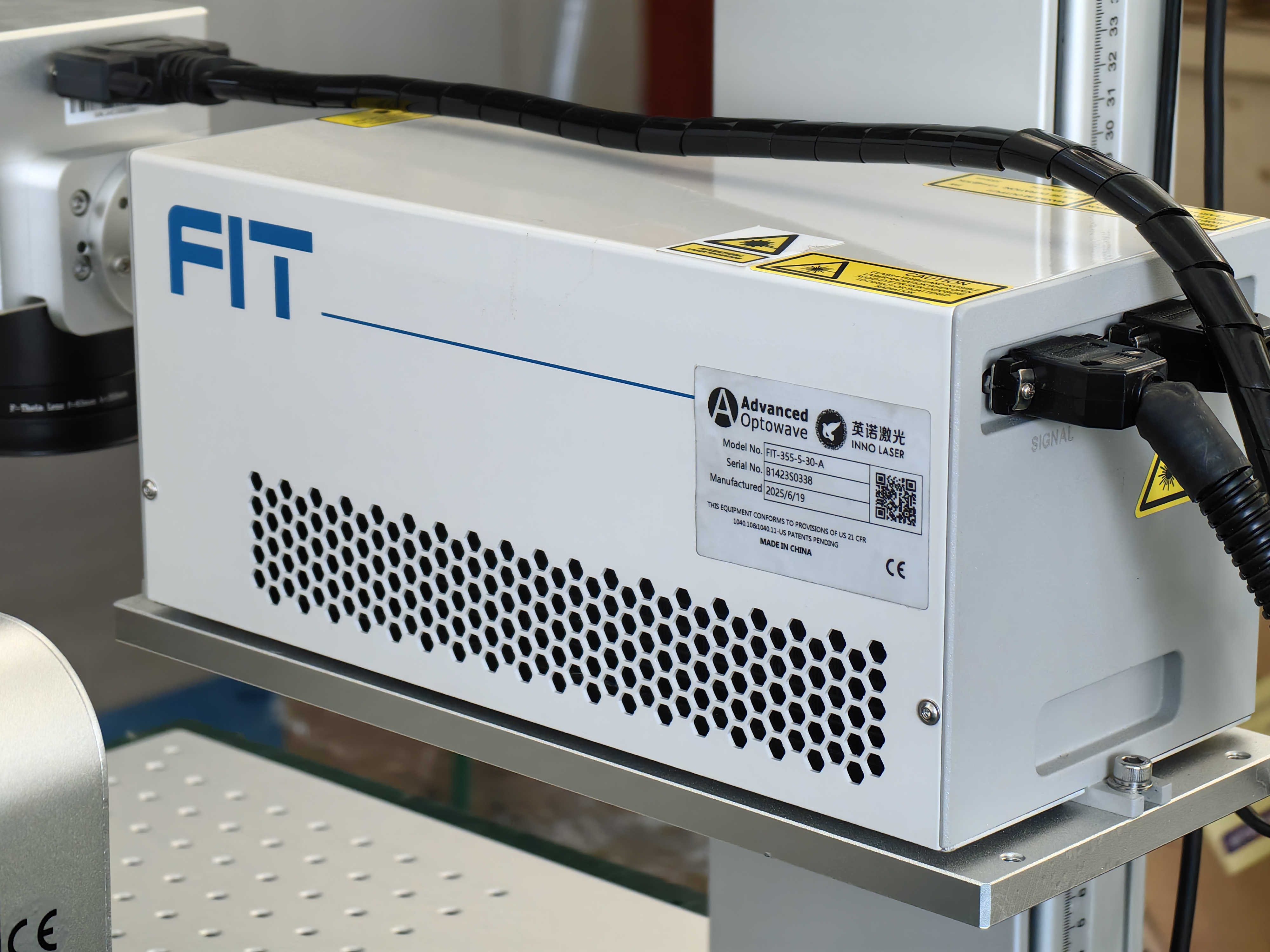

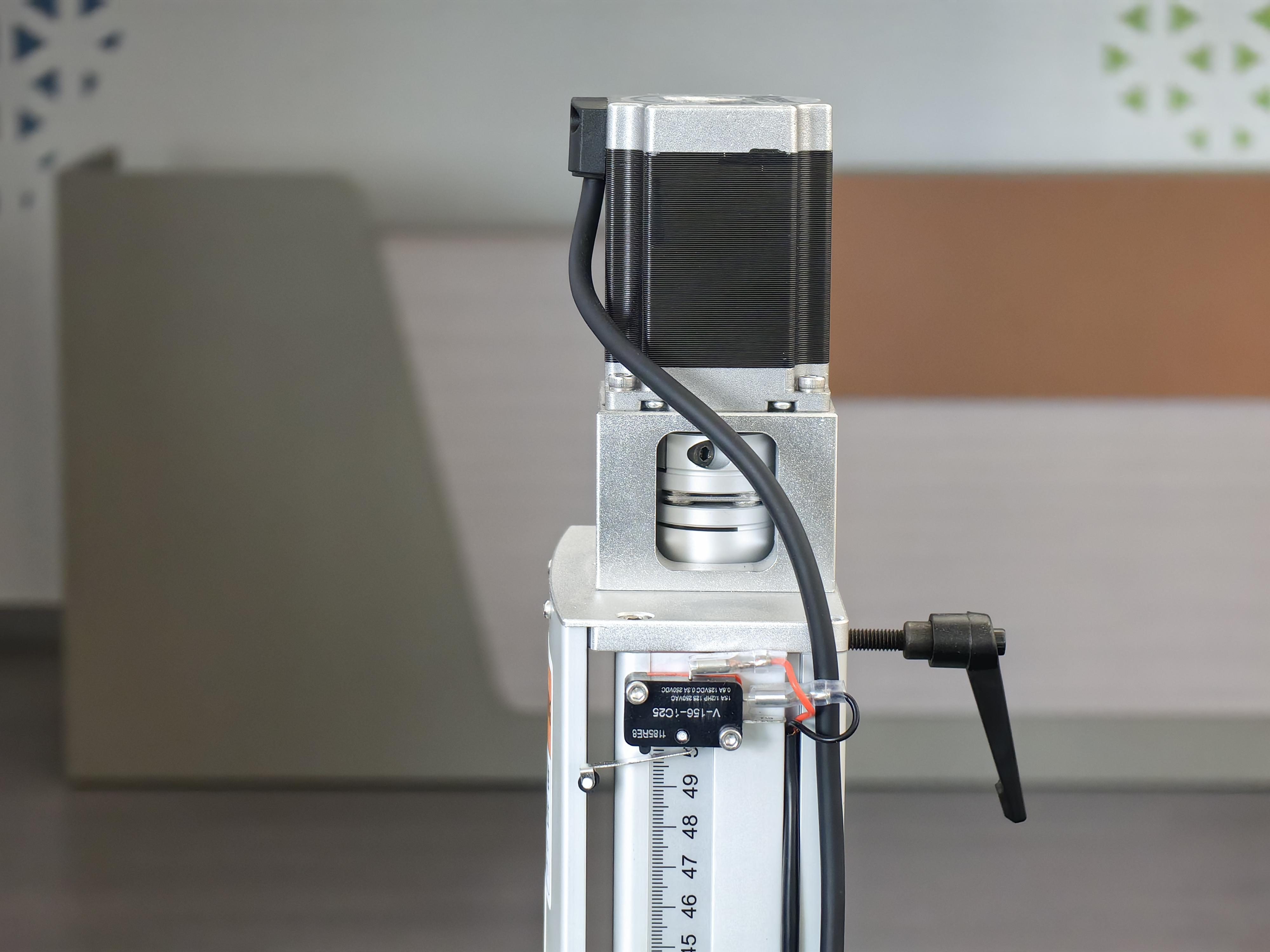

| Laser source | Manual z-axis |
|
|
|
| Water cooling | Galvo head |
Machine Reference Parameters:
| Machine | UV laser marking machine |
| Laser source | JPT |
| Laser source power | 3W 5W 10W |
| Laser wavelength | 355nm |
| Laser pulse width | 3W＜15ns@30khz, 5W＜15ns@40khz，10W＜18ns@60khz |
| Laser frequency | 20khz~150khz |
| Laser beam quality | ＜1.2 |
| Marking area | 110x110mm，150x150mm，175X175mm, 200x200mm |
| Marking character | 0.1 x 0.1 mm |
| Support computer | XP, WIN7, WIN8, WIN10 |
| Control software | Ezcad |
| Control system | Bjjcz |
| Unit power | ≤900W |
| Power supply | AC110V 60HZ or AC220V 50HZ |
| Cooling mode | Water cooling |
Optional accessories

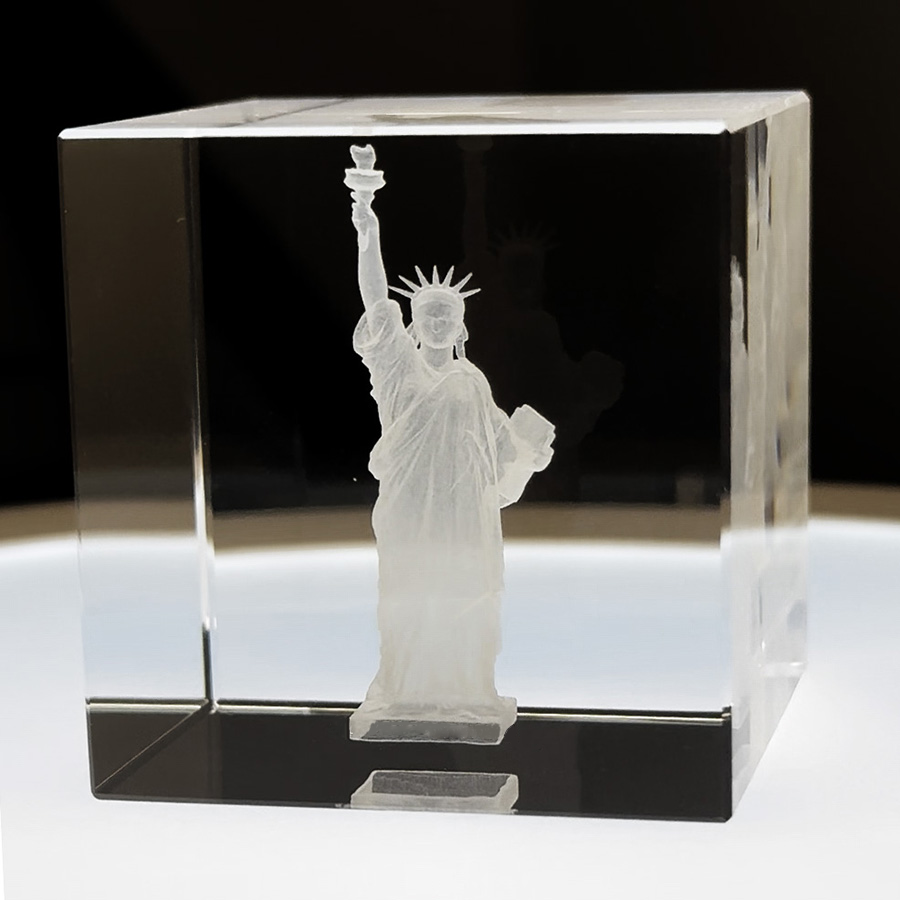

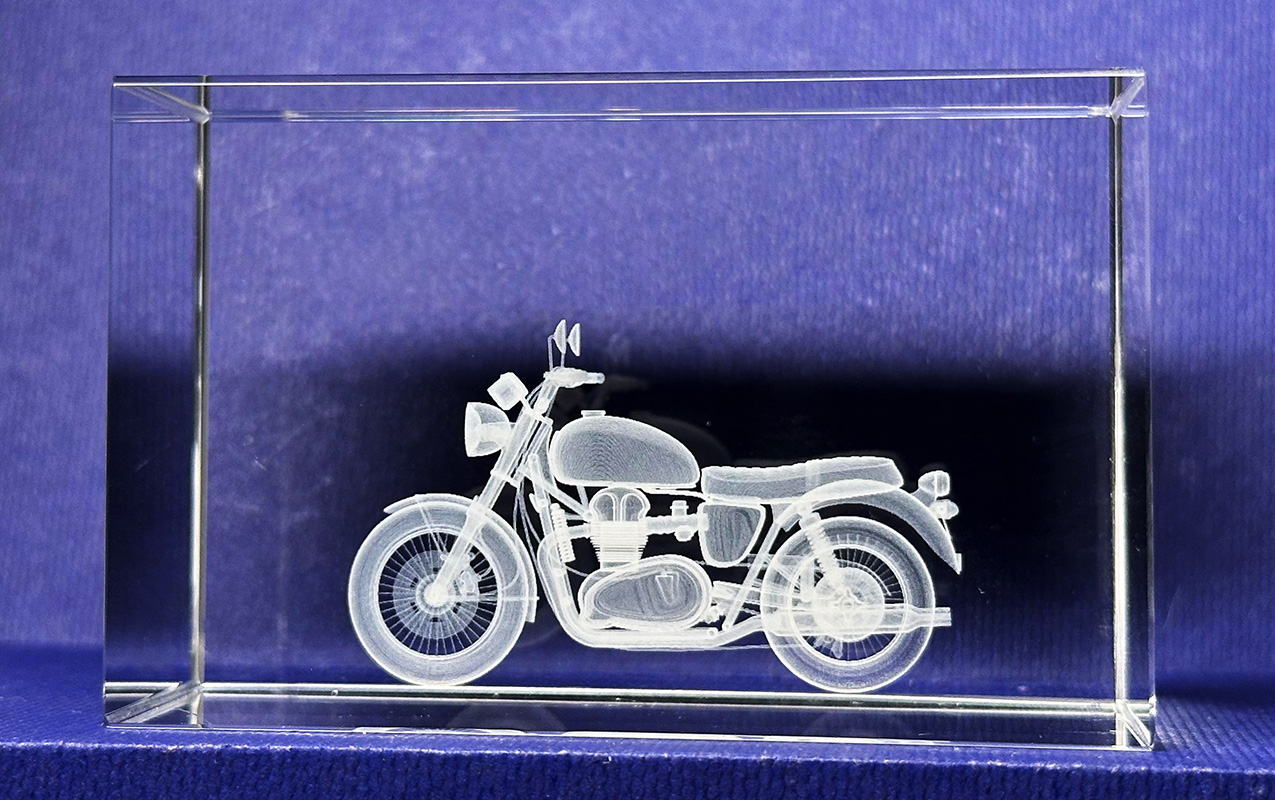

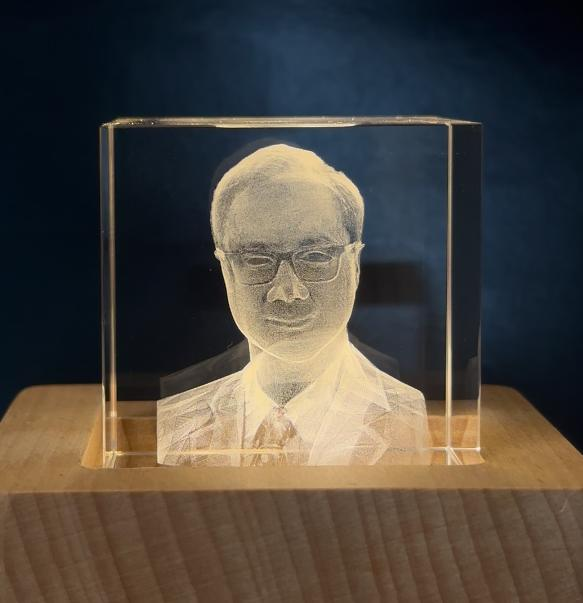

Samples
Application Scenarios
1. Plastic parts, Glass
2. Gold plating, silver and other surface marking
3. oil plastic material surface marking,eg: samsung panel, melamine
4. Mark the surface of dehalogenated elemental materials, eg: IPHONE charger, connection wire and other peripheral products
5. Daily necessities (beverage packaging, food packaging)
6. Marking of cables and cables 7. Various pipe surface marks 8. Flexible materials and carbon fiber cutting
Packing and Shipping
1.Multi-layer winding film, strong winding, transport does not shake.
2.Thick plywood, manual sealing.
3.Adopt the best pearl cotton to reduce the vibration during transportation.
4.After sealing the case, use the steel belt to seal the Angle and affix the corresponding shipping mark.
5.We have a variety of delivery methods, machine parts, 40-80kg machine can be considered express and air freight. Large machines and more than one machine are recommended to be transported by sea or train.
We will give away the following products for free：
| 1 | Inner Hexagon |
| 2 | Foot Switch |
| 3 | Power Cable |
| 4 | USB Flash Drive |
| 5 | Goggles |
| 6 | 60CM Ruler |
| 7 | Laser Inspect Report |
Shipping list:
| 1 Set CO2 Laser Marking Machine |
| 1 Pcs Inner Hexagon |
| 1 Pcs Foot Switch |
| 1 Pcs Power Cable |
| 1 Pcs USB Flash Drive |
| 1 Pcs Goggles |
| 1 Pcs 60CM Ruler |
| 1 Pcs Laser Inspect Report |
Our Service
| 1 | Software is on update for free whole life. |
| 2 | Main parts be changed free of charge if there is any problem during the warranty period. |
| 3 | We will provide the consumable parts at an agency price. |
| 4 | We have user manual instruction and videos for software Installation, operation and machine's using and maintenance. |
| 5 | We will supply 24 hours online after service, and free technical support. |
| 6 | We debug the machine before shipment and carry out 12 hours working test to ensure the quality of the machine. |
| 7 | We offer the service, from you got the machine, including how to install the machine, how to use machine, how to let machine work, and so on. |
