UV Vision Positioning Laser Marking machine For Mass Production

Name: UV Vision Positioning Laser Marking machine For Mass Production
Rating: 5.0 (51 reviews)

UV laser marking machine has been used in the high-end market of ultra-fine processing, marking the surface of iPhone,cosmetics, medicine, food packaging; LCD liquid crystal glass, glass surface, metal surface coating, plastic buttons,electronic components, gifts, communication equipment, Building materials and other fields.

Quantity:
Availability:





Inquire Add to Basket

Product Description

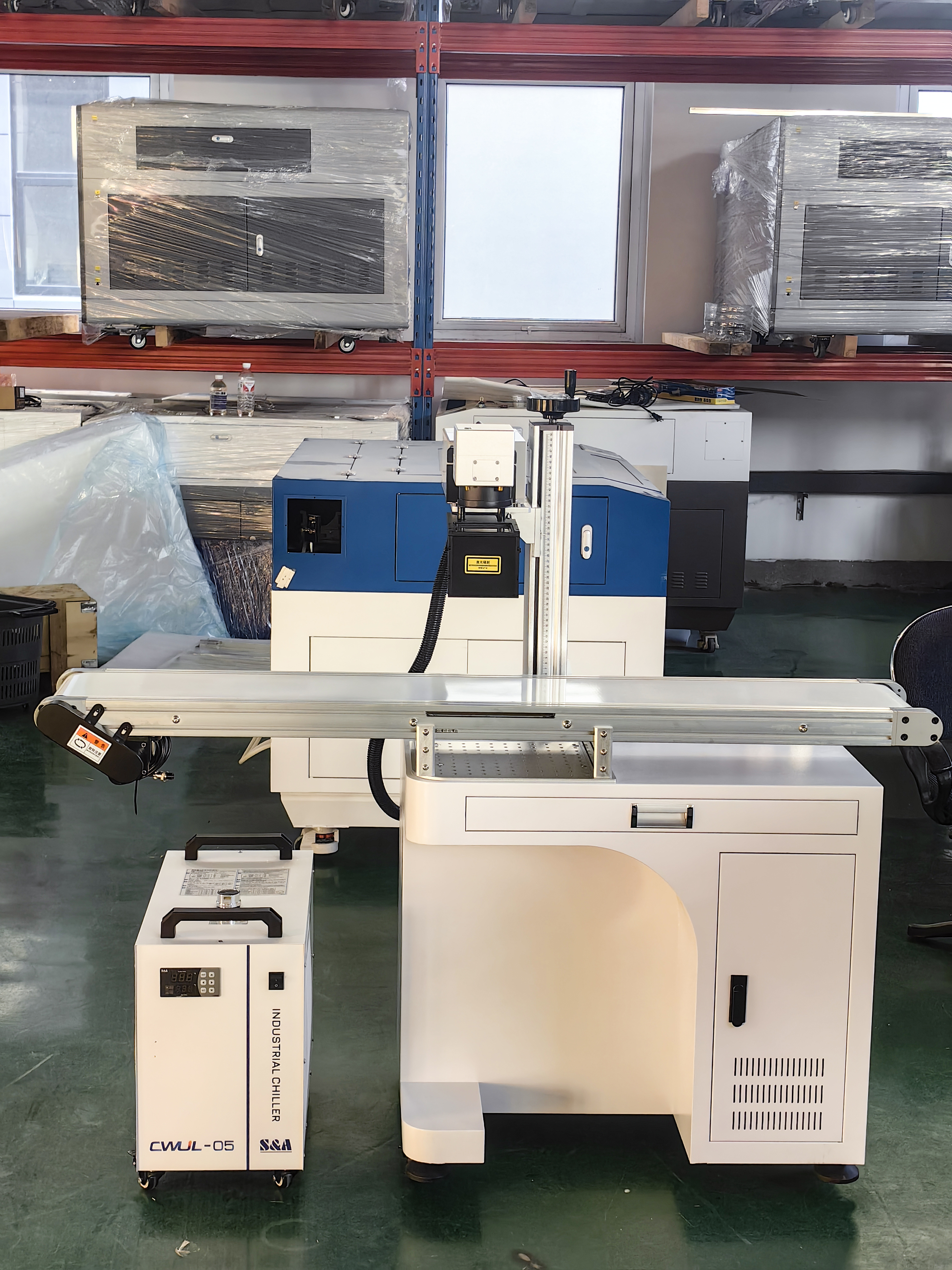

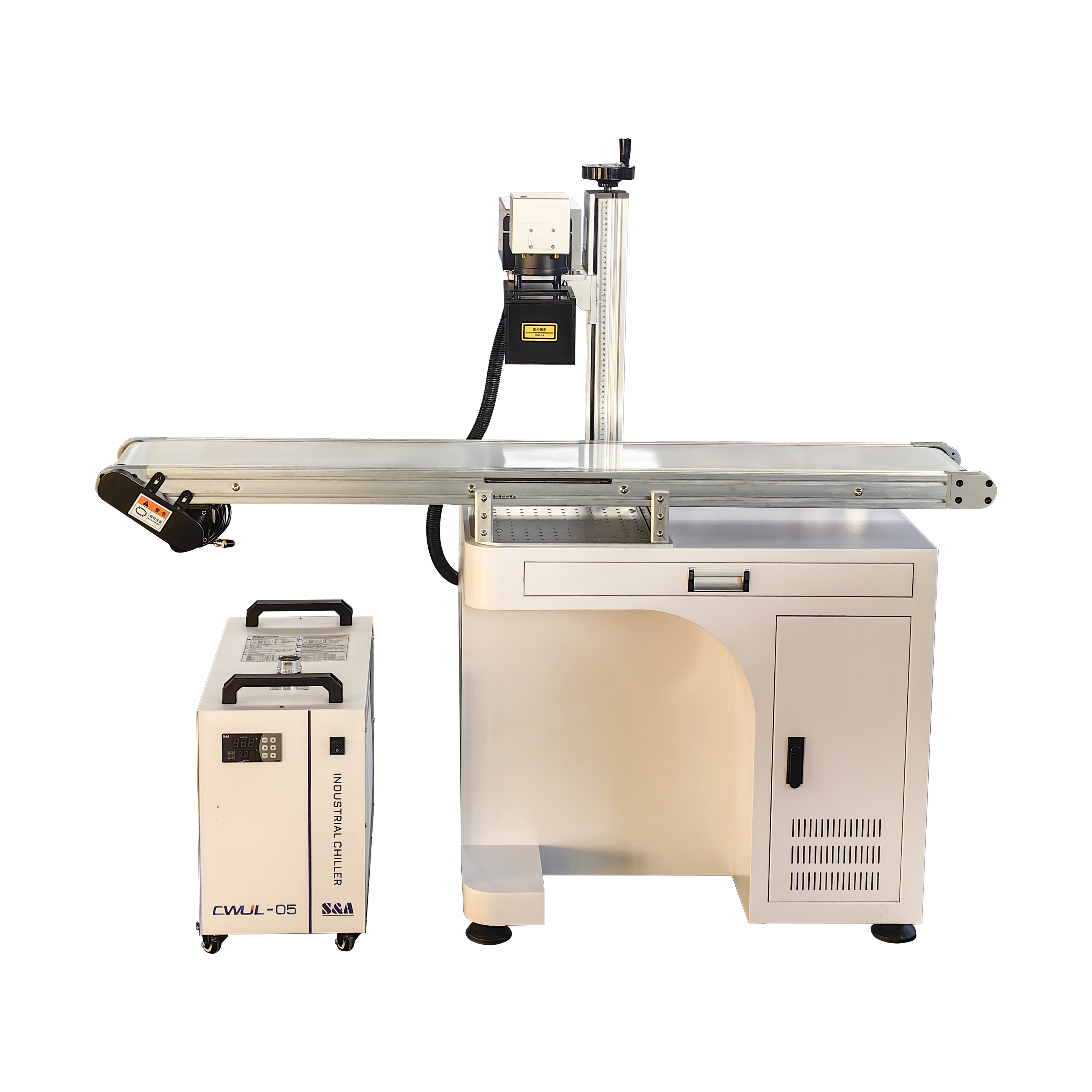

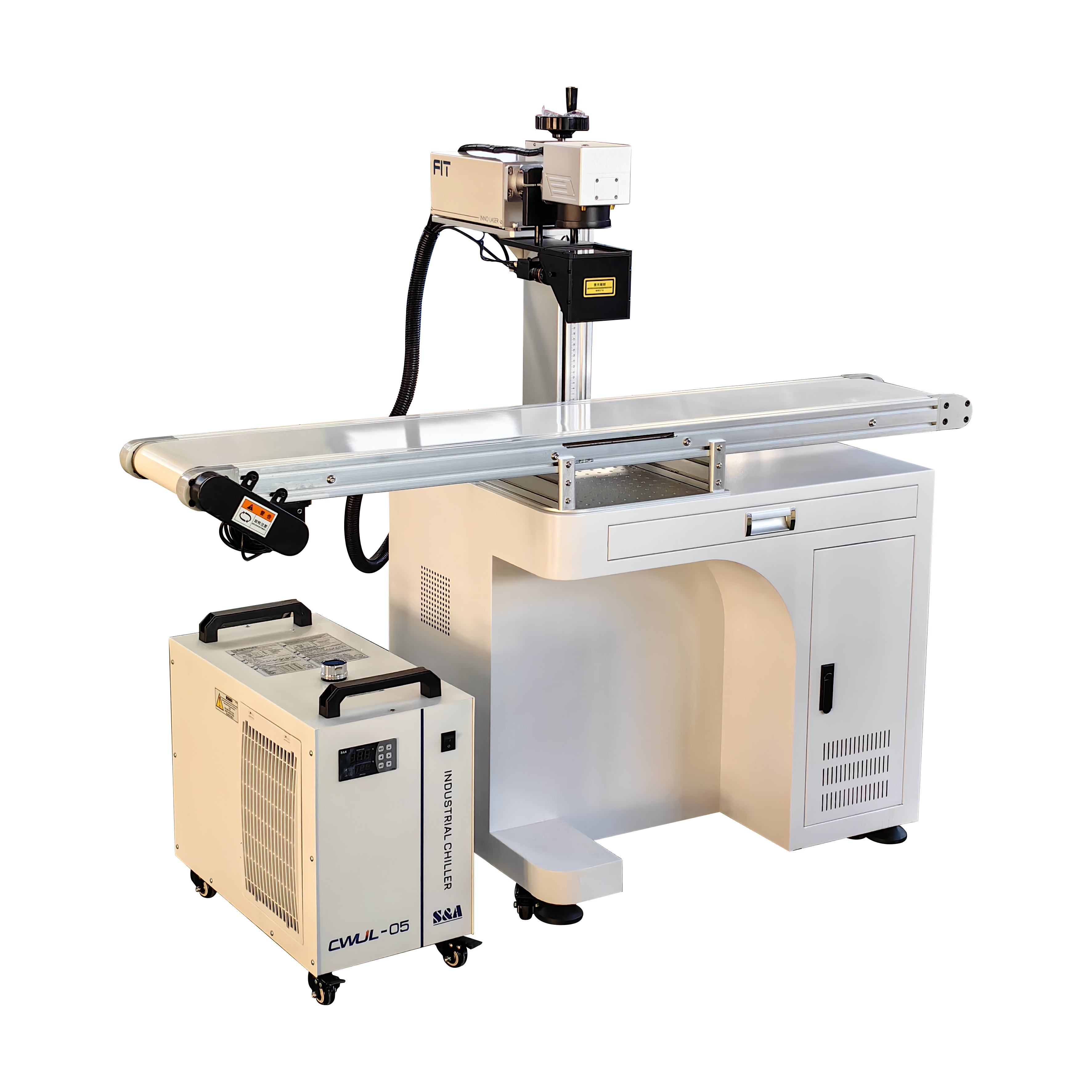

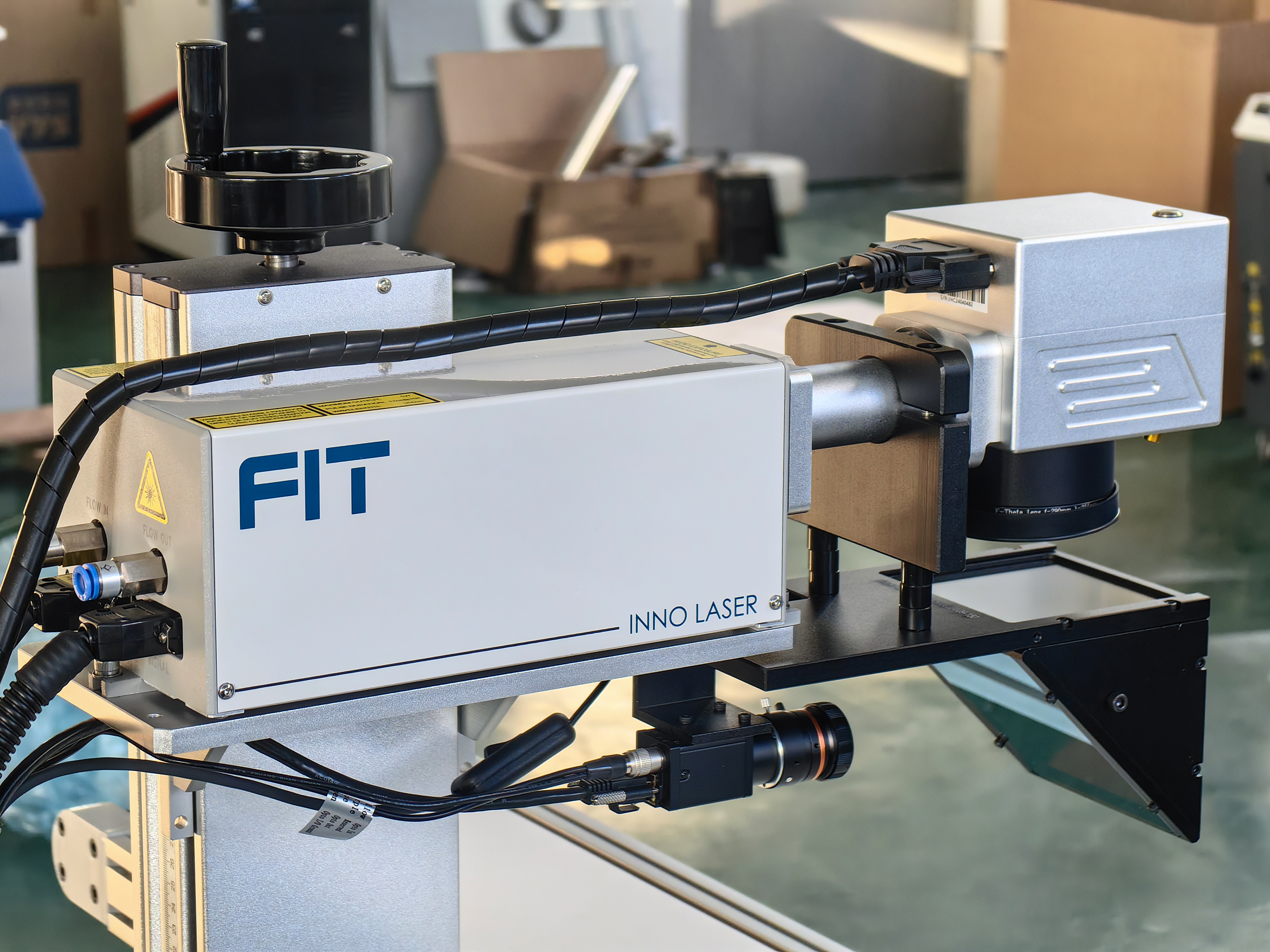

Automatic UV Laser Marking Machine with Vision System

Fully automated UV laser marking system with CCD vision positioning and adjustable conveyor, designed for high-precision batch production. Automatically detects part positions, eliminates manual alignment, and ensures consistent marking quality on electronics, plastic, glass, and ceramic components.

Key Features & Advantages

Fully Automated Vision Positioning

CCD industrial camera captures part features in real time.
Automatically aligns marking positions, suitable for complex shapes and multiple locations.

Continuous Conveyor for Mass Production

Adjustable conveyor belt synchronized with laser marking.
Supports inline production, reducing downtime and improving throughput.

High Precision & Efficiency

Positioning accuracy up to micron-level (±0.001 mm).
Marking speed up to 7000 mm/s for high-volume production.

Wide Material Compatibility

UV laser short wavelength ensures minimal thermal damage to plastics, glass, and ceramics.
Produces high-contrast marks for QR codes, logos, and serial numbers.

Reduce Labor Cost & Defects

Automatic positioning and conveyor integration minimize manual intervention and errors.

Main Configurations

Introduction

Laser source

UV laser, wavelength: 355 nm

Pulsed laser for high-contrast marking

Power options: 3W / 5W / 10W
Galvo & F‑Theta Lens

High-speed galvanometer scanner

F‑Theta lens: 110×110 mm / 175×175 mm / 200×200 mm / 300×300 mm

Minimum line width: 0.005 mm

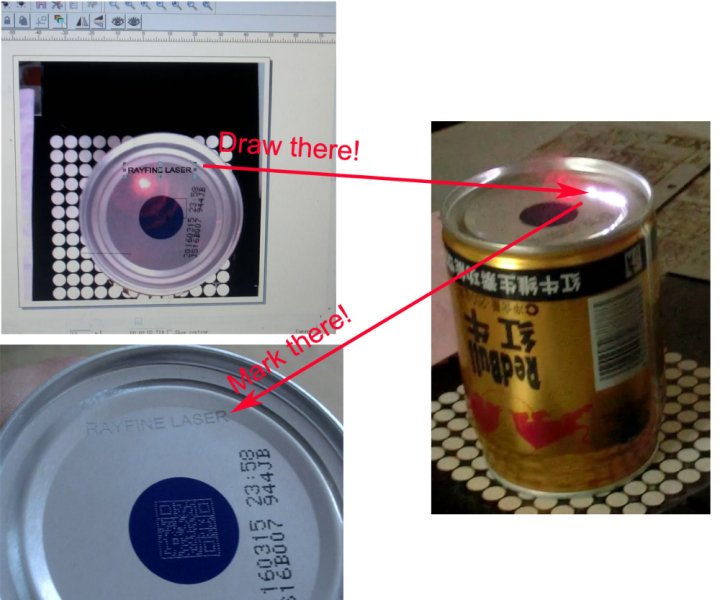

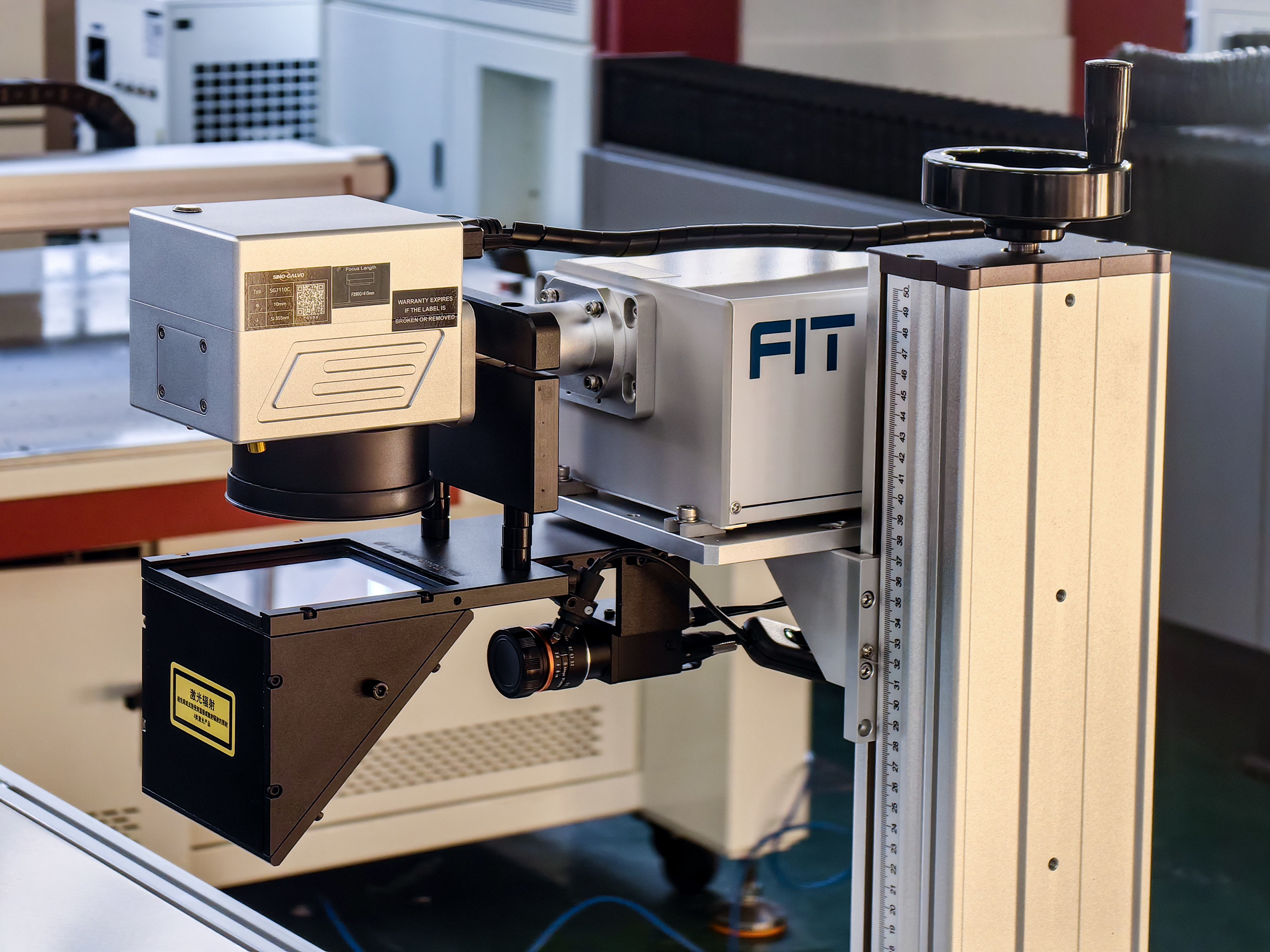

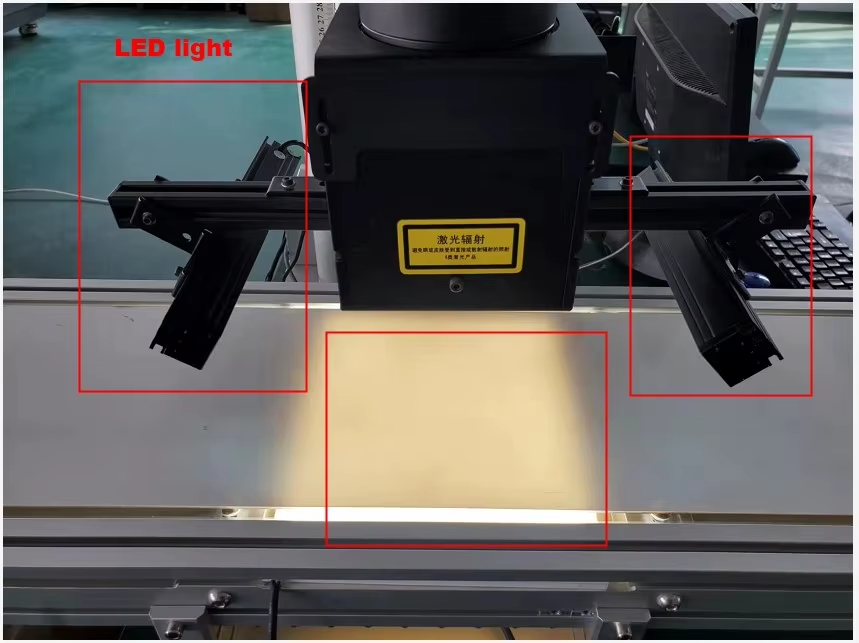

Vision System

High-resolution CCD camera

Real-time part feature recognition

Integrated with marking software for fully automatic operation

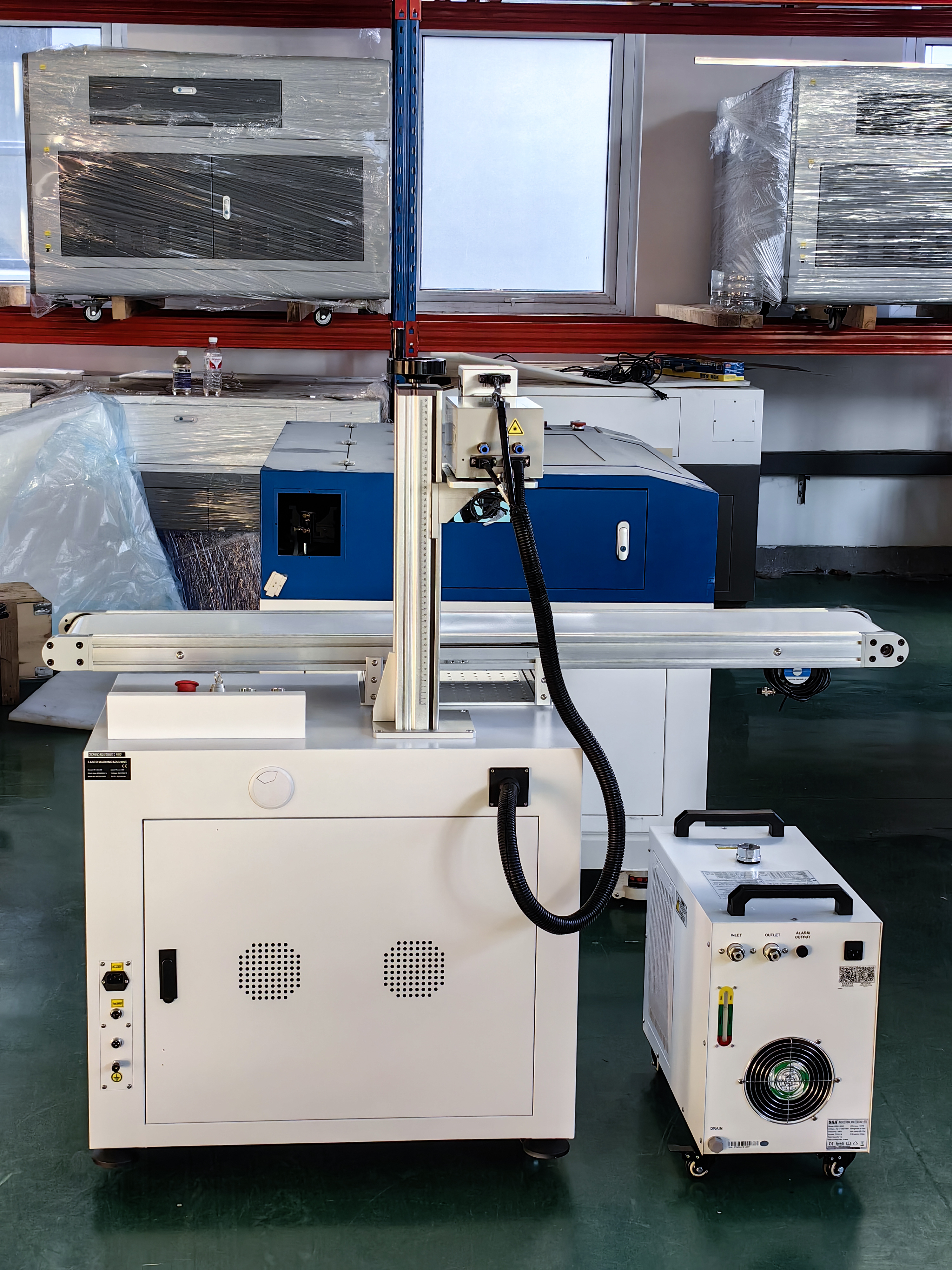

Conveyor System

Adjustable-speed conveyor synchronized with laser

Non-slip belt ensures stability

Can integrate with production lines for continuous marking
Control System & Software

EZCAD software

Compatible with DXF / PLT / BMP / JPG / PNG / AI formats

Batch management and automatic calibration supported

Parameters

Laser Wavelength

355 nm

Laser Power

3W 5W 10W

Max Marking Speed

≤ 7000 mm/s

Minimum Line Width

0.005 mm

Positioning Accuracy

± 0.001 mm

Marking Area

70-300mm

Conveyor Speed

Adjustable

Supported File Formats

DXF / PLT / JPG / PNG / BMP / AI

Power Supply

110/220 V

50/60 Hz

Cooling

Air-cooled / Optional water-cooled

Operating Temperature

-10–50 °C

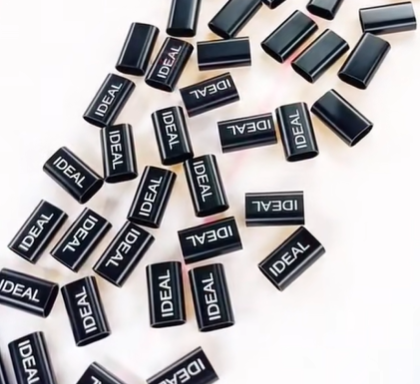

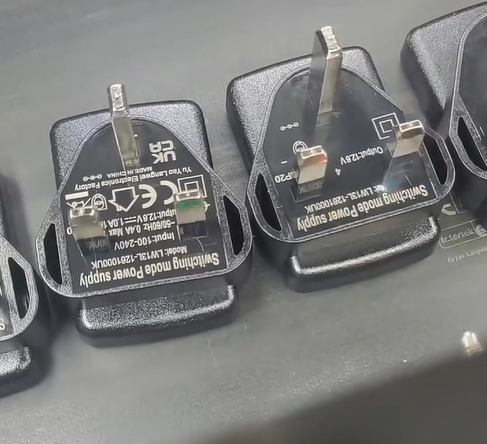

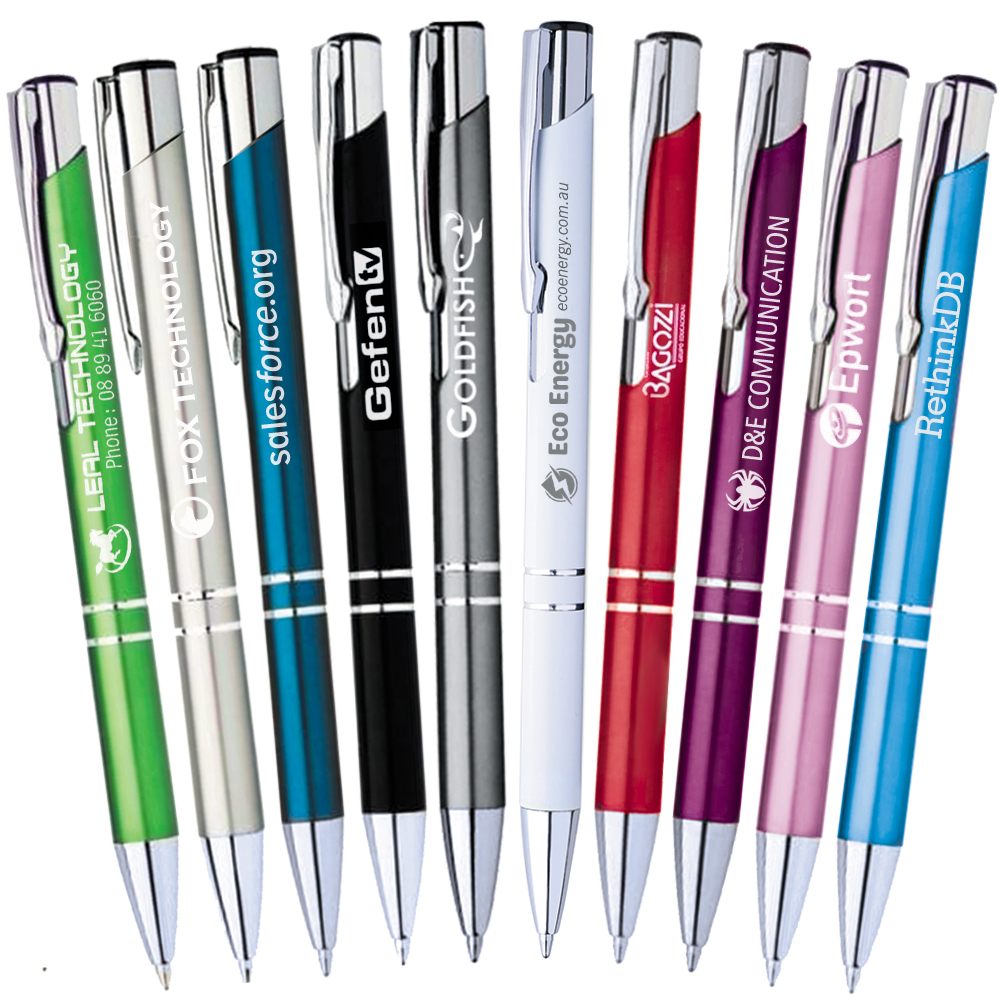

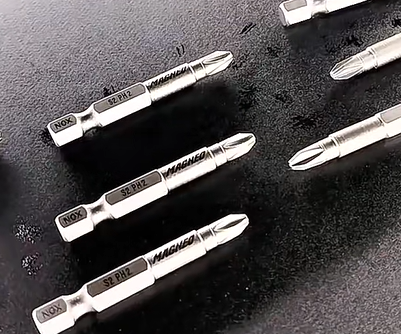

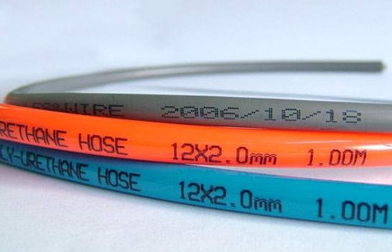

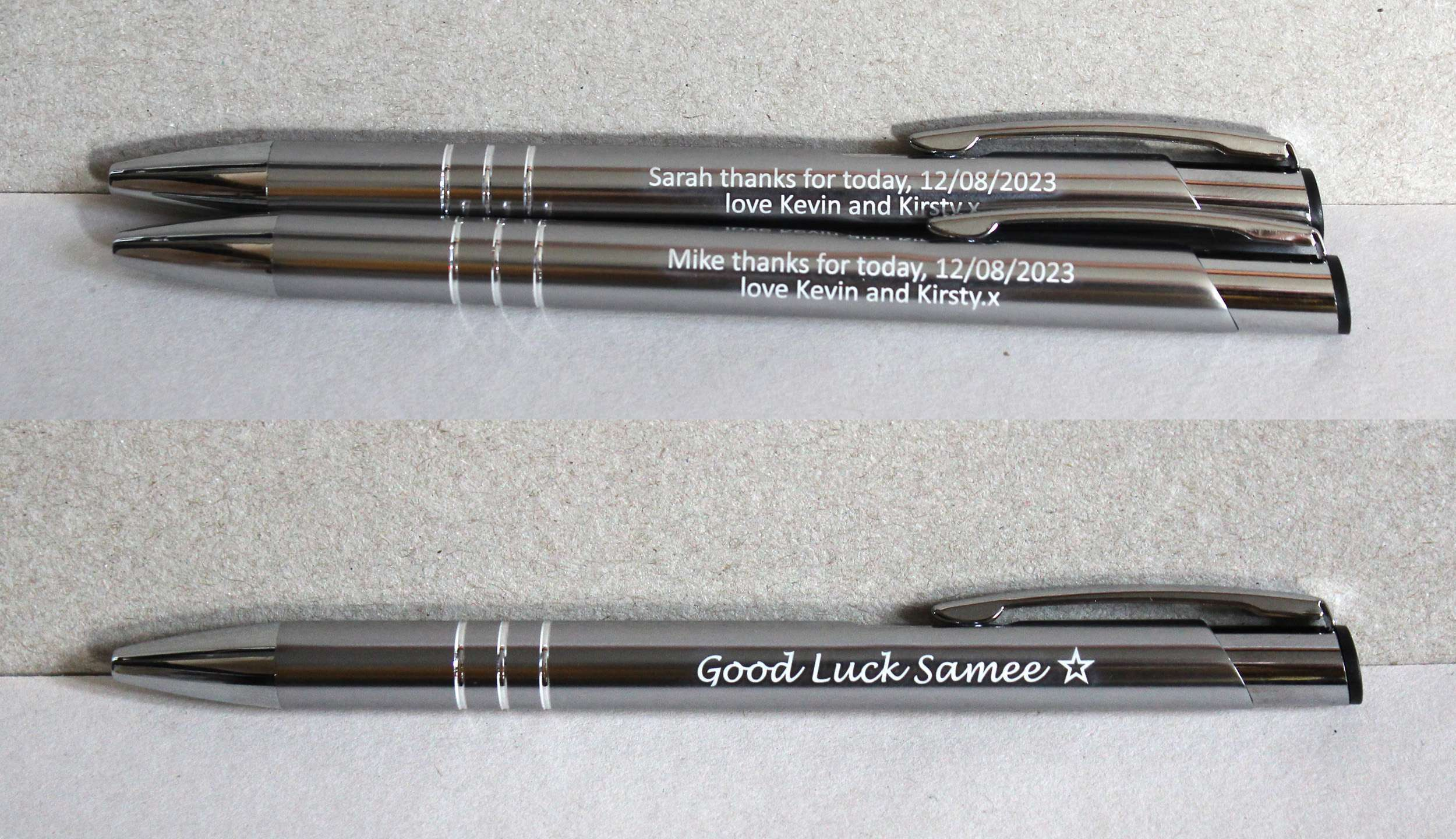

Application

FAQ

FAQs

Q1: How to choose machine?

A1: You can tell us your working material, detail work by picture or video so that we can recommend the most suitable model for you.
Q2: Are you a factory or trading company?

A2: We are the manufacturer. as only the machine made by ourselves, quality can be trusted, and most important thing is we can do better service after sales. We know how to fix the problem in each parts easily. So welcome to visit to our factory.
Q3: What's the payment term?

This area can be fully edited and gives you the opportunity to introduce yourself, your website, your products or your services. This area can be fully edited and gives you the opportunity to introduce yourself, your website, your products or your services. This area can be fully edited and gives you the opportunity to introduce yourself, your website, your products or your services. This area can be fully edited and gives you the opportunity to introduce yourself, your website, your products or your services. This area can be fully edited and gives you the opportunity to introduce yourself, your website, your products or your services.
Q4: How about the delivery time?

A4: For normal machines we can send out the machine within 5-7 days after receive the full payment. For non standard machines and customized machines according to client's specific requirements, it would be 15 to 30 days.
