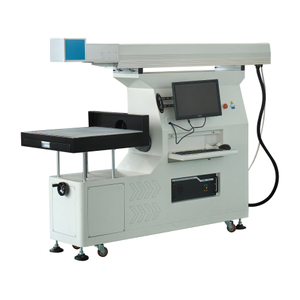

Product Description
1.Fully enclosed marking makes the work safer.
2.3D Surface marking. Including computer monitor stand.
3.Big transparent window-easy to see the marking condition.
4.Safety door: when open the door, the laser stop automatically to prevent users from being hurt.
5.Pulleys are in stalled at the bottom for easy movement.
6.The internal space is large.
3D Galvanometer：

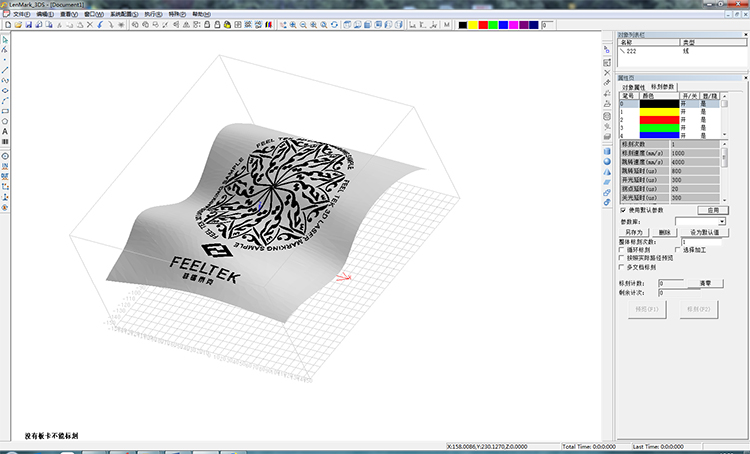

Lenmark 3D Control Software:
- Support muti files formats and coding, support importing of drawing softwares, vector graphic, text, barcode etc.
- Support multi correction methods: fast and high precision correction on high precision ideal platform and free adjustment of each position focal point under the non-ideal plane, and finally achieve full format focus consistency.
- Support 3D application, support importing of STL model, self-developed model, etc.

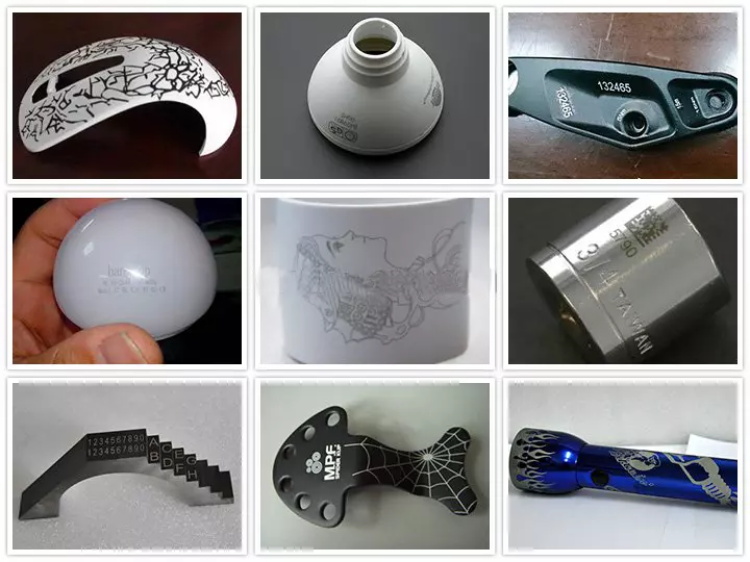

- Support 3D data editing, rapid realization of 3D surface marking,relief processing.
- Support expansion of 3D scanning equipment, it can realize the rapid localization and reverse processing of 3D workpieces, and the rapid marking of workpieces can be realized without importing the workpiece model.
|
| Laser source
Genuine lasers, each with anti-counterfeiting code. Has a service life of over 100000 hours. - High cost performance - High single pulse energy - High peak power - More stable performance |
|
| Lenmark 3D Control card
-Professionally designed board for 3D laser marking machine. -Start/Stop signal: Support start, stop, pause and other functions of hardware -System: Win2000/ XP/ Win7/ Win8/ Win10, 32/64 bit system. |
|

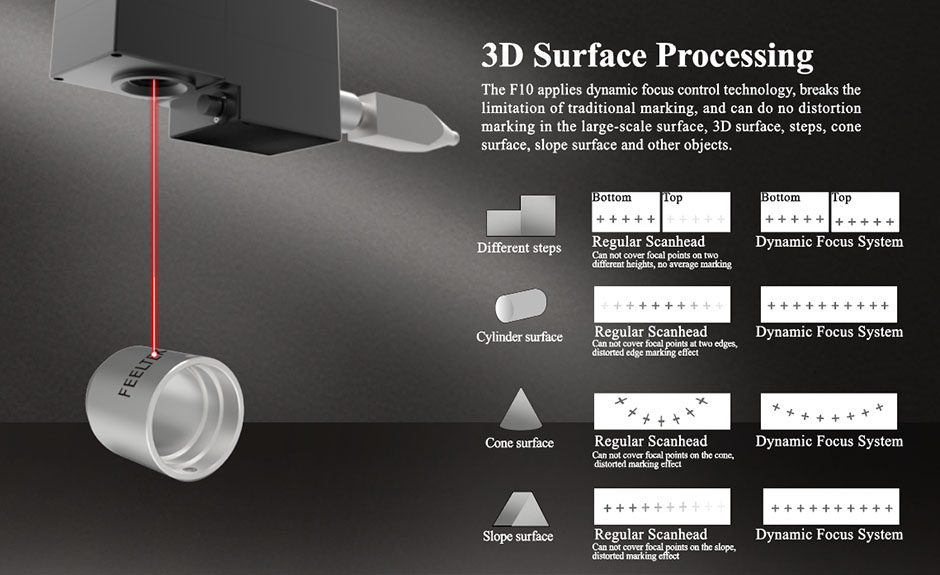

| 3D Dynamic Focus Galvanometer
Fiber Laser Marking Machine not only can marking on flat surface, but also can engraving on Undulating surface, Curved Surface. All core components in the scan head are sourced from the top manufacturer in the industry. |
|
| Control Switch
High quality control switch system - Emergency stop: Press down to cut off all electric of machine for operator and products safety. - Scan Head switch: Control the switch state of the scan head power supply of the marking machine. - Laser Power switch: Control the switch status of the laser power supply. - Light: Controls lights on and off. - Up/Down: Controls the rise or fall of the machine's galvanometer and adjusts focus. |
|
| Light
State-of-the-art light box lighting system |
|
| Computer Stand
Pure aluminium computer stand, can be moved flexibly, more convenient operation |
|
| Large visualisation window
Three sides of the large visual window. While marking safely, you can see the marking status in all directions. |
| Model | RF-F-60W | RF-F-80W | RF-F-100W |
| Laser output power | 60W | 80W | 100W |
| Laser source band | JPT | ||
| Laser wavelength | 1064nm | ||
| Laser beam quality | <1.5 | <1.6 | <1.6 |
| Max pulse energy(mj) | 1.5 | 1.5 | 1.5 |
| Pulse duration(ns) | 2-500 | ||
| Pulse repetition rate range(kHZ) | 1-4000 | ||
| Min. Character size | 0.2mm | ||
| Repetition Accuracy | <8μrad | ||
| Power consumption | 170W | ||
| Cooling type | Air cooling | ||
| Marking area | 75-300mm（option） | ||
| Max working speed | 8000mm/s | ||
| Laser spot (110x110) | 25.4μm | ||
| Controller | Computer with marking software | ||
| Graphic Format Supported | AI, PLT, DXF, BMP,JPG,PNG,Dst, Dwg, LAS, DXP | ||
| Mode of Operation | Pulsed | ||
| Certification | CE | ||
| Warranty | 2 years | ||
| Supply voltage | AC110V 60HZ / AC220V 50HZ | ||
| Focus type | Double red light | ||
1. Collect all accessories and spare parts one by one according to the order list, and double check all parts again to make sure all parts are included.
2. Our packaging standards:
+ thick cling film
+ six-sided pearl cotton
+ High strength wooden box
+ Pack the belt and then secure the machine to ensure the machine is safe during transport.
3. Paste the shipping mark to ensure that the buyer can easily identify the correct machine
4. A safety sign can be used to remind the transporter to keep our equipment in the course of transportation.
We will give away the following products for free：Inner Hexagon, Foot Switch, Power Cable, USB Flash Drive, Goggles, Ruler, Envelope.
| 1 | Software is on update for free whole life. |
| 2 | Main parts be changed free of charge if there is any problem during the warranty period. |
| 3 | We will provide the consumable parts at an agency price. |
| 4 | We have user manual instruction and videos for software Installation, operation and machine's using and maintenance. |
| 5 | We will supply 24 hours online after service, and free technical support. |
| 6 | We debug the machine before shipment and carry out 12 hours working test to ensure the quality of the machine. |
| 7 | We offer the service, from you got the machine, including how to install the machine, how to use machine, how to let machine work, and so on. |
