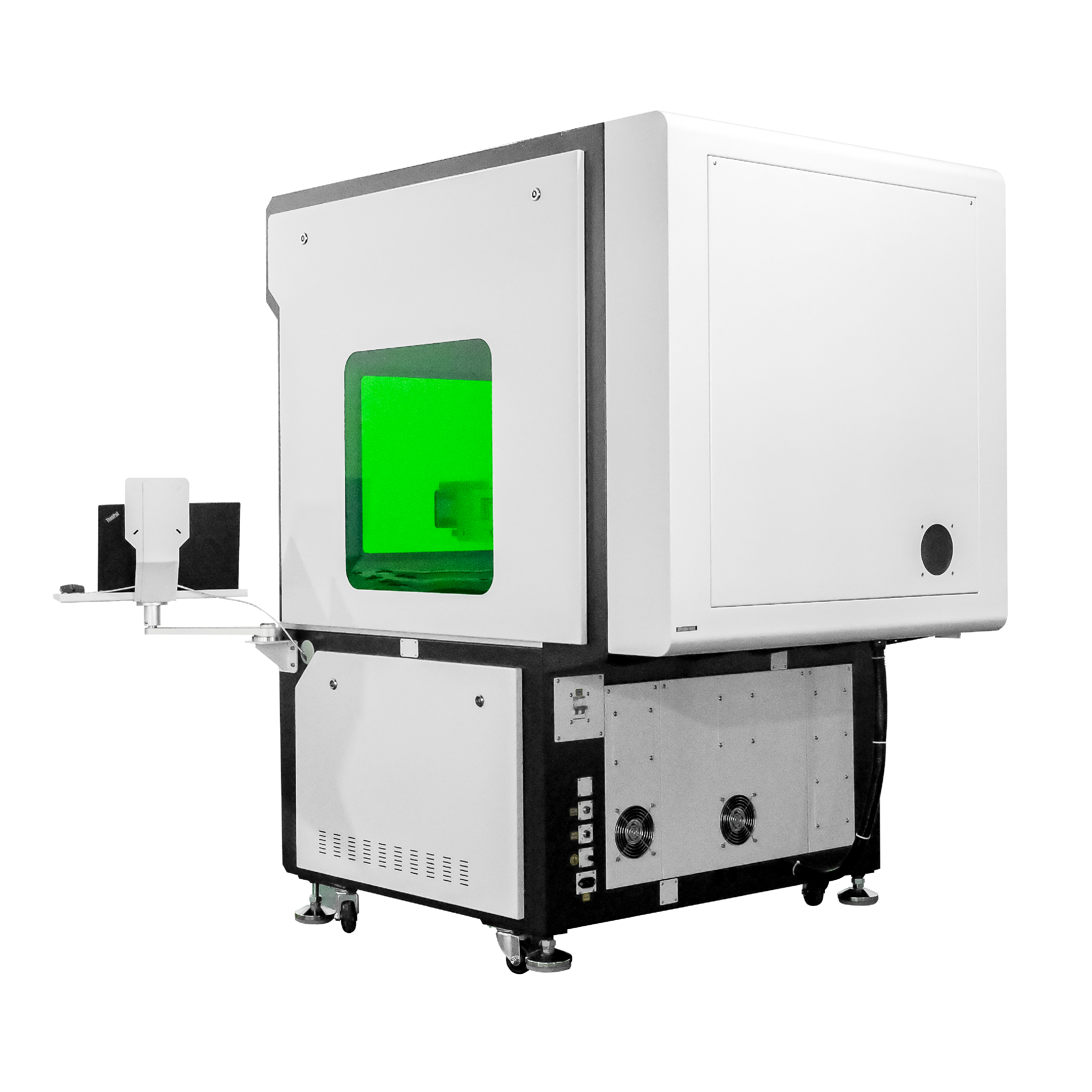

High Quality 800*800mm Large Format Laser Marking Machine Support Customization

High Quality 800*800mm Large Format Laser Marking Machine Support Customization

Quantity:
Power :	100W 200W
Availability:





Inquire Add to Basket

Features

1. Fully enclosed marking makes the work safer.

2. Pulleys are in stalled at the bottom for easy movement.

3. The internal space is large,and high-power lasers can be installed.

4. Three-sided glass design,multi-angle observation of the marking process.

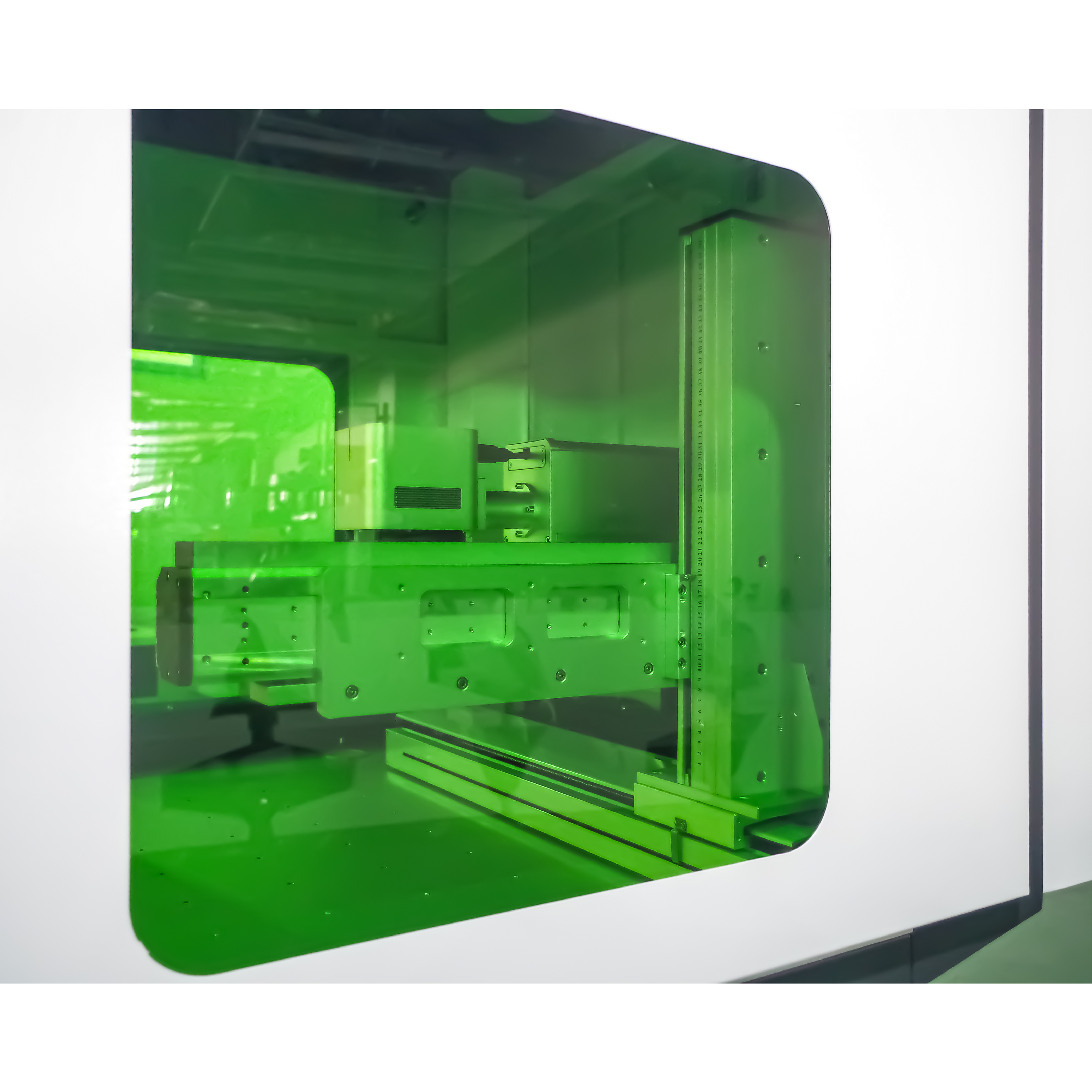

5. The installation of electric XY ball guides enables high-precision movement and complete splicing work.

6. More than 800*800mm working area.

Main Configurations

Introduction

Parameters

Model

800*800mm fiber laser marking machine

Laser output power

100W/200W

Laser wavelength

1064nm

Laser beam quality

<1.6

Max pulse energy(mj)

Pulse duration(ns)

120-150

Pulse repetition rate range(kHZ)

50-100

Min. Character size

0.2mm

Repetition Accuracy

<8μrad

Power consumption

170W

Cooling type

Air cooling

Marking area

Maximum 800*800mm (customizable)

Max working speed

8000mm/s

Laser spot (110x110)

25.4μm

Controller

Computer with marking software

Graphic Format Supported

AI/PLT/DXF/BMP/JPG/PNG/Dst/Dwg/LAS/DXP

Mode of Operation

Pulsed

Certification

Supply voltage

AC110V 60HZ / AC220V 50HZ

Applications

FAQ

FAQs

Q1: How to choose machine?

A1: You can tell us your working material, detail work by picture or video so that we can recommend the most suitable model for you.
Q2: Are you a factory or trading company?

A2: We are the manufacturer. as only the machine made by ourselves, quality can be trusted, and most important thing is we can do better service after sales. We know how to fix the problem in each parts easily. So welcome to visit to our factory.
Q3: What's the payment term?

A3: We accept: TT, Alibaba trade assurance order etc. 100% of total amount in advance Or 30% deposit in advance and 70% balance before delivery.
Q4: How about the delivery time?

A4: For normal machines we can send out the machine within 5-7 days after receive the full payment. For non standard machines and customized machines according to client's specific requirements, it would be 15 to 30 days.
Q5: How can i know your machine is work well?

A5: Before delivery , we have tested every machine and shoot some test video for you. If you have special production condition , we can adjust machine for you according to your work requirements.
Q6: How can i get support from you ?

A6: Our engineers are online for 24 hours, they can check the problems and give you solution very soon. If you don't know how to use the machine, We have English manual and CD video for machine using and maintaining , that will be delivery with machine. And we supply service through email, telephone, online, WhatsApp skype etc. Or If you're interesting come to China, we will offer you free training until you can use machine freely.
