Product Description

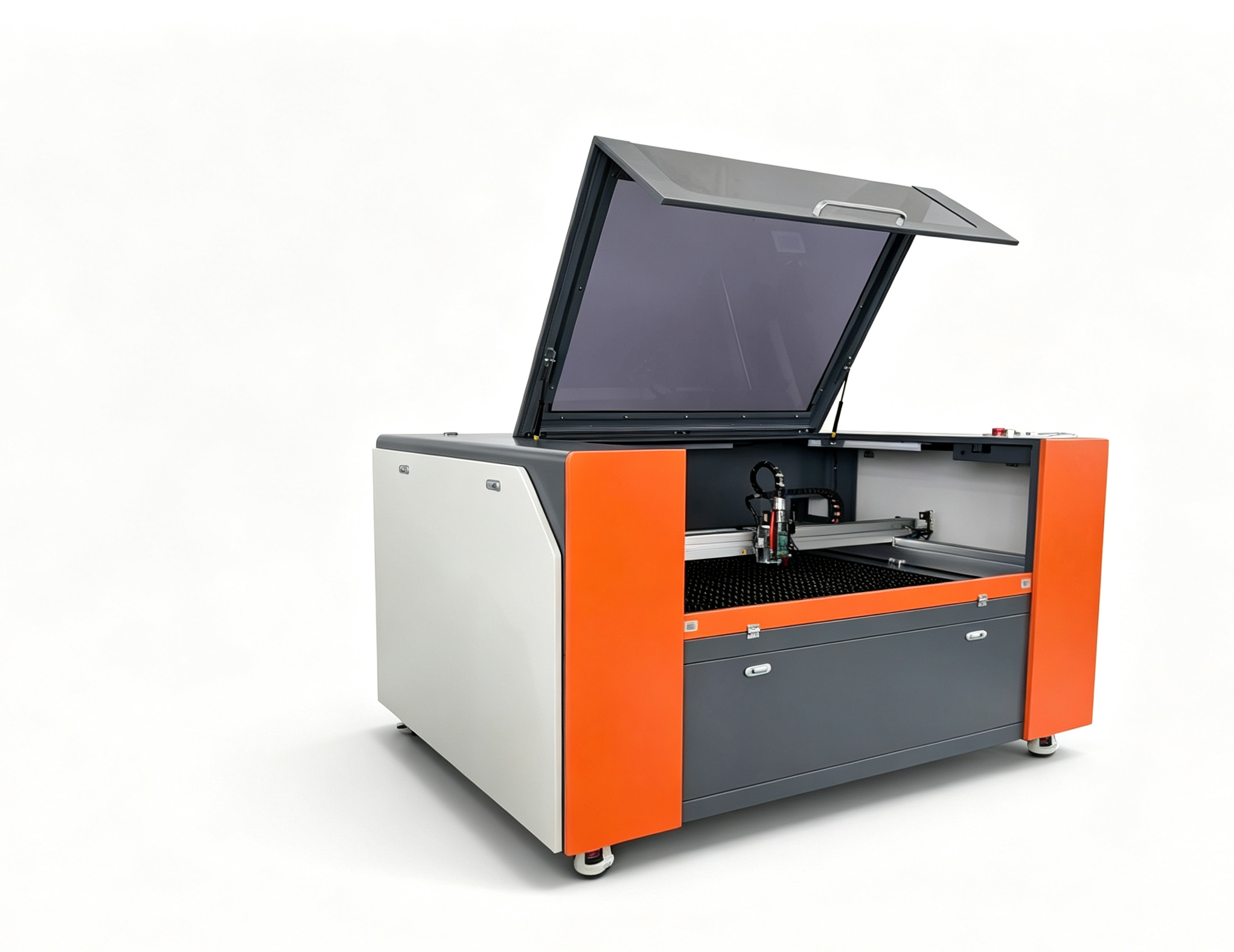

1390 Dual Head 130W CO2 + 1200W Fiber Laser for Metal & Nonmetal Cutting
The 1390 dual source laser cutting machine is an all‑in‑one CNC laser system engineered to process both metals and non‑metals on a single machine. It integrates two independent laser sources: a 130W CO2 laser tube dedicated to non‑metal cutting and engraving, paired with a 1200W fiber laser for metal sheet cutting. It features a 1300 × 900 mm working table, offering ample workspace for large-format workpieces and batch production orders.
The 1200W fiber laser delivers sharp, clean cuts on metal sheets up to 3 mm thick, including stainless steel, carbon steel and aluminium alloy. Note that highly reflective metals such as copper and brass are not recommended for cutting on this model. The 130W CO2 laser works on a wide range of non‑metal materials including acrylic, solid wood, plywood, MDF, leather, fabric, paper and rubber, supporting both cutting and fine detail engraving.
This laser machine is compatible with mainstream design software such as LightBurn and CorelDRAW, making it easy for operators to import designs and start production quickly. Built with a heavy-duty welded frame, it maintains stable precision even during long-hour continuous operation.
✅ Dual laser source integrated design Two separate laser systems are installed on one machine frame. Operators can switch between metal processing and non‑metal processing without needing two separate laser machines. It saves valuable workshop floor space and cuts your capital investment compared to purchasing individual CO2 and fiber laser equipment.
✅ Independent dual cooling system The machine uses matched cooling solutions: air cooling for the fiber laser source and water cooling for the CO2 laser tube. The dedicated cooling setup stabilizes operating temperatures during non-stop production runs, prevents overheating failures, reduces component wear and extends the working life of your laser sources.
✅ Precise cutting quality & easy maintenance Equipped with a mature CNC control system and high‑precision drive motors, the machine ensures accurate positioning and smooth cutting edges with minimal burrs, reducing secondary polishing work. Consumable parts like the CO2 laser tube can be replaced simply, lowering your daily maintenance cost.
✅ Versatile for multiple business applications Designed for sign shops, craft studios, custom fabrication workshops and small manufacturers. It helps business owners diversify their product lines to produce advertising signs, decorative crafts, custom gifts and thin metal components, allowing you to accept both metal and non-metal orders from customers.
Main Configurations
CO2 Laser Tube: Optional brands including SPT, Yongli
Fiber Laser Source: RAYCUS

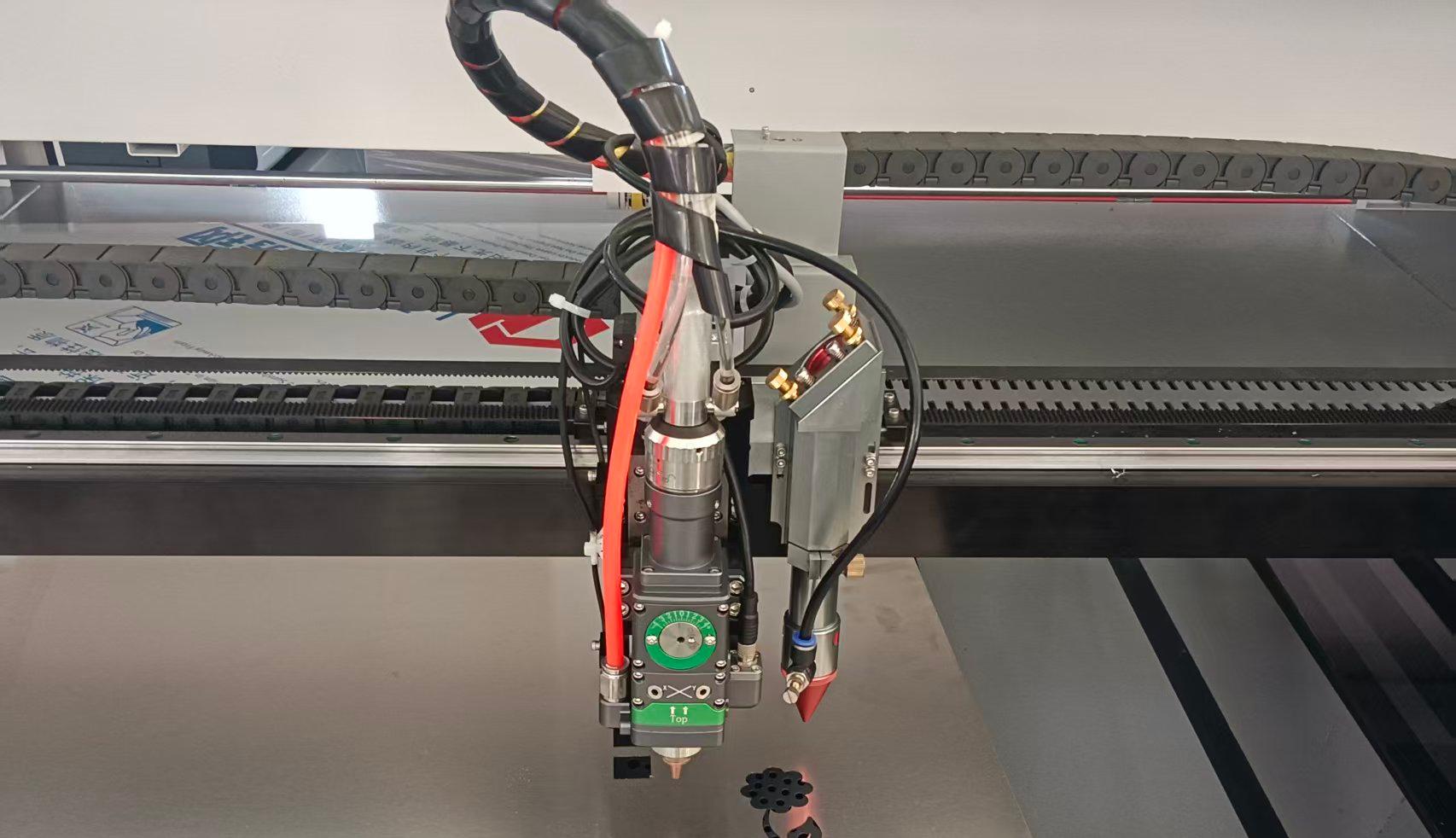

Laser Heads: Matched for 130W CO2 and 1200W fiber laser power
Controller & Mainboard: Ruida
Supported Operating System: Windows
Connection Options: USB, WIFI, Ethernet
Transmission Type: Enclosed belt drive design. The sealed belt structure prevents dust ingress, extending the service life of transmission components.

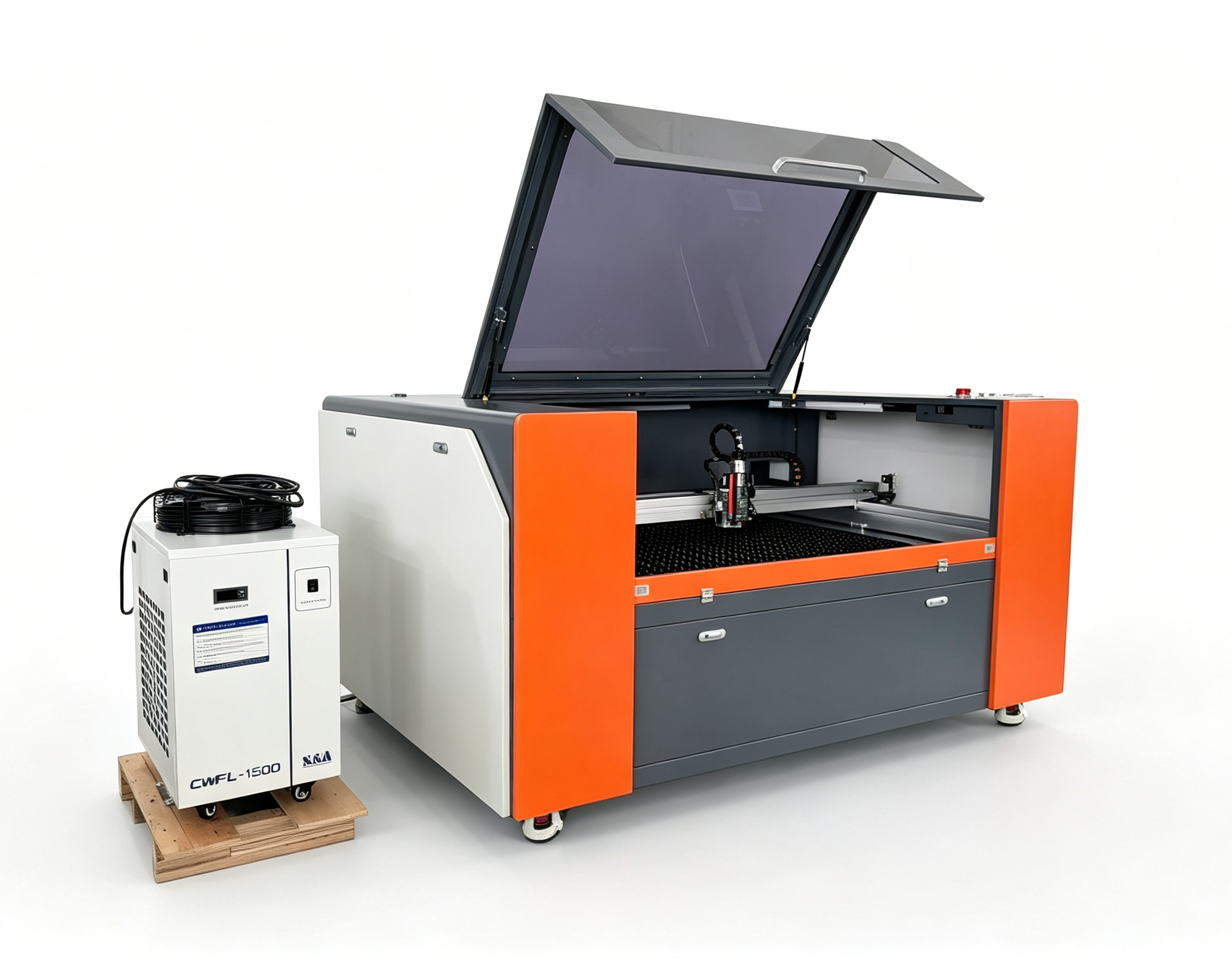

CO2 Chiller: S&A CWFL-1500
Exhaust Fan: Included as standard
Worktable: Equipped with both honeycomb table and blade table to meet different processing requirements.
Power Supply: 220V Single Phase
Optional upgrades for CO2 laser: Red dot pointer, auto focus function
Parameters
Applications
This 1390 dual source laser cutter works for both metal and non-metal materials. For metals, it processes stainless steel, aluminum, copper and carbon steel. For non-metals, it cuts and engraves plywood, MDF, acrylic, paper, PVC, rubber, glass, marble and granite.

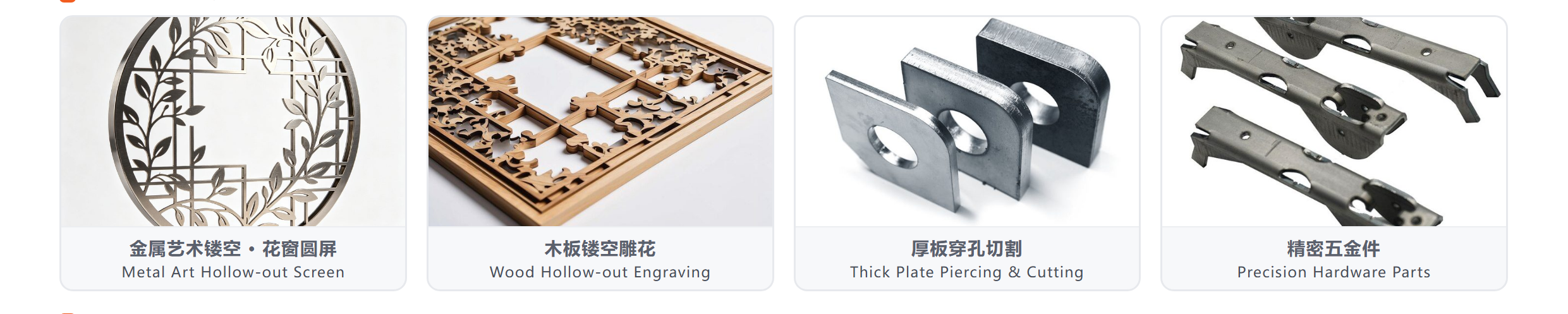

It is widely used across many industries, including advertising signage, crafts and gifts, leather goods, packaging, apparel and textiles, home decoration, maker education and handcraft DIY production. Typical finished work includes metal art hollow screens, wood engraving, thick plate cutting and precision hardware components.
FAQ
