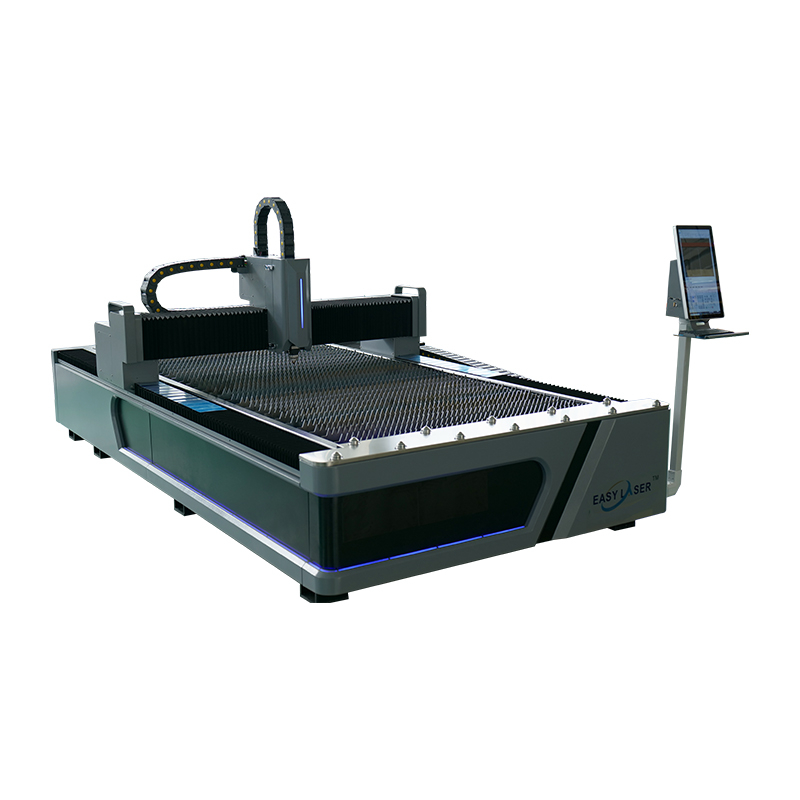

3015 Fiber Laser Metal Cutting Machine for Sheet Metal Cutting

Name: 3015 Fiber Laser Metal Cutting Machine for Sheet Metal Cutting
SKU: 531188827
Rating: 5.0 (72 reviews)

Quantity:
Power:	1500W 2000W 3000W 6000W
Availability:





Inquire Add to Basket

Features

1. Low cost of use Low cost of use and low maintenance cost, spend less time to maintain.

2. High efficiency and precision High efficiency. Laser cutting machine is the most efficient in the modern market - higher photoelectric conversion efficiency, more efficient beam transmission, resulting in better finished products and less energy waste. High cutting accuracy. With stable power and suitable parameters, the finished product is directly finished without secondary processing and polishing, which is very cost-saving.

3. Convenient operation Computer numerical control, remote operation, speak cutting drawings into the work automatically.

4. Wide range of use Wide range of use, from heavy equipment, rail transportation, aerospace, small to jewelry processing, advertising board processing can be used, and a wide range of power, ranging from 1000W to 30000W, the thickest can cut 130mm plate.

Application:

CNC fiber laser cutting machine for sale, versatile, can cut stainless steel, carbon steel, alloy steel, spring steel, copper plate, aluminum plate, gold, silver, titanium and other plates. It is widely used in industries such as advertising, high voltage/low voltage electrical cabinet production, textile machinery parts, kitchen appliances, automobiles, machinery, elevators, electrical parts, spring ring parts, subway line parts, etc.

Main Configurations

Introduction

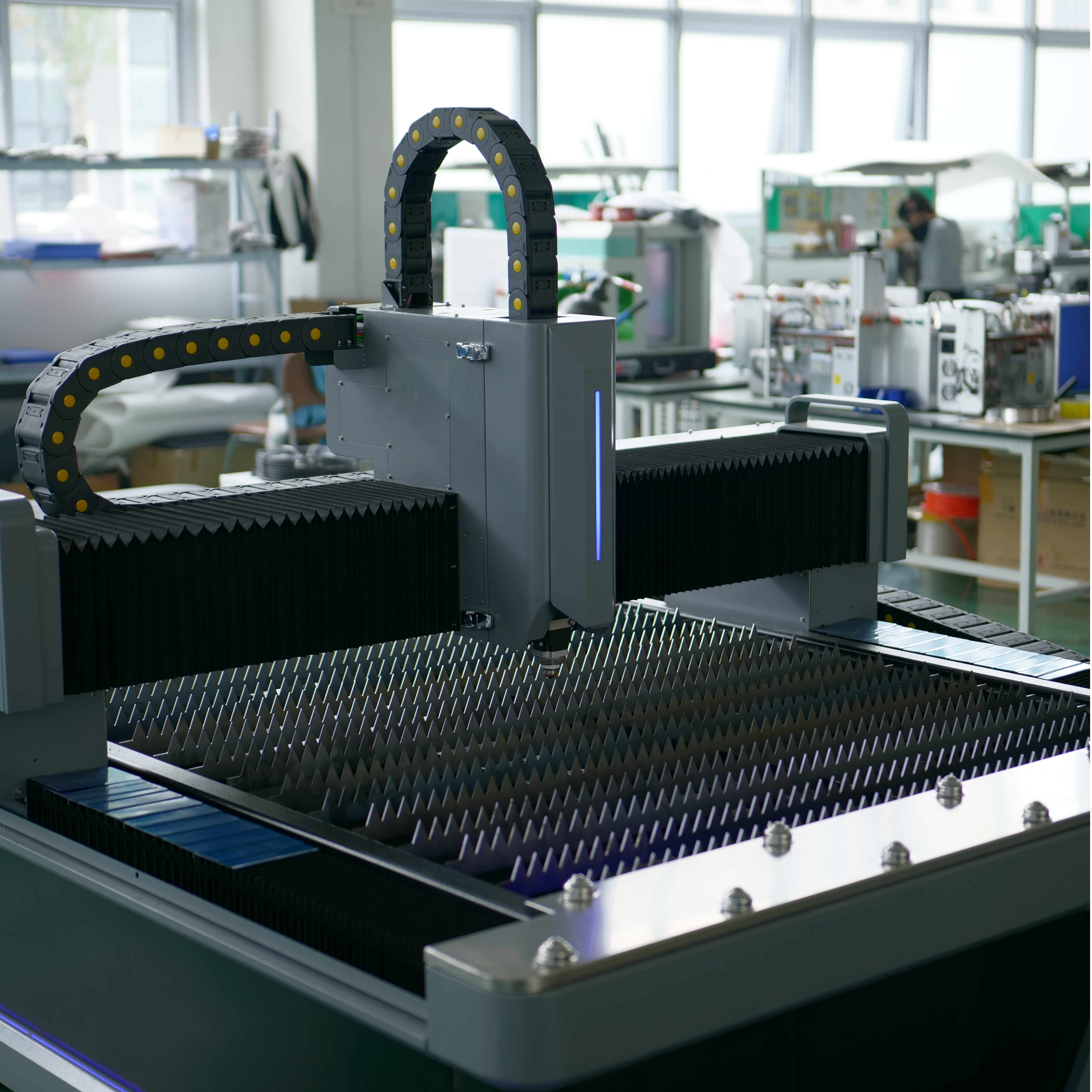

Laser cutting head

Raytools fiber laser cutting machine head Auto-focusing and height control for automatic punching and cutting of different thicknesses of plates.
Fiber laser source

MAX is a high quality laser for fiber cutting machine applications. Also there are different brands as well as power lasers to choose from, the higher the power, the thicker the cutting thickness.
Servo Moto

High quality servo motor, realizing the closed-loop control of position, speed and torque; overcoming the problem of stepper motor out-of-step. With high speed performance, the general rated speed can reach 2000~3000 rpm.

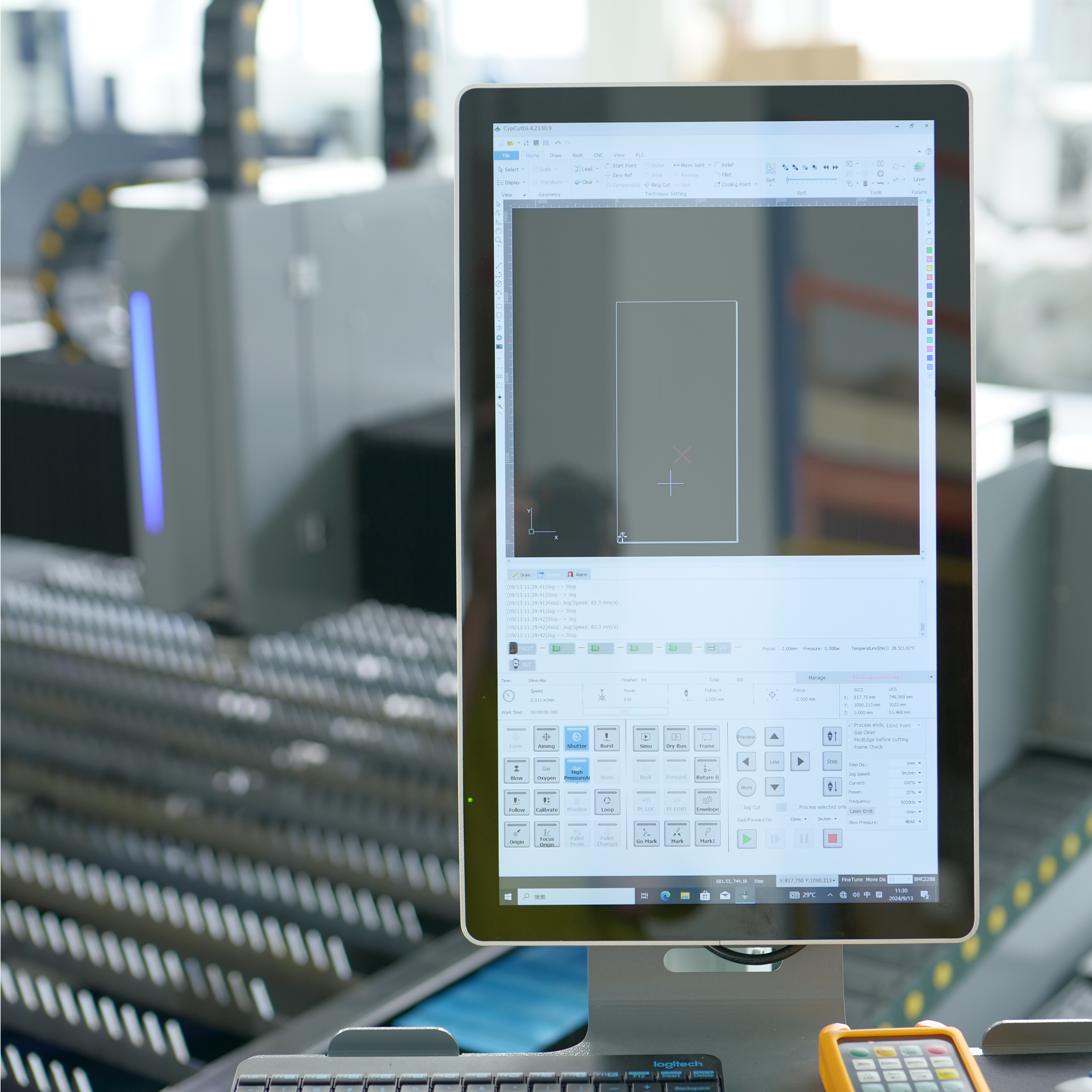

CypCut control system

CypCut plane cutting software is a set of software specially developed for the deep customization of the laser cutting industry, easy to use, rich in functions, suitable for various processing occasions.
High quality guide rails

Hiwin high quality guide rail, stable working condition, long service life, ensure the smooth operation of the machine.

Parameters

Model

RF-3015 Fiber Laser Cutting Machine

Working Size

1500*3000mm

Laser Beam quality

<0.373mrad

Working Life of Fiber Source

More than 100000 hours

Position Type

Red Dot Pointer

Cutting Thickness

0.5-10mm Within The range

Max. Idle Running Speed

80-110M/min

Max acceleration

1.5G

Reorientation Accuracy

Within ±0.01mm

Lubrication System

Electrical Motored

Cooling mode

Water cooling and protection system

Auxiliary Gas for Cutting

Oxygen/ Nitrogen/ Compressed Air

Compatible Software

AutoCAD/ CorelDraw etc

Handle Control

Wireless Control Handle

Graphic Format

DXF/PLT/AI/LXD/GBX/NC code

Power Supply Voltage

220V 1Ph or 380V 3Ph

Warranty

2 Years

Applications

FAQ

FAQs

Q1: How to choose machine?

A1: You can tell us your working material, detail work by picture or video so that we can recommend the most suitable model for you.
Q2: Are you a factory or trading company?

A2: We are the manufacturer. as only the machine made by ourselves, quality can be trusted, and most important thing is we can do better service after sales. We know how to fix the problem in each parts easily. So welcome to visit to our factory.
Q3: What's the payment term?

A3: We accept: TT, Alibaba trade assurance order etc. 100% of total amount in advance Or 30% deposit in advance and 70% balance before delivery.
Q4: How about the delivery time?

A4: For normal machines we can send out the machine within 5-7 days after receive the full payment. For non standard machines and customized machines according to client's specific requirements, it would be 15 to 30 days.
Q5: How can i know your machine is work well?

A5: Before delivery , we have tested every machine and shoot some test video for you. If you have special production condition , we can adjust machine for you according to your work requirements.
Q6: How can i get support from you ?

A6: Our engineers are online for 24 hours, they can check the problems and give you solution very soon. If you don't know how to use the machine, We have English manual and CD video for machine using and maintaining , that will be delivery with machine. And we supply service through email, telephone, online, WhatsApp skype etc. Or If you're interesting come to China, we will offer you free training until you can use machine freely.
