Product Description

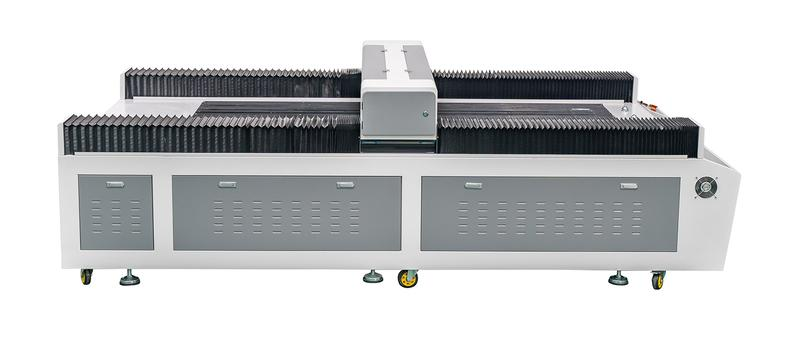

1325 CNC 130W CO2 laser Cutting Machine
What can machines be used for?
The 1325 CO2 CNC Cutting Machine is a large cutting machine for non-metallic materials. It can be used to cut non-metallic materials such as acrylic, wood, MDF, leather, rubber, fabric and so on. Its working area is 1300*2500mm, which can be used for industrial production. The machine can be equipped with high power laser tubes such as 130W 300W, which can provide great productivity. 130W can cut 3mm acrylic up to 90mm/s.
Machine Features:
1. Can engrave many non-metallic materials
2. Using Ruida controller and good user interface
3. Linear square guide rail, high precision
4. Heavy duty body, good rigidity.
5. Industrial wheel single wheel load up to 200kg. stable and quiet.
6. Three-phase stepping motor drive, high precision, low noise.
7. Large working area of the machine, can cut large area materials.
Machine details:
Machine parameters
| working area | 2500mm*1300mm |
| laser power | 130w,150w,180w,300w 600W |
| laser type | co2 glass laser tube |
| Max engraving speed | 0-1000mm/s |
| Max cutting speed | 0-600mm/s |
| Positioning accuracy | ≤0.01mm |
| Min forming character | 1mm*1mm |
| Resolution Ratio | 4000DPI |
| Output Power of Laser | 10%~100% continuously to be adjusted |
| System Operation Environment | /Window 7/8/10/11 32/64bit |
| Cooling way | Water cooling with industrial cooler |
| working voltage | 220V / 110V 50HZ / 60HZ |
| control system | RDC6445 mainboard |
| Motion system | HIWIN Linear guide rail |
| Software supported | Coreldraw, Autocad,Artcut, Illustrator,Lightburn |
| Graphic format supported | BMP, PCX, TGA,TIF,PLT ,CDR, etc |
Machine configuration:
Samples
1325 CO2 Cutting Machine High precision cutting and engraving on non-metallic materials such as acrylic, wood, plastic, rubber, fabric and so on. It can complete high precision cutting of patterns and text models, which are widely used in manufacturing, models and crafts, signs and advertisements, textile and garments, and so on. It becomes an efficient and precise processing tool for manufacturing and creative industries.
Packing and Shipping
1. Ensure each part of the machine is clean and tidy before packaging;
2. Each accessory is wrapped in a recyclable plastic bag, then wrapped in cardboard;
3. Place the machine neatly (like a cube as much as possible) and add a thicker foam to the corners that are easy to bump;
4. Packing in wooden cases of suitable export standard plywood( fill the corners with recyclable plastic foam),then seal the case and fasten it with high quality stainless steel nails and steel straps.
5. Then seal the case and fasten it with high quality stainless steel nails and steel straps;
6. We will write the corresponding shipping marks on the cases according to the customer's requirements;
7. Print or spray paint safety sign in wooden box.
We will give away the following products for free：
| Shipping list | |
| Name | Amount |
| Cooling chiller | 1 set |
| Air pump | 1 set |
| Exhaust fan | 1 set |
| Smoke pipe | 2 pcs |
| Power cable | 1 pcs |
| Water pipe | 1 pcs |
| Air pipe | 1 pcs |
| Inner hexagon spanner 1.5-10mm | 9 pcs |
| USB flash drive | 1 pcs |
| USB cable | 1 pcs |
| Focus ruler | 1 pcs |
| Paper for adjusting laser light way | 1 pcs |
| Lens cleaning paper | 1 pcs |
| Limit switch | 1 pcs |
| Tools bag | 1 pcs |
Our Service
| 1 | Software is on update for free whole life. |
| 2 | Main parts be changed free of charge if there is any problem during the warranty period. |
| 3 | We will provide the consumable parts at an agency price. |
| 4 | We have user manual instruction and videos for software Installation, operation and machine's using and maintenance. |
| 5 | We will supply 24 hours online after service, and free technical support. |
| 6 | We debug the machine before shipment and carry out 12 hours working test to ensure the quality of the machine. |
| 7 | We offer the service, from you got the machine, including how to install the machine, how to use machine, how to let machine work, and so on. |
