Product Description

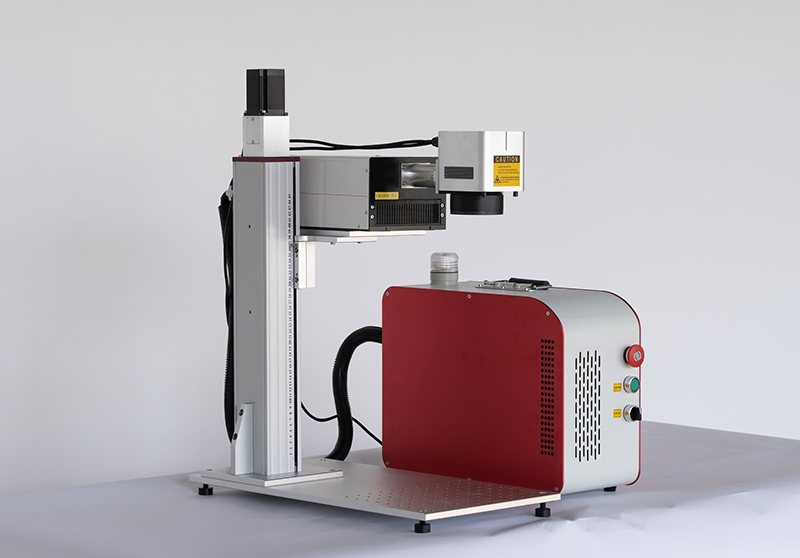

Machine Features:
1.High-quality machine shell, all-aluminum manufacturing.
2.Electric lift adjustment, more convenient to use.
3.Fast delivery, easy to transport, could place on desk. Save your budget from delivery cost.
4.Permanent: The mark will not fade due to environmental factors (touch, acid and reduced gas, high temperature, low temperature,etc.)
Main Application: UV laser is suitable for glass, plastic, circuit board cutting, non-metal and metal metarial marking, high laser precision, small thermal effect of UV laser, and will not damage the surface of processed materials.
Applicable industries: Advertisement, arts, and crafts, toys, computerized embroidery and clipping, garments, model, and construction industry.
Detailed pictures:
Small thermal effect:The wavelength of the ultraviolet laser marking machine is 355nm, which is a cold light source, will not damage the surface of the material, is smokeless, and has no pollution, and has a particularly good effect for marking plastic materials.The processed material has smooth edges and surface.
High precision: The objects engraved by the UV laser marking machine have fine patterns, and the minimum line width can reach 0.01mm. The marking is clear, durable and beautiful.Can print two-dimensional bar codes requiring more precision and higher definition.
Permanent: The mark will not fade due to environmental factors (touch, acid and reduced gas, high temperature, low temperature,etc.)
If you want to know more, please contact us!
Configuration:
|
|
Air cooling laser source - You can use the PWF function to operate
|
|

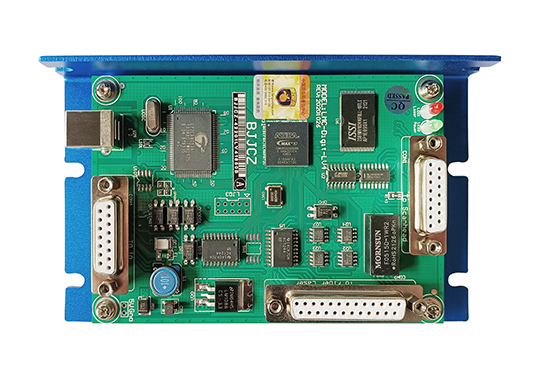

| EZCAD2 Control card Genuine EZCAD2 control system compatible with win7/8/10. Stable motion control, laser control is correspondingly fast. |
|
| High quality Galvanometer The galvanometer has good operation stability, high positioning accuracy, fast marking speed and strong anti-interference ability. |
|

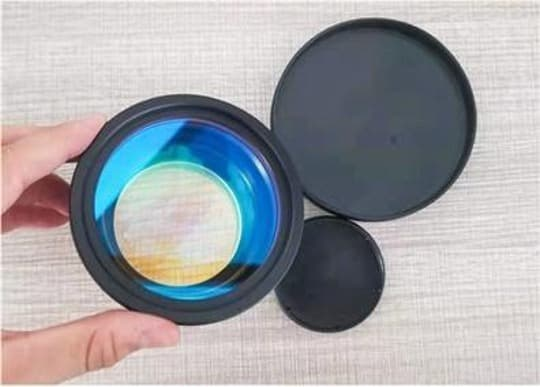

| Field Lens Working near the focal plane of the objective lens can effectively reduce the detector size. Improve the ability of the edge beam incident into the detector. The standard is 110*110mm, and other models can be selected. |
 | Column Aviation aluminum alloy material, high precision density scale, accurate view of positioning size. |
 | Manual Z-axis Quickly raise and lower the handle to locate the engraving position. Free lifting, free adjustment. You can also choose to upgrade to an electric lift. |
Machine Reference Parameters:
| Model | RF-UV-FOTIA3W | RF-UV-FOTIA5W |
| Laser output power | 3W | 5W |
| Laser source band | INNO | |
| Laser wavelength | 355nm | |
| Average power(Watts) | >3W@30kHZ | >5W@30kHZ |
| Energy(µJ) | >100 | >160 |
| Specified repetition rate(kHZ) | 30 | |
| Repetition rate(kHZ) | 30-150 | |
| Pulse width(ns) | <15 | |
| Beam quality(M⊃2;) | <1.2 | |
| Beam roundness(%) | >90 | |
| Beam diameter(mm) | ~0.45 | |
| Beam divergence(µRad) | <1.5 | |
| Point stability(prad/C) | <20 | |
| Cooling type | Water cooling | |
| Marking area | 70*70-300*300mm | |
| Marking depth | 0-1.0mm | |
| Graphic Format Supported | AI, PLT, DXF, BMP, JPG,PNG,Dst, Dwg, LAS, DXP | |
| Certification | CE | |
| Warranty | 2 years | |
| Supply voltage | AC110V 60HZ / AC220V 50HZ | |
| Focus type | Double red light | |
Optional accessories:
Sample Show:
Packing and Shipping:
1.Colleet all accessories and spareone by one according to the orderlist, and double check all partsagain to make sure all parts areincluded.
2.Our packaging standarts:
+thick cling film
+six-sided pearl cotton
+High strength wooden box
+Pack the helt and then secure themachine to ensure the machine issafe during transport.
3. Paste the shipping mark toensure that the buyer can easilyidentify the correct machine
4. A safety sign can be used toremind the transporter to keepour equipmentin the course oftransportation.
Our Service:
| 1 | Software is on update for free whole life. |
| 2 | Main parts be changed free of charge if there is any problem during the warranty period. |
| 3 | We will provide the consumable parts at an agency price. |
| 4 | We have user manual instruction and videos for software Installation, operation and machine's using and maintenance. |
| 5 | We will supply 24 hours online after service, and free technical support. |
| 6 | We debug the machine before shipment and carry out 12 hours working test to ensure the quality of the machine. |
| 7 | We offer the service, from you got the machine, including how to install the machine, how to use machine, how to let machine work, and so on. |

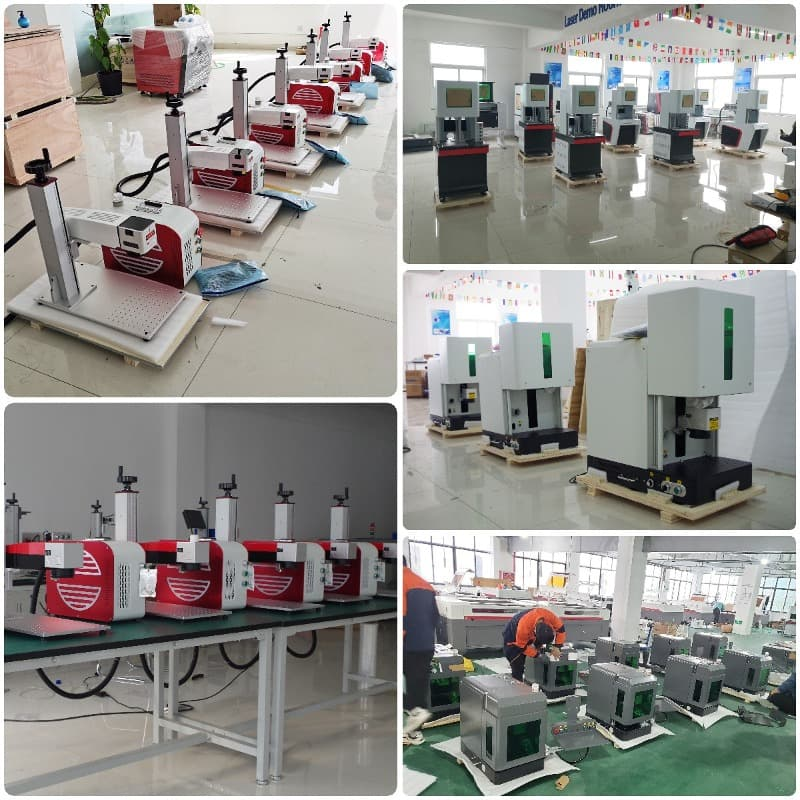

Our factory:
