Product Description

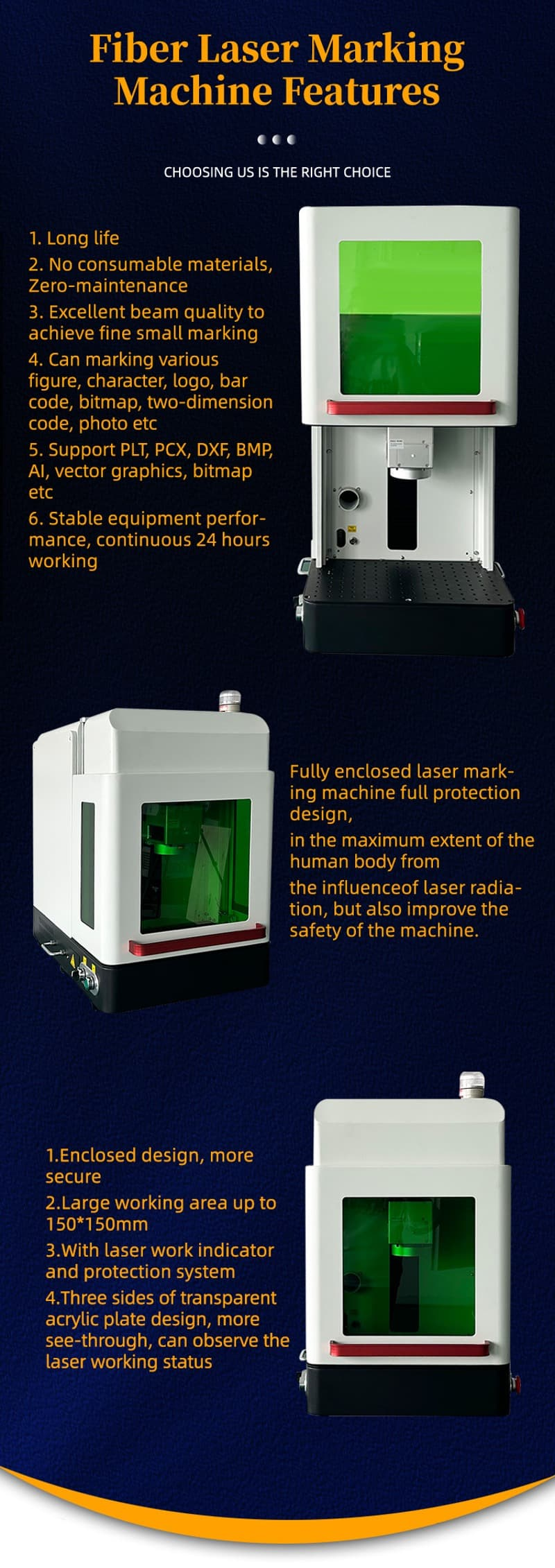

1.Full enclosed cover more safe for operator.
2.Open door protection.
3.Alarm light showing laser condition.
4.High precision industry type galvo head.
5.Quality OPEX optic lens high transmittance.
6.Strict selected electric parts ensure machine running stable and reliable.
7.The smoke purifier can be connected to the inside of the machine, making little noise and reducing pollution.
Three-sided window, multi-directional observation effect
Control Switch
Light : laser working indicator switch, it is green when powered on, and red when it is working.
Up/Down : control the machine lifting.
Rotating button : adjust the speed of the machine's lifting.
Emergency stop: press down to cut off all electric of machine for operator and products safety.
Scan Head : control the switch state of the scan head power supply of the marking machine.
Laser Power : control the switch status of the laser power supply.
Equipped with a laser working indicator, it is green when powered on, and red when it is working.
| Model | RF-F-50W | RF-F-60W | RF-F-100W |
| Laser output power | 50W | 60W | 100W |
| Laser source band | RAYCUS | ||
| Laser wavelength | 1064nm | ||
| Laser beam quality | <1.6 | ||
| Max pulse energy(mj) | 1 | 1.09 | 1.17 |
| Pulse duration(ns) | 120-150 | 120-150@55KHZ | 200-240@60KHZ |
| Pulse repetition rate range(kHZ) | 50-100 | 55-100 | 60-100 |
| Min. Character size | 0.2mm | ||
| Repetition Accuracy | <8μrad | ||
| Power consumption | 170W | ||
| Cooling type | Air cooling | ||
| Marking area | 70*70-150*150mm | ||
| Max working speed | 8000mm/s | ||
| Laser spot (110x110) | 25.4μm | ||
| Controller | Computer with marking software | ||
| Graphic Format Supported | AI, PLT, DXF, BMP,JPG,PNG,Dst, Dwg, LAS, DXP | ||
| Mode of Operation | Pulsed | ||
| Certification | CE | ||
| Warranty | 2 years | ||
| Supply voltage | AC110V 60HZ / AC220V 50HZ | ||
| Focus type | Double red light | ||
1. Collect all accessories and spare parts one by one according to the order list, and double check all parts again to make sure all parts are included.
2. Our packaging standards:
+ thick cling film
+ six-sided pearl cotton
+ High strength wooden box
+ Pack the belt and then secure the machine to ensure the machine is safe during transport.
3. Paste the shipping mark to ensure that the buyer can easily identify the correct machine
4. A safety sign can be used to remind the transporter to keep our equipment in the course of transportation.
We will give away the following products for free：Inner Hexagon, Foot Switch, Power Cable, USB Flash Drive, Goggles, Ruler, Envelope.
| 1 | Software is on update for free whole life. |
| 2 | Main parts be changed free of charge if there is any problem during the warranty period. |
| 3 | We will provide the consumable parts at an agency price. |
| 4 | We have user manual instruction and videos for software Installation, operation and machine's using and maintenance. |
| 5 | We will supply 24 hours online after service, and free technical support. |
| 6 | We debug the machine before shipment and carry out 12 hours working test to ensure the quality of the machine. |
| 7 | We offer the service, from you got the machine, including how to install the machine, how to use machine, how to let machine work, and so on. |
