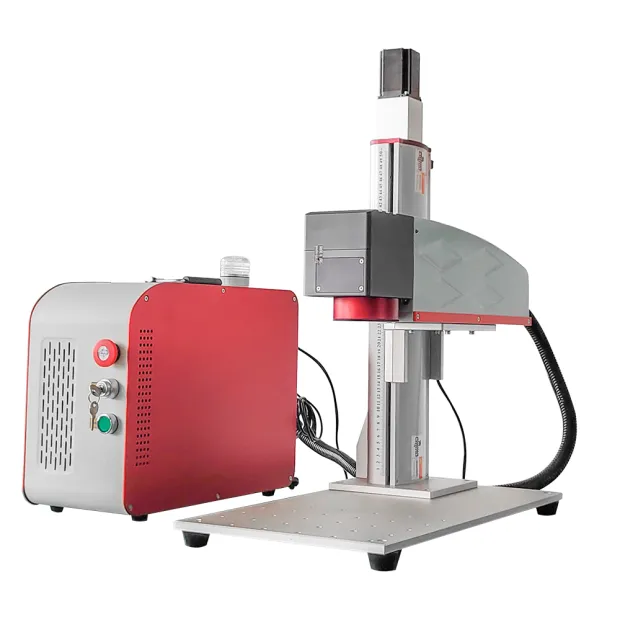

Product Description
Features:
1. EZCAD3 new version control software, multifunction, software control lifting.
2. Motorized Z-axis easy to achieve 2.5D engraving
3. Board galvanometer integrated one-piece design,more stable.
4. High-speed XY motor, fast processing speed, high precision.
Detailed pictures:
-2.5D Metal Deep Engraving for Metal.
-Black and color marking on stainless steel.
-Metal surface processing.
-Peeling coating.Aluminum black marking.
-Semi-conductor&electronics industry applications.
-Large area engraving.
-Excellent marking effect finely.
-Metal Surface Processing
-The machine can be compatible with software files such as Coredraw, AutoCAD, Photoshop; PLT, PCX, DXF, BMP, etc supported
Configuration:
|
| Laser source Genuine lasers, each with anti-counterfeiting code. - Color marks in stainless steels |
| BJJCZ G3 Galvanometer Control card integrated in the galvo head, more stable. |
|
|

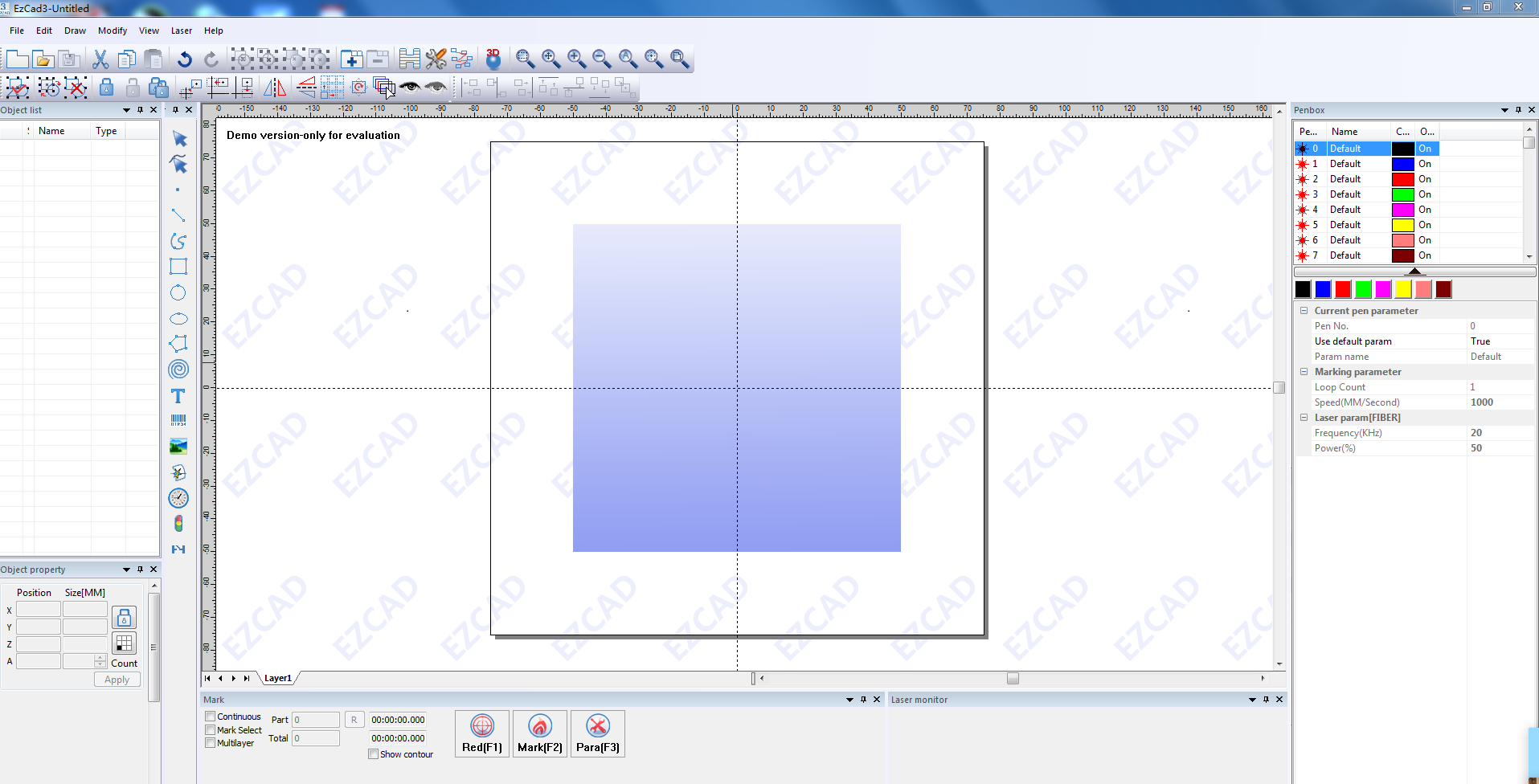

| EZCAD 3 software Professional 3D surface marking, relief, dynamic focusing.Ezcad software, users can design their graphics freely, common types of images are supported.(bmp, jpg, gif, tga, png, tif...) ,common vector images are supported. (ai, dxf, dst, plt...). |
| Column Aviation aluminum alloy material, high precision density scale, accurate view of positioning size. |  |
 | Aluminium alloy table High quality aluminum alloy table with screw threads. Convenient for fixing objects. |
Machine Reference Parameters:
| Model | RF-F-50W | RF-F-60W | RF-F-80W |
| Laser output power | 50W | 60W | 80W |
| Laser source band | JPT | ||
| Laser wavelength | 1064nm | ||
| Laser beam quality | <1.8 | <1.5 | <1.6 |
| Max pulse energy(mj) | 1.25 | 1.5 | 1.5 |
| Pulse duration(ns) | 200 | 2-350 | |
| Pulse repetition rate range(kHZ) | 1-600 | 1-4000 | |
| Min. Character size | 0.2mm | ||
| Repetition Accuracy | <8μrad | ||
| Power consumption | 170W | ||
| Cooling type | Air cooling | ||
| Marking area | 75-300mm （option） | ||
| Max working speed | 8000mm/s | ||
| Laser spot (110x110) | 25.4μm | ||
| Controller | Computer with marking software | ||
| Graphic Format Supported | AI, PLT, DXF, BMP,JPG,PNG,Dst, Dwg, LAS, DXP | ||
| Mode of Operation | Pulsed | ||
| Certification | CE | ||
| Warranty | 2 years | ||
| Supply voltage | AC110V 60HZ / AC220V 50HZ | ||
| Focus type | Double red light | ||
Optional accessories:
Sample Show:
Packing and Shipping:
1. Collect all accessories and spare parts one by one according to the order list, and double check all parts again to make sure all parts are included.
2. Our packaging standards:
+ thick cling film
+ six-sided pearl cotton
+ High strength wooden box
+ Pack the belt and then secure the machine to ensure the machine is safe during transport.
3. Paste the shipping mark to ensure that the buyer can easily identify the correct machine
4. A safety sign can be used to remind the transporter to keep our equipment in the course of transportation.
We will give away the following products for free：Inner Hexagon, Foot Switch, Power Cable, USB Flash Drive, Goggles, Ruler, Envelope.
Our Service：
| 1 | Software is on update for free whole life. |
| 2 | Main parts be changed free of charge if there is any problem during the warranty period. |
| 3 | We will provide the consumable parts at an agency price. |
| 4 | We have user manual instruction and videos for software Installation, operation and machine's using and maintenance. |
| 5 | We will supply 24 hours online after service, and free technical support. |
| 6 | We debug the machine before shipment and carry out 12 hours working test to ensure the quality of the machine. |
| 7 | We offer the service, from you got the machine, including how to install the machine, how to use machine, how to let machine work, and so on. |
