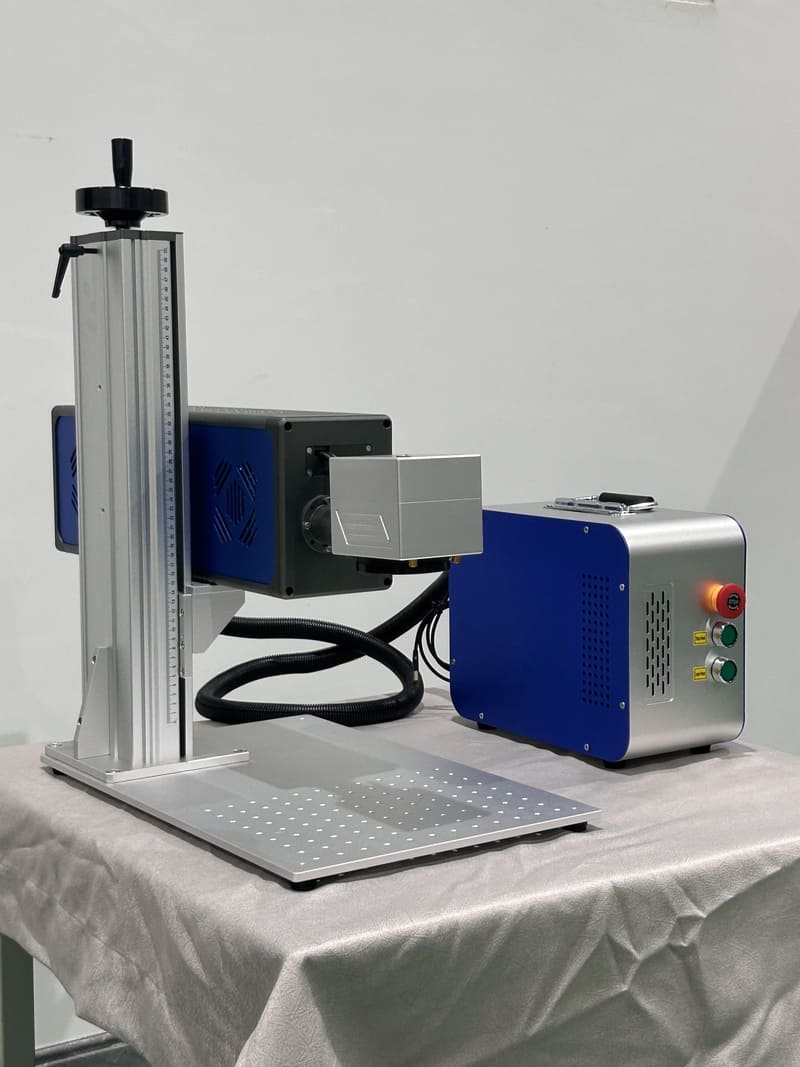

New RF tube CO2 laser marking machine

Name: New RF tube CO2 laser marking machine
Rating: 5.0 (36 reviews)

The new CO2 laser markers use a new power pack that is smaller in size and weight and saves on shipping costs. RF tube laser source, long service life, stable operation. The machine can engrave on non-metallic materials, wood, acrylic, leather. At the same time the machine can peel paint on the cup on metal. Wide range of applications, economical price

Quantity:




Inquire Add to Basket

Product Description

Product Description

Co2 Laser Marking Machine

Features:

1. The metal RF tube CO2 laser tube has higher precision than glass tube, and the marking effect is fine.

2. The machine is maintenance-free and requires.

3. Small size, easy to transport.

4. BJJCZ control card and EZCAD2 software free.

Detailed pictures:

Configuration:

Machine Reference Parameters:

Model	RF-CO2-30A	RF-CO2-35A	RF-CO2-40A
Laser output power	33-38W	38-40W	43-45W
Laser source band	BOST
Laser wavelength	10.6μm
Duty cycle	0-100%
Frequency	0-25KHz
Power stability rate	<±5%
Beam diameter	1.8±0.2
Divergence	<7.5mrad
Cooling type	Air cooling/water cooling
Dimension	35793142mm/3849393mm
Marking area	110110mm-300300mm(optional)
Marking depth	0-3.0mm
Controller	Computer with marking software
Graphic Format Supported	AI, PLT, DXF, BMP, JPG,PNG,Dst, Dwg, LAS, DXP
Certification	CE
Supply voltage	AC110V 60HZ / AC220V 50HZ

Optional accessories:

Best galvo co2 rf laser marking machine

Sample Show:

Main Application:

wood, orgnic, glass, plastic, garments, paper, lenther, rubber and other nonmetal materials.

Applicable industries:

Advertisement, arts, and crafts, toys, computerized embroidery and clipping, garments, model, and construction industy.

Best galvo co2 rf laser marking machine

Packing and Shipping:

Best galvo co2 rf laser marking machine

Our Service:

1	Software is on update for free whole life.
2	Main parts be changed free of charge if there is any problem during the warranty period.
3	We will provide the consumable parts at an agency price.
4	We have user manual instruction and videos for software Installation, operation and machine's using and maintenance.
5	We will supply 24 hours online after service, and free technical support.
6	We debug the machine before shipment and carry out 12 hours working test to ensure the quality of the machine.
7	We offer the service, from you got the machine, including how to install the machine, how to use machine, how to let machine work, and so on.
