Product Description

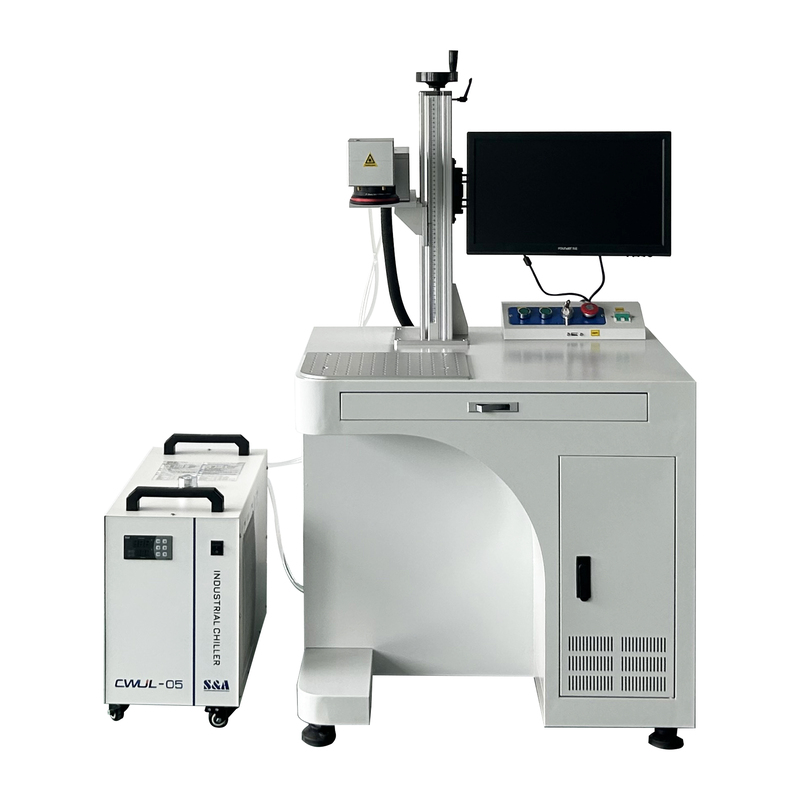

3W 5W UV LASER MARKINFG MACHINE WITH CHILLER
*Power: 3W /5W /10W/15W/20W
*Working area: 70-300mm optional
*Production time: 7 days
*Shipping time: 5-7 days
Features
Benchtop UV laser marking machine is a device that uses UV laser technology for marking.
High Precision and High Definition: UV laser marking machine is capable of achieving higher resolution and finer marking results, suitable for applications that require high precision marking on fine objects or.
Non-contact and non-invasive: especially suitable for marking fragile or sensitive objects, such as electronic components, medical devices, etc.
Multi-material adaptability: UV laser marking machine can mark on a wide range of materials, including plastics, glass, ceramics, metal coatings and so on. It can achieve high-contrast, wear-resistant, corrosion-resistant marking effect, making the marking pattern clearly visible and durable.
Fast and efficient: UV laser marking machine has high marking speed and processing efficiency. The focusing ability of the laser beam is strong, which can quickly complete complex marking tasks and improve production efficiency.
Environmentally friendly and energy-saving: UV laser marking machine works by photoelectric conversion, without additional chemical treatment process, so it is friendly to the environment. In addition, UV lasers have a high energy conversion efficiency, enabling energy saving and reduced energy consumption.

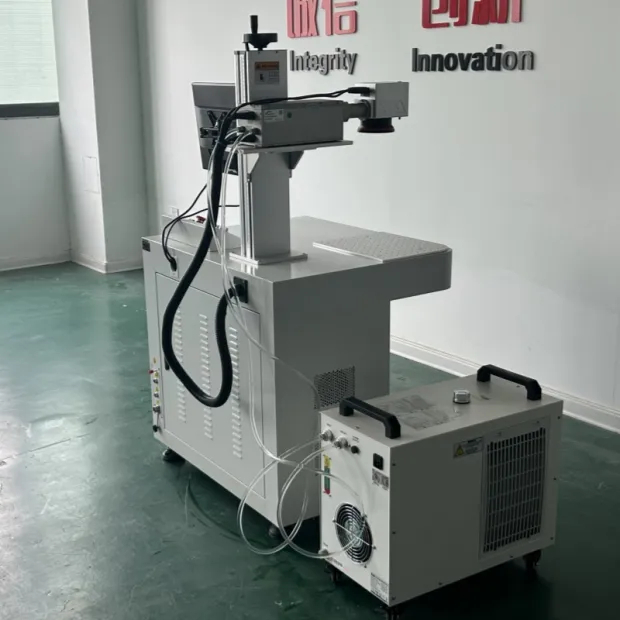

Real Pictures：
Configuration:
INNO FIT Laser source
- One-button start
- Strong anti-interference ability
- Light cost, easy to transport
- All -in -one structure design
- Water-cooled design, suitable for dealing with extreme environments
EZCAD2 Control card
Genuine EZCAD2 control system compatible with win7/8/10.
Stable motion control, laser control is correspondingly fast.
SINO GALVO Galvanometer
The galvanometer has good operation stability, high positioning accuracy, fast marking speed and strong anti-interference ability.
Field Lens
Working near the focal plane of the objective lens can effectively reduce the detector size.
Improve the ability of the edge beam incident into the detector.
The standard is 110*110mm, and other models can be selected.
Machine Reference Parameters:
| Model | RF-U-FOTIA3W | RF-U-FOTIA5W |
| Laser output power | 3W | 5W |
| Laser source band | INNO | |
| Laser wavelength | 355nm | |
| Average power(Watts) | >3W@30kHZ | >5W@30kHZ |
| Energy(µJ) | >100 | >160 |
| Specified repetition rate(kHZ) | 30 | |
| Repetition rate(kHZ) | 30-150 | |
| Pulse width(ns) | <15 | |
| Beam quality(M⊃2;) | <1.2 | |
| Beam roundness(%) | >90 | |
| Beam diameter(mm) | ~0.45 | |
| Beam divergence(µRad) | <1.5 | |
| Point stability(prad/C) | <20 | |
| Cooling type | Water cooling | |
| Marking area | 70*70-200*200mm | |
| Marking depth | 0-1.0mm | |
| Graphic Format Supported | AI, PLT, DXF, BMP, JPG,PNG,Dst, Dwg, LAS, DXP | |
| Certification | CE | |
| Warranty | 2 years | |
| Supply voltage | AC110V 60HZ / AC220V 50HZ | |
| Focus type | Double red light | |
Optional accessories
Sample Show
Packing and Shipping
1.Colleet all accessories and spareone by one according to the orderlist, and double check all partsagain to make sure all parts areincluded.
2.Our packaging standarts:
+thick cling film
+six-sided pearl cotton
+High strength wooden box
+Pack the helt and then secure themachine to ensure the machine issafe during transport.
3. Paste the shipping mark toensure that the buyer can easilyidentify the correct machine
4.A safety sign can be used toremind the transporter to keepour equipmentin the course oftransportation.
We will give away the following products for free：Inner Hexagon, Foot Switch, Power Cable, USB Flash Drive, Goggles, 60CM Ruler, Laser Inspect Report.
| Shipping list | Name | QUANTITY | |
| 1 | UV Laser Marking Machine | 1 set | |
| 2 | Inner Hexagon | 1 pcs | |
| 3 | Foot Switch | 1 pcs | |
| 4 | Power Cable | 1 pcs | |
| 5 | USB Flash Drive | 1 pcs | |
| 6 | Goggles | 1 pcs | |
| 7 | 60CM Ruler | 1 pcs | |
| 8 | Envelope | 1 pcs | |
Our Service:
| 1 | Software is on update for free whole life. |
| 2 | Main parts be changed free of charge if there is any problem during the warranty period. |
| 3 | We will provide the consumable parts at an agency price. |
| 4 | We have user manual instruction and videos for software Installation, operation and machine's using and maintenance. |
| 5 | We will supply 24 hours online after service, and free technical support. |
| 6 | We debug the machine before shipment and carry out 12 hours working test to ensure the quality of the machine. |
| 7 | We offer the service, from you got the machine, including how to install the machine, how to use machine, how to let machine work, and so on. |
