Product Description
Introducing our cutting-edge 6040 CO2 laser cutting machine, revolutionizing precision cutting for diverse applications.
Machine Features:

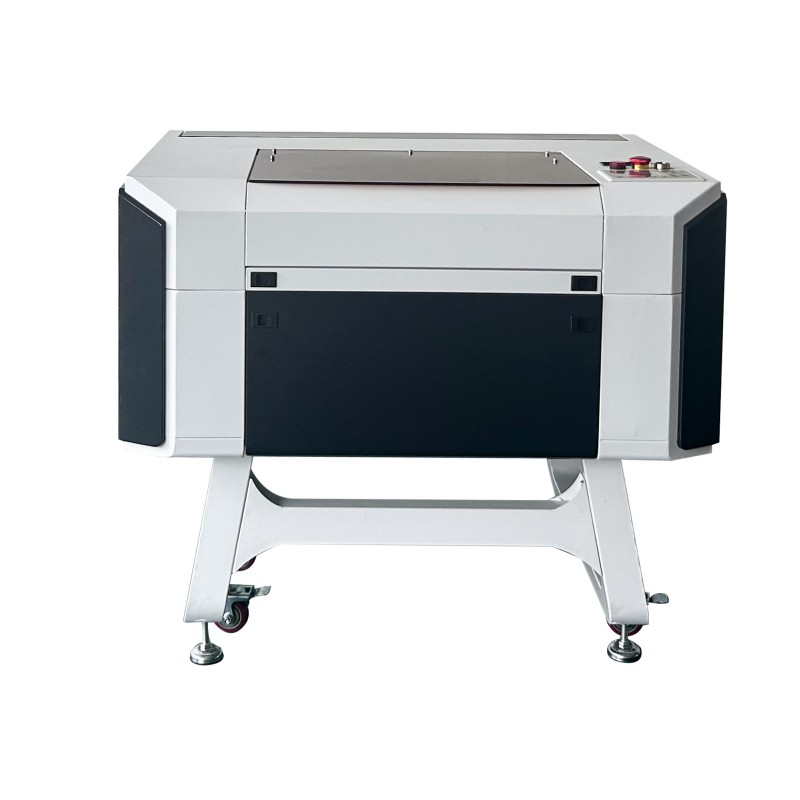

The 6040 CO2 laser engraving cutting machine with a 600*400mm working area is a new model introduced in 2023. It features several enhancements, including an integrated design with a built-in chiller, making the machine more aesthetically pleasing and reducing shipping costs. The machine utilizes the RUIDA 6445 system and is equipped with a CW 3000 chiller.
Key features of this machine include:
Working Area: The machine offers a spacious working area of 600*400mm, providing ample space for engraving and cutting various materials.
Power Options: The machine is available in multiple power options, including 40W, 50W, 60W, and 80W. Users can choose the appropriate power level based on their specific requirements.
Material Compatibility: It is capable of engraving and cutting a wide range of materials such as acrylic, wood, plastic, and MDF (medium-density fiberboard). This versatility allows for diverse applications.
Engraving and Cutting Capabilities: The machine excels in both engraving and cutting tasks. It can achieve high precision and quality engraving on surfaces, as well as precise and clean cuts on materials.
RUIDA 6445 System: With the RUIDA 6445 control system, users can conveniently operate and control the machine through a computer interface. This system offers advanced features, including support for various design software and file formats.
Built-in CW 3000 Chiller: The machine is equipped with a CW 3000 chiller, which is integrated into its design. This chiller ensures stable and optimal operating temperatures during prolonged usage, enhancing the machine's performance and longevity.
Overall, the 6040 CO2 laser engraving cutting machine with a 600*400mm working area and the aforementioned features is a versatile and efficient tool suitable for a wide range of engraving and cutting applications.
Machine details:
* High-tech machine casing;
* Double layer design is convenient for disassembly;
* Gantry design, easy to operate;
* Automatic focusing and lifting system can be configured.
Ruida 6445s
*3.5 inch Screen *More Function keys on panel than 6442 *Multi-Language *Software RDworks V8
Workbench
Aluminium blade worktable: Suitable for hard and large materials, such as acryl-ic、wood act.
Honeycomb table: Honeycomb table for small and soft materials.
LINEAR GUIDE RAILS
* Rugged and durable
* Low running resistance
* Can effectively improve work efficiency
* Low environmental requirements
* Works in harsh environments
* Low friction
Industrial water Chiller CW-3000 ,Concealed design saves space and is more aesthetically pleasing
FOMA wheel
Others: Ordinary wheels
Our machine: - Low noise; - Withstands weights up to 500 kg
Real pictures:
Machine configuration:
|
| Ruida control software and digital display ammeter |
|
| RECI glass co2 laser tube |
|
| Laser head with red light positioning |
|
| The blade platform (default) |
|
| Sealed guides to reduce corrosion of guides from cutting fumes |
|
| High quality electrical parts, clean and beautiful |
|
| High load foma wheel to ensure the heavy machine are more stable |
Sample Show:
Machine Reference Parameters:
| Model | RF-C-6040 |
| Laser source | RECI |
| Laser type | CO2 |
| Laser tube | Glass tube |
| Laser power | 75W/90W |
| Cutting depth | 0~30mm(non metal)/0~4mm(metal) |
| Control software | RUIDA |
| Control system | Windows |
| Working table | Aluminum knife table/Honeycomb table |
| Certification | CE |
| Operating voltage | AC220V 50HZ/AC110V 60HZ |
| Cooling type | Water chiller CW3000 |
| Min shaping character | Character: 1.5*1.5mm Letter: 0.7*0.7mm |
| Data transfer interface | USB |
| Operating temperature | -5℃-35℃ |
| Resolution ratio | 4500dpi |
| Graphic format supported | The file which Corel Draw, Photo shop, Auto-CAD can identify |
| Color separation | Separation of Cutting up to 256 colors |
| Compatible software | Corel Draw, Auto-CAD |
| Auto focus | optional |
| Packing | Plywood case |
Optional accessories：
|
| Roller rotary: The height of the clam can be adjusted up&down, it is mainly used for engraving round materials with different diameter,like wine bottle, ect.
|
|
| Rotary chuck: It is mainly used for engraving both regular and irregular round materials.
|
|
| CCD: -Scanning high speed, precise and fine marking effect -It is suitable for cutting logo tags ect which has been printed on material.
|
|
| Auto focus: Find focus dot automatically by lifting the worktable
|
Packing and Shipping
1. Ensure each part of the machine is clean and tidy before packaging;
2. Each accessory is wrapped in a recyclable plastic bag, then wrapped in cardboard;
3. Place the machine neatly (like a cube as much as possible) and add a thicker foam to the corners that are easy to bump;
4. Packing in wooden cases of suitable export standard plywood( fill the corners with recyclable plastic foam),then seal the case and fasten it with high quality stainless steel nails and steel straps.
5. Then seal the case and fasten it with high quality stainless steel nails and steel straps;
6. We will write the corresponding shipping marks on the cases according to the customer's requirements;
7. Print or spray paint safety sign in wooden box.
We will give away the following products for free：
| Shipping list | |
| Name | Amount |
| Cooling chiller | 1 set |
| Air pump | 1 set |
| Exhaust fan | 1 set |
| Smoke pipe | 2 pcs |
| Power cable | 1 pcs |
| Water pipe | 1 pcs |
| Air pipe | 1 pcs |
| Inner hexagon spanner 1.5-10mm | 9 pcs |
| Manual book | 1 pcs |
| USB flash drive | 1 pcs |
| USB cable | 1 pcs |
| Focus ruler | 1 pcs |
| Paper for adjusting laser light way | 1 pcs |
| Lens cleaning paper | 1 pcs |
| Limit switch | 1 pcs |
| Tools bag | 1 pcs |
Our Service
| 1 | Software is on update for free whole life. |
| 2 | Main parts be changed free of charge if there is any problem during the warranty period. |
| 3 | We will provide the consumable parts at an agency price. |
| 4 | We have user manual instruction and videos for software Installation, operation and machine's using and maintenance. |
| 5 | We will supply 24 hours online after service, and free technical support. |
| 6 | We debug the machine before shipment and carry out 12 hours working test to ensure the quality of the machine. |
| 7 | We offer the service, from you got the machine, including how to install the machine, how to use machine, how to let machine work, and so on. |
