Product Description

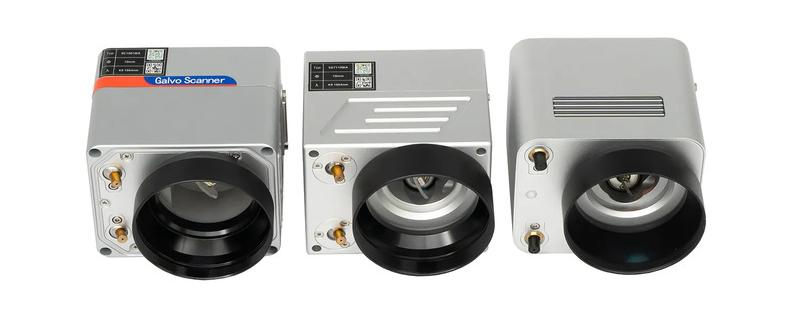

RC7110 SG7110 RC1001 HIGH SPEED GALVO SCANNER HEAD FOR FIBER LASER ENGRAVING MARKING MACHINES
Features
Have you worn the motors right off your fiber laser's old galvanometer? Is it past time you upgraded your machine's standard galvo head to enjoy a tighter spot size, faster processing, and even greater accuracy?
This RC7110 laser scanning system is the perfect Sino-Galvo replacement or upgrade for any laser marking machine.High-performance rotary motors convert the instructions from your control computer into precise movements of the X and Y mirrors to mark your text, designs, logos, serial numbers, bar codes, and more across flat surfaces of metal, stone, and hard plastic. The helpful built-in red dot locator keeps setup and positioning fast and convenient, letting you measure twice and cut once faster than ever.
Precise positioning, high resolution, and minimal drift for outstanding linearity, this galvo scanner head kit is the quality solution for your fiber laser engraving machine.
*The exact size of the working field will depend on the installed f-theta field lens, sold separately.
SINO-GALVO Features
Input Aperture: 10mm
Good degree of linearity,high resolution small drift, precise repetitive positioning.
High speed scanning, stable performance small zero drift, strong anti-interference
Extensive application: Laser deflection and two-dimensional localization, etc.
There are three kinds wavelengths can be choose, 10.6um, 1064nm and 355nm
Speed
Marking Speed: 196 ips (5000 mm/s)
Positioning Speed: 315 ips (8000 mm/s)
Max. Setting Time: 0.3 msec.
Accuracy
Max. Linearity: 99.9%
Max. Repositioning Drift: 8 μrad
Max. Long-Term Drift (8 hr. Continuous Use): 0.5 mrad
Max. Gain Error: 8 mrad
Max. Scale Drift: 22 ppm/°F (40 ppm/°C)
Max. Zero Drift: 8 μrad/°F (15 μrad/°C)
Max. Tracking Error: 164 μsec.
Lens Damage Threshold
K9 Glass: 9.1 J/cm²
Silicone Film: 10 J/cm²
Power Supply and Signal
Input Voltage: ±15V DC
Average Current: 2A
Peak Current: 15A
Digital Signal Interface: XY2-100
Position Signal Impedance: 10kΩ (±1%)
Position Signal Input Scaling Factor: 0.33 V/deg.
Dimensions
Laser Wavelengths: 355 nm / 1064 nm / 10.6 μm
Laser Input Aperture: 0.4 in. (10 mm)
Central Distance between Mirrors: 0.5 in. (13.5 mm)
Scan Angle: ±15°
Driver Board Dimensions: 3x1.8x1 in. (75x46x25 mm)
Galvo Head Dimensions: 4.7x 3.8x3.7 in. (118x96.5x93.6 mm)
Compatible Lens Size: M85
DB25 Cable Length: 9'2" (2.8 m)
Package List
1 x RC7110 Galvo Head
1 x DB25 Serial Cable
1 x 15V Power Supply
