300W Screw Drive 1390 300W With CCD CO2 Laser Cutting Machine

300W Screw Drive 1390 300W With CCD CO2 Laser Cutting Machine

Name: 300W Screw Drive 1390 300W With CCD CO2 Laser Cutting Machine
Rating: 5.0 (89 reviews)

Quantity:
Availability:





Inquire Add to Basket

Product Description

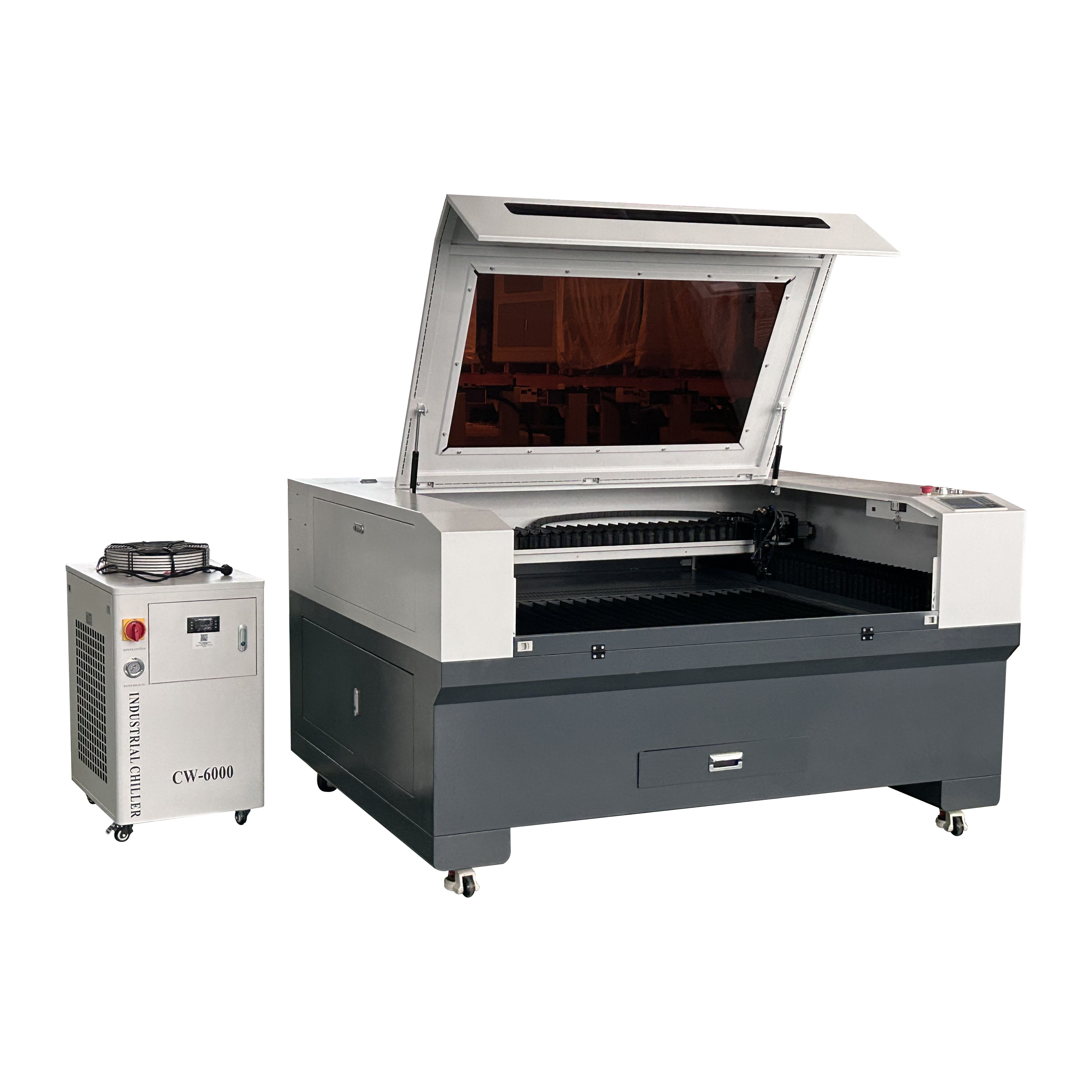

300W Screw Drive with CDD Camera 1390 CO2 Cutting Machine

The machine has a working area of 1300x900mm and uses a 300W laser tube. Silk rod drive, the machine drive more accurate and stable, is conducive to cutting thick materials. Thick material cutting edge is more neat. Acrylic, wood cutting. The machine has a CCD camera, which can be used for edge searching and pattern recognition. Favorable to improve the working speed

Advantage:

1. Fast delivery

2.Support customization

3.Professional after-sales service, lifelong after-sales service for the machine

4.Various transportation services available

5.Large quantity discount

6.Strict and standardized production processes

IM44G_2654

Main Configurations

Introduction

Laser tube

300W laser tube, stable light output, high power, cutting thick materials. Fast speed and high efficiency
Screw drive

The XY-axis is driven by a screw, which makes the machine cutting more precise. Flatter cutting edges
Control panel

Intelligent control panel, ruida 6445 board. Support multi-language, multi-function
Industrial chiller

CW6000 industrial chiller, precise temperature control, to provide a good operating environment for the machine. Suitable for a variety of environments
Laser Head with CCD camera

Laser head with CCD and autofocus for easy pattern recognition and quick cuts

Parameters

Model

RF-1390

Power

300W

Locating precision

<0.01mm

Drive

screw drive

Resolution ratio

4500dpi

Control program

RDCAM

System environment

Win7/8/10

Cutting thickness

0-30mm

Voltage

AC110V/220V±10% 50HZ/60HZ

size

1300x900mm

Applications

FAQ

FAQs

How to choose machine?

you can tell us your working material, detail work by picture or video so that we can recommend the most suitable model for you.
Are you a factory or trading company?

We are the manufacturer. as only the machine made by ourselves, quality can be trusted, and most important thing is we can do better service after sales. We know how to fix the problem in each parts easily. So welcome to visit to our factory.
what's the payment term?

we accept: TT, Alibaba trade assurance order etc.
100% of total amount in advance Or 30% deposit in advance and 70% balance before delivery.
How about the delivery time?

For normal machines we can send out the machine within 5-7 days after receive the full payment.
For non standard machines and customized machines according to client's specific requirements, it would be 15 to 30 days
