Product Description
High precision enclosed laser cutting machine
Fiber laser machine precision cutting machine 600*600mm,600*400mm.1KW,1.5W,2KW,3KW.Precise cutting of metal materials,stainless steel,aluminium,etc. Suitable for precision cutting, dials, micro parts, etc.
#High precision
#Servo motor and precise guide rails
#Smooth marble work surface
#Fully enclosed door protection
#Metal cutting
#Jewelry cutting
#Durable and stable
Application
# Stainless steel, carbon steel, aluminum, metal plate high-precision cutting;
# Jewelry gold, silver and copper high-precision cutting;

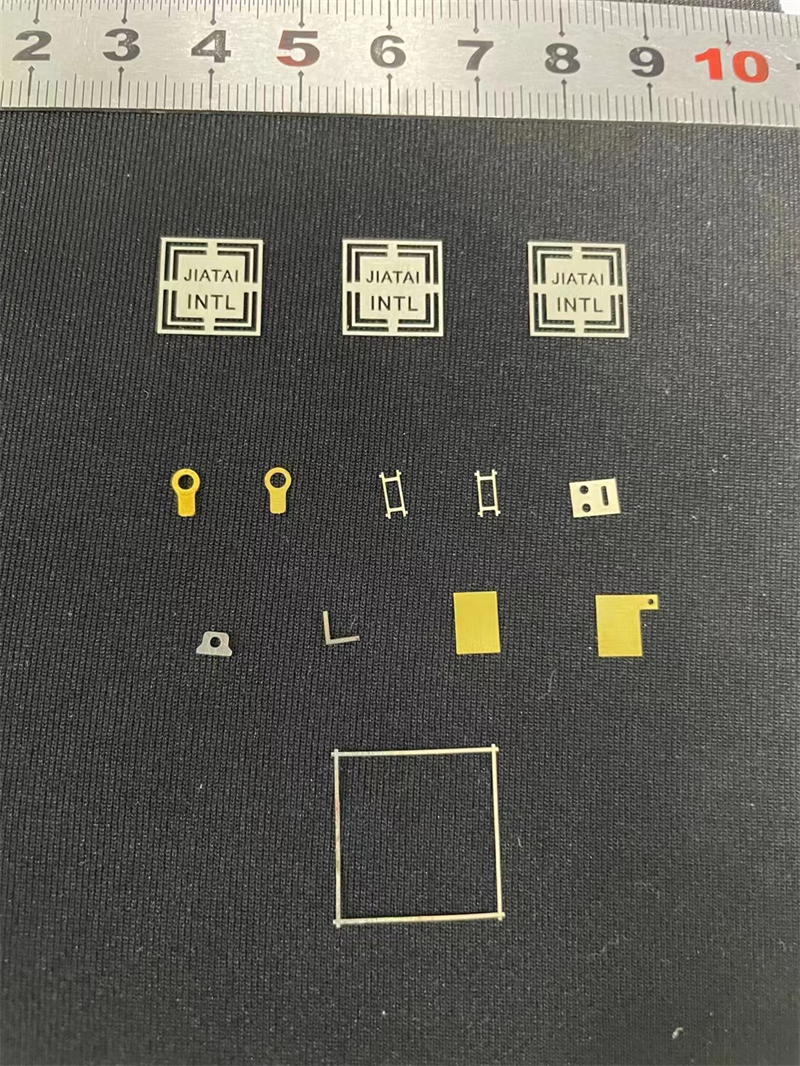

#Precision metal parts cutting;
#Metal drilling cutting;
Specification
| Product | Laser Cutting Machine |
| Type | enclosed |
| Working area | 600x600mm |
| Laser source | MAX/RAYCUS/JPT/BWT/RECI - optional |
| Laser wavelength | 1080±5nm |
| Cooling way | Water cooling |
| Control system | FSCUT |
| Operating system | Cypcut |
| Motor | Servo motors |
| Head | Raytools |
| Repeat position accuracy | 0.03mm |
| Voltage | 220V 1 phase for 1000W 1500W 2000W 380V 3 phase for 3000W |
| Bearing weight | >100KG |
| Warranty | 24 month |
Detailed description
Fiber laser source, MAX/RAYCUS/RECI/JPT/BWT famous brand
(1) High-quality laser output
(2) High power and high efficiency
(3) High reliability and long life
Raytools laser head with autofocus optional
FSCUT controller
A high-performance open-loop laser control system, widely used in the field of metal and non-metal laser cutting, it can easily produce and process advertising characters, supports perforation cutting of medium-sized plates, and comes with simple layout, improving plate utilization and reducing processing time during the cutting process. Deceleration and lifting to increase cutting speed
High precision moving device guide rails and ball screws;
High quality servo motor and fast running speed;
Pneumatic clamp desktop, easy to fix metal plate.
Industrial chiller
(1) Temperature control accuracy of ±0.3 ℃ / ±0.5 ℃ / ±1 ℃;
(2) Two temperature control modes, suitable for different occasions; multiple settings and fault display functions;
(3)Multiple alarm protection functions: compressor delay protection; compressor overcurrent protection; water flow alarm 4; over-high/low temperature alarm;
