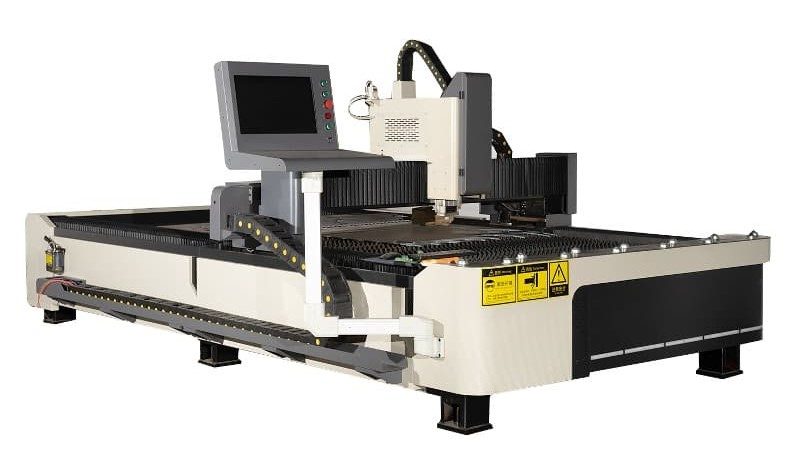

fiber laser sheet metal cutting machine

Product features:

1. Low cost of use  Low cost of use and low maintenance cost, spend less time to maintain.

2. High efficiency and precision  High efficiency. Laser cutting machine is the most efficient in the modern market - higher photoelectric conversion efficiency, more efficient beam transmission, resulting in better finished products and less energy waste. High cutting accuracy. With stable power and suitable parameters, the finished product is directly finished without secondary processing and polishing, which is very cost-saving.

3. Convenient operation  Computer numerical control, remote operation, speak cutting drawings into the work automatically.

4. Wide range of use  Wide range of use, from heavy equipment, rail transportation, aerospace, small to jewelry processing, advertising board processing can be used, and a wide range of power, ranging from 1000W to 30000W, the thickest can cut 130mm plate.

Application:

CNC fiber laser cutting machine for sale, versatile, can cut stainless steel, carbon steel, alloy steel, spring steel, copper plate, aluminum plate, gold, silver, titanium and other plates. It is widely used in industries such as advertising, high voltage/low voltage electrical cabinet production, textile machinery parts, kitchen appliances, automobiles, machinery, elevators, electrical parts, spring ring parts, subway line parts, etc.

Machine details:

Metal fiber laser cutting machine with open design, the whole machine adopts rack and pinion drive system, specially designed for various metal plates. It is easy for users to operate and maintain. Meanwhile, the strict assembly process ensures the stable operation of the machine and high cutting accuracy. Fiber laser cutting machine provides users with powerful cutting capacity and efficiency with imported top accessories, which is a good choice for users to process economically.

CypCut control system

CypCut plane cutting software is a set of software specially developed for the deep customization of the laser cutting industry, easy to use, rich in functions, suitable for various processing occasions.

If you want to know more, please contact us!

Machine Parameters:

Machine configuration:

Fiber laser cutting machine head Raytools fiber laser cutting machine head Auto-focusing and height control for automatic punching and cutting of different thicknesses of plates.	Fiber laser source MAX is a high quality laser for fiber cutting machine applications. Also there are  different brands as well as power lasers to choose from, the higher the power, the thicker the cutting thickness.
Servo Moto High quality servo motor, realizing the closed-loop control of position, speed and torque; overcoming the problem of stepper motor out-of-step. With high speed performance,  the general rated speed can reach 2000~3000 rpm.	CypCut control system CypCut plane cutting software is a set of software specially developed for the deep customization of the laser cutting industry, easy to use, rich in functions, suitable for various processing occasions.
Electrical Circuits Neat circuitry, so that the machine's configuration is clear at a glance, more convenient to use.	High quality guide rails Hiwin high quality guide rail, stable working condition, long service life, ensure the smooth operation of the machine.

Sample Show:

Packing and Shipping:

1. Ensure each part of the machine is clean and tidy before packaging;

2. Each accessory is wrapped in a recyclable plastic bag, then wrapped in cardboard;

3. Place the machine neatly (like a cube as much as possible) and add a thicker foam to the corners that are easy to bump;

4. Packing in wooden cases of suitable export standard plywood( fill the corners with recyclable plastic foam),then seal the case and fasten it with high quality stainless steel nails and steel straps.

5. Then seal the case and fasten it with high quality stainless steel nails and steel straps;

6. We will write the corresponding shipping marks on the cases according to the customer's requirements;

7. Print or spray paint safety sign in wooden box.
