Product Description
Enclosed Fibre Laser Marking Machine
*Enclosed design for safer use
*Three sides of the glass can be seen, you can watch the engraving state of a variety of power machines can choose 20W 30W 50W 60W 100W
*Automatic lift, automatic focus can be selected
*Can be customised according to customer requirements
Enclosed fibre laser marking machine is a common laser marking machine with the following main configurations and machine functions:
1. Light source system: fiber laser marking machine adopts high-quality fibre laser as the light source, usually with different power available. Fibre laser has high efficiency and stable performance, which can provide continuous and stable laser output. We can provide JPT/RAYCUS/MAX/IPG laser sources, etc. 20W 30W 50W 60W 100W with various power options.
2. Beam delivery system: The fibre laser transmits the laser beam to the marking head through a fibre optic delivery system. The fibre optic transmission system has very high beam quality and transmission efficiency, and can accurately guide the laser beam to the position where marking is required.
3. Marking head: The machine adopts a high-speed scanning galvanometer, which can adjust the focal length and marking size according to different application requirements. The marking head has a high-precision motion control system, which can achieve accurate laser marking on workpieces of different shapes.
4. Control system: the machine uses EZCAD2 software control system. Can match Win 7/8/10/11 use. Through the visual user interface, the operator can easily set the marking parameters, such as fonts, graphics, position and so on. The control system can also monitor the status of the equipment and process data.
5. Auxiliary Functions: Enclosed fibre laser marking machines usually have some auxiliary functions, such as rotary device, auto-focus, CCD camera positioning, etc.. These functions can increase the flexibility and application range of the equipment, making the marking process more efficient and accurate. Add according to customer's requirement
Enclosed fiber laser marking machine can be applied in various industries, such as electronics, automotive, medical, etc. It can achieve high precision marking, etching, engraving and other functions. It has the features of simple operation, high efficiency and stability, and wide adaptability, so it is widely used in industrial production and processing fields.

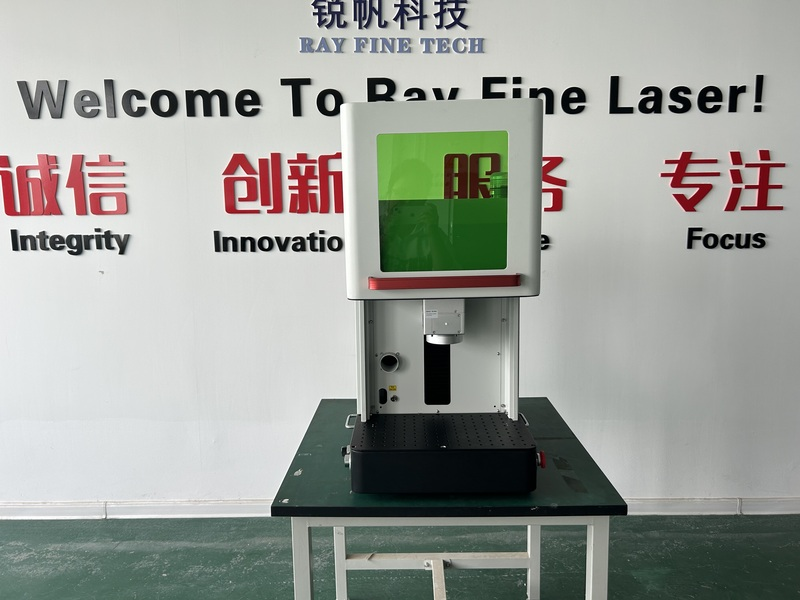

Real pictures:
Advantage:
Safety: The enclosed laser marking machine uses a sealed workspace to effectively avoid damage to the operator and the environment. This design maximises operator safety.
Environmental Protection: Enclosed laser marking machines prevent laser radiation and contaminants such as smoke and dust from spreading into the surrounding environment. This is particularly important for production sites that require a clean environment, as it reduces air quality contamination, protects the health of employees, and meets the requirements of environmental protection.
Stability: Enclosed laser marking machines have a closed mechanical structure that effectively reduces the impact of external vibration and interference on the equipment, ensuring stability and precision. This is crucial for applications that require precise marking.
Versatility: Enclosed laser marking machines usually have a large working area and good flexibility to adapt to different sizes and shapes of workpieces.
Configuration:
Laser source
Professional lasers for marking .a wide range of lasers to choose from: JPT /RAYCUS /MAX /IPG
- High cost performance
- High single pulse energy
- High peak power
- More stable performance
EZCAD2 Control card
Genuine EZCAD2 control system compatible with win7/8/10.
Stable motion control, laser control is correspondingly fast.
Galvanometer
The galvanometer has good operation stability, high positioning accuracy, fast marking speed and strong anti-interference ability.
Field Lens
Working near the focal plane of the objective lens can effectively reduce the detector size.
Improve the ability of the edge beam incident into the detector.
Machine Reference Parameters:
| Model |
RF-F |
|||
| Laser power |
20W 30W 50W 60W 100W |
|||
| Min. Character size |
0.2mm |
|||
| Repetition Accuracy |
<8μrad |
|||
| Power consumption |
170W |
|||
| Cooling type |
Air cooling |
|||
| Marking area |
70-300mm （option） |
|||
| Max working speed |
8000mm/s |
|||
| Laser spot (110x110) |
25.4μm |
|||
| Supply voltage |
AC110V 60HZ / AC220V 50HZ |
|||
| Focus type |
Double red light |
|||
Sample Show:
Packing and Shipping:
1. Collect all accessories and spare parts one by one according to the order list, and double check all parts again to make sure all parts are included.
2. Our packaging standards:
+ thick cling film
+ six-sided pearl cotton
+ High strength wooden box
+ Pack the belt and then secure the machine to ensure the machine is safe during transport.
3. Paste the shipping mark to ensure that the buyer can easily identify the correct machine
4. A safety sign can be used to remind the transporter to keep our equipment in the course of transportation.
We will give away the following products for free：Inner Hexagon, Foot Switch, Power Cable, USB Flash Drive, Goggles, Ruler, Envelope.
| 1 |
Software is on update for free whole life. |
| 2 |
Main parts be changed free of charge if there is any problem during the warranty period. |
| 3 |
We will provide the consumable parts at an agency price. |
| 4 |
We have user manual instruction and videos for software Installation, operation and machine's using and maintenance. |
| 5 |
We will supply 24 hours online after service, and free technical support. |
| 6 |
We debug the machine before shipment and carry out 12 hours working test to ensure the quality of the machine. |
| 7 |
We offer the service, from you got the machine, including how to install the machine, how to use machine, how to let machine work, and so on. |
