Product Description
Features:
1.Novel color style design.
2.External box control lift.
3.EZCAD control software, multifunction, supports multiple languages.
4.High speed scanning galvanometer with dual red light assisted focusing.
5.High quality anodized aluminum case, split portable design, easy to transport.
Detailed pictures:
High-speed scanning galvanometer with dual red light assisted focusing.
The machine can be used with a variety of accessories.
Machine Size：
Configuration:
|
| Laser source Genuine RAYCUS lasers, each with anti-counterfeiting code. Has a service life of over 100000 hours. - High cost performance - High single pulse energy - High peak power - More stable performance |
| EZCAD2 Control card Genuine EZCAD2 control system compatible with win7/8/10. Stable motion control, laser control is correspondingly fast. |
|
|
| Galvanometer The galvanometer has good operation stability, high positioning accuracy, fast marking speed and strong anti-interference ability. |
| Field Lens Working near the focal plane of the objective lens can effectively reduce the detector size. Improve the ability of the edge beam incident into the detector. |
|
 | Electric Z-axis High speed linkage was chosen, rapid response time, equipped with THK JAPAN high precision liner guider with high stability and long life. |
| Column Aviation aluminum alloy material, high precision density scale, accurate view of positioning size. |  |
Machine Reference Parameters:
| Model | RF-F-20W | RF-F-30W | RF-F-50W |
| Laser output power | 20W | 30W | 50W |
| Laser source band | RAYCUS | ||
| Laser wavelength | 1064nm | ||
| Laser beam quality | <1.6 | ||
| Max pulse energy(mj) | 1 | ||
| Pulse duration(ns) | 90-110@20KHZ | 120-150@30KHZ | 120-150 |
| Pulse repetition rate range(kHZ) | 20-60 | 30-60 | 50-100 |
| Min. Character size | 0.2mm | ||
| Repetition Accuracy | <8μrad | ||
| Power consumption | 170W | ||
| Cooling type | Air cooling | ||
| Marking area | 70*70-200*200mm | ||
| Max working speed | 8000mm/s | ||
| Laser spot (110x110) | 25.4μm | ||
| Controller | Computer with marking software | ||
| Graphic Format Supported | AI, PLT, DXF, BMP,JPG,PNG,Dst, Dwg, LAS, DXP | ||
| Mode of Operation | Pulsed | ||
| Certification | CE | ||
| Warranty | 2 years | ||
| Supply voltage | AC110V 60HZ / AC220V 50HZ | ||
| Focus type | Double red light | ||
Optional accessories:

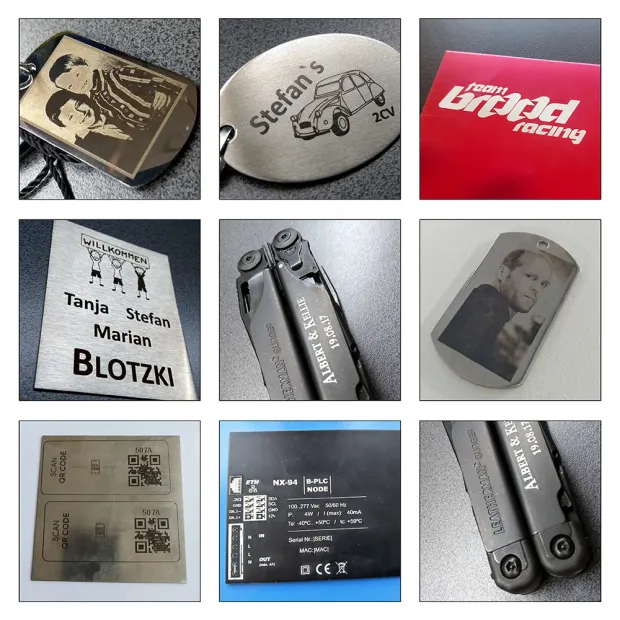

Sample Show:
Packing and Shipping:
1. Collect all accessories and spare parts one by one according to the order list, and double check all parts again to make sure all parts are included.
2. Our packaging standards:
+ thick cling film
+ six-sided pearl cotton
+ High strength wooden box
+ Pack the belt and then secure the machine to ensure the machine is safe during transport.
3. Paste the shipping mark to ensure that the buyer can easily identify the correct machine
4. A safety sign can be used to remind the transporter to keep our equipment in the course of transportation.
We will give away the following products for free：Inner Hexagon, Foot Switch, Power Cable, USB Flash Drive, Goggles, Ruler, Envelope.
Our Service：
| 1 | Software is on update for free whole life. |
| 2 | Main parts be changed free of charge if there is any problem during the warranty period. |
| 3 | We will provide the consumable parts at an agency price. |
| 4 | We have user manual instruction and videos for software Installation, operation and machine's using and maintenance. |
| 5 | We will supply 24 hours online after service, and free technical support. |
| 6 | We debug the machine before shipment and carry out 12 hours working test to ensure the quality of the machine. |
| 7 | We offer the service, from you got the machine, including how to install the machine, how to use machine, how to let machine work, and so on. |
