Product Description
Machine Features:
1.High-quality machine shell, widened column, all-aluminum manufacturing.
2.High-precision galvanometer, can be equipped with imported ZnSe field lens, the marking effect is more delicate and accurate.
3.The hollow body design is conducive to the heat dissipation of the CO2 laser RF tube and prolongs the service life of the machine.
4.Fast delivery,easy to transport,could place on desk. Save your budget from delivery cost.
5.CO2 laser marking machines are mainly used for marking organic materials such as wood, paper, acrylic and leather. However, the machine can also engrave on non-metal materials such as glass, leather, paper, acrylic and plastic.
6.170mm widened Z-axis column. Wider column, strong load-bearing capacity, more stable.
7. Imported zinc selenide lenses with good light transmission and long durability.
Detailed pictures:

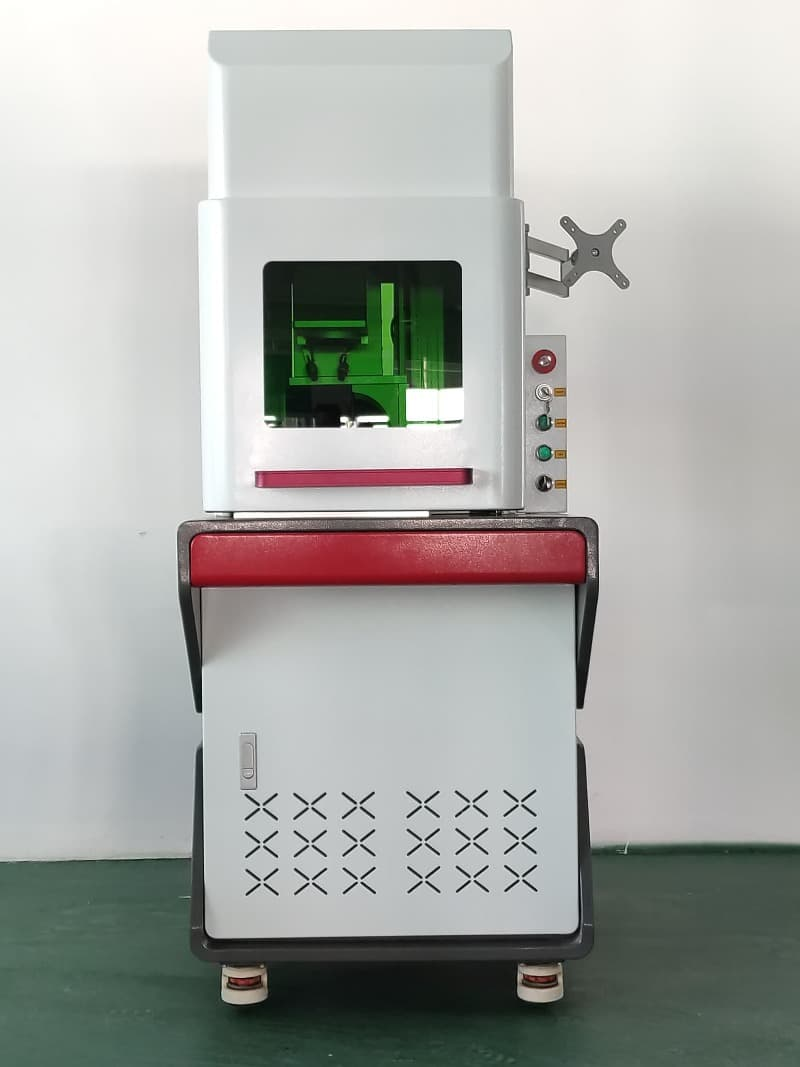

The most secure closed design, to reach the domestic top protection standards.
Equipped with China best quality laser source Synrad.(Coherent DAVI brand are optional too).
Competitive of working continuously for 24 hours makes it meet the demand of massive on-line industrialized production.
Real Images of the machine：
Configuration:
 | Synrad Laser source - Superior beam quality, power stability and rugged reliability - Industry leading compact size with integrated RF power supply - High performance at wavelengths 10.6 µm - Wide power range with constant wave (CW) or pulse width modulation (PWM) control - High quality laser processing on a wide range of materials |
| EZCAD2 Control card Genuine EZCAD2 control system compatible with win7/8/10. Stable motion control, laser control is correspondingly fast. |
|
|
| Galvanometer - Input aperture 16mm (supply more precision 12mm14mm 16mm) - Superior beam quality, power stability and rugged reliability - Industry leading compact size with integrated RF power supply - High performance at wavelengths 10.6 µm - Wide power range with constant wave (CW) or pulse width modulation (PWM) control - High quality laser processing on a wide range of materials |
| Field Lens Working near the focal plane of the objective lens can effectively reduce the detector size. Improve the ability of the edge beam incident into the detector. The standard is 110*110mm, and other models can be selected. |
|
Machine Reference Parameters:
| Model | RF-C-30W/RF-C-60W |
| Laser output power | 30W/60W |
| Laser source band | Synrad |
| Laser wavelength | 10.6μm |
| Laser beam quality | <1.2 |
| Beam diameter(mm) | 1.8mm±0.2mm |
| Beam divergence angle | <7.5±0.5mrad |
| Cooling type | Air cooling |
| Marking area | 110*110mm-300*300mm(optional) |
| Marking depth | 0-3.0mm |
| Controller | Computer with marking software |
| Graphic Format Supported | AI, PLT, DXF, BMP, JPG,PNG,Dst, Dwg, LAS, DXP |
| Certification | CE |
| Supply voltage | AC110V 60HZ / AC220V 50HZ |
| Weight | 6.2KG/10.5KG |
Optional accessories:
Sample Show:
Packing and Shipping
1. Collect all accessories and spare parts one by one according to the order list, and double check all parts again to make sure all parts are included.
2. Our packaging standards:
+ thick cling film
+ six-sided pearl cotton
+High strength wooden box
+ Pack the belt and then secure the machine to ensure the machine is safe during transport.
3. Paste the shipping mark to ensure that the buyer can easily identify the correct machine
4. A safety sign can be used to remind the transporter to keep our equipment in the course of transportation.
We will give away the following products for free：Inner Hexagon, Foot Switch, Power Cable, USB Flash Drive, Ruler,Envelope.
Our Service:
| 1 | Software is on update for free whole life. |
| 2 | Main parts be changed free of charge if there is any problem during the warranty period. |
| 3 | We will provide the consumable parts at an agency price. |
| 4 | We have user manual instruction and videos for software Installation, operation and machine's using and maintenance. |
| 5 | We will supply 24 hours online after service, and free technical support. |
| 6 | We debug the machine before shipment and carry out 12 hours working test to ensure the quality of the machine. |
| 7 | We offer the service, from you got the machine, including how to install the machine, how to use machine, how to let machine work, and so on. |
