Product Description
Product Features：

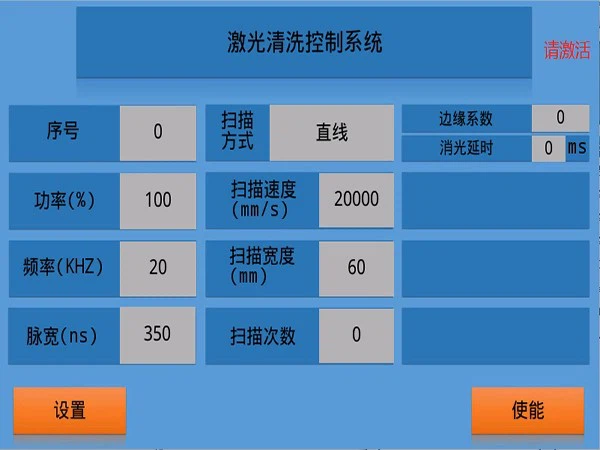

1.Simple software,select prestored parameters directly
2.Prestore all kinds of parameter graphics, six kinds of graphics can be selected: straight line/spiral/circle/rectangle/rectangle filling/Circle filling
3.Easy to use and operate
4.Simple interface
5.12 different modes can be switched and selected quickly to facilitate production and debug
6.The language can be English/Chinese or other languages(if required)

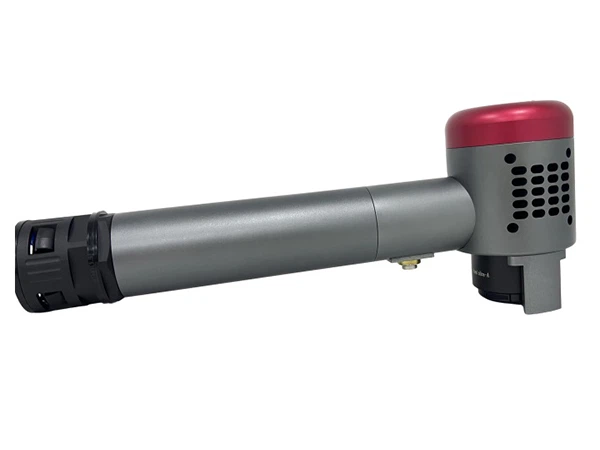

Laser head:
TECHNOLOGY UPGRADED
The fourth generation dual purpose
laser head Handheld and automatic
2D laser head
Easy to hold and integrate with automation;
Easy to operate and has variousfunctions.
Scannable Graphics:
Our advantage：

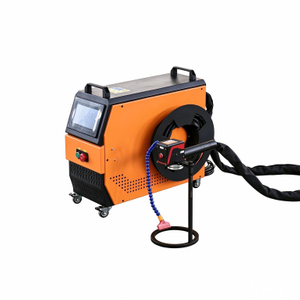

Main Configuration：
Display light Tricolour light, red for working status, yellow for ready to work status, green for active normal status, more eye-catching and beautiful
Handrail Easy to push and pull, strong and durable
Keyswitch Prevent unrelated personnel from accidentally opening
Door handle Personalised design with lock function
Silent wheels Unique widened and miniaturised design, smaller in size Clever and beautiful, more stable and sturdy, more convenient to move
Display screen More compact, double screen protection
Siemens safety emergency stop Switch big brand product (robust and durable)
Emergency stop external interface
Remote control light interface
Siemens industrial switches Professional switch, safer, more stable and more durable
Professional power supply Safer, more reliable, more robust
lndicator light,safety lock Laser emission indicator, safety lock to
Heat sink With cooling fan, to ensure stable operati
Cooling hole With cooling hole,to ensure stable operati
Automatic mode adapter plate Manual/automatic switching time less th
Auto mode snap ring Easy installation easy operation
Positioning hole Manual mode auxiliary processing device positioning hole
Lighting device With lighting device,it can be applied in poor light
Focus Lens160/254/330/420 for optional, suitable for various situations. Can scan straight line, circle, spiral, rectangle, square, round fill,rectangular fill etc. It can add the appropriate scanning pattern according to customer demand
Manual mode auxiliary processing device Easy to handheld and control the cleanin
laser source connection Suitable for isolator, QCS, QBH commonly used laser connectors in the market
Lightweight and convenient The laser head weighs only 823g
Main parameters：
| Parameter name | Parameter value |
| Laser type | Domestic nanosecond pulse fiber Laser |
| Max out put power(W) | 200/300 |
| Central wavelength(nm) | 1064 |
| Power regulation range (%) | 10-100 |
| Output power instability (%) | ≤5 |
| Output power instability (kHz) | 10-50/ 20-50 |
| Pulse length (ns) | 90-130/130-140 |
| Maximum monopulse energy (mJ) | 10/12.5 |
| Conductive fiber length (m) | 5 or 10 |
| Laser protection class | 4 |
| Cooling type | water cooling |

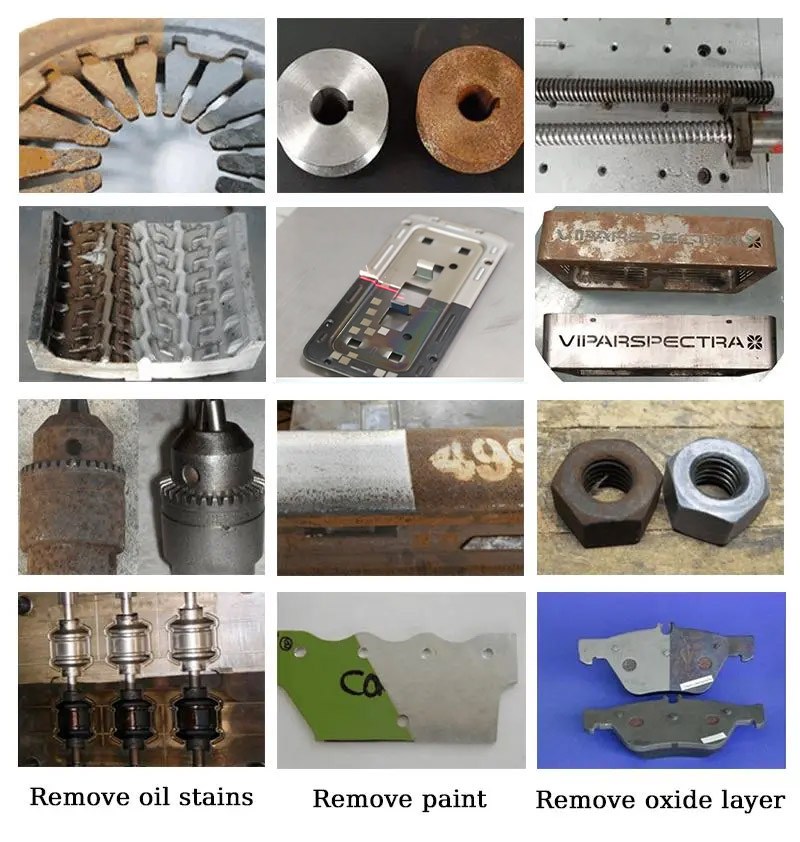

Samples：
Packing and Shipping：
1. Collect all accessories and spare parts one by one according to the order list, and double check all parts again to make sure all parts are included.
2. Our packaging standards:
+ thick cling film
+ six-sided pearl cotton
+ High strength wooden box
+ Pack the belt and then secure the machine to ensure the machine is safe during transport.
3. Paste the shipping mark to ensure that the buyer can easily identify the correct machine
4. A safety sign can be used to remind the transporter to keep our equipment in the course of transportation.
