Product Description

Air-cooled Fiber Laser Welding Machine -Handheld


The air-cooled handheld laser welding machine features a compact and lightweight design, eliminating the need for a water chiller. It’s easy to carry, install, and operate — ideal for on-site work and small workshops. Suitable for welding stainless steel, carbon steel, aluminum, and other metals with smooth and strong welds.

Machine with 700W; 1300W ;1700W; 2000W

Key Features

  • Compact Design: Integrated air-cooling system, no external chiller required.

  • Portable & Lightweight: Easy to move for flexible welding applications.

  • High Efficiency: Delivers stable output power from 700W to 2000W.

  • User-Friendly: Simple operation with intelligent control interface.

  • Clean Welding: Smooth surface with minimal deformation or polishing required.

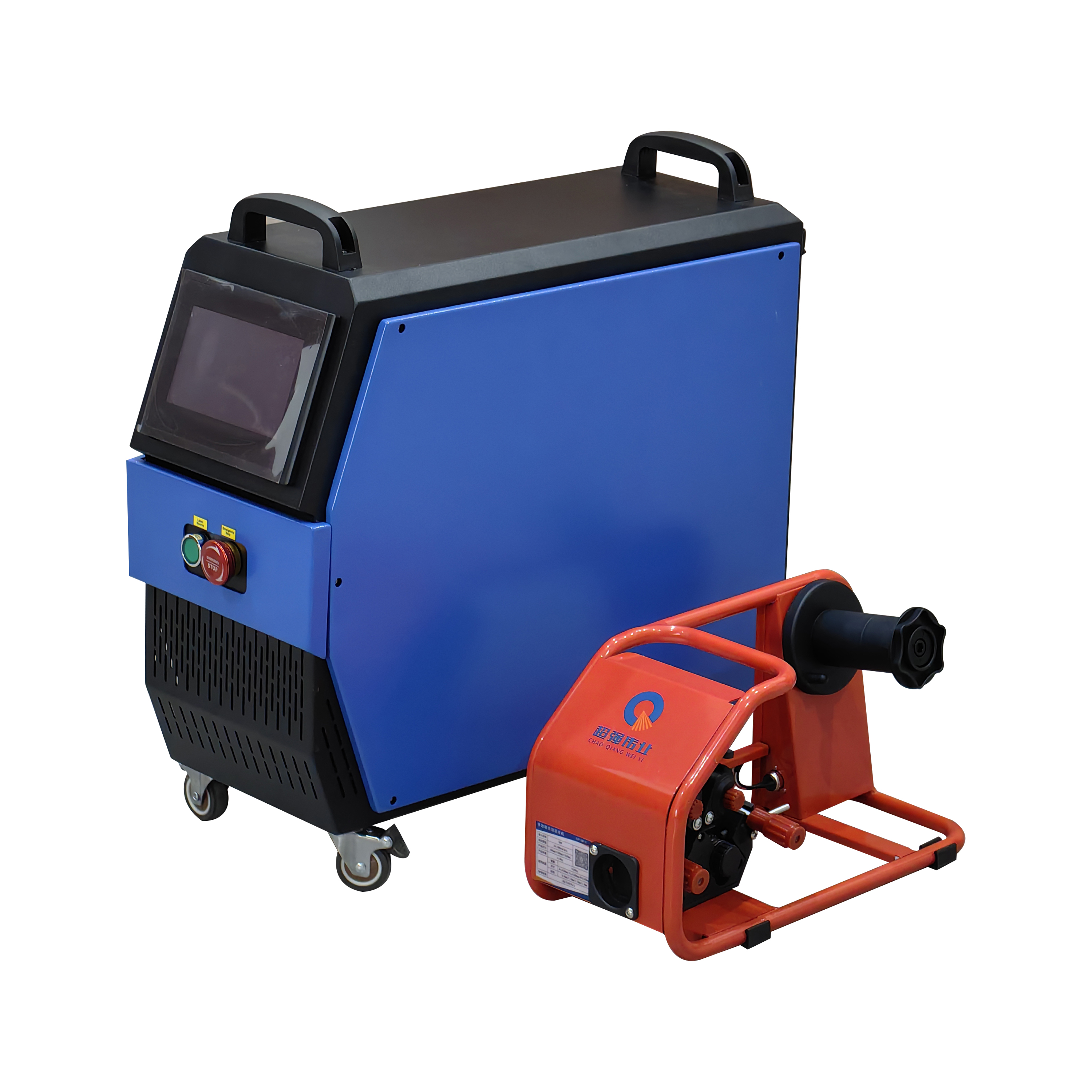

IMG_20251110_1541021






Main Configurations

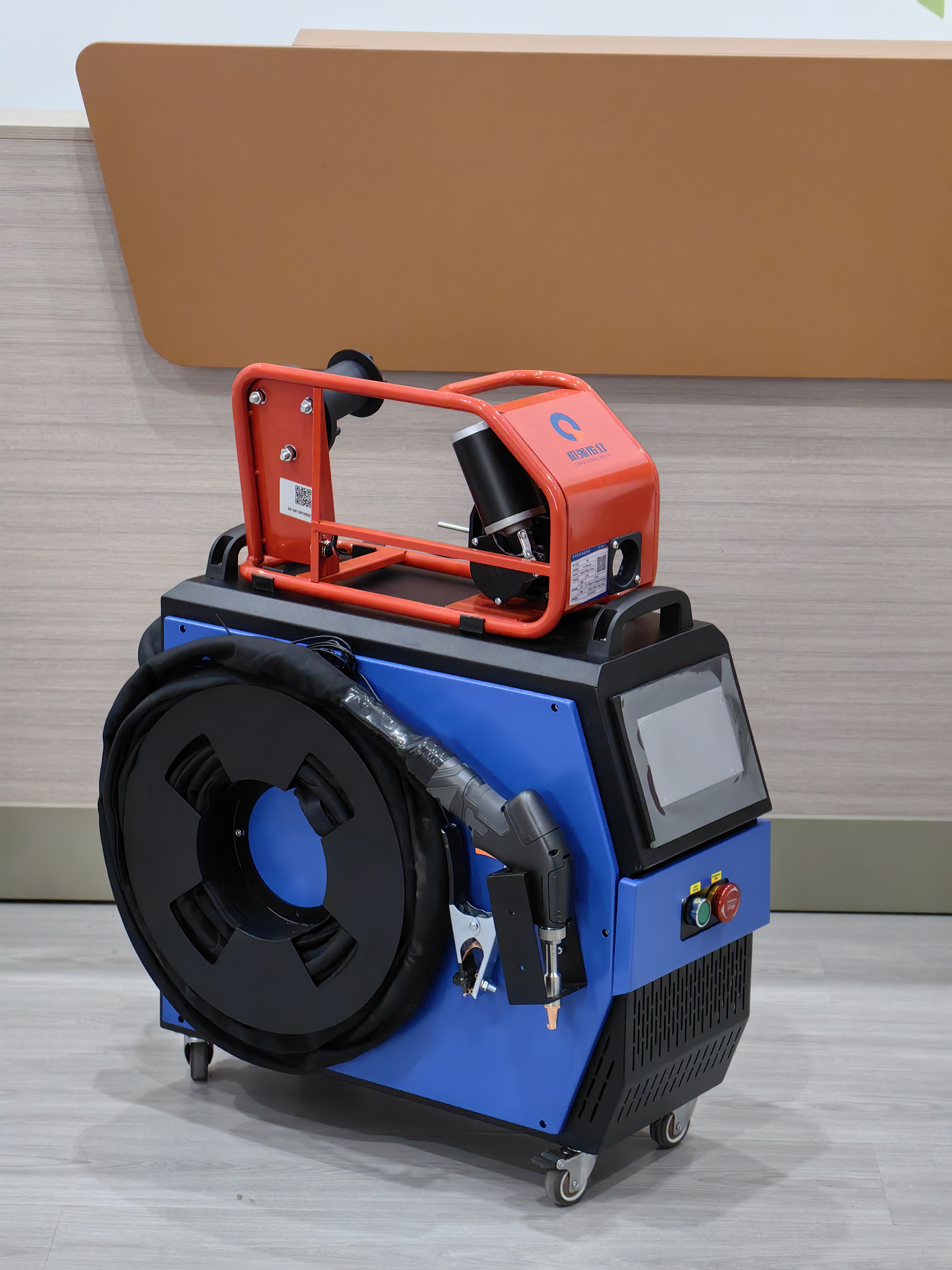

  • Laser source
    Laser source

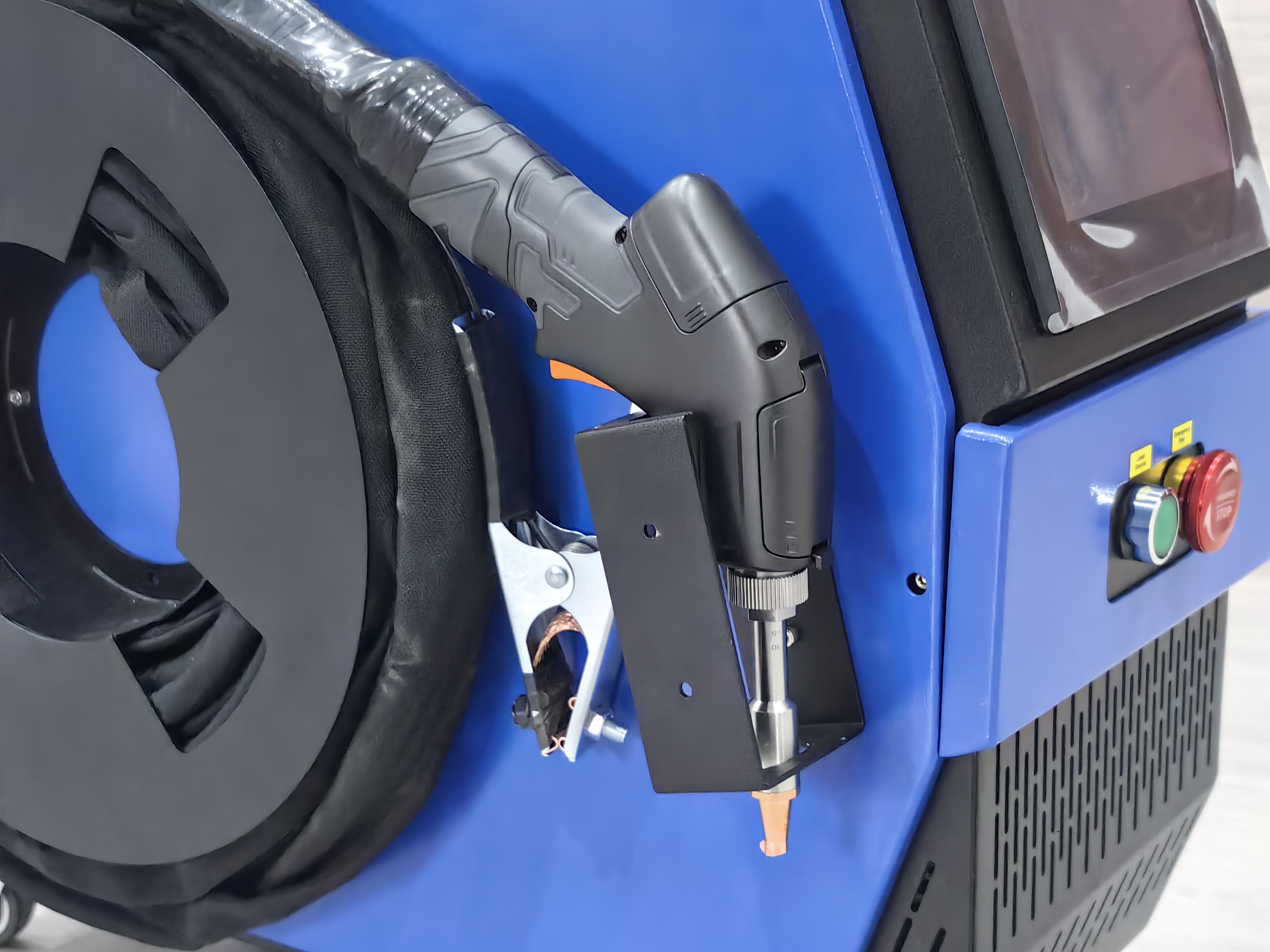

  • Welding Head <div> </div>
    Welding Head <div> </div>

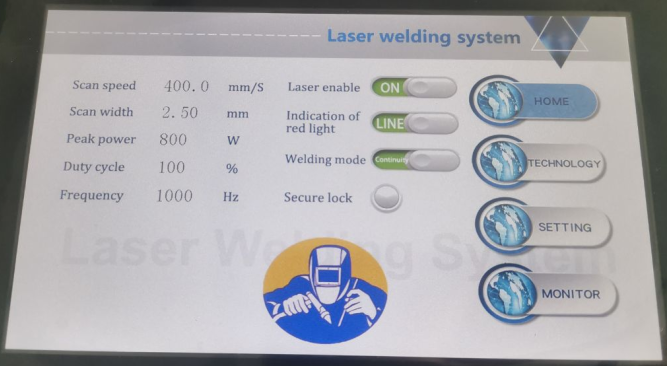

  • Control System
    Control System
  • Cooling System
  • Wire Feeder

Parameters

Laser Power
700W / 1300W / 1700W / 2000W
Welding Thickness
0.1–3 mm
Welding Head
SUP31F
Cooling System
Air cooling
Voltage
AC 220V 50HZ
Operating Temperature
0–40°C
Beam Quality M²
<1.5
Max Welding Speed
0–200 mm/s
Spot Diameter
0.2–0.5 mm
Welding Accuracy
±0.05 mm
Power Consumption
1000–2800 W

Application

特域一体焊接机详情_05

FAQ

FAQs
  • Q1: How to choose machine?
    加 Created with Sketch.
    形状 Created with Sketch.
    A1: You can tell us your working material, detail work by picture or video so that we can recommend the most suitable model for you.
  • Q2: Are you a factory or trading company?
    加 Created with Sketch.
    形状 Created with Sketch.
    A2: We are the manufacturer. as only the machine made by ourselves, quality can be trusted, and most important thing is we can do better service after sales. We know how to fix the problem in each parts easily. So welcome to visit to our factory.
  • Q3: What's the payment term?
    加 Created with Sketch.
    形状 Created with Sketch.
    A3: We accept: TT, Alibaba trade assurance order etc. 100% of total amount in advance Or 30% deposit in advance and 70% balance before delivery.
  • Q4: How about the delivery time?
    加 Created with Sketch.
    形状 Created with Sketch.
    A4: For normal machines we can send out the machine within 5-7 days after receive the full payment. For non standard machines and customized machines according to client's specific requirements, it would be 15 to 30 days.
  • Q5: How can i know your machine is work well?
    加 Created with Sketch.
    形状 Created with Sketch.
    A5: Before delivery , we have tested every machine and shoot some test video for you. If you have special production condition , we can adjust machine for you according to your work requirements.
  • Q6: How can i get support from you ?
    加 Created with Sketch.
    形状 Created with Sketch.
    A6: Our engineers are online for 24 hours, they can check the problems and give you solution very soon. If you don't know how to use the machine, We have English manual and CD video for machine using and maintaining , that will be delivery with machine. And we supply service through email, telephone, online, WhatsApp skype etc. Or If you're interesting come to China, we will offer you free training until you can use machine freely.
