Product Description
Machine Features:

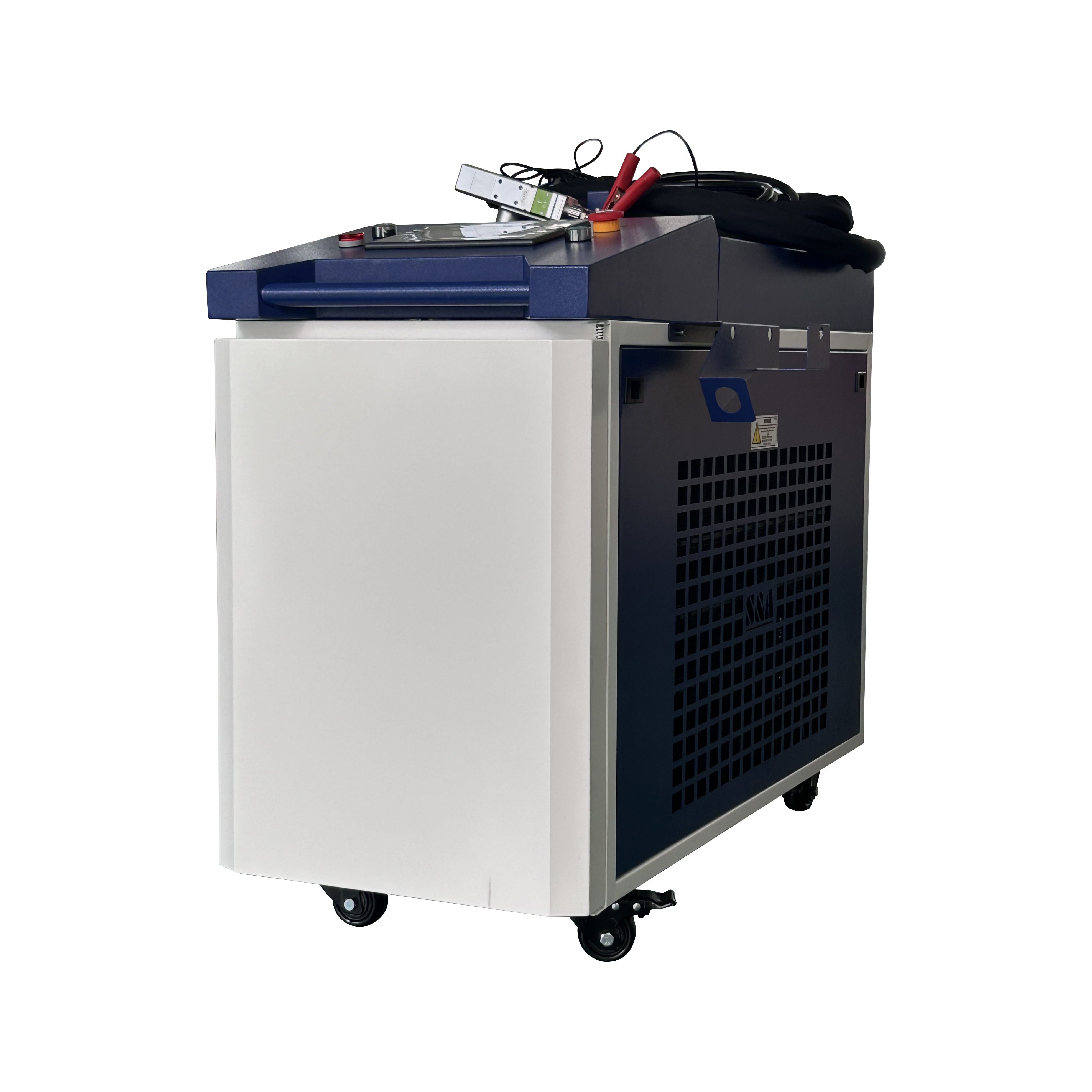

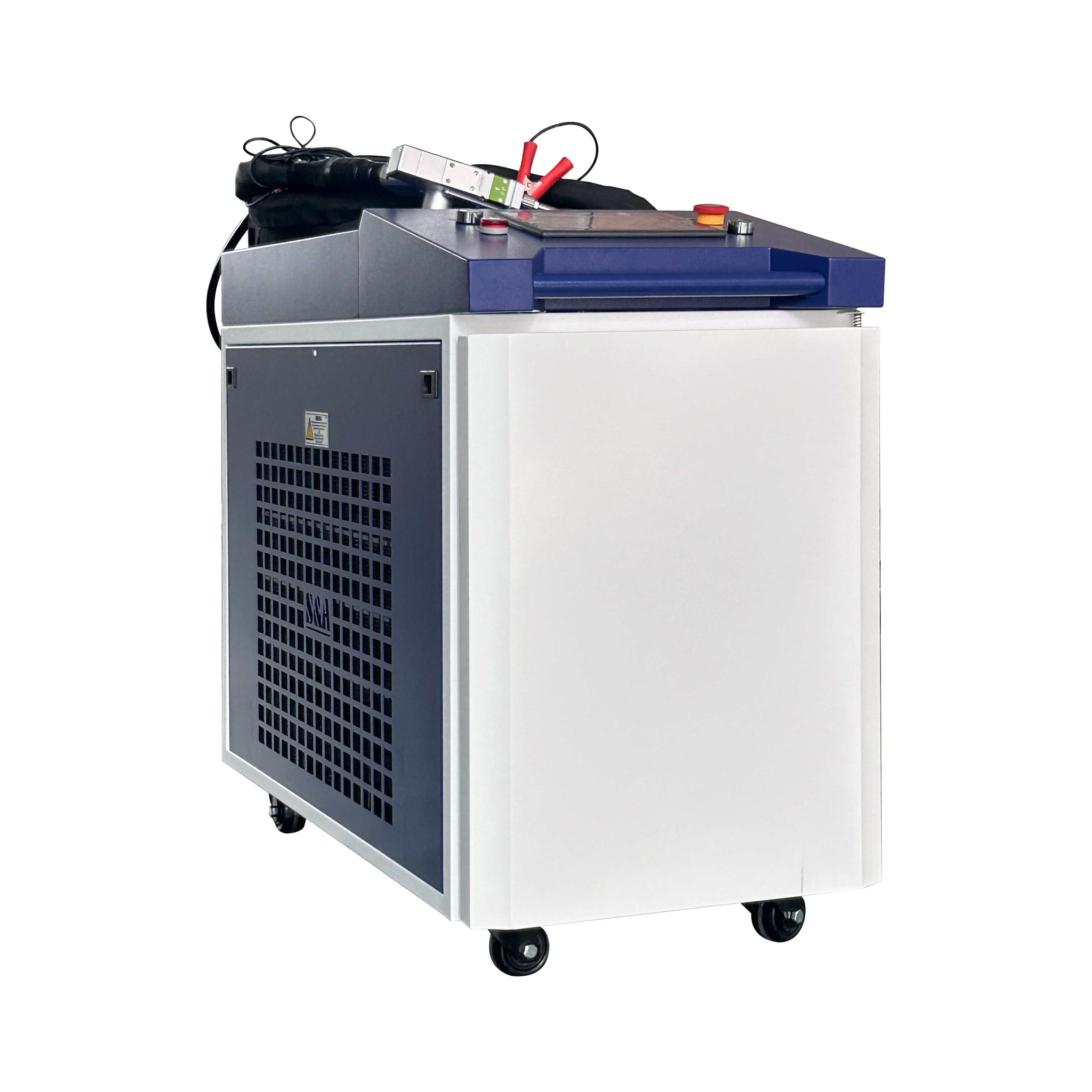

1.The 4-in-1 laser welding machine includes welding, cleaning, cutting and weld seam cleaning functions as one. It can be used to weld a variety of materials, gold, silver, copper, steel, stainless steel, etc.
2.High precision and easy operation, one person can complete handheld welding work
3.Fiber laser high electro-optic conversion efficiency, low energy, consumption low consumable cost, low maintenance cost.
4.Smaller heat-affected zone and thermal deformation, reduce the damage to the substrate and improve the appearance of the weld seam.

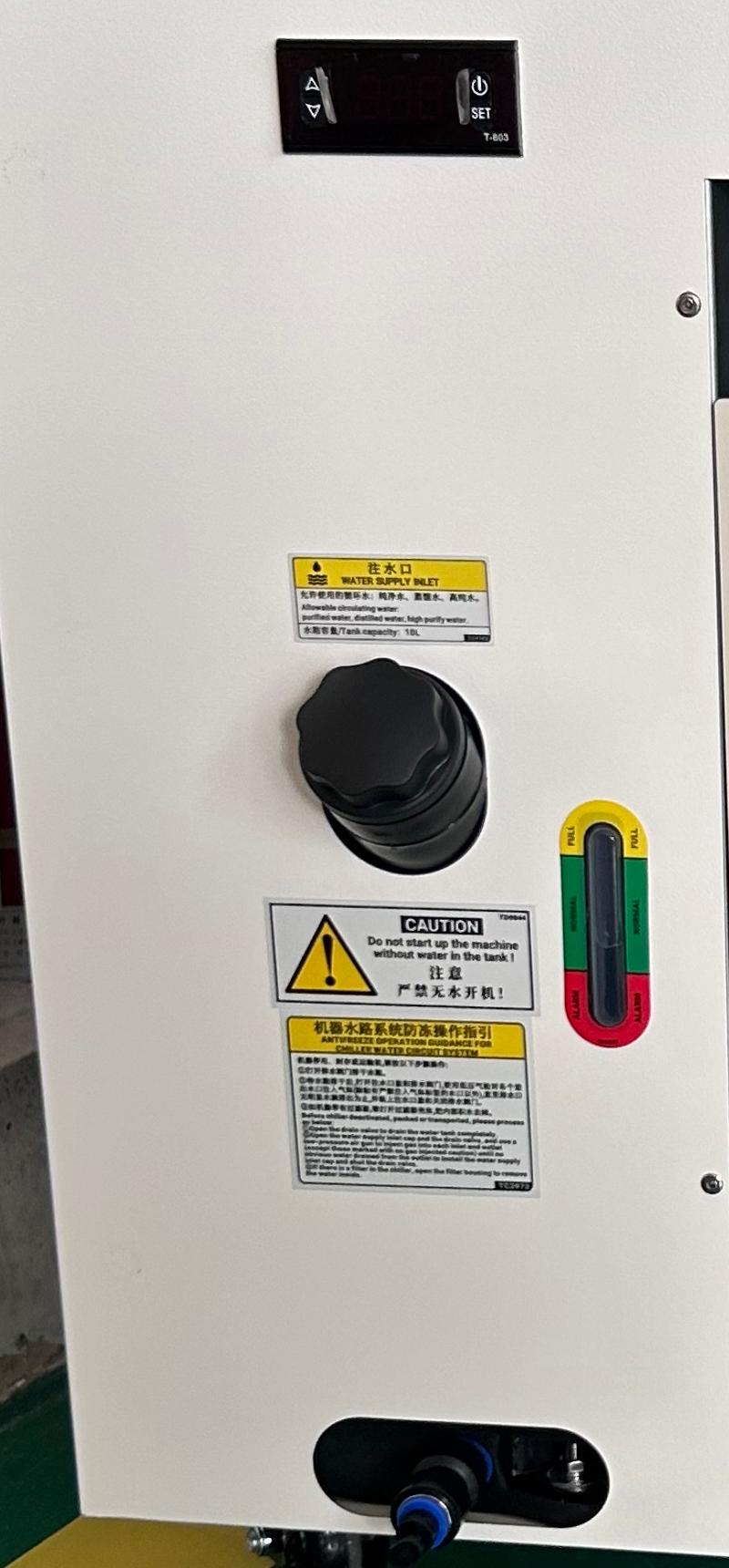

5.Handheld welding machine is easy to use, with a water chiller suitable for a variety of working environments.
Main Application:
metal materials, stainless steel, carbon steel, copper, alloy, galvanized sheet, iron, aluminum, alloy metals.
Applicable industries:
Metal surface rust removal; surface paint removal treatment; surface oil, stain, dirt cleaning; surface coating, coating removal. Weld surface pretreatment. Treatment of dust and attachments on the surface of stone statues. Rubber mold residue cleaning. Remove oil stains, stains, coatings, platings, oxide layers, paints, welds, etc. attached to the surface of objects.
No more traditional welding methods, more convenient and safer

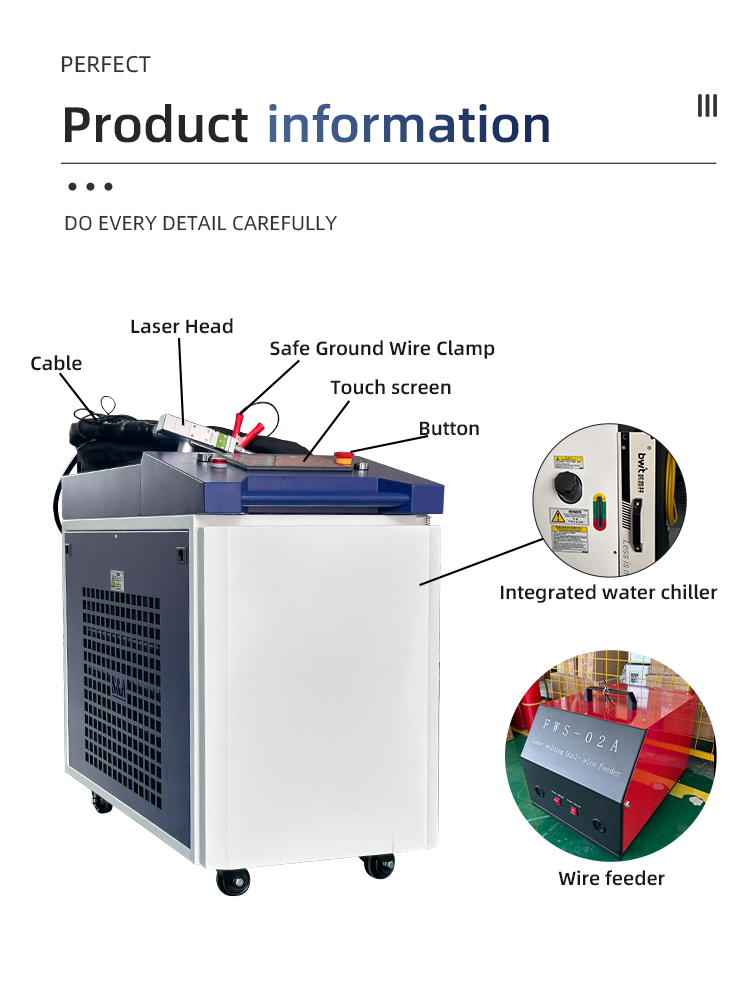

Handheld swing head detail：

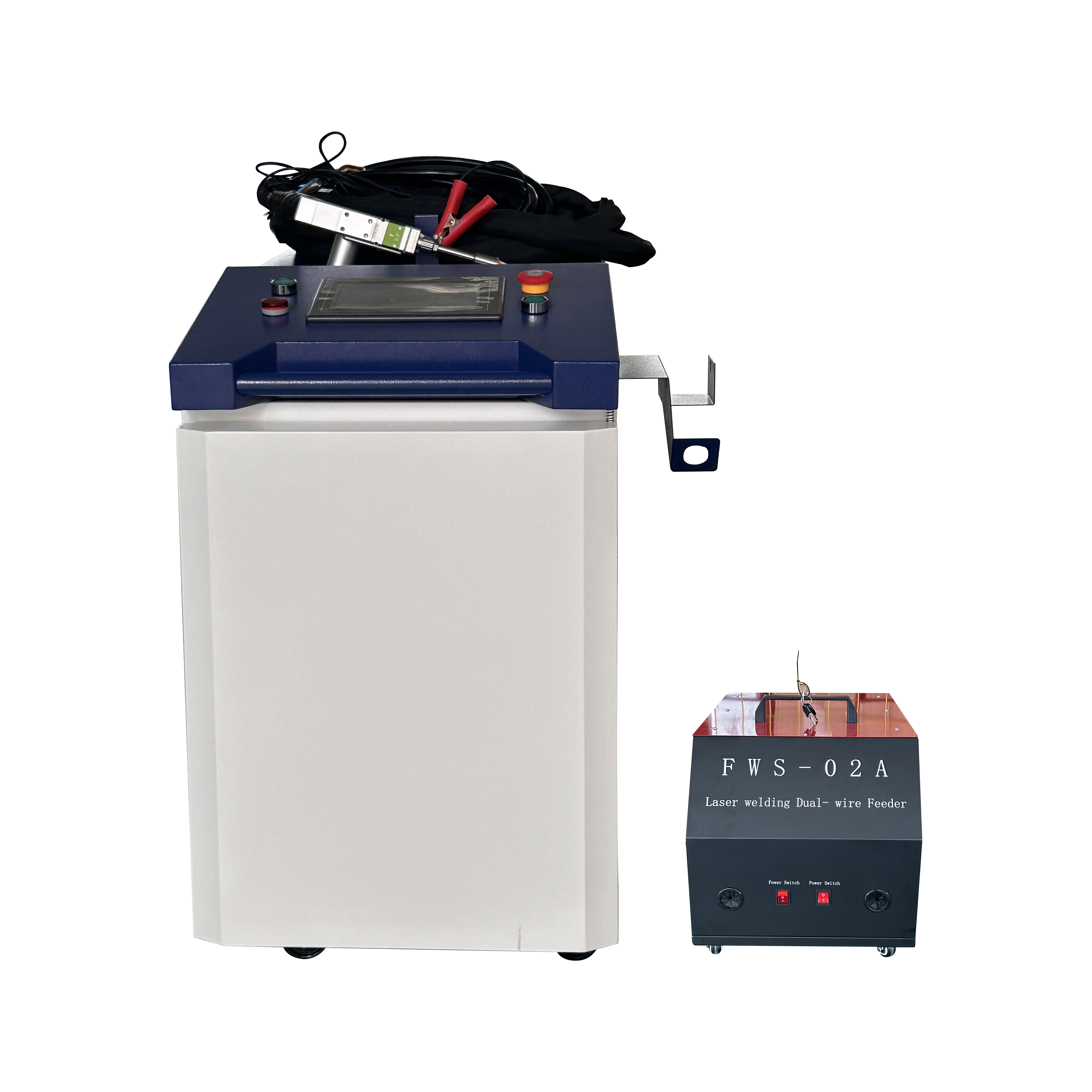

Wire feeding device：
- Dual drive more stable
- Touch screen, Digital design and simple setting
- Support various welding wires with diameters of 0.8/1.0/1.2/1.6mm
- Working environment temperature: 10~40
- Working environment humidity: < 70
- Maximum weight of supporting wire: 25KG
- Maximum supporting wire diameter: 2.0mm
- Adjustable parameters: wire feeding speed
Control system
Nine processes can be set, and each process can be saved for different materials. When the corresponding welding material is used,it can be directly imported and used, or the cutting parameters can be set. When cutting work, it can be directly imported, which can improve work efficiency more effectively.

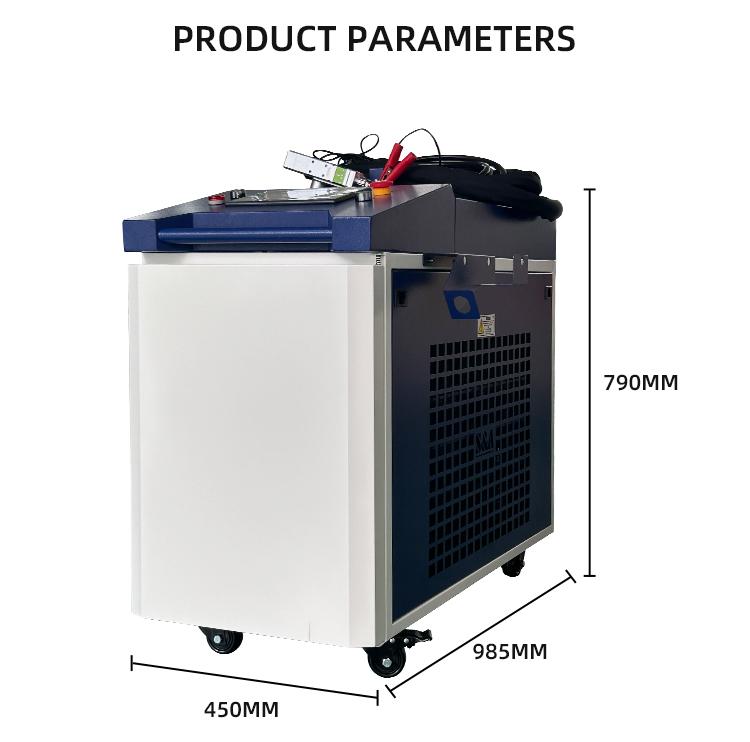

Machine Reference Parameters:
| Model | ES-1000CL | ES-1500CL | ES-2000CL |
| Control software | Touch screen | Touch screen | Touch screen |
| Laser power | 1000W | 1500W | 2000W |

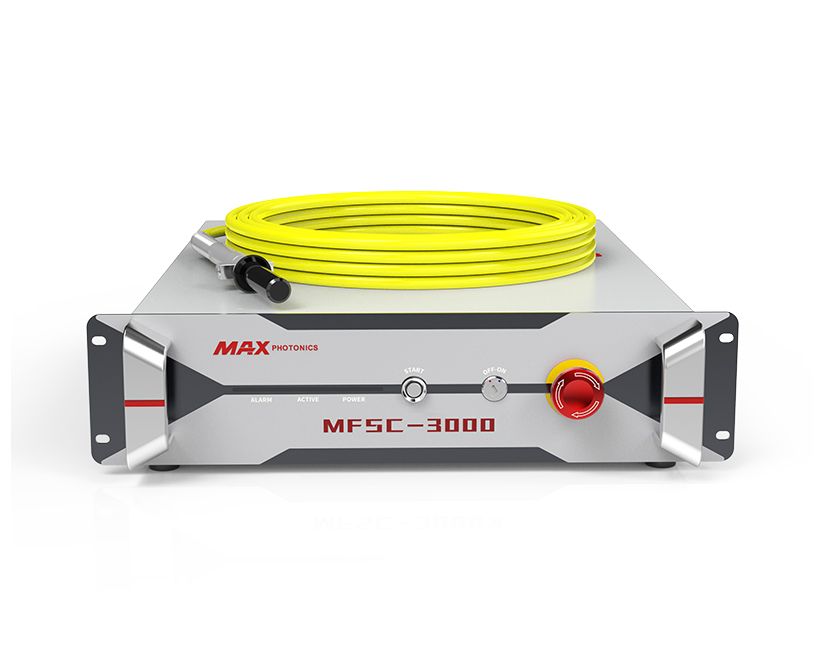

| Laser type | Fiber laser | Fiber laser | Fiber laser |
| Beam diameter | 0.2~3.0mm | 0.2~3.0mm | 0.2~3.0mm |
| Protective gas | air/argon/nitrogen/CO2 | air/argon/nitrogen/CO2 | air/argon/nitrogen/CO2 |
| Line length | 9 meter | 9 meter | 9 meter |
| Wire feeder | 0.8/1.0/1.2/1.6mm | 0.8/1.0/1.2/1.6mm | 0.8/1.0/1.2/1.6mm |
| Machine Power supply | AC220V | AC220V | 380V |
| Machine cooling system | industrial water chiller | industrial water chiller | industrial water chiller |
| Machine power | 5KW | 6.5KW | 8KW |
| Application material（suggestion） | 1000W | 1500W | 2000W |
| stainless steel | 2mm | 3mm | 4mm |
| carbon steel | 2mm | 3mm | 4mm |
| galvanized sheet | 2mm | 2.5mm | 3mm |
| aluminum | 1.5mm | 2mm | 2.5mm |
| brass | 1.5mm | 2mm | 2.5mm |
Welding parameter：
Samples:
Packing and Shipping：
1. Collect all accessories and spare parts one by one according to the order list, and double check all parts again to make sure all parts are included.
2. Our packaging standards:
+ thick cling film
+ six-sided pearl cotton
+ High strength wooden box
+ Pack the belt and then secure the machine to ensure the machine is safe during transport.
3. Paste the shipping mark to ensure that the buyer can easily identify the correct machine
4. A safety sign can be used to remind the transporter to keep our equipment in the course of transportation.
Our Service:
| 1 | Software is on update for free whole life. |
| 2 | Main parts be changed free of charge if there is any problem during the warranty period. |
| 3 | We will provide the consumable parts at an agency price. |
| 4 | We have user manual instruction and videos for software Installation, operation and machine's using and maintenance. |
| 5 | We will supply 24 hours online after service, and free technical support. |
| 6 | We debug the machine before shipment and carry out 12 hours working test to ensure the quality of the machine. |
| 7 | We offer the service, from you got the machine, including how to install the machine, how to use machine, how to let machine work, and so on. |
