Product Description
Product features

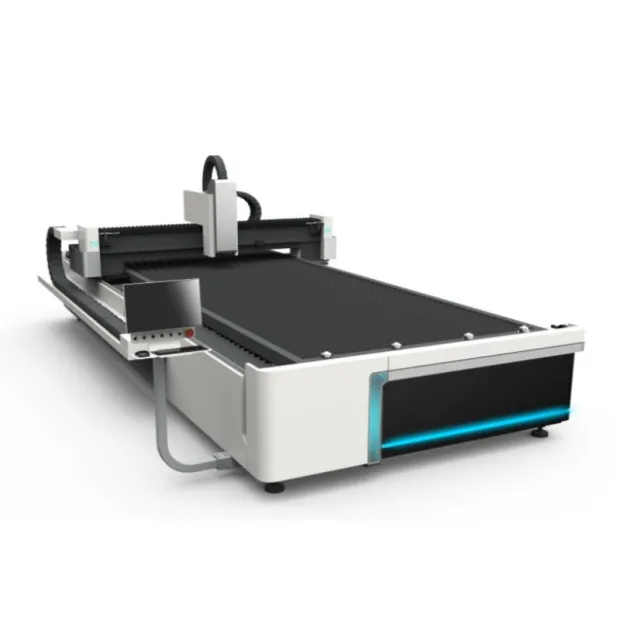

Metal fiber laser cutting machine with open design, the whole machine adopts rack and pinion drive system, specially designed for various metal plates. It is easy for users to operate and maintain. Meanwhile, the strict assembly process ensures the stable operation of the machine and high cutting accuracy. Fiber laser cutting machine provides users with powerful cutting capacity and efficiency with imported top accessories, which is a good choice for users to process economically.
Machine Advantages:
1. Low cost of use
Low cost of use and low maintenance cost, spend less time to maintain.
2. High efficiency and precision
High efficiency. Laser cutting machine is the most efficient in the modern market - higher photoelectric conversion efficiency, more efficient beam transmission, resulting in better finished products and less energy waste.
High cutting accuracy. With stable power and suitable parameters, the finished product is directly finished without secondary processing and polishing, which is very cost-saving.
3. Convenient operation
Computer numerical control, remote operation, speak cutting drawings into the work automatically.
4. Wide range of use
Wide range of use, from heavy equipment, rail transportation, aerospace, small to jewelry processing, advertising board processing can be used, and a wide range of power, ranging from 1000W to 30000W, the thickest can cut 130mm plate.
Machine details
Machine Parameters
| Model |
RF-3015 Fiber Laser Cutting Machine |
| Working Size |
1500*3000mm |
| Laser Power |
3000W |
| Laser Beam quality |
<0.373mrad |
| Working Life of Fiber Source |
More than 10,0000 hours |
| Position Type |
Red Dot Pointer |
| Cutting Thickness |
0.5-10mm Within The range |
| Max. Idle Running Speed |
80-110M/min |
| Max acceleration |
1.5G |
| Reorientation Accuracy |
Within ±0.01mm |
| Lubrication System |
Electrical Motored |
| Cooling mode |
Water cooling and protection system |
| Auxiliary Gas for Cutting |
Oxygen, Nitrogen, Compressed Air |
| Compatible Software |
AutoCAD, CorelDraw, etc. |
| Handle Control |
Wireless Control Handle |
| Graphic Format |
DXF/PLT/AI/LXD/GBX/NC code |
| Power Supply Voltage |
220V 1Ph or 380V 3Ph, 50/60Hz |
| Warranty |
2 Years |
Machine configuration
|
|
|
Fiber laser cutting machine head
Raytools fiber laser cutting machine head Auto-focusing and height control for
automatic
punching and cutting of different thicknesses of plates
|
Fiber laser sourceRAYCUS 3000W is a high quality laser for fiber cutting machine applications. Also there are different brands as well as power lasers to choose from, the higher the power, the thicker the cutting thickness. |
|
|
|
Yaskawa Servo MotoHigh quality servo motor, realizing the closed-loop control of position, speed and torque; overcoming the problem of stepper motor out-of-step. With high speed performance, the general rated speed can reach 2000~3000 rpm. Strong adaptability: with strong overload resistance, the load is three times the rated torque, suitable for occasions with transient load fluctuations and the need for fast start . With high stability: smooth operation at low speed. |
CypCut control systemCypCut plane cutting software is a set of software specially developed for the deep customization of the laser cutting industry, easy to use, rich in functions, suitable for various processing occasions. |
|
|
|
Electrical CircuitsNeat circuitry, so that the machine's configuration is clear at a glance, more convenient to use |
High quality guide railsHiwin high quality guide rail, stable working condition, long service life, ensure the smooth operation of the machine |
Sample Show
Application
CNC fiber laser cutting machine for sale, versatile, can cut stainless steel, carbon steel, alloy steel, spring steel, copper plate, aluminum plate, gold, silver, titanium and other plates.
It is widely used in industries such as advertising, high voltage/low voltage electrical cabinet production, textile machinery parts, kitchen appliances, automobiles, machinery, elevators,
electrical parts, spring ring parts, subway line parts, etc.
Our Service
| 1 |
Software is on update for free whole life. |
| 2 |
Main parts be changed free of charge if there is any problem during the warranty period. |
| 3 |
We will provide the consumable parts at an agency price. |
| 4 |
We have user manual instruction and videos for software Installation, operation and machine's using and maintenance. |
| 5 |
We will supply 24 hours online after service, and free technical support. |
| 6 |
We debug the machine before shipment and carry out 12 hours working test to ensure the quality of the machine. |
| 7 |
We offer the service, from you got the machine, including how to install the machine, how to use machine, how to let machine work, and so on. |
