Product Description
Features:

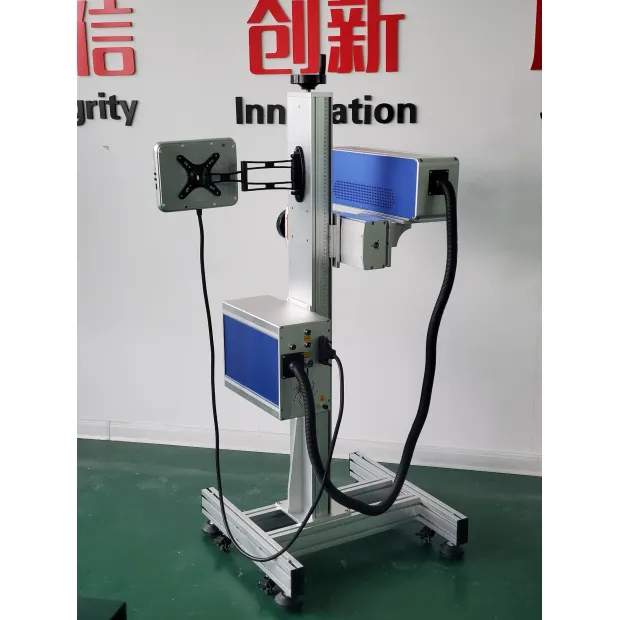

1.The heightened column design can adapt to various marking heights, and is convenient to combine into the assembly line marking operation.High-precision galvanometer, can be equipped with imported ZnSe field lens, the marking effect is more delicate and accurate.
2.With an encoder and a sensor, it can work with the assembly line conveyor belt.
3.High customizability, multiple modification potential, can be equipped with touch screen all-in-one computer.
4.Fast response, suitable for high-speed marking.
5.Fiber, UV, CO2 lasers are optional with different material.
Detailed picture:
Pulleys are in stalled at the bottom for easy movement.
Manual adjustment of column
Configuration:
|
| Laser source - Stable and reliable |
| BJJCZ J1000 Control card J1000 is equipped with a full-covering metal shell with strong anti-interference and abundant features. Its operating interface is simple and user-friendly. |
|
|
| Galvanometer The galvanometer has good operation stability, high positioning accuracy, fast marking speed and strong anti-interference ability. |
| Field Lens Working near the focal plane of the objective lens can effectively reduce the detector size. Improve the ability of the edge beam incident into the detector. |
|
 | Color LCD touch screen Easy and convenient for control the machine.No need additional computer |
| Column Aviation aluminum alloy material, high precision density scale, accurate view of positioning size. |  |
Machine Reference Parameters:
| Model | RF-CO2-30A | RF-CO2-35A | RF-CO2-40A |
| Laser output power | 33-38W | 38-40W | 43-45W |
| Laser source band | BOST | ||
| Laser wavelength | 10.6μm | ||
| Duty cycle | 0-100% | ||
| Frequency | 0-25KHz | ||
| Power stability rate | <±5% | ||
| Beam diameter | 1.8±0.2 | ||
| Divergence | <7.5mrad | ||
| Cooling type | Air cooling/water cooling | ||
| Dimension | 357*93*142mm/384*93*93mm | ||
| Marking area | 110*110mm-300*300mm(optional) | ||
| Marking depth | 0-3.0mm | ||
| Controller | Computer with marking software | ||
| Graphic Format Supported | AI, PLT, DXF, BMP, JPG,PNG,Dst, Dwg, LAS, DXP | ||
| Certification | CE | ||
| Supply voltage | AC110V 60HZ / AC220V 50HZ | ||
Optional accessories:
Sample Show:
Packing and Shipping:
1. Collect all accessories and spare parts one by one according to the order list, and double check all parts again to make sure all parts are included.
2. Our packaging standards:
+ thick cling film
+ six-sided pearl cotton
+ High strength wooden box
+ Pack the belt and then secure the machine to ensure the machine is safe during transport.
3. Paste the shipping mark to ensure that the buyer can easily identify the correct machine
4. A safety sign can be used to remind the transporter to keep our equipment in the course of transportation.
We will give away the following products for free：Inner Hexagon, Foot Switch, Power Cable, USB Flash Drive, Goggles,Ruler, Envelope.
Our Service:
| 1 | Software is on update for free whole life. |
| 2 | Main parts be changed free of charge if there is any problem during the warranty period. |
| 3 | We will provide the consumable parts at an agency price. |
| 4 | We have user manual instruction and videos for software Installation, operation and machine's using and maintenance. |
| 5 | We will supply 24 hours online after service, and free technical support. |
| 6 | We debug the machine before shipment and carry out 12 hours working test to ensure the quality of the machine. |
| 7 | We offer the service, from you got the machine, including how to install the machine, how to use machine, how to let machine work, and so on. |
