Product Description

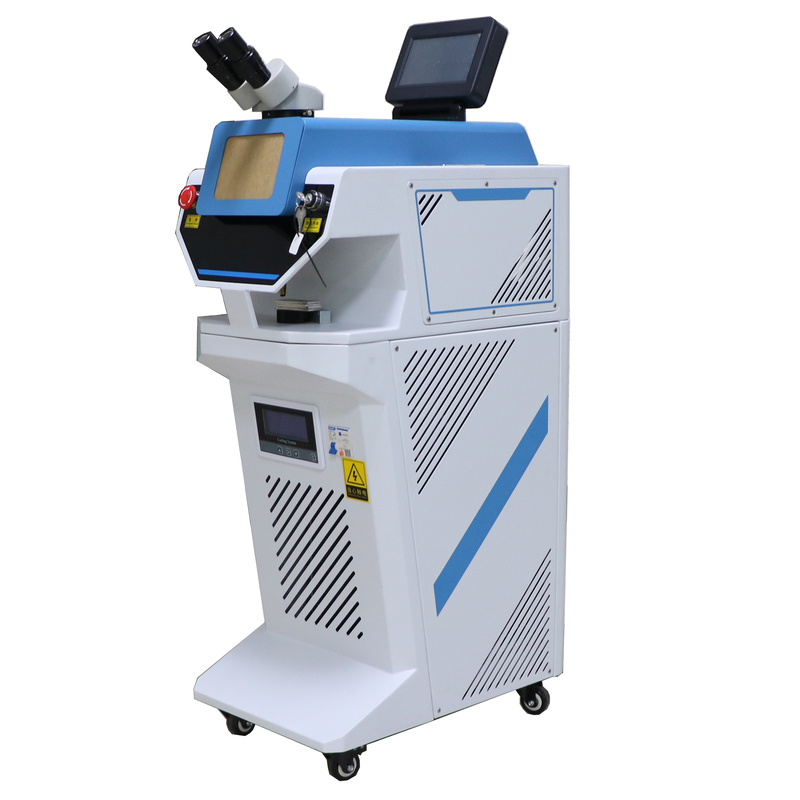

200W Jewelry Welding Machine
Jewelry laser welding machine designed for jewelry. Laser spot welding is one of the most important applications in material processing technology. By controlling parameters such as the width, energy, peak power and frequency of the laser pulse, the workpiece is melted and a special molten pool is formed. Due to its special advantages, it has been successfully used to process gold and silver jewelry and to weld tiny parts.
Support: 100W 200W 300W
Machine features
Desktop jewelry welding machine, small footprint, specifically for gold and silver jewelry, golf balls, electronic components to fill holes, spot welding trachoma, welding inlays and so on.
Welding firm, beautiful, no deformation, simple operation, easy to learn and easy to use, with fast speed, high efficiency, depth, small deformation, small heat-affected zone, etc., high welding quality, welded joints without pollution, green.
Energy, pulse width, frequency, spot size, etc. can be adjusted within a wide range to achieve a variety of welding effects. Parameters are adjusted by the control lever inside the closed cavity, simple and convenient operation
Adopting the world's advanced automatic light shielding system to avoid eye irritation during work.
The whole machine has 24 hours continuous working capacity, stable performance, maintenance-free within 10000 hours.Humanized design, in line with ergonomics, long working hours without
fatigue.
Machine parameters
| Laser Wavelength | 1064nm |
| Maximum laser power | 300W |
| Pulse Width | 0.1-10ms |
| Laser energy | 300J |
| Pulse Frequency | 1-20HZ |
| Adjusting scope of light spot | 0.3-3mm |
| Aim Operation | Red point |
| Cooling System | Built-in water chiller |
| Type of water | Purified water or distilled water |
| Machine total power | 3KW |
| Power Supply | AC220+10%V; single phase,50Hz/60Hz |
| Packing size | 101*59*70 88KG |
Machine Configuration

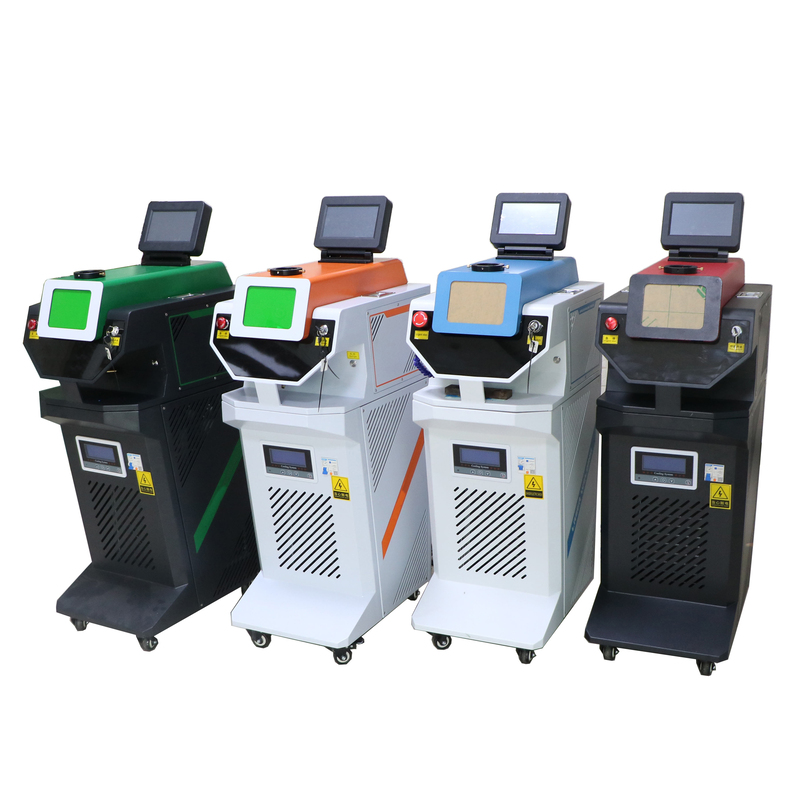

Machine Display
Samples:
Jewelry welding machines are commonly used in jewelry manufacturing and restoration industries
without causing thermal damage to the jewelry, maintaining the quality and appearance of the jewelry.
Jewelry Repair: the machine can be used to repair damaged parts in jewelry, such as reconnecting broken chains, repairing broken metal parts,
etc. It is capable of making fine welds so that the repaired jewelry looks as good as new.
Gemstone setting: A jewelry welding machine can also be used for the precise setting of gemstones. It can create tiny welds in metal jewelry,
ensuring that the gemstones are securely fastened to the jewelry while avoiding damage to the stones.
Jewelry customization: Jewelry manufacturers can achieve highly customized designs. It can accurately weld and assemble jewelry components
of different materials and shapes for personalized jewelry making.
Packaging and shipping：
Packing and shipping1. Collect all the accessories and spare parts, one by one, according to the order list, and double-check all the parts to make sure that all the parts are included.
2. Our packaging standards:
+ thick cling film
+ six-sided pearl cotton
+ High-strength wooden box
+ Packing the belt and then securing the machine to ensure the machine's safety during transportation.
3. Affix the transport mark to ensure that the buyer can easily identify the correct machine
4. A safety sign can be used to remind the carrier to keep our equipment during transportation.
