Product Description

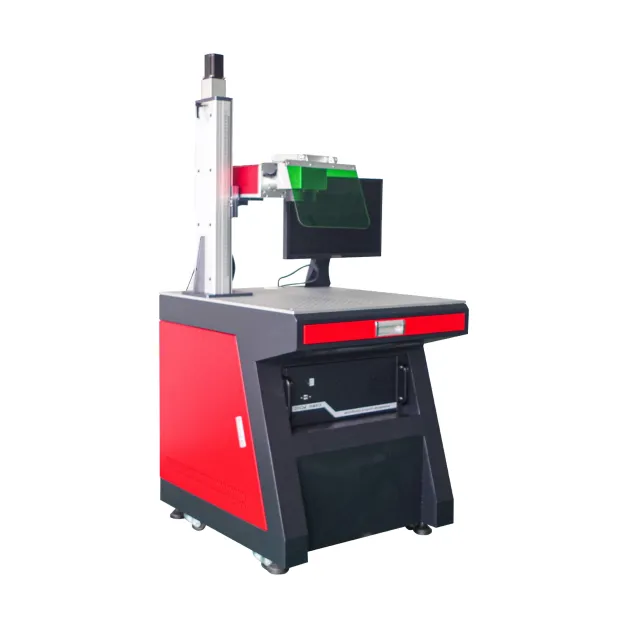

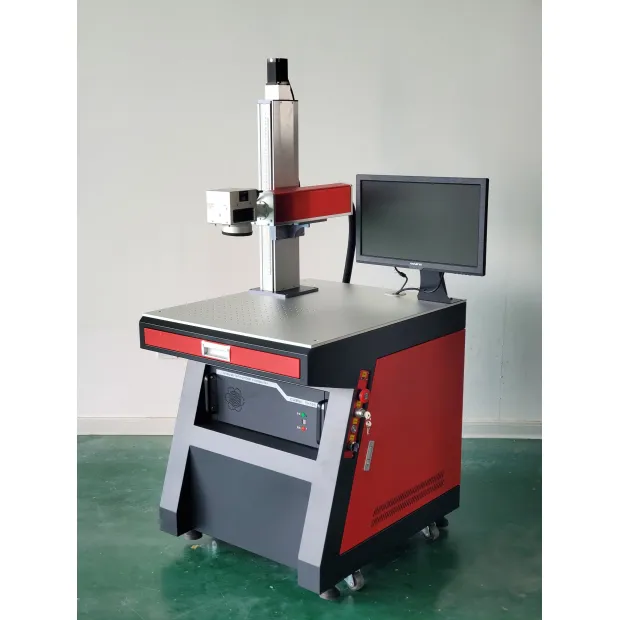

1. Desktop model, pulleys are in stalled at the bottom for easy movement.
2. Including computer monitor stand.
3. Full size Anodized Aluminum table bench.
4. Electrical Z-axis lift for quicker focus adjustment.
5. Single person can complete the whole operation.
Built-in electric lifting system, controlled by machine software, easy to control the focus positioning.
All-aluminium alloy table top to make the machine more sturdy.
With screw threads for easy fixing of items.
Storable drawer
Pull-out drawer for keyboard and mouse for easy operation.
Machine Size:
|
| Laser source Genuine JPT/Raycus/Max lasers, each with anti-counterfeiting code. |
|
| EZCAD2 Control card Genuine EZCAD2 control system compatible with win7/8/10. Stable motion control, laser control is correspondingly fast. |
|
| Galvanometer The galvanometer has good operation stability, high positioning accuracy, fast marking speed and strong anti-interference ability. |
|
| Field Lens Working near the focal plane of the objective lens can effectively reduce the detector size. Improve the ability of the edge beam incident into the detector. |
 | Column Aviation aluminum alloy material, high precision density scale, accurate view of positioning size. |
| Laser output power | 100W/200W/300W |
| Laser type | Fiber |
| Laser source band | RAYCUS/ JPT/ MAX |
| Laser wavelength | 1064nm |
| Laser beam quality | <1.6 |
| Max pulse energy(mj) | 1 |
| Pulse duration(ns) | 50-110 |
| Pulse repetition rate range(KHZ) | 20-200 |
| Min. Character size | 0.2mm |
| Repetition Accuracy | <8μrad |
| Power consumption | 170W |
| Cooling type | Air cooling |
| Marking area | 75-300mm （option） |
| Max working speed | 8000mm/s |
| Laser spot (110x110) | 25.4μm |
| Supply voltage | AC110V 60HZ / AC220V 50HZ |
| Focus type | Double red light |
1. Collect all accessories and spare parts one by one according to the order list, and double check all parts again to make sure all parts are included.
2. Our packaging standards:
+ thick cling film
+ six-sided pearl cotton
+ High strength wooden box
+ Pack the belt and then secure the machine to ensure the machine is safe during transport.
3. Paste the shipping mark to ensure that the buyer can easily identify the correct machine
4. A safety sign can be used to remind the transporter to keep our equipment in the course of transportation.
| 1 | Software is on update for free whole life. |
| 2 | Main parts be changed free of charge if there is any problem during the warranty period. |
| 3 | We will provide the consumable parts at an agency price. |
| 4 | We have user manual instruction and videos for software Installation, operation and machine's using and maintenance. |
| 5 | We will supply 24 hours online after service, and free technical support. |
| 6 | We debug the machine before shipment and carry out 12 hours working test to ensure the quality of the machine. |
| 7 | We offer the service, from you got the machine, including how to install the machine, how to use machine, how to let machine work, and so on. |
