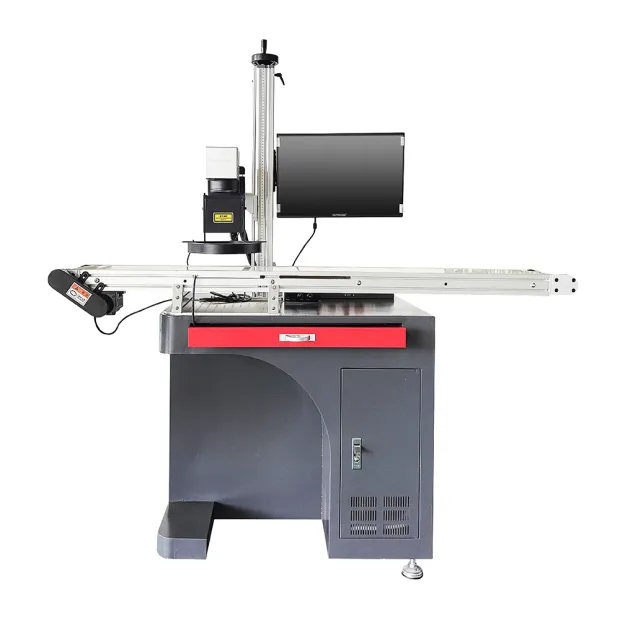

Product Description
Features:
1.Pulleys are in stalled at the bottom for easy movement.
2.Computer,conveyor belt,marking machine Integrated design.
3.CCD vision camera,automatic identification and automatic positioning.
4.Improve engraving speed and efficiency with conveyor belt.
5.Production line marking possible.
6.Suitable for marking large quantities of items.
7.Accurate calculation and less deviation.
8.Single person can complete the whole operation.
9.Using JPT mopa laser machine, metal color marking can be achieved.
Application advantages of assembly line visual laser marking machine:
It is suitable for occasions with large workload, difficult feeding positioning, simplified procedures, diverse workpieces and complex curved surfaces. It is widely used in various industries.
Configuration:
| Laser source Has a service life of over 70000 hours. |
EZCAD2 Control card Genuine EZCAD2 control system compatible with win7/8/10. Stable motion control, laser control is correspondingly fast. |
|
| Galvanometer The galvanometer has good operation stability, high positioning accuracy, fast marking speed and strong anti-interference ability. |
Field Lens Working near the focal plane of the objective lens can effectively reduce the detector size. Improve the ability of the edge beam incident into the detector. |
|
| CCD (Vision camera) laser marking machine - Automatic identification and precise positioning. - Accurate calculation, smaller deviation. - It can cooperate with the conveyor belt to improve the carving speed and efficiency. |
| Touch-screen computer Color LCD touch screenEasy and convenient for control the machine.No need additional computer. |  |
Machine Reference Parameters
Model | RF-F-20W | RF-F-30W | RF-F-60W |
Laser output power | 20W | 30W | 60W |
Laser source band | JPT mopa | ||
Laser wavelength | 1064nm | ||
Laser beam quality | <1.4 | <1.5 | |
Max pulse energy(mj) | 0.8 | 1.5 | |
Pulse duration(ns) | 2-350 | ||
Pulse repetition rate range(kHZ) | 1-4000 | ||
Min. Character size | 0.2mm | ||
Repetition Accuracy | <8μrad | ||
Power consumption | 170W | ||
Cooling type | Air cooling | ||
Marking area | 75-300mm （option） | ||
Max working speed | 8000mm/s | ||
Laser spot (110x110) | 25.4μm | ||
Graphic Format Supported | AI, PLT, DXF, BMP,JPG,PNG,Dst, Dwg, LAS, DXP | ||
Mode of Operation | Pulsed | ||
Certification | CE | ||
Warranty | 2 years | ||
Supply voltage | AC110V 60HZ / AC220V 50HZ | ||
Focus type | Double red light | ||
Optional accessories
Sample Show
Packing and Shipping
1.Multi-layer winding film, strong winding, transport does not shake.
2.Thick plywood, manual sealing.
3.Adopt the best pearl cotton to reduce the vibration during transportation.
4.After sealing the case, use the steel belt to seal the Angle and affix the corresponding shipping mark.
5.We have a variety of delivery methods, machine parts, 40-80kg machine can be considered express and air freight. Large machines and more than one machine are recommended to be transported by sea or train.
We will give away the following products for free：
1 | Inner Hexagon |
2 | Foot Switch |
3 | Power Cable |
4 | USB Flash Drive |
5 | Goggles |
6 | 60CM Ruler |
7 | Laser Inspect Report |
Our Service
1.Software is on update for free whole life.
2.Main parts be changed free of charge if there is any problem during the warranty period.
3.We will provide the consumable parts at an agency price.
4.We have user manual instruction and videos for software Installation, operation and machine's using and maintenance.
5.We will supply 24 hours online after service, and free technical support.
6.We debug the machine before shipment and carry out 12 hours working test to ensure the quality of the machine.
7.We offer the service, from you got the machine, including how to install the machine, how to use machine, how to let machine work, and so on.
